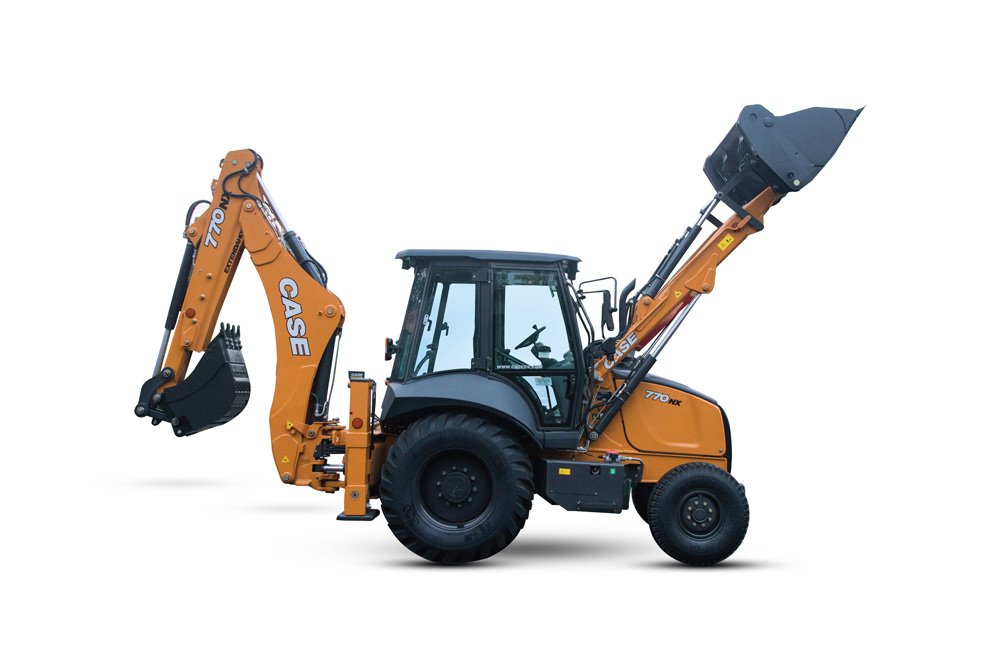

    Case 770 NX Magnum CEV5 Backhoe Loader

    Case 770 NX magnum
    CASE JCB
    CASE JCB

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Case

    • Type

      2WD/4WD

    • Operating Cost

      ₹ 36 - 40 Lakhs

    • Ex-Showroom Price

      ₹ 36 - 40 Lakhs

    • Engine

      CNH 74 HP

    • featIcon2 (1) alt
      Bucket

      0.30 m³

    • shovel-icon1 alt
      Shovel

      1.1 m³

    • Digging Depth

      4700 mm

    • dumping height loader
      Dump Height

      2730 mm

    • icon alt1
      Weight

      7700 kg

    Quick Overview:

    Case 770 NX Magnum backhoe loader meets CEV Stage V norms, offering smart design, durability, operator comfort, and reliable construction site performance.

    Connect With Us:

    Looking for the best price on a Case 770 NX Magnum backhoe loader? Connect with authorized dealers today for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    CNH Industrial (India) F28-CF28A001A*U

    Fuel Tank

    129 L

    Max Torque

    375 Nm @ 1400 RPM

    Max Speed

    34.0 km/hr

    Hydraulic System

    143 L/min

    Max Working Height

    5700 mm

    Excavator Max Lift Capacity

    1477 kg

    Loader Load Over Height

    3300 mm

    Overall Length

    5960 mm

    Wheel Base

    2180 mm

    Bucket Digging Force

    5250 kgf (204°) / 6550 kgf (160°)

    Shovel Break Out Force

    5650 kgf

    Warranty

    1 Year

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    A Legacy of High Performance

    A Legacy of High Performance

    • Renowned and highly efficient FPT engine - Made in Bharat, Globally proven

    • Low emission, CEV Stage V Compliant

    • Auto Idle & Auto Shutdown - Cuts fuel wastage

    • 50% lower Lube oil consumption - Low maintenance

    • Hydraulic lash adjustment, no tappet setting - Low maintenance

    • Self-stretchy belt solution - Economical & Low maintenance

    Comfortable Operator Station

    Comfortable Operator Station

    • Spacious cabin with near 360° visibility, improved ergonomics

    • New LED colored display cum Cluster with Smart audio-visual warnings

    • Six way adjustable and Comfortable seat with armrests

    • Big exterior and interior Rear-view mirrors

    • Cushioned, resized steering wheel & knob

    • New Radio-Music system with handsfree Bluetooth

    • Ride-By-Wire Throttles - Hand and Foot, Smooth speed adjustment

    • USB Charging facility for Phones

    • New HVAC Cabin for tropical comfort

    • Full Top covered Plastic Roof as option

    • Large split buddy seat with lockable storage; cooled glove box in HVAC model

    Enhanced Safety Features

    Enhanced Safety Features

    • Sturdy ROPS FOPS Cabin

    • Engine protection shutdown for low downtime and low repair costs

    • New Battery cut-off switch in a secured and dust-free battery compartment

    • Electromagnetic immunity & compatibility - electronic functional safety

    • Improved Fully enclosed engine compartment

    • Improved visibility, tipping, and loading height

    • Very Low internal and external noise emission by Vehicle

    Better Reliability & Versatality

    Better Reliability & Versatality

    • Robotically welded, Wider & Stronger Boom, Swing tower for heavy duty

    • Abrasion protected plumbing & Concealed hose for Improved life

    • New Stabiliser wear pad type design - Longer service life

    • Increased ground clearance at King-Post

    • Triple stage fuel filtration - Cleaner fuel, Longer engine life

    • New robust electrical switches

    • Dual Power & Torque curve on Same machine - Efficiency & Power focussed, adjustable as per demand

    • Improved Cold start upto-20°C & high altitude

    • Easy - Field kit for Cold Start

    • Dual mounts - ECO and PWR on Backhoe Bucket to suit breakout force demand of the site

    • LED worklamps - enhanced illuminations for job sites

    Backhoe & Loader Productivity

    Backhoe & Loader Productivity

    • Simultaneous backhoe operations with Smart hydraulics ECO (60hp), STD and POWER (74hp) Modes for Backhoe Side

    • Wide range of bucket options as per site need

    • Standard lifting hook for material handling like pipe laying & towing

    • High Fill: Spill factor & Productivity backhoe buckets

    • Dual modes for Loader operations

    • Spill proof loader buckets in 1.1 cu.mand 1.2 cu.m

    • Best in class loader performance and visibility

    Smart Design & New Gen of Telematics

    Smart Design & New Gen of Telematics

    • 4,000 Hrs Hydraulic Oil change interval

    • Variable Flow Pump with Electronic Intelligence - Saves energy & Delivers power when needed

    • Integrated smart lock on Hydraulic tank filler cap

    • Robust new Engine hood design with secure locking

    • New Hydraulic oil tank with lockable battery compartment

    • Easy to read -New Oil level tubular gauge protected all around

    • Greasing for Swing tower & Loader anti roll bar optimised

    • Quick Jump start provision for emergencies

    • Enhanced monitoring and streamlined operations with my CASE Construction Telematics

    • Boosted productivity through efcient resource allocation with fleet management

    • Improved safety and security with advanced tracking and recovery capabilities

    • Real-time data and downtime reduction for superior customer service

    • Data-driven decision making for increased protability

    A Legacy of High Performance

    • Renowned and highly efficient FPT engine - Made in Bharat, Globally proven

    • Low emission, CEV Stage V Compliant

    • Auto Idle & Auto Shutdown - Cuts fuel wastage

    • 50% lower Lube oil consumption - Low maintenance

    • Hydraulic lash adjustment, no tappet setting - Low maintenance

    • Self-stretchy belt solution - Economical & Low maintenance

    Comfortable Operator Station

    • Spacious cabin with near 360° visibility, improved ergonomics

    • New LED colored display cum Cluster with Smart audio-visual warnings

    • Six way adjustable and Comfortable seat with armrests

    • Big exterior and interior Rear-view mirrors

    • Cushioned, resized steering wheel & knob

    • New Radio-Music system with handsfree Bluetooth

    • Ride-By-Wire Throttles - Hand and Foot, Smooth speed adjustment

    • USB Charging facility for Phones

    • New HVAC Cabin for tropical comfort

    • Full Top covered Plastic Roof as option

    • Large split buddy seat with lockable storage; cooled glove box in HVAC model

    Enhanced Safety Features

    • Sturdy ROPS FOPS Cabin

    • Engine protection shutdown for low downtime and low repair costs

    • New Battery cut-off switch in a secured and dust-free battery compartment

    • Electromagnetic immunity & compatibility - electronic functional safety

    • Improved Fully enclosed engine compartment

    • Improved visibility, tipping, and loading height

    • Very Low internal and external noise emission by Vehicle

    Better Reliability & Versatality

    • Robotically welded, Wider & Stronger Boom, Swing tower for heavy duty

    • Abrasion protected plumbing & Concealed hose for Improved life

    • New Stabiliser wear pad type design - Longer service life

    • Increased ground clearance at King-Post

    • Triple stage fuel filtration - Cleaner fuel, Longer engine life

    • New robust electrical switches

    • Dual Power & Torque curve on Same machine - Efficiency & Power focussed, adjustable as per demand

    • Improved Cold start upto-20°C & high altitude

    • Easy - Field kit for Cold Start

    • Dual mounts - ECO and PWR on Backhoe Bucket to suit breakout force demand of the site

    • LED worklamps - enhanced illuminations for job sites

    Backhoe & Loader Productivity

    • Simultaneous backhoe operations with Smart hydraulics ECO (60hp), STD and POWER (74hp) Modes for Backhoe Side

    • Wide range of bucket options as per site need

    • Standard lifting hook for material handling like pipe laying & towing

    • High Fill: Spill factor & Productivity backhoe buckets

    • Dual modes for Loader operations

    • Spill proof loader buckets in 1.1 cu.mand 1.2 cu.m

    • Best in class loader performance and visibility

    Smart Design & New Gen of Telematics

    • 4,000 Hrs Hydraulic Oil change interval

    • Variable Flow Pump with Electronic Intelligence - Saves energy & Delivers power when needed

    • Integrated smart lock on Hydraulic tank filler cap

    • Robust new Engine hood design with secure locking

    • New Hydraulic oil tank with lockable battery compartment

    • Easy to read -New Oil level tubular gauge protected all around

    • Greasing for Swing tower & Loader anti roll bar optimised

    • Quick Jump start provision for emergencies

    • Enhanced monitoring and streamlined operations with my CASE Construction Telematics

    • Boosted productivity through efcient resource allocation with fleet management

    • Improved safety and security with advanced tracking and recovery capabilities

    • Real-time data and downtime reduction for superior customer service

    • Data-driven decision making for increased protability

    Specifications

    Product specification of Case 770 NX Magnum CEV5 Backhoe Loader

    ENGINE

    • Model

      CNH Industrial (India) F28-CF28A001A*U

    • Type

      CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection

    • Gross Power

      74 HP (54.6 kW) @ 2200 RPM

    • Max Torque

      375 Nm @ 1400 RPM

    • Displacement

      2.80 L

    • Battery

      12V / 110 Ah

    • Alternator

      NA

    TRANSMISSION

    • Type

      CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

    STEERING

    • Type

      Power Steering

    • Working Pressure

      140 bar

    STEERING TURNING CIRCLE

    • Inner Wheels Braked - Outside Loader Bucket

      4600 mm (2WD) / 4900 (4WD)

    • Inner Wheels Braked - Outside Wheels

      NA

    • Inner Wheels not Braked - Outside Loader Bucket

      5500 mm (2WD) / 5600 mm (4WD)

    • Inner Wheels not Braked -Outside Wheels

      NA

    BRAKES

    • Service

      Hydraulic foot operated, 2 disc per side

    • Parking

      Mechanically actuated calipper type brake pack on rear axle input shaft

    TYRES

    • Front

      9x16 - 16 PR (2WD) / 12.5 x 18 -12 PR (4WD)

    • Rear

      16.9 x 28 - 12 PR

    SPEED

    • Forward- 1st gear

      5.7 km/hr

    • Reverse- 1st gear

      7.0 km/hr

    • Forward- 2nd Gear

      9.3 km/hr

    • Reverse- 2nd Gear

      11.5 km/hr

    • Forward- 3rd gear

      19.5 km/hr

    • Reverse- 3rd gear

      Not Recommended

    • Forward- 4th gear

      34.0 km/hr

    • Reverse- 4th gear

      Not Recommended

    HYDRAULICS

    • Type

      Open Center Load Sensing, Variable Displacement Pump

    • Maximum Pump Flow

      143 L/min

    • System Pressure

      250 bar

    AXLES

    • Rear Axle

      CARRARO 28.32M

    • Front Axle

      CNH PS1300 (2WD) CARARRO / NH 26.17M (4WD

    SERVICE CAPACITIES

    • Fuel Tank

      129 L

    • Engine Coolant

      10 L

    • Engine Oil

      8.5 L

    • Hydraulic Tank

      NA

    • Hydraulic System

      96 L

    • Transmission

      18 L (2WD) / 20 (4WD)

    • Rear Axle

      17.1 L

    EXCAVATOR PERFORMANCE

    • Maximum Digging Depth

      4700 mm

    • Reach-Ground Level to Rear Wheel Centre

      7220 mm

    • Reach-Ground Level to Slew Centre

      5900 mm

    • Reach at Full Height to Slew Centre

      2400 mm

    • Side Reach to Centre Line of Machine

      NA

    • Maximum Working Height

      5700 mm

    • Maximum Load Over Height

      3800 mm

    • Bucket Rotation Angle

      204° & 160°

    • Bucket Digging force

      5250 kgf (204°) / 6550 kgf (160°)

    • Arm Digging force

      3900 kgf

    • Maximum Lift Capacity

      1477 kg

    • Standard Bucket Capacity

      0.30 m³

    • Standard Bucket Width

      NA

    LOADER PERFORMANCE

    • Dump Height

      2730 mm

    • Load Over Height

      3300 mm

    • Pin Height

      3600 mm

    • Pin Forward Reach

      240 mm

    • Reach at Ground

      1980 mm

    • Maximum Reach at Full Height

      1190 mm

    • Maximum Reach at Full Height - Bucket Dumped

      760 mm

    • Below Ground Level Dig Depth

      110 mm

    • Rollback at Ground

      33°

    • Dump Angle

      45°

    • Shovel Breakout Force

      5400 kgf

    • Loader Arm Breakout Force

      5650 kgf

    • Maximum Payload

      1925 kg

    • Standard Shovel Capacity

      1.1 m³

    OVERALL DIMENSIONS & WEIGHT

    • Machine Weight

      7700 kg

    • Overall Length

      5960 mm

    • Wheelbase

      2180 mm

    • Slew Centre to Rear Axle Centre

      NA

    • Minimum Ground Clearance

      380 mm

    • Slew Ground Clearance

      NA

    • Height of Cabin

      2830 mm

    • Overall Height

      3850 mm

    • Track width - Rear

      1700 mm

    • Track width - Front

      1880 mm

    • Width Over Bucket

      2280 mm

    Frequently Asked Question

    01. What is the CASE 770 NX Magnum backhoe loader price in India?

    Ans.

    The CASE 770 NX Magnum backhoe loader price in India ranges between ₹ 36-40 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

    02. Where can I buy CASE 770 NX Magnum backhoe loader in India?

    Ans.

    You can buy the CASE 770 NX Magnum backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the CASE 770 NX Magnum backhoe loader come with financing and insurance options?

    Ans.

    Yes, the CASE 770 NX Magnum backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the mileage of CASE 770 NX Magnum backhoe loader?

    Ans.

    The mileage of the CASE 770 NX Magnum backhoe loader typically ranges between 3 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

    05. What is the engine power of CASE 770 NX Magnum backhoe loader?

    Ans.

    The CASE 770 NX Magnum backhoe loader is powered by a CNH Industrial (India) F28-CF28A001A*U (BS-V) diesel engine, delivering 74 HP (54.6 kW) @ 2200 RPM.

    06. What is the weight of CASE 770 NX Magnum backhoe loader?

    Ans.

    The weight of the CASE 770 NX Magnum backhoe loader is approximately 7700 kg. The weight may vary slightly depending on specific configurations and attachments.

    07. What is the fuel tank capacity of the CASE 770 NX Magnum backhoe loader?

    Ans.

    The CASE 770 NX Magnum backhoe loader has a 129 litres diesel fuel tank, providing extended operation time without frequent refuelling.

    08. What is the maximum digging depth of CASE 770 NX Magnum backhoe loader?

    Ans.

    The CASE 770 NX Magnum backhoe loader has a maximum digging depth of 4700 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    09. What is the loader bucket capacity of the CASE 770 NX Magnum ?

    Ans.

    The loader bucket capacity of the CASE 770 NX Magnum is 1.1 cubic meters (m³).

    10. What is the backhoe bucket capacity of the CASE 770 NX Magnum backhoe loader?

    Ans.

    The backhoe bucket capacity of the CASE 770 NX Magnum is 0.30 cubic meters (m³).

    11. What is the warranty period of CASE 770 NX Magnum backhoe loader?

    Ans.

    The CASE 770 NX Magnum backhoe loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    12. How many gears are available in CASE 770 NX Magnum backhoe loader?

    Ans.

    The CASE 770 NX Magnum backhoe loader features a synchro shuttle transmission with a synchronized gearbox, offering 4 forward and 4 reverse speeds

    13. Where can I find spare parts for the CASE 770 NX Magnum backhoe loader?

    Ans.

    You can find genuine spare parts for the CASE 770 NX Magnum backhoe loader at authorized CASE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.

    Popular Comparisons with Case 770 NX Magnum CEV5

    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    Escorts Kubota

    E-Kubota BLX75

    4.5 rating
    ₹ 38 - 40 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    mahindra earthmaster vx
    Mahindra CE

    Mahindra Earthmaster VX BS-5

    4.5 rating
    ₹ 35 - 37 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    Mahindra Earthmaster SX
    Mahindra CE

    Mahindra Earthmaster SX BS-5

    4.5 rating
    ₹ 35 - 37 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    Case jcb, CAse 851 NX
    Case

    Case 851 NX CEV5

    4.5 rating
    ₹ 36 - 39 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    CASE JCB, CASE 770 NX
    Case

    Case 770 NX CEV5

    4.5 rating
    ₹ 35 - 37 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-manitou-mbl-745-ht-ranger-featured
    Manitou

    Manitou MBL 745 HT Ranger BSV

    4.5 rating
    ₹ 36-38 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-manitou-mbl-745-ht-featured
    Manitou

    Manitou MBL 745 HT BS-V

    4.5 rating
    ₹ 29-32 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    Manitou JCB
    Manitou

    Manitou MBL 745 HT+ BS-V

    4.5 rating
    ₹ 31-33 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-escorts-digimax-super-featured
    Escorts Kubota

    Escorts Digmax Super

    4.5 rating
    ₹ 35-37 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    cat jcb price
    Caterpillar

    Caterpillar 424

    4.5 rating
    ₹ 34-35 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-case-ex-featured
    Case

    CASE 770 EX

    4.5 rating
    ₹ 25-27 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-case-ex-plus-featured
    Case

    CASE 770 EX Plus

    4.5 rating
    ₹ 27-32 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-ace-ax-130-featured
    ACE

    ACE AX 130

    4.5 rating
    ₹ 17-24 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    des-machines-ace-ax-124-bsv-backhoe-loader-featured
    ACE

    ACE AX 124

    4.5 rating
    ₹ 23-31 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-jcb-4dx-featured
    JCB

    JCB 4DX

    4.5 rating
    ₹ 36-40 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-jcb-3dx-super-featured
    JCB

    JCB 3DX Super

    4.5 rating
    ₹ 34-36 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-jcb-3dx-xtra-featured
    JCB

    JCB 3DX Xtra

    4.5 rating
    ₹ 32-34 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-jcb-3dx-featured
    JCB

    JCB 3DX

    4.5 rating
    ₹ 34-36 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-jcb-3dx-plus-featured
    JCB

    JCB 3DX Plus

    4.5 rating
    ₹ 30-32 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-bull-hd76-bs4-heavy-duty-featured
    Bull

    Bull HD76 BS4 Heavy Duty

    4.5 rating
    ₹ 30-35 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-tata-hitachi-shinrai-prime-featured
    Tata Hitachi

    Tata Hitachi Shinrai Prime CEV 5

    4.5 rating
    ₹ 33-35 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-bull-sd76-bs5-super-smart-backhoe-loader-featured
    Bull

    Bull SD76 BS5 Super Smart

    4.5 rating
    ₹ 34-35 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-bull-ch76-challenger-featured
    Bull

    Bull CH76 Challenger

    4.5 rating
    ₹ 26-28 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-bull-sd76-bs4-champion-featured
    Bull

    Bull SD76 BS4 Champion

    4.5 rating
    ₹ 30-32 Lakhs
    2WD/4WD
    Compare
    VS
    Case 770 NX magnum
    Case

    Case 770 NX Magnum CEV5

    4.5 rating
    ₹ 36 - 40 Lakhs
    2WD/4WD
    desi-machines-backhoe-loader-bull-grandia-featured
    Bull

    Bull Grandia

    4.5 rating
    Price Available Soon
    2WD/4WD
    Compare

    Are you interested in buying Case 770 NX Magnum CEV5 Backhoe Loader

      Note: Uncheck if you're not interested in finance or insurance deals.

      Products

      Related Backhoe Loader

      Case jcb, CAse 851 NX
      Case 851 NX CEV5
      • Engine
        CNH 74 HP
      • featIcon2 (1) alt
        Bucket
        0.36 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      ₹ 36 - 39 Lakhs*
      2WD/4WD

      Case 851 NX CEV5

      ₹ 36 - 39 Lakhs *

      Case 851 NX CEV5

      ₹ 36 - 39 Lakhs *

      Designed for tough applications, the Case 851 NX Backhoe Loader now follows CEV-5 norms. It offers cleaner operation along with reliable heavy-duty capability and comfort for the operator.
      • Engine
        CNH 74 HP
      • featIcon2 (1) alt
        Bucket
        0.36 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      • Dig. Depth
        4700 mm
      • dumping height loader
        Dump Height
        2720 mm
      • icon alt1
        Weight
        7800 kg
      Compare
      CASE JCB, CASE 770 NX
      Case 770 NX CEV5
      • Engine
        CNH 74 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      ₹ 35 - 37 Lakhs*
      2WD/4WD

      Case 770 NX CEV5

      ₹ 35 - 37 Lakhs *

      Case 770 NX CEV5

      ₹ 35 - 37 Lakhs *

      CEV-5 compliant, the Case 770 NX Backhoe Loader is known for its reliability, usability, and strong performance on modern construction sites.
      • Engine
        CNH 74 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      • Dig. Depth
        4400 mm
      • dumping height loader
        Dump Height
        2730 mm
      • icon alt1
        Weight
        7600 kg
      Compare
      desi-machines-backhoe-loader-case-ex-featured
      CASE 770 EX
      • Engine
        Ashok Leyland 74 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      ₹ 25-27 Lakhs*
      2WD/4WD

      CASE 770 EX

      ₹ 25-27 Lakhs *

      CASE 770 EX

      ₹ 25-27 Lakhs *

      Designed for power and durability, the CASE 770 EX backhoe loader delivers efficient performance with a robust engine and advanced features.
      • Engine
        Ashok Leyland 74 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      • Dig. Depth
        4440 mm
      • dumping height loader
        Dump Height
        2730 mm
      • icon alt1
        Weight
        7780 Kg
      Compare
      desi-machines-backhoe-loader-case-ex-plus-featured
      CASE 770 EX Plus
      • Engine
        Ashok Leyland 74 HP
      • featIcon2 (1) alt
        Bucket
        0.30 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      ₹ 27-32 Lakhs*
      2WD/4WD

      CASE 770 EX Plus

      ₹ 27-32 Lakhs *

      CASE 770 EX Plus

      ₹ 27-32 Lakhs *

      The CASE 770 EX Plus backhoe loader ensures higher lifting capacity, improved breakout force, and exceptional efficiency for tough job site conditions.
      • Engine
        Ashok Leyland 74 HP
      • featIcon2 (1) alt
        Bucket
        0.30 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      • Dig. Depth
        4700 mm
      • dumping height loader
        Dump Height
        2730 mm
      • icon alt1
        Weight
        7955 Kg
      Compare
      desi-machines-backhoe-loader-case-nxe-featured
      CASE 770 NXe Series
      • Engine
        FPT 49.5 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      ₹ 22-24 lakh*
      2WD

      CASE 770 NXe Series

      ₹ 22-24 lakh *

      CASE 770 NXe Series

      ₹ 22-24 lakh *

      The CASE 770 NXe backhoe loader offers superior fuel efficiency, advanced hydraulics, and enhanced operator comfort for maximum productivity.
      • Engine
        FPT 49.5 HP
      • featIcon2 (1) alt
        Bucket
        0.26 m³
      • shovel-icon1 alt
        Shovel
        1.1 m³
      • Dig. Depth
        4400 mm
      • dumping height loader
        Dump Height
        2720 mm
      • icon alt1
        Weight
        7610 Kg
      Compare

      About CASE Construction

      Case Construction Equipment (Case CE) is a worldwide leader in construction equipment, offering creative, long-lasting, and efficient solutions for construction, infrastructure, and mining. Famous for performance and sustainability, Case CE manufactures equipment like backhoe loaders, dozers, graders, and excavators to meet various industry requirements. The organization focuses on modern technologies, including energy-saving systems, ergonomic designs, and telematics, increasing productivity while reducing costs that cater to customer satisfaction. Case CE focuses on the operator’s comfort and environment-friendly design.

      Product Portfolio: Excavators, Backhoe Loaders, Motor Graders

      Read More
      CASE Construction

      Related Blogs

      desi-machines-escorts-backhoe-loader-price-in-india

      Escorts Backhoe Loaders – Made for Indian Terrains

      Summary Escorts Kubota backhoe loaders are engineered for India’s demanding...

      Read More
      Jul 01, 2025
      desi machines wheel loader vs backhoe

      Wheel Loader vs Backhoe Loader: Understanding the Key Differences

      Summary: This blog compares backhoe loaders and wheel loaders, detailing...

      Read More
      Jun 17, 2025
      desi machines jcb 3dx vx mahindra vx backhoe loader which one is better for your project

      Comparing JCB 3DX vs Mahindra EarthMaster VX – Which is Better?

      Summary Thinking of purchasing a backhoe loader but stuck between...

      Read More
      Jun 04, 2025
      desi machines mahindra earthmaster backhoe loaders 10 Reasons ontractors prefer them

      Top 10 Reasons to Choose Mahindra EarthMaster Backhoe Loaders

      Summary: The Mahindra EarthMaster backhoe loader series stands out in...

      Read More
      Jun 04, 2025
      desi machines jcb backhoe loaders dominating india construction equipment market

      JCB Backhoe Loaders: Why They're the Industry Standard in India and Beyond

      Summary: JCB backhoe loaders dominate India’s construction sector with unmatched...

      Read More
      May 28, 2025
      desi-machines-jcb-vscat-case-backhoe-loader-blog

      JCB vs CAT vs CASE: Which Backhoe Loader is Best for Indian Conditions?

      Summary: This comparison of JCB, CAT, and CASE backhoe loaders...

      Read More
      Apr 18, 2025
      desi-machines-how-to-operate-backhoe-loader-safely

      How to Operate a Backhoe Loader with Safety Tips

      Summary: This blog explains how to operate a backhoe loader...

      Read More
      Apr 17, 2025
      steptodown.com828054

      Top 5 Backhoe Loader Brands in India – Popular Models & Their Price

      Summary: This blog highlights the top 5 backhoe loaders in...

      Read More
      Apr 15, 2025
      desi-machines-top-backhoe-loader-manufacturers

      Top Backhoe Loader Manufacturers in India: A Comprehensive Guide

      Summary: This blog explores the top backhoe loader manufacturers in...

      Read More
      Apr 11, 2025
      steptodown.com728796

      How the Backhoe Loader Works – Key Functions Explained

      Summary: Backhoe loaders are versatile excavation machines that combine the...

      Read More
      Mar 18, 2025
      steptodown.com595432

      Backhoe Loader Purchase Guide – What You Should Know

      Summary: Choosing the right backhoe loader is essential for efficient...

      Read More
      Mar 18, 2025
      steptodown.com783121

      How to Choose the Right Backhoe Loader? A Comprehensive Guide

      Summary: Choosing the right backhoe loader boosts safety and productivity...

      Read More
      Mar 18, 2025
      steptodown.com719465

      Role of Backhoe Loaders in Urban Construction

      Summary:  Backhoe loaders play a vital role in urban construction...

      Read More
      Mar 17, 2025
      desi-machines-backhoe-loader

      What Is A Backhoe Loader? Its Uses and Benefits

      Summary: A backhoe loader is a versatile construction excavator combining...

      Read More
      Mar 17, 2025
      desi machines How is it Beneficial to Buy from Desi Machines Rather Than Directly from Brands

      Benefits of Buying Construction Equipment from Desi Machines over Brands

      Summary: Desi Machines offers a smarter way to buy heavy...

      Read More
      Feb 04, 2025
      desi-machines-what-is-off-highway-vehicle-blog-banner

      What is an Off-Highway Vehicle (OHV)? (A Complete Guide)

      Summary: Off-highway vehicles (OHVs) like excavators, backhoe loaders, and poclain...

      Read More
      Jan 31, 2025
      desi machines how to buy heavy construction equipment from different states in india availability delivery and tax tips

      Buying Heavy Machinery Across States in India: Key Benefits, Delivery, and GST Guide

      Summary: Buying a construction or excavation machine like a JCB...

      Read More
      Jan 31, 2025
      desi-machines-how-much-don-payment-blog-banner

      How Much Down Payment Do You Need Buying Construction Equipment?

      Summary: Buying an excavation machine, excavator machine, or mini excavator...

      Read More
      Jan 28, 2025
      desi-machines-blog-insurance

      What Kind of Insurance Should You Buy to Protect Construction Equipment?

      Summary: Protecting your excavation machine, excavator machine, mini excavator, or...

      Read More
      Jan 28, 2025
      blog-banner-life-of-heavy-equipment

      Understanding the Lifespan of Heavy Machinery and Construction Equipment

      Summary: Understanding the lifespan of heavy machinery is vital for...

      Read More
      Jan 28, 2025
      desi-machies-backhoe-vs-excavator-banner

      Backhoe vs Excavator - Which is Better for your project?

      Summary: Backhoe loaders and excavators are vital excavation machines with...

      Read More
      Jan 20, 2025
      Add to Compare
      Add to Compare
      Case 770 NX magnum
      • Case 770 NX Magnum CEV5
      • Price:

        ₹ 36 - 40 Lakhs

      © 2025 Desi Machines All rights reserved.

      Designed & Developed by PromotEdge

      Help Us Reach You!

        Your Captcha*

        captcha

        Let's get started

        Disclaimer

        Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

        Compare


          Kindly fill out the below form. Our representative will get in touch with you
