    Ammann ARX 32.2 VS Escorts EC 3664 Compactor

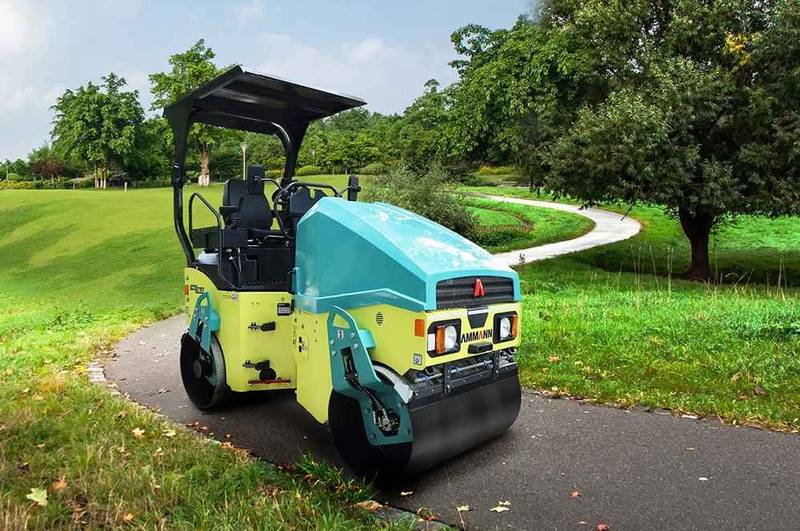

    desi-machines-ammann-arx-32-2-mini-roller-featured
    ₹ 15-20 Lakhs*

    Ammann ARX 32.2

    • Drum Width
      1200 mm
    • icon alt1
      Weight
      3375 kg
    • Engine
      Mahindra 48.5 HP
    • Static Load
      14/14.2 kg/cm
    • CF - Hi/Low
      47/39 kN
    • Travel Speed
      0 - 11 km/hr
    Tandem Roller

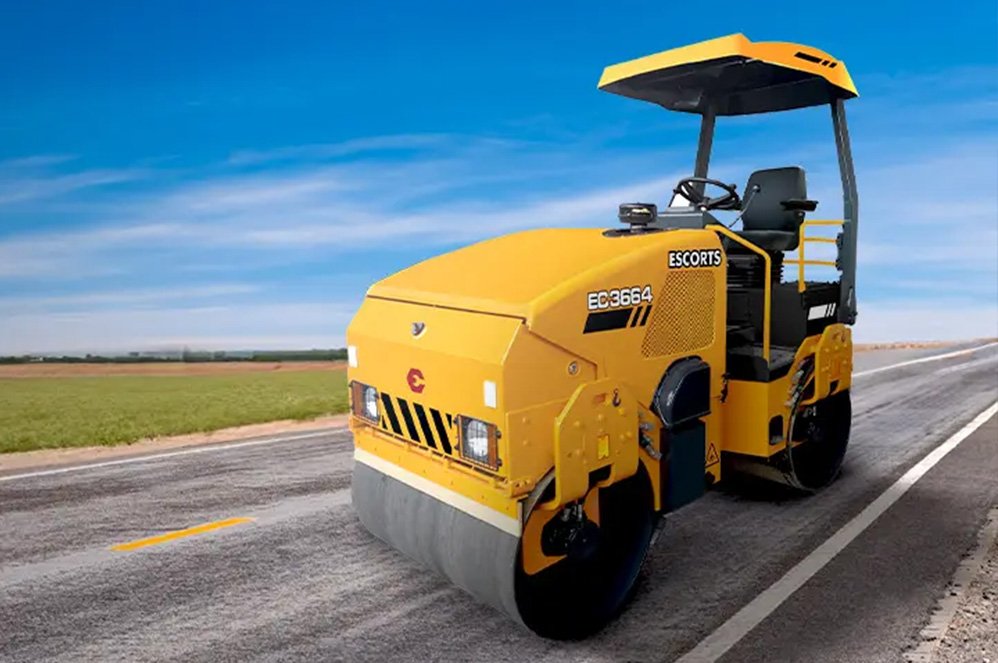

    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    ₹ 12-16 Lakhs*

    Escorts EC 3664

    • Drum Width
      1200 mm
    • icon alt1
      Weight
      3300 kg
    • Engine
      Escorts 47 HP
    • Static Load
      14.2/13.3 kg/cm
    • CF - Hi/Low
      47/35 kN
    • Travel Speed
      0–12 km/hr
    Tandem Roller

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights Ammann ARX 32.2Escorts EC 3664
    Ammann ARX 32.2 VS Escorts EC 3664 Compactor
    Ammann ARX 32.2
    ₹ 15-20 Lakhs
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts EC 3664
    ₹ 12-16 Lakhs
    Particulars Ammann ARX 32.2 Escorts EC 3664

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Price, Technical Specifications & Features

    Brand Ammann Compactor Escorts Kubota Compactor
    Type Tandem Tandem
    Ex-Showroom Price ₹ 15-20 Lakhs ₹ 12-16 Lakhs
    Weight 3375 kg 3300 kg
    Drum Width 1200 mm 1200 mm
    Engine Mahindra 48.5 HP Escorts 47 HP
    Static Linear Load 14/14.2 kg/cm 14.2/13.3 kg/cm
    Centrifugal Force (High/Low) 47/35 kN 47/35 kN
    Travel Speed 0–12 km/hr 0–12 km/hr
    Quick Overview:

    The Ammann ARX 32.2 Mini Roller is a compact, efficient tandem compactor ideal for tight road and surface jobs. It is powered by a CEV Stage V Mahindra MCDHC29NA047CE5 engine producing about 36.2 kW at 2200 RPM, giving reliable power and good fuel efficiency. With a 1200 mm drum width and an operating weight of around 3375 kg, this baby roller delivers consistent soil and asphalt compaction, easy maneuverability, and solid on-site performance.

    The Escorts EC 3664 Mini Tandem Roller is a compact yet capable baby roller designed for reliable asphalt and soil compaction in urban, rural, and service-road projects. With a 47 HP engine and approximately 3,300 kg operating weight, this vibratory roller delivers strong compaction performance without compromising maneuverability. Its 1,200 mm drum width and 200 L water tank support smooth finishes and continuous operation. Built with ergonomic controls and durable construction, the EC 3664 is trusted as a sturdy roller compactor and efficient road roller for demanding job-sites.

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Price, Technical Specifications & Features

    Ammann ARX 32.2 Escorts EC 3664
    Brand
    Ammann Compactor Escorts Kubota Compactor
    Type
    Tandem Tandem
    Ex-Showroom Price
    ₹ 15-20 Lakhs ₹ 12-16 Lakhs
    Weight
    3375 kg 3300 kg
    Drum Width
    1200 mm 1200 mm
    Engine
    Mahindra 48.5 HP Escorts 47 HP
    Static Linear Load
    14/14.2 kg/cm 14.2/13.3 kg/cm
    Centrifugal Force (High/Low)
    47/39 kN 47/35 kN
    Travel Speed
    0 - 11 km/hr 0–12 km/hr
    Quick Overview:

    The Ammann ARX 32.2 Mini Roller is a compact, efficient tandem compactor ideal for tight road and surface jobs. It is powered by a CEV Stage V Mahindra MCDHC29NA047CE5 engine producing about 36.2 kW at 2200 RPM, giving reliable power and good fuel efficiency. With a 1200 mm drum width and an operating weight of around 3375 kg, this baby roller delivers consistent soil and asphalt compaction, easy maneuverability, and solid on-site performance.

    The Escorts EC 3664 Mini Tandem Roller is a compact yet capable baby roller designed for reliable asphalt and soil compaction in urban, rural, and service-road projects. With a 47 HP engine and approximately 3,300 kg operating weight, this vibratory roller delivers strong compaction performance without compromising maneuverability. Its 1,200 mm drum width and 200 L water tank support smooth finishes and continuous operation. Built with ergonomic controls and durable construction, the EC 3664 is trusted as a sturdy roller compactor and efficient road roller for demanding job-sites.

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Key Highlights

    Ammann ARX 32.2 Escorts EC 3664
    Engine Make Mahindra MCDHC29NA047CE5 Escorts E3.249NA
    Fuel Tank 50 L 50 L
    Hydraulic Tank 50 L 40 L
    Frequency High/Low 66/55 Hz 64/ 55 Hz
    Nominal Amplitude (High/Low) 0.5 mm 0.6 mm
    Max. Gradeability 35% 35%
    Steering Angle ±35° ±30°
    Turning Radius, Outside 2900 mm 4142 mm
    Wheel Base 2065 mm 1884 mm
    Water Tank 340 L 200 L
    Overall Length 3040 mm 2826 mm
    Overall Width 1300 mm 1360 mm
    Overall Height 2730 mm 2595 mm
    Telematics NA NA
    Warranty 1 Year 1 Year

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Key Highlights

    Ammann ARX 32.2 Escorts EC 3664
    Engine Make
    Mahindra MCDHC29NA047CE5 Escorts E3.249NA
    Fuel Tank
    50 L 50 L
    Hydraulic Tank
    50 L 40 L
    Frequency High/Low
    66/55 Hz 64/ 55 Hz
    Nominal Amplitude (High/Low)
    0.5 mm 0.6 mm
    Max. Gradeability
    35% 35%
    Steering Angle
    ±35° ±30°
    Turning Radius, Outside
    2900 mm 4142 mm
    Wheel Base
    2065 mm 1884 mm
    Water Tank
    340 L 200 L
    Overall Length
    3040 mm 2826 mm
    Overall Width
    1300 mm 1360 mm
    Overall Height
    2730 mm 2595 mm
    Telematics
    NA NA
    Warranty
    1 Year 1 Year

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Specifications

    Engine

    Ammann ARX 32.2 Escorts EC 3664
    Engine Make Mahindra MCDHC29NA047CE5 Escorts E3.249NA
    Engine Type NA BS-III (CEV); 3 Cylinders; Water Cooled
    Max. Power 48.5 HP (36.2 kW) @ 2200 rpm 47 HP (35 kW) @ 2300 rpm
    Displacement NA NA
    Max Torque 200 Nm @ 1200-1500 rpm 165 Nm @ 1500 rpm
    Battery 12 V - 90 Ah NA

    Service Capacities

    Ammann ARX 32.2 Escorts EC 3664
    Fuel Tank 50 L 50 L
    Hydraulic Tank 50 L 40 L
    Engine Oil NA NA
    Engine Coolant NA NA

    Traction

    Ammann ARX 32.2 Escorts EC 3664
    Max. Travel Speed 0 - 11 km/hr 0–12 km/hr
    Max. Working Speed NA 0–4 km/hr
    Max. Gradeability 35% 35%

    Vibration System

    Ammann ARX 32.2 Escorts EC 3664
    Centrifugal Force (High/Low) 47/39 kN 47/35 kN
    Nominal Amplitude (High/Low) 0.5 mm 0.6 mm
    Frequency High/Low 66/55 Hz 64/ 55 Hz
    Vibration Stages 2 2
    SLL (Front/Rear) 14/14.2 kg/cm 14.2/13.3 kg/cm

    Hydraulic System

    Ammann ARX 32.2 Escorts EC 3664
    Travel System NA all-wheel drive to both drums, Infinitely variable hydrostatic
    Vibration System Gear Pump & Gear Motor Front and rear drums/Front drum; auto vibration cut-off above working speed

    Steerring

    Ammann ARX 32.2 Escorts EC 3664
    Steering Type Gear Pump & Orbitrol Articulated
    Steering Angle ±35° ±30°
    Oscillation ±10° ±10°

    Brakes

    Ammann ARX 32.2 Escorts EC 3664
    Service Brakes Hydrostatic Hydrostatic
    Parking Brakes NA hydraulically released brakes on both drums, Spring-loaded

    Water System

    Ammann ARX 32.2 Escorts EC 3664
    Water Spray System Type NA Spray system (with sprinkler indicator)
    Water Tank 340 L 200 L

    Operational Data

    Ammann ARX 32.2 Escorts EC 3664
    Operating Weight 3375 kg 3300 kg
    Max. Operating Weight NA NA
    Front Axle Load 1675 kg 1700 kg
    Rear Axle Load 1700 kg 1600 kg

    Dimensions

    Ammann ARX 32.2 Escorts EC 3664
    Wheel Base 2065 mm 1884 mm
    Overall Width 1300 mm 1360 mm
    Overall Height 2730 mm 2595 mm
    Height (Top of Steering) NA 1886 mm
    Overall Length 3040 mm 2826 mm
    Drum Width 1200 mm 1200 mm
    Drum Diameter 702 mm 740 mm
    Drum Thickness 14 mm 13 mm
    Ground Clearance 300 mm 320 mm
    Curb Clearance 500 mm NA
    Turning Radius, Outside 2900 mm 4142 mm
    Turning Radius, Inside NA 2942 mm

    Ammann ARX 32.2 Vs Escorts EC 3664 Compactor Specifications

    Engine

    Ammann ARX 32.2 Escorts EC 3664
    Engine Make
    Mahindra MCDHC29NA047CE5 Escorts E3.249NA
    Engine Type
    NA BS-III (CEV); 3 Cylinders; Water Cooled
    Max. Power
    48.5 HP (36.2 kW) @ 2200 rpm 47 HP (35 kW) @ 2300 rpm
    Displacement
    NA NA
    Max Torque
    200 Nm @ 1200-1500 rpm 165 Nm @ 1500 rpm
    Battery
    12 V - 90 Ah NA

    Service Capacities

    Ammann ARX 32.2 Escorts EC 3664
    Fuel Tank
    50 L 50 L
    Hydraulic Tank
    50 L 40 L
    Engine Oil
    NA NA
    Engine Coolant
    NA NA

    Traction

    Ammann ARX 32.2 Escorts EC 3664
    Max. Travel Speed
    0 - 11 km/hr 0–12 km/hr
    Max. Working Speed
    NA 0–4 km/hr
    Max. Gradeability
    35% 35%

    Vibration System

    Ammann ARX 32.2 Escorts EC 3664
    Centrifugal Force (High/Low)
    47/39 kN 47/35 kN
    Nominal Amplitude (High/Low)
    0.5 mm 0.6 mm
    Frequency High/Low
    66/55 Hz 64/ 55 Hz
    Vibration Stages
    2 2
    SLL (Front/Rear)
    14/14.2 kg/cm 14.2/13.3 kg/cm

    Hydraulic System

    Ammann ARX 32.2 Escorts EC 3664
    Travel System
    NA all-wheel drive to both drums, Infinitely variable hydrostatic
    Vibration System
    Gear Pump & Gear Motor Front and rear drums/Front drum; auto vibration cut-off above working speed

    Steering

    Ammann ARX 32.2 Escorts EC 3664
    Steering Type
    Gear Pump & Orbitrol Articulated
    Steering Angle
    ±35° ±30°
    Oscillation
    ±10° ±10°

    Brakes

    Ammann ARX 32.2 Escorts EC 3664
    Service Brakes
    Hydrostatic Hydrostatic
    Parking Brakes
    NA hydraulically released brakes on both drums, Spring-loaded

    Weight

    Ammann ARX 32.2 Escorts EC 3664
    Operating Weight
    3375 kg 3300 kg

    Water System

    Ammann ARX 32.2 Escorts EC 3664
    Water Spray System Type
    NA Spray system (with sprinkler indicator)
    Water Tank
    340 L 200 L

    Operational Data

    Ammann ARX 32.2 Escorts EC 3664
    Operating Weight
    3375 kg 3300 kg
    Max. Operating Weight
    NA NA
    Front Axle Load
    1675 kg 1700 kg
    Rear Axle Load
    1700 kg 1600 kg

    Dimensions

    Ammann ARX 32.2 Escorts EC 3664
    Wheel Base
    2065 mm 1884 mm
    Overall Width
    1300 mm 1360 mm
    Overall Height
    2730 mm 2595 mm
    Height (Top of Steering)
    NA 1886 mm
    Overall Length
    3040 mm 2826 mm
    Drum Width
    1200 mm 1200 mm
    Drum Diameter
    702 mm 740 mm
    Drum Thickness
    14 mm 13 mm
    Ground Clearance
    300 mm 320 mm
    Curb Clearance
    500 mm NA
    Turning Radius, Outside
    2900 mm 4142 mm
    Turning Radius, Inside
    NA 2942 mm

    Popular Comparisons with Ammann ARX 32.2

    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg

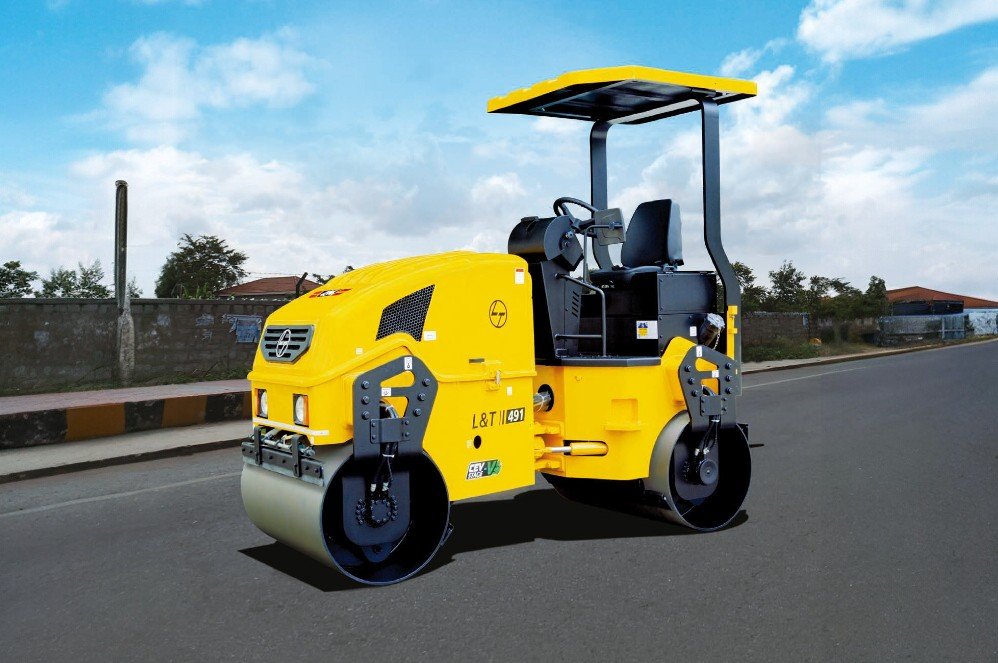

    L&T 491 Mini Tandem Roller Compactor | Desi Machines
    L&T Komatsu

    L&T 491

    4.5 rating
    ₹ 15-17 Lakhs
    3450 kg
    Compare
    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    Compare
    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg

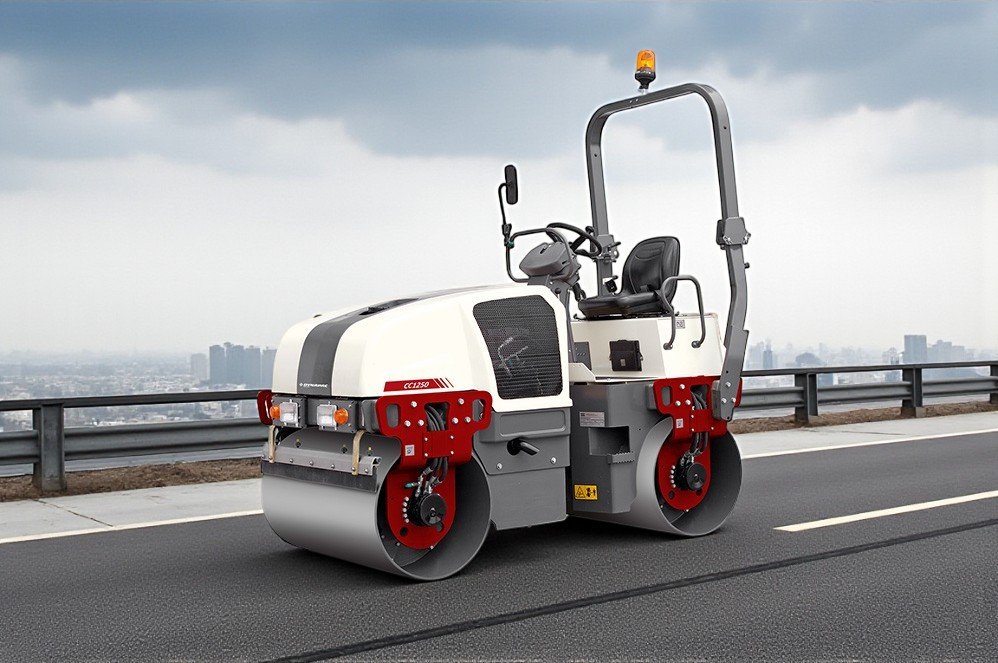

    Dynapac CC1250 CEV-V Tandem Roller Compactor | Desi Machines
    Dynapac

    Dynapac CC1250 CEV-V

    4.5 rating
    ₹ 14-17 Lakhs
    3000 kg
    Compare
    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg

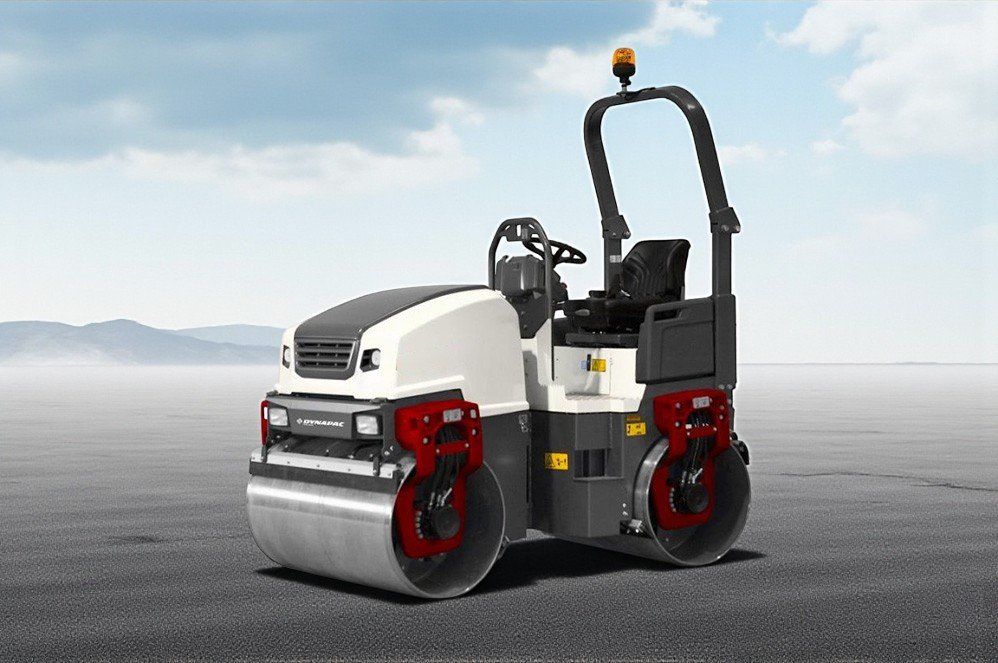

    Dynapac CC125 CEV-V Tandem Roller Compactor | Desi Machines
    Dynapac

    Dynapac CC125 CEV-V

    4.5 rating
    ₹ 14-17 Lakhs
    2800 kg
    Compare
    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg
    JCB VMT330 Mini Tandem Roller Compactor | Desi Machines
    JCB

    JCB VMT330

    4.5 rating
    ₹ 15-20 Lakhs
    3300 kg
    Compare
    VS
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg

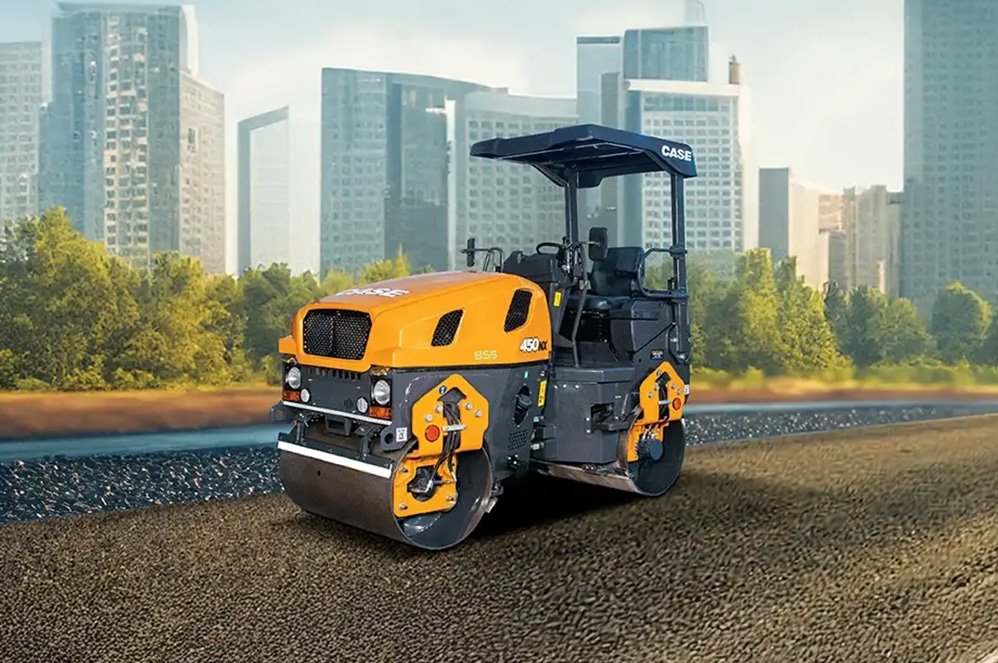

    CASE 450NX Mini Tandem Roller Compactor | Desi Machines
    CASE

    CASE 450NX

    4.5 rating
    ₹ 15-18 Lakhs
    2900 kg
    Compare

    Popular Comparisons with Escorts EC 3664

    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    desi-machines-ammann-arx-32-2-mini-roller-featured
    Ammann

    Ammann ARX 32.2

    4.5 rating
    ₹ 15-20 Lakhs
    3375 kg
    Compare
    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    L&T 491 Mini Tandem Roller Compactor | Desi Machines
    L&T Komatsu

    L&T 491

    4.5 rating
    ₹ 15-17 Lakhs
    3450 kg
    Compare
    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    Dynapac CC1250 CEV-V Tandem Roller Compactor | Desi Machines
    Dynapac

    Dynapac CC1250 CEV-V

    4.5 rating
    ₹ 14-17 Lakhs
    3000 kg
    Compare
    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    Dynapac CC125 CEV-V Tandem Roller Compactor | Desi Machines
    Dynapac

    Dynapac CC125 CEV-V

    4.5 rating
    ₹ 14-17 Lakhs
    2800 kg
    Compare
    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    JCB VMT330 Mini Tandem Roller Compactor | Desi Machines
    JCB

    JCB VMT330

    4.5 rating
    ₹ 15-20 Lakhs
    3300 kg
    Compare
    VS
    Escorts EC 3664 Mini Tandem Roller Compactor | Desi Machines
    Escorts Kubota

    Escorts EC 3664

    4.5 rating
    ₹ 12-16 Lakhs
    3300 kg
    CASE 450NX Mini Tandem Roller Compactor | Desi Machines
    CASE

    CASE 450NX

    4.5 rating
    ₹ 15-18 Lakhs
    2900 kg
    Compare

    Disclaimer: *All logos, trademarks, brand names, images, videos, documents, and product information displayed on DesiMachines are the property of their respective owners. DesiMachines is an independent aggregator working with OEMs, authorised dealers, channel partners, and publicly available sources. Display of any brand or content does not imply partnership or endorsement. Product details, specifications, prices, and availability are indicative and subject to change. Users should verify final details with the respective dealer or seller. DesiMachines is not liable for any inaccuracies or decisions made based on the information provided.

    !

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare
