Dynapac CC425 T3 ROPS VS Escorts HD 85 PLUS Compactor

₹ 32-36 Lakhs^*

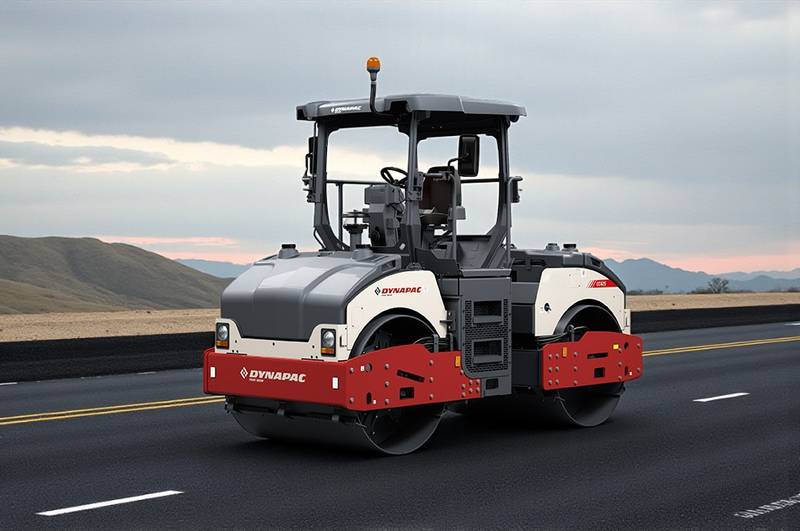

Dynapac CC425 T3 ROPS

Drum Width

1690 mm
Weight

9200 kg
Engine

Cummins 99 HP
Static Load

27.2 kg/cm
CF - Hi/Low

130/60 kN
Travel Speed

0 - 12 km/hr

Tandem Roller

₹ 34-36 Lakhs^*

Escorts HD 85 PLUS

Drum Width

1680 mm
Weight

9120 kg
Engine

Escorts 75 HP
Static Load

26.6/27.7 kg/cm
CF - Hi/Low

65/59 kN
Travel Speed

0 -13.8 km/hr

Tandem Roller

Add Equipment

The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

Key Highlights	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS

Dynapac CC425 T3 ROPS VS Escorts HD 85 PLUS Compactor

Dynapac CC425 T3 ROPS

₹ 32-36 Lakhs

Escorts HD 85 PLUS

₹ 34-36 Lakhs

Particulars	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS

Dynapac CC425 T3 ROPS Vs Escorts HD 85 PLUS Compactor Price, Technical Specifications & Features


Brand	Dynapac Compactor	Escorts Kubota Compactor
Type	Tandem	Tandem
Ex-Showroom Price	₹ 32-36 Lakhs	₹ 34-36 Lakhs
Weight	9200 kg	9120 kg
Drum Width	1690 mm	1680 mm
Engine	Cummins 99 HP	Escorts 75 HP
Static Linear Load	27.2 kg/cm	26.6/27.7 kg/cm
Centrifugal Force (High/Low)	65/59 kN	65/59 kN
Travel Speed	0 -13.8 km/hr	0 -13.8 km/hr
Quick Overview:	The Dynapac CC425 T3 ROPS tandem roller, powered by a KOEL/Kirloskar diesel engine producing around 74–76 HP, is a heavy-duty double drum roller built for soil and asphalt compaction. With a maximum operating weight of about 9,650 kg and a 1,690 mm drum width, this Dynapac roller delivers uniform compaction, strong surface density, and smooth performance on roads, highways, and infrastructure projects.	The Escorts HD 85 Plus Tandem Roller is engineered for superior compaction efficiency and durability in road construction and infrastructure projects. With a powerful 75 HP engine, around 9,120 kg operating weight, and 1,680 mm drum width, it delivers excellent compaction results. This roller compactor features titable steering for precision, a 160-L fuel tank, and meets CEV Stage-IV/BS emission norms. Built with user-friendly controls and robust build, the HD 85 Plus is a reliable road roller, ideal for asphalt and soil works.

Dynapac CC425 T3 ROPS Vs Escorts HD 85 PLUS Compactor Price, Technical Specifications & Features

Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Brand
Dynapac Compactor	Escorts Kubota Compactor
Type
Tandem	Tandem
Ex-Showroom Price
₹ 32-36 Lakhs	₹ 34-36 Lakhs
Weight
9200 kg	9120 kg
Drum Width
1690 mm	1680 mm
Engine
Cummins 99 HP	Escorts 75 HP
Static Linear Load
27.2 kg/cm	26.6/27.7 kg/cm
Centrifugal Force (High/Low)
130/60 kN	65/59 kN
Travel Speed
0 - 12 km/hr	0 -13.8 km/hr
Quick Overview:
The Dynapac CC425 T3 ROPS tandem roller, powered by a KOEL/Kirloskar diesel engine producing around 74–76 HP, is a heavy-duty double drum roller built for soil and asphalt compaction. With a maximum operating weight of about 9,650 kg and a 1,690 mm drum width, this Dynapac roller delivers uniform compaction, strong surface density, and smooth performance on roads, highways, and infrastructure projects.	The Escorts HD 85 Plus Tandem Roller is engineered for superior compaction efficiency and durability in road construction and infrastructure projects. With a powerful 75 HP engine, around 9,120 kg operating weight, and 1,680 mm drum width, it delivers excellent compaction results. This roller compactor features titable steering for precision, a 160-L fuel tank, and meets CEV Stage-IV/BS emission norms. Built with user-friendly controls and robust build, the HD 85 Plus is a reliable road roller, ideal for asphalt and soil works.

Dynapac CC425 T3 ROPS Vs Escorts HD 85 PLUS Compactor Key Highlights

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Engine Make	Cummins T3/QSB 3.3	Escorts E4.346CRS4
Fuel Tank	180 L	160 L
Hydraulic Tank	NA	80 L
Frequency High/Low	36/54 Hz	50/33 Hz
Nominal Amplitude (High/Low)	0.9 /0.4 mm	1.0/0.4 mm
Max. Gradeability	39%	36%
Steering Angle	±29°	±30°
Turning Radius, Outside	6500 mm	6475 mm
Wheel Base	NA	2900 mm
Water Tank	NA	800 L
Overall Length	4340 mm	4175 mm
Overall Width	NA	1780 mm
Overall Height	3200 mm	3110 mm
Telematics	NA	NA
Warranty	1 Yr. / 2000 hr.	1 Year

Dynapac CC425 T3 ROPS Vs Escorts HD 85 PLUS Compactor Key Highlights

Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Engine Make
Cummins T3/QSB 3.3	Escorts E4.346CRS4
Fuel Tank
180 L	160 L
Hydraulic Tank
NA	80 L
Frequency High/Low
36/54 Hz	50/33 Hz
Nominal Amplitude (High/Low)
0.9 /0.4 mm	1.0/0.4 mm
Max. Gradeability
39%	36%
Steering Angle
±29°	±30°
Turning Radius, Outside
6500 mm	6475 mm
Wheel Base
NA	2900 mm
Water Tank
NA	800 L
Overall Length
4340 mm	4175 mm
Overall Width
NA	1780 mm
Overall Height
3200 mm	3110 mm
Telematics
NA	NA
Warranty
1 Yr. / 2000 hr.	1 Year

Dynapac CC425 T3 ROPS Vs Escorts HD 85 PLUS Compactor Specifications

Engine

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Engine Make	Cummins T3/QSB 3.3	Escorts E4.346CRS4
Engine Type	water cooled Diesel Engine	CEV Stage-IV; 4 Cylinders; Water-cooled
Max. Power	99 HP (74 kW) @ 2200 rpm	75 HP (55.9 kW) @ 2000 rpm
Displacement	NA	NA
Max Torque	NA	340 Nm @ 1400 RPM
Battery	NA	12V - 150Ah

Service Capacities

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Fuel Tank	180 L	160 L
Hydraulic Tank	NA	80 L
Engine Oil	NA	NA
Engine Coolant	NA	NA

Traction

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Max. Travel Speed	0 - 12 km/hr	0 -13.8 km/hr
Max. Working Speed	0 - 12 km/hr	0 - 8.5 km/hr
Max. Gradeability	39%	36%

Vibration System

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Centrifugal Force (High/Low)	130/60 kN	65/59 kN
Nominal Amplitude (High/Low)	0.9 /0.4 mm	1.0/0.4 mm
Frequency High/Low	36/54 Hz	50/33 Hz
Vibration Stages	2	2
SLL (Front/Rear)	27.2 kg/cm	26.6/27.7 kg/cm

Hydraulic System

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Travel System	Axial piston pump with variable displacement. Axial piston motor with variable displacement.	Hydrostatic
Vibration System	Axial piston pump with variable displacement. Axial piston motor with fixed displacement.	NA

Steerring

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Steering Type	Gear pump with constant displacement.	Articulated
Steering Angle	±29°	±30°
Oscillation	±7°	±10°

Brakes

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Service Brakes	Hydrostatic in forward and reverse lever.	Hydrostatic
Parking Brakes	Failsafe multidisc brake.	hydraulically released (both drums), Spring loaded

Water System

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Water Spray System Type	NA	Pressurized (Double Water Pump)
Water Tank	NA	800 L

Operational Data

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Operating Weight	9200 kg	9120 kg
Max. Operating Weight	9600 kg	NA
Front Axle Load	4600 kg	4470 kg
Rear Axle Load	4600 kg	4650 kg

Dimensions

	Dynapac CC425 T3 ROPS	Escorts HD 85 PLUS
Wheel Base	NA	2900 mm
Overall Width	NA	1780 mm
Overall Height	3200 mm	3110 mm
Height (Top of Steering)	2450 mm	2420 mm
Overall Length	4340 mm	4175 mm
Drum Width	1690 mm	1680 mm
Drum Diameter	1220 mm	1200 mm
Drum Thickness	17 mm	17 mm
Ground Clearance	282 mm	290 mm
Curb Clearance	400 mm	730 mm
Turning Radius, Outside	6500 mm	6475 mm
Turning Radius, Inside	4900 mm	4750 mm
