Kobelco SK220XDLC VS Sany SY210C-9 Excavator

desi-machines-kobelco-excavator-sk220xdlc-featured

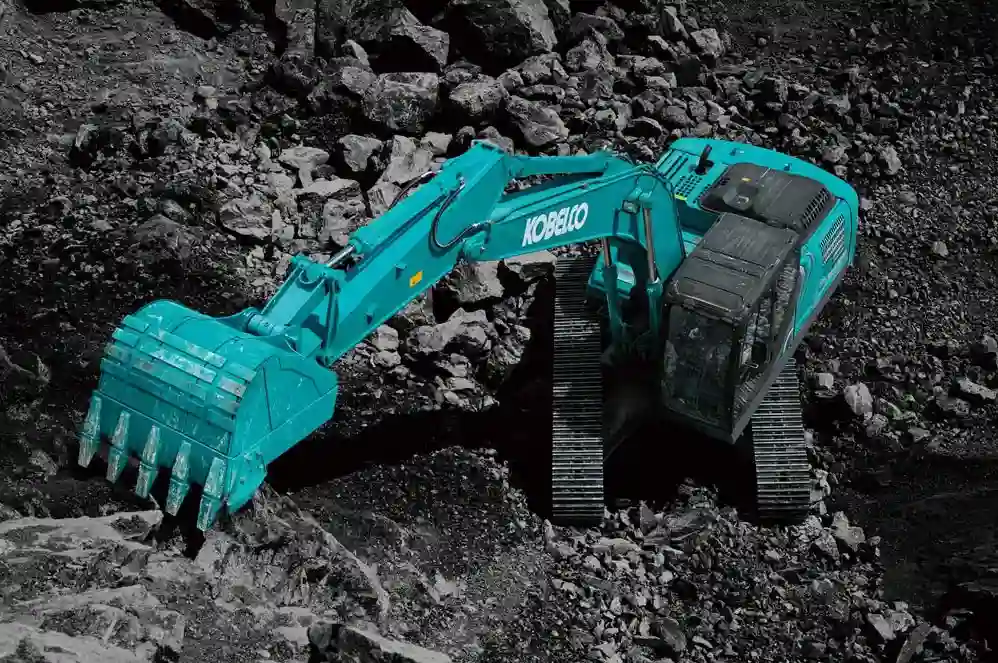

Kobelco SK220XDLC

Weight

22200 Kg
Bucket

0.8 - 0.93 m³
Dig. Depth

6160 mm
Engine

HINO 158 HP
Warranty

1 Yr. / 2500 hr.
Boom

5650 mm

₹ 67-69 Lakhs^*

Medium (15-25 Ton)

Sany SY210C-9

Weight

20900 Kg
Bucket

1 m³
Dig. Depth

6037 mm
Engine

Cummins 140 HP
Warranty

1 Yr. / 2500 hr.
Boom

5700 mm

₹ 55-57 Lakhs^*

Medium (15-25 Ton)

Add Equipment

Enquire Now

Key Highlights	Kobelco SK220XDLC	Sany SY210C-9

Kobelco SK220XDLC

₹ 67-69 Lakhs

Sany SY210C-9

₹ 55-57 Lakhs

Particulars	Kobelco SK220XDLC	Sany SY210C-9

Compare

Overview

	Kobelco SK220XDLC	Sany SY210C-9
Brand	Kobelco	Sany
Type	Medium (15-25 Ton)	Medium (15-25 Ton)
Operating Cost	₹ 67-69 Lakhs	₹ 55-57 Lakhs
Price	₹ 67-69 Lakhs	₹ 55-57 Lakhs
Weight	22200 Kg	20900 Kg
Bucket	0.8 - 0.93 m³	1 m³
Max Digging Depth	6160 mm	6037 mm
Engine	HINO 158 HP	Cummins 140 HP
Warranty	1 Yr. / 2500 hr.	1 Yr. / 2500 hr.
Boom	5650 mm	5700 mm
Quick Overview:	Known for durability and power Kobelco SK220XD XDLC medium excavator is perfect for heavy engineering and mining applications.	Energy efficient Sany SY210C-9 medium excavator is suitable for construction and heavy-duty earthmoving tasks.
Agency review	Get the best price for the Kobelco SK220XD XDLC Medium Excavator from authorized dealers. Contact us now for exclusive deals!	Get the best price for the Sany SY210C-9 Medium Excavator from authorized dealers. Contact us now for exclusive deals!

Overview

Kobelco SK220XDLC	Sany SY210C-9
Brand
Kobelco	Sany
Type
Medium (15-25 Ton)	Medium (15-25 Ton)
Price
₹ 67-69 Lakhs	₹ 55-57 Lakhs
Weight
22200 Kg	20900 Kg
Bucket
0.8 - 0.93 m³	1 m³
Max Digging Depth
6160 mm	6037 mm
Engine
HINO 158 HP	Cummins 140 HP
Warranty
1 Yr. / 2500 hr.	1 Yr. / 2500 hr.
Boom
5650 mm	5700 mm
Quick Overview:
Known for durability and power Kobelco SK220XD XDLC medium excavator is perfect for heavy engineering and mining applications.	Energy efficient Sany SY210C-9 medium excavator is suitable for construction and heavy-duty earthmoving tasks.

Key Highlights

	Kobelco SK220XDLC	Sany SY210C-9
Engine Make	HINO J05ETA* - J05ETG	Cummins 6BT5.9-C140
Fuel Tank	320 L	340 L
Engine Displacment	5.123 L	5.88 L
Under Carriage	3660 mm	4065 mm
Hydraulic System	244 L	180 L
Arm	2400 mm	2400 mm
Max Digging Reach	9420 mm	9312 mm
Fuel Consumption	NA	12.1 L/hour
Overall Width	2990 mm	2800 mm
Overall Length	9680 mm	9395 mm
Bucket Digging Force	143 kN	138 kN
Tailswing Radius	2910 mm	2720 mm
Track Shoe Width	600 mm	600 mm
AC Cabin	Standard	Optional
GPS	Standard	Standard

Key Highlights

Kobelco SK220XDLC	Sany SY210C-9
Engine Make
HINO J05ETA* - J05ETG	Cummins 6BT5.9-C140
Fuel Tank
320 L	340 L
Engine Displacment
5.123 L	5.88 L
Under Carriage
3660 mm	4065 mm
Hydraulic System
244 L	180 L
Arm
2400 mm	2400 mm
Max Digging Reach
9420 mm	9312 mm
Fuel Consumption
NA	12.1 L/hour
Overall Width
2990 mm	2800 mm
Overall Length
9680 mm	9395 mm
Bucket Digging Force
143 kN	138 kN
Tailswing Radius
2910 mm	2720 mm
Track Shoe Width
600 mm	600 mm
AC Cabin
Standard	Optional
GPS
Standard	Standard

Specifications

Engine

	Kobelco SK220XDLC	Sany SY210C-9
Model	HINO 158 HP	Cummins 140 HP
Fuel	Diesel	Diesel
Type	4 cylinders , 4-cycle diesel engine with turbocharger , direct injection , intercooler , water-cooled	6 Cylinder , inline , Water Cooled
Rated Engine Power	158 HP (118 kW) @ 2000 rpm	140 HP (104 kW) @ 2000 rpm
Maximum Torque	592 Nm @ 1600 rpm	571 Nm @ 1300 rpm
Piston Displacement	5.123 L	5.88 L
Alternator	50A	50A
Battery	104 Ah , 2 x 12 V	2 x 12V
Starting Motor	24V - 5 kW	24V - 4.35 kW

Undercarriage

	24V - 4.35 kW	24V - 4.35 kW
No of Top rollers	NA	2
No of bottom rollers	NA	7
Track Shoes (Each Side)	49	45
Track Guard	NA	1
Track Shoe width	600 mm	600 mm
Ground bearing pressure	46 kPa	47.3 kPA
Track Tensioning	Grease	Grease
Gradeability	70% (35°)	70% (35°)
Travel Speed-Low	3.6 Km/h	3.3 Km/h
Travel Speed-High	6.0 Km/h	5.4 Km/h
Max Tracking Force	227 kN	209 kN

Hydraulic System

	Kobelco SK220XDLC	Sany SY210C-9
Hydraulic pump	Two variable displacement pumps	2 Variable Displacement Axial Piston Pumps
Maximum Flow	2 x 220, 1 x 20 L/min	2 x 220 L/min
Pilot Pump	1 Gear Pump	1 Gear Pump
Implement Circuit	34.3 MPa	34.3 MPa
Swing Circuit	29.0 MPa	25.5 MPa
Travel circuit	34.3 MPa	34.3 MPa
Pilot circuit	5.0 MPa	3.9 MPa

Hydraulic Motors

	Kobelco SK220XDLC	Sany SY210C-9
Travel	2 x axial-piston; two-step motors Hydraulic brake per motor	2 Axial Piston Motor With Parking Brake
Swing	Axial piston motor Hydraulic; locking automatically when the swing control lever is in neutral position	1 Axial Piston Motor with swing holding brake

Service Capacities

	Kobelco SK220XDLC	Sany SY210C-9
Fuel tank	320 L	340 L
Engine Coolant	18 L	25.2 L
Engine oil	20.5 L	22.75 L
Hydraulic system	244 L	180 L
Hydraulic tank	140 L	239 L

Machine Weight

	Kobelco SK220XDLC	Sany SY210C-9
Operating Weight	22200 Kg	20900 Kg

Working Range

	Kobelco SK220XDLC	Sany SY210C-9
Boom length	5650 mm	5700 mm
Arm length	2400 mm	2400 mm
Max Digging Reach	9420 mm	9312 mm
Max Digging Reach on ground	9240 mm	NA
Max digging depth	6160 mm	6037 mm
Max digging height	9510 mm	9113 mm
Max Dump Height	6680 mm	6252 mm
Max vertical wallcut depth	5570 mm	NA
Min swing radius	3560 mm	3730 mm
Max Height at Min Swing radius	NA	7680 mm
Max height (above ground)	4080 mm	NA
Dig depth (below ground)	5950 mm	NA
Bucket Digging Force	143 kN	138 kN
Arm Digging Force	121 kN	129 kN
Swing Speed	13.3 rpm	11 rpm

Dozer Blade

	Kobelco SK220XDLC	Sany SY210C-9
Dozer Type	NA	NA
Dozer Length	NA	NA
Digging depth for ground level	NA	NA
Approach Angle	NA	NA
Width	NA	NA
Height	NA	NA

Bucket

	Kobelco SK220XDLC	Sany SY210C-9
Bucket Capacity	0.8 - 0.93 m³	1 m³

Static Dimensions

	Kobelco SK220XDLC	Sany SY210C-9
Overall Length	9680 mm	9395 mm
Overall width	2990 mm	2800 mm
Overall Height	3220 mm	2955 mm
Overall Height of Cab	3020 mm	2930 mm
Upper Width	2710 mm	2840 mm
Track Lengh on Ground	4460 mm	3260 mm
Undercarriage overall length	3660 mm	4065 mm
Tailswing radius	2910 mm	2720 mm
Min Ground clearance	435 mm	465 mm
Track gauge	2390 mm	2200 mm
Width over tracks	NA	NA
Track Height	NA	NA
Counterweight Clearance	1070 mm	NA
Track Shoe Width	600 mm	600 mm

Specifications

Engine

Kobelco SK220XDLC	Sany SY210C-9
Model
HINO 158 HP	Cummins 140 HP
Fuel
Diesel	Diesel
Type
4 cylinders , 4-cycle diesel engine with turbocharger , direct injection , intercooler , water-cooled	6 Cylinder , inline , Water Cooled
Rated Engine Power
158 HP (118 kW) @ 2000 rpm	140 HP (104 kW) @ 2000 rpm
Maximum Torque
592 Nm @ 1600 rpm	571 Nm @ 1300 rpm
Piston Displacement
5.123 L	5.88 L
Alternator
50A	50A
Battery
104 Ah , 2 x 12 V	2 x 12V
Starting Motor
24V - 5 kW	24V - 4.35 kW

Undercarriage

Kobelco SK220XDLC	Sany SY210C-9
No of Top rollers
NA	2
No of bottom rollers
NA	7
Track Shoes (Each Side)
49	45
Track Guard
NA	1
Track Shoe width
600 mm	600 mm
Ground bearing pressure
46 kPa	47.3 kPA
Track Tensioning
Grease	Grease
Gradeability
70% (35°)	70% (35°)
Travel Speed-Low
3.6 Km/h	3.3 Km/h
Travel Speed-High
6.0 Km/h	5.4 Km/h
Max Tracking Force
227 kN	209 kN

Hydraulic Motors

Kobelco SK220XDLC	Sany SY210C-9
Hydraulic pump
Two variable displacement pumps	2 Variable Displacement Axial Piston Pumps
Maximum Flow
2 x 220, 1 x 20 L/min	2 x 220 L/min
Pilot Pump
1 Gear Pump	1 Gear Pump
Implement Circuit
34.3 MPa	34.3 MPa
Swing Circuit
29.0 MPa	25.5 MPa
Travel circuit
34.3 MPa	34.3 MPa
Pilot circuit
5.0 MPa	3.9 MPa

Service Capacities

Kobelco SK220XDLC	Sany SY210C-9
Fuel tank
320 L	340 L
Engine Coolant
18 L	25.2 L
Engine oil
20.5 L	22.75 L
Hydraulic system
244 L	180 L
Hydraulic tank
140 L	239 L

Machine Weight

Kobelco SK220XDLC	Sany SY210C-9
Operating Weight
22200 Kg	20900 Kg

Working Range

Kobelco SK220XDLC	Sany SY210C-9
Boom length
5650 mm	5700 mm
Arm length
2400 mm	2400 mm
Max Digging Reach
9420 mm	9312 mm
Max Digging Reach on ground
9240 mm	NA
Max digging depth
6160 mm	6037 mm
Max digging height
9510 mm	9113 mm
Max Dump Height
6680 mm	6252 mm
Max vertical wallcut depth
5570 mm	NA
Min swing radius
3560 mm	3730 mm
Max Height at Min Swing radius
NA	7680 mm
Max height (above ground)
4080 mm	NA
Dig depth (below ground)
5950 mm	NA
Bucket Digging Force
143 kN	138 kN
Arm Digging Force
121 kN	129 kN
Swing Speed
13.3 rpm	11 rpm

Dozer Blade

Kobelco SK220XDLC	Sany SY210C-9
Dozer Type
NA	NA
Dozer Length
NA	NA
Digging depth for ground level
NA	NA
Approach Angle
NA	NA
Width
NA	NA
Height
NA	NA

Bucket

Kobelco SK220XDLC	Sany SY210C-9
Bucket Capacity
0.8 - 0.93 m³	1 m³

Static Dimensions

Kobelco SK220XDLC	Sany SY210C-9
Overall Length
9680 mm	9395 mm
Overall width
2990 mm	2800 mm
Overall Height
3220 mm	2955 mm
Overall Height of Cab
3020 mm	2930 mm
Upper Width
2710 mm	2840 mm
Track Lengh on Ground
4460 mm	3260 mm
Undercarriage overall length
3660 mm	4065 mm
Tailswing radius
2910 mm	2720 mm
Min Ground clearance
435 mm	465 mm
Track gauge
2390 mm	2200 mm
Width over tracks
NA	NA
Track Height
NA	NA
Counterweight Clearence
1070 mm	NA
Track Shoe Width
600 mm	600 mm

Frequently Asked Question

1. How does the comparison process work?

Ans.

Our comparison process is designed with simplicity and precision. You have to select the equipment you are interested in and choose models to view specifications, performance metrics, and other features side-by-side.

2. Can I connect with dealers through Desi Machines?

Ans.

Yes, you can. Once you find out your desired product, you can submit the lead form to connect with the local dealers. The local dealers can help you with pricing, availability, and further inquiries.

3. Do you offer financing or insurance options?

Ans.

We help buyers choose from industry-specific financing and insurance providers that are tailor-made for heavy machinery. These ensure that you get coverage and financing options for the needs of construction and engineering equipment.

4. How does Desi Machines earn revenue?

Ans.

Desi Machines earns revenue from selling leads to sellers, financial companies, and insurance providers. It does not charge any single rupee to the buyer.

5. Is Desi Machines suitable for small businesses?

Ans.

Absolutely! It is suitable for all sizes of businesses, from small contractors to large construction firms. We showcase all products that help everyone find their product suitable for their scope of work or budget.

6. Can I compare excavators from different brands?

Ans.

Yes, you can compare excavators from different/same brands. Our comparison tool allows you to select excavators from various brands and see detailed specifications side by side.

7. What types of excavators are there?

Ans.

There are various types of excavators, including standard crawler excavators, wheeled excavators, mini (compact) excavators, and long-reach excavators. Each type is designed for specific applications or work environments.

8. What is an excavator used for?

Ans.

Excavators are heavy construction equipment used for digging, grading, lifting, and moving materials. They are employed in most constructions, demolitions, mining operations, and landscaped works.

9. How do excavators work?

Ans.

Excavators work through the hydraulic system. Its rotating upper part, or the house, has the engine and controls, with a boom, stick, and bucket to scoop up materials during digging or for lifting purposes. The operator can manipulate these to dig trenches, move huge loads, and many others.

10. What is the difference between an excavator and a backhoe?

Ans.

Their main difference is based on design and purpose. An excavator is big, with the rotating upper structure, and is especially used in digging and lifting. A backhoe is smaller, has a fixed cab, and is more flexible for smaller tasks with digging and loading in smaller confinement areas.

Login

Categories

Contact Us

Contact Info

Kobelco SK220XDLC VS Sany SY210C-9 Excavator

Kobelco SK220XDLC

Weight

22200 Kg

Bucket

0.8 - 0.93 m³

Dig. Depth

6160 mm

Engine

HINO 158 HP

Warranty

1 Yr. / 2500 hr.

Boom

5650 mm

₹ 67-69 Lakhs*

Sany SY210C-9

Weight

20900 Kg

Bucket

1 m³

Dig. Depth

6037 mm

Engine

Cummins 140 HP

Warranty

1 Yr. / 2500 hr.

Boom

5700 mm

₹ 55-57 Lakhs*

Kobelco SK220XDLC

₹ 67-69 Lakhs

Sany SY210C-9

₹ 55-57 Lakhs

Compare

Overview

Overview

Key Highlights

Key Highlights

Specifications

Engine

Undercarriage

Hydraulic System

Hydraulic Motors

Service Capacities

Machine Weight

Working Range

Dozer Blade

Bucket

Static Dimensions

Specifications

Engine

Undercarriage

Hydraulic Motors

Service Capacities

Machine Weight

Working Range

Dozer Blade

Bucket

Static Dimensions

Kindly fill out the below form. Our representative will get in touch with you

Popular Comparisons with JCB 30 Plus

Related Blogs

Frequently Asked Question

1. How does the comparison process work?

2. Can I connect with dealers through Desi Machines?

3. Do you offer financing or insurance options?

4. How does Desi Machines earn revenue?

5. Is Desi Machines suitable for small businesses?

6. Can I compare excavators from different brands?

7. What types of excavators are there?

8. What is an excavator used for?

9. How do excavators work?

10. What is the difference between an excavator and a backhoe?

Help Us Reach You!

Let's get started

Disclaimer

₹ 67-69 Lakhs^*

₹ 55-57 Lakhs^*
