    Komatsu GD825A-2 VS Sany SMG200C-8 Motor Grader

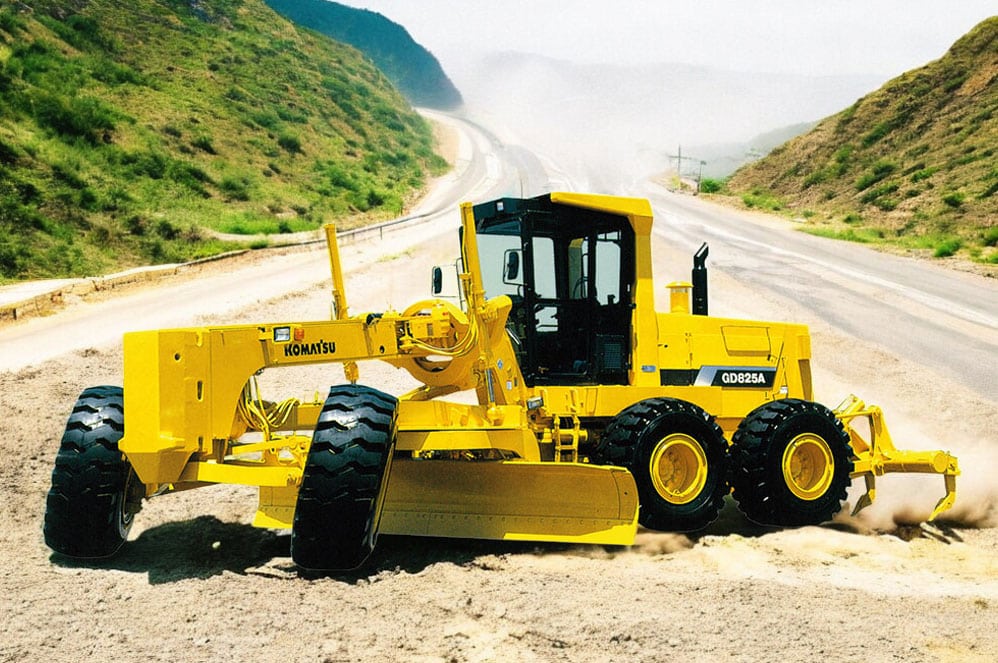

    Komatsu GD825A-2
    • Engine
      Komatsu 280 HP
    • Blade
      4878 mm
    • Weight
      26350 kg
    • Turning Radius
      7900 mm
    • Max Forward Speed
      44.9 km/hr
    • Max Reverse Speed
      3.9 km/hr
    Price Available Soon*
    Large (>50 Ton)
    Sany SMG200C-8
    • Engine
      Cummins 250 HP
    • Blade
      4270 mm
    • Weight
      20760 kg
    • Turning Radius
      7500 mm
    • Max Forward Speed
      46.8 km/hr
    • Max Reverse Speed
      37 km/hr
    Price Available Soon*
    Large (>50 Ton)

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights Komatsu GD825A-2Sany SMG200C-8
    Komatsu GD825A-2 VS Sany SMG200C-8 Motor Grader
    Komatsu GD 825A-2 Motor grader, Komatsu GD 825A-2 price, Komatsu GD 825A-2 specification, Komatsu GD 825A-2 price in india
    Komatsu GD825A-2
    Price Available Soon
    Sany SMG 200C-8 Motor grader, Sany SMG 200C-8 price, Sany SMG 200C-8 specification, Sany SMG 200C-8 price in india
    Sany SMG200C-8
    Price Available Soon
    Particulars Komatsu GD825A-2 Sany SMG200C-8
    Overview Summary

    The Komatsu GD825A-2 and the Sany SMG200C-8 are both capable motor graders designed for roadwork projects. The Komatsu GD825A-2 boasts higher engine power and a longer blade, while the Sany SMG200C-8 is highlighted by its higher forward speed and standard AC cabin. Each model offers unique advantages that cater to different aspects of grading tasks.

    Komatsu GD825A-2

    Pros:

    • High gross power of 280 HP which is ideal for heavy-duty tasks
    • The robust design and construction suitable for tough environments
    • Longer blade length of 4878 mm for greater surface coverage per pass
    • Larger fuel tank capacity of 500 L allowing longer operation intervals
    • Advanced Komatsu HYDROSHIFT transmission for efficient shifting
    • Larger turning radius of 7900 mm for improved maneuverability

    Cons:

    • The price is not yet available which might limit immediate purchase decisions
    • AC cabin is optional which could mean additional costs
    • Forward speed is less compared to Sany SMG200C-8 at 44.9 km/hr
    • Missing GPS feature which could enhance navigation and precision

    Sany SMG200C-8

    Pros:

    • Comes with a Cummins engine featuring a higher forward speed of 46.8 km/hr
    • Excellent blade down pressure (10605 kgf) for strong grading applications
    • Shorter minimum turning radius of 7500 mm for better agility
    • Smaller ground clearance (370 mm) might be advantageous in certain conditions
    • AC cabin comes standard, providing comfort for the operator
    • Strong warranty of 1 Yr. / 2500 hr

    Cons:

    • Lesser engine power of 250 HP compared to Komatsu GD825A-2
    • Smaller fuel tank at 340 L which could mean more frequent refills
    • Blade length is shorter at 4270 mm, potentially reducing work efficiency
    • The vehicle is lighter which may affect performance in certain heavy-duty applications

    Pros:

    Cons:

    Closing Recommendation

    Choosing between the Komatsu GD825A-2 and the Sany SMG200C-8 should be based on specific project requirements. If the task demands higher gross power and a longer blade for larger surface area coverage, the Komatsu GD825A-2 would be suitable. For projects that require higher speed, greater down pressure, and operator comfort as standard, the Sany SMG200C-8 would be the appropriate choice.

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Price, Technical Specifications & Features

    Brand L&T Komatsu SANY
    Type Large (>50 Ton) Large (>50 Ton)
    Price Price Available Soon Price Available Soon
    Engine Komatsu 280 HP Cummins 250 HP
    Weight 26350 kg 20760 kg
    Min. Turning Radius 7900 mm 7500 mm
    Max. Forward Speed 44.9 km/hr 46.8 km/hr
    Max. Reverse Speed 3.9 km/hr 37 km/hr
    Quick Overview:

    The Komatsu GD825A-2 motor grader delivers powerful performance in heavy-duty roadwork, featuring a robust design that withstands the toughest environments.

    The Sany SMG200C-8 motor grader is designed to enhance productivity across all roadwork projects, offering excellent strength and reliability for grading tasks.
    Overview Summary

    The Komatsu GD825A-2 and the Sany SMG200C-8 are both capable motor graders designed for roadwork projects. The Komatsu GD825A-2 boasts higher engine power and a longer blade, while the Sany SMG200C-8 is highlighted by its higher forward speed and standard AC cabin. Each model offers unique advantages that cater to different aspects of grading tasks.

    Komatsu GD825A-2

    Pros:

    • High gross power of 280 HP which is ideal for heavy-duty tasks
    • The robust design and construction suitable for tough environments
    • Longer blade length of 4878 mm for greater surface coverage per pass
    • Larger fuel tank capacity of 500 L allowing longer operation intervals
    • Advanced Komatsu HYDROSHIFT transmission for efficient shifting
    • Larger turning radius of 7900 mm for improved maneuverability

    Cons:

    • The price is not yet available which might limit immediate purchase decisions
    • AC cabin is optional which could mean additional costs
    • Forward speed is less compared to Sany SMG200C-8 at 44.9 km/hr
    • Missing GPS feature which could enhance navigation and precision

    Sany SMG200C-8

    Pros:

    • Comes with a Cummins engine featuring a higher forward speed of 46.8 km/hr
    • Excellent blade down pressure (10605 kgf) for strong grading applications
    • Shorter minimum turning radius of 7500 mm for better agility
    • Smaller ground clearance (370 mm) might be advantageous in certain conditions
    • AC cabin comes standard, providing comfort for the operator
    • Strong warranty of 1 Yr. / 2500 hr

    Cons:

    • Lesser engine power of 250 HP compared to Komatsu GD825A-2
    • Smaller fuel tank at 340 L which could mean more frequent refills
    • Blade length is shorter at 4270 mm, potentially reducing work efficiency
    • The vehicle is lighter which may affect performance in certain heavy-duty applications

    Pros:

    Cons:

    Closing Recommendation

    Choosing between the Komatsu GD825A-2 and the Sany SMG200C-8 should be based on specific project requirements. If the task demands higher gross power and a longer blade for larger surface area coverage, the Komatsu GD825A-2 would be suitable. For projects that require higher speed, greater down pressure, and operator comfort as standard, the Sany SMG200C-8 would be the appropriate choice.

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Price, Technical Specifications & Features

    Komatsu GD825A-2 Sany SMG200C-8
    Brand
    L&T Komatsu SANY
    Type
    Large (>50 Ton) Large (>50 Ton)
    Price
    Price Available Soon Price Available Soon
    Engine
    Komatsu 280 HP Cummins 250 HP
    Weight
    26350 kg 20760 kg
    Min. Turning Radius
    7900 mm 7500 mm
    Max. Forward Speed
    44.9 km/hr 46.8 km/hr
    Max. Reverse Speed
    3.9 km/hr 37 km/hr
    Quick Overview:

    The Komatsu GD825A-2 motor grader delivers powerful performance in heavy-duty roadwork, featuring a robust design that withstands the toughest environments.

    The Sany SMG200C-8 motor grader is designed to enhance productivity across all roadwork projects, offering excellent strength and reliability for grading tasks.

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Key Highlights

    Komatsu GD825A-2 Sany SMG200C-8
    Engine Make Komatsu S6D140E Cummins QSL 9
    Max Torque NA 1085 @ 1500 Nm
    Fuel Tank 500 L 340 L
    Hydraulic System 80 L 115 L
    Tires 23.5-25-12 PR (L3) rock type tires 17.5 - 25-20PR
    Frame Height 400 mm NA
    Max Lift Above Ground 420 mm 480 mm
    Max Cutting Depth 680 mm 715 mm
    Blade Pitch Angle 49° forward; 5° backward 40° forward; 5° backward
    Wheel Base 7100 mm 6300 mm
    Overall Length 11470 mm 11554 mm
    Overall Height 3550 mm 3498 mm
    Warranty 1 Yr. / 3000 hr. 1 Yr. / 2500 hr.
    AC Cabin Optional Standard
    GPS Not Available NA

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Key Highlights

    Komatsu GD825A-2 Sany SMG200C-8
    Engine Make
    Komatsu S6D140E Cummins QSL 9
    Max Torque
    NA 1085 @ 1500 Nm
    Fuel Tank
    500 L 340 L
    Hydraulic System
    80 L 115 L
    Tires
    23.5-25-12 PR (L3) rock type tires 17.5 - 25-20PR
    Frame Height
    400 mm NA
    Max Lift Above Ground
    420 mm 480 mm
    Max Cutting Depth
    680 mm 715 mm
    Blade Pitch Angle
    49° forward; 5° backward 40° forward; 5° backward
    Wheel Base
    7100 mm 6300 mm
    Overall Length
    11470 mm 11554 mm
    Overall Height
    3550 mm 3498 mm
    Warranty
    1 Yr. / 3000 hr. 1 Yr. / 2500 hr.
    AC Cabin
    Optional Standard
    GPS
    Not Available NA

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Specifications

    Engine

    Komatsu GD825A-2 Sany SMG200C-8
    Model Komatsu 280 HP Cummins 250 HP
    Fuel Diesel Diesel
    Type Water-cooled; 4-cycle; Overhead-value; Turbocharged EPA Tier 4 (f)
    Gross Power 280 HP (209 kW) @ 2100 rpm 250 HP (186 kW) @ 2200 rpm
    Number Of Cylinders 6 NA
    Max Torque NA 1085 @ 1500 Nm
    Displacement 15.24 L 9 L
    Battery 2 x 12V / 200 Ah NA
    Alternator 24V / 50A NA

    Transmission

    Komatsu GD825A-2 Sany SMG200C-8
    Type The Komatsu HYDROSHIFT transmission consists of planetary gears and hydraulically actuated and force- lubricated multiple-disc clutches; assuring light-touch; effort-minimizing shifting. Direct Drive Power Shift Transmission

    Speed

    Komatsu GD825A-2 Sany SMG200C-8
    Max. Forward Speed 44.9 km/hr 46.8 km/hr
    Max. Reverse Speed 3.9 km/hr 37 km/hr

    Axles

    Komatsu GD825A-2 Sany SMG200C-8
    Rear Axle Full-floating rear axle is made of forged heat treated steel. NA
    Front Axle Reserve Elliot-type front axle with a center ground clearance of 680 mm and oscillation angle of 32° (total) assures stable machine travel. Hydraulic front wheel learning (18° to each side) NA

    Tyres

    Komatsu GD825A-2 Sany SMG200C-8
    Size 23.5-25-12 PR (L3) rock type tires 17.5 - 25-20PR

    Steering

    Komatsu GD825A-2 Sany SMG200C-8
    Type Full-hydraulic orbit-roll type steering control with two steering Cylinders are directly actuated on the knucle arm. Hydraulic Articulated Steering
    Minimum Turning Radius 7900 mm 7500 mm
    Steering-Angle 50° 50°

    Brakes

    Komatsu GD825A-2 Sany SMG200C-8
    Service Food-operated; wet; multiple disc brakes are air-actuated on rear wheels and sealed for adjustments-free operation. Two; crossed brake lines for sure braking. Air-over-hydraulic; multi-disc wet brakes.
    Parking Mechanical; dry; disc type actuated on transmission output shaft. Spring-applied and air-released. Spring-applied; air-released type

    Frame

    Komatsu GD825A-2 Sany SMG200C-8
    Front Frame Height 400 mm NA
    Front Frame Width 350 mm NA
    Front Frame Thickness NA NA

    MoldBoard

    Komatsu GD825A-2 Sany SMG200C-8
    Type Box-section constructed with wear-resistant steel. Hydraulic blade sideshift and tip control. Side edges are attached. NA
    Blade Length 4878 mm 4270 mm
    Blade Height 850 mm 620 mm
    Blade Thickness 25 mm NA
    Cutting Edge 254 x 25 mm NA
    Blade Pull NA NA
    Blade Down Pressure NA 10605 kgf
    Moldboard Side Shift (Right/Left) NA NA
    Maximum Shoulder Reach (Right/Left) 2400 mm / 2400 mm NA
    Maximum Lift Above Ground 420 mm 480 mm
    Maximum Cutting Depth 680 mm 715 mm
    Blade Pitch Angle 49° forward; 5° backward 40° forward; 5° backward

    Hydraulics

    Komatsu GD825A-2 Sany SMG200C-8
    Type One variable-capacity piston pump powers the work equipment and steering system. NA
    Maximum Pump Flow 278 L/min NA
    Maximum System Pressure 25.0 MPa NA

    Service Capacities

    Komatsu GD825A-2 Sany SMG200C-8
    Fuel Tank 500 L 340 L
    Cooling System 58 L NA
    Engine Oil 38 L NA
    DEF Tank NA NA
    Trasnsmission Oil 25 L NA
    Final Drive 63 L NA
    Hydraulic System 80 L 115 L
    Circle Reverse Housing NA NA

    Weight

    Komatsu GD825A-2 Sany SMG200C-8
    Gross Vehicle Weight 26350 kg 20760 kg
    Moldboard Base 3100 mm 2520 mm
    Wheelbase 7100 mm 6300 mm
    Tandem Wheelbase 1840 mm 1524 mm
    Width of Standard Moldboard 4878 mm 4270 mm
    Overall Length 11470 mm 11554 mm
    Tread Gauge 3310 mm 2184 mm
    Width of Tires 2620 mm 2725 mm
    Articulation, left or right 25° NA
    Minimum Ground Clearence 440 mm 370 mm

    Komatsu GD825A-2 Vs Sany SMG200C-8 Motor Grader Specifications

    Engine

    Komatsu GD825A-2 Sany SMG200C-8
    Model
    Komatsu 280 HP Cummins 250 HP
    Fuel
    Diesel Diesel
    Type
    Water-cooled; 4-cycle; Overhead-value; Turbocharged EPA Tier 4 (f)
    Gross Power
    280 HP (209 kW) @ 2100 rpm 250 HP (186 kW) @ 2200 rpm
    Number Of Cylinders
    6 NA
    Max Torque
    NA 1085 @ 1500 Nm
    Displacement
    15.24 L 9 L
    Battery
    2 x 12V / 200 Ah NA
    Alternator
    24V / 50A NA

    Speed

    Komatsu GD825A-2 Sany SMG200C-8
    Max. Forward Speed
    44.9 km/hr 46.8 km/hr
    Max. Reverse Speed
    3.9 km/hr 37 km/hr

    Axles

    Komatsu GD825A-2 Sany SMG200C-8
    Rear Axle
    Full-floating rear axle is made of forged heat treated steel. NA
    Front Axle
    Reserve Elliot-type front axle with a center ground clearance of 680 mm and oscillation angle of 32° (total) assures stable machine travel. Hydraulic front wheel learning (18° to each side) NA

    Tyres

    Komatsu GD825A-2 Sany SMG200C-8
    Size
    23.5-25-12 PR (L3) rock type tires 17.5 - 25-20PR

    Steering

    Komatsu GD825A-2 Sany SMG200C-8
    Type
    Full-hydraulic orbit-roll type steering control with two steering Cylinders are directly actuated on the knucle arm. Hydraulic Articulated Steering
    Minimum Turning Radius
    7900 mm 7500 mm
    Steering-Angle
    50° 50°

    Brakes

    Komatsu GD825A-2 Sany SMG200C-8
    Service
    Food-operated; wet; multiple disc brakes are air-actuated on rear wheels and sealed for adjustments-free operation. Two; crossed brake lines for sure braking. Air-over-hydraulic; multi-disc wet brakes.
    Parking
    Mechanical; dry; disc type actuated on transmission output shaft. Spring-applied and air-released. Spring-applied; air-released type

    Frame

    Komatsu GD825A-2 Sany SMG200C-8
    Front Frame Height
    400 mm NA
    Front Frame Width
    350 mm NA
    Front Frame Thickness
    NA NA

    Moldboard

    Komatsu GD825A-2 Sany SMG200C-8
    Type
    Box-section constructed with wear-resistant steel. Hydraulic blade sideshift and tip control. Side edges are attached. NA
    Blade Length
    4878 mm 4270 mm
    Blade Height
    850 mm 620 mm
    Blade Thickness
    25 mm NA
    Cutting Edge
    254 x 25 mm NA
    Blade Pull
    NA NA
    Blade Down Pressure
    NA 10605 kgf
    Moldboard Side Shift (Right/Left)
    NA NA
    Maximum Shoulder Reach (Right/Left)
    2400 mm / 2400 mm NA
    Maximum Lift Above Ground
    420 mm 480 mm
    Maximum Cutting Depth
    680 mm 715 mm
    Blade Pitch Angle
    49° forward; 5° backward 40° forward; 5° backward

    Hydraulics

    Komatsu GD825A-2 Sany SMG200C-8
    Type
    One variable-capacity piston pump powers the work equipment and steering system. NA
    Maximum Pump Flow
    278 L/min NA
    Maximum System Pressure
    25.0 MPa NA

    Service Capacities

    Komatsu GD825A-2 Sany SMG200C-8
    Fuel Tank
    500 L 340 L
    Cooling System
    58 L NA
    Engine Oil
    38 L NA
    DEF Tank
    NA NA
    Trasnsmission Oil
    25 L NA
    Final Drive
    63 L NA
    Hydraulic System
    80 L 115 L
    Circle Reverse Housing
    NA NA

    Weight

    Komatsu GD825A-2 Sany SMG200C-8
    Gross Vehicle Weight
    26350 kg 20760 kg
    Moldboard Base
    3100 mm 2520 mm
    Wheelbase
    7100 mm 6300 mm
    Tandem Wheelbase
    1840 mm 1524 mm
    Width of Standard Moldboard
    4878 mm 4270 mm
    Overall Length
    11470 mm 11554 mm
    Tread Gauge
    3310 mm 2184 mm
    Width of Tires
    2620 mm 2725 mm
    Articulation, left or right
    25° NA
    Minimum Ground Clearence
    440 mm 370 mm

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    !

    Help Us Reach You!

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare


      Kindly fill out the below form. Our representative will get in touch with you
