    Tata Hitachi EX 215LC-SLR VS JCB NXT 245HD LR Excavator

    desi-machines-tata-hitachi-excavator-ex215lc-slr-featured
    Tata Hitachi EX 215LC-SLR
    • icon alt1
      Weight
      20800 Kg
    • featIcon2 (1) alt
      Bucket
      0.5 m³
    • Dig. Depth
      11628 mm
    • Engine
      Cummins 131 HP
    • Warranty
      1 Yr. / 2000 hr.
    • Boom
      NA
    ₹ 69 - 71 Lakhs*
    Long Reach

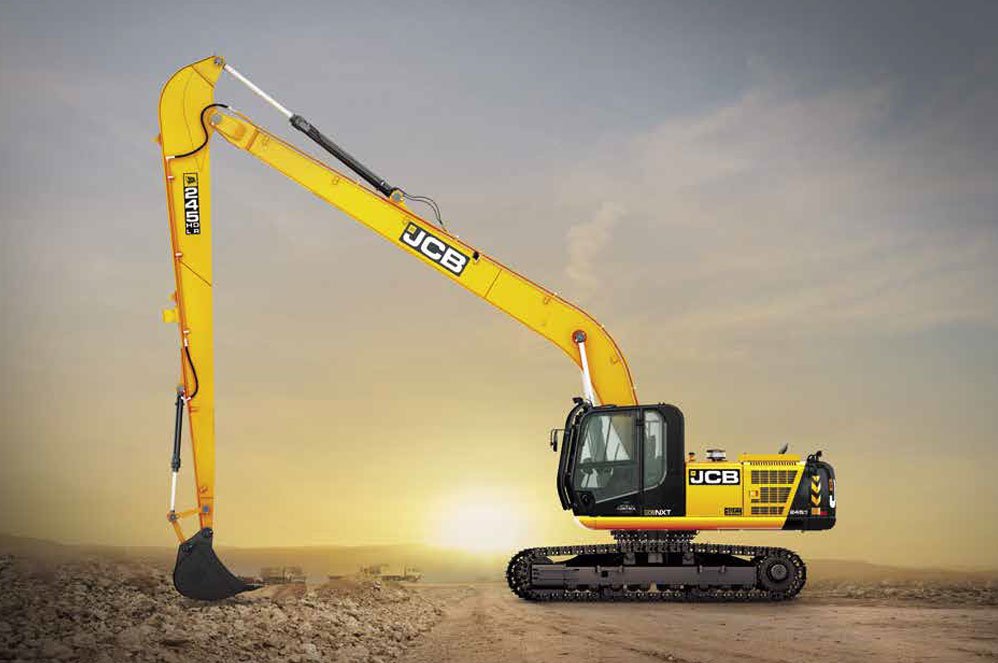

    desi-machines-jcb-excavator-nxt-245hd-lr-featured
    JCB NXT 245HD LR
    • icon alt1
      Weight
      23850 Kg
    • featIcon2 (1) alt
      Bucket
      0.45 m³
    • Dig. Depth
      12040 mm
    • Engine
      Cummins 140 HP
    • Warranty
      1 Yr. / 2000 hr.
    • Boom
      8700 mm
    ₹ 81-83 Lakhs*
    Long Reach

    Add Equipment

    Enquire Now

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before making any final decision.

    Key Highlights Tata Hitachi EX 215LC-SLRJCB NXT 245HD LR
    Tata Hitachi EX 215LC-SLR VS JCB NXT 245HD LR Excavator
    Tata Hitachi EX 215LC-SLR
    ₹ 69 - 71 Lakhs
    JCB NXT 245HD LR
    ₹ 81-83 Lakhs
    Particulars Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Overview Summary

    The JCB NXT 245HD LR and Tata Hitachi EX 215LC-SLR are both long-reach excavators designed for dredging and waterfront construction, with the JCB model offering a higher engine horsepower and stronger digging force, while the Tata Hitachi provides a larger bucket capacity and greater engine torque.

    JCB NXT 245HD LR
    Pros:
    • Higher engine horsepower (140 HP) for potentially better performance
    • Longer undercarriage (4470 mm) for improved stability
    • Larger fuel tank capacity (343 L) for extended operation times
    • Slightly higher max digging reach (15620 mm) for extra reach in excavating
    • Higher bucket digging force (65.5 kN) for stronger digging capability
    Cons:
    • Higher price range (₹ 81-83 Lakhs) compared to Tata Hitachi EX 215LC-SLR
    • Heavier operating weight (23850 Kg) which may affect transportability
    • Ground bearing pressure is lower (37.3 kPa) but this can be an advantage for soft grounds
    • Some hydraulic details like pump type are listed, but the relevance to performance is not clear for users
    Tata Hitachi EX 215LC-SLR
    Pros:
    • Lower price range (₹ 69 - 71 Lakhs) which may be more budget-friendly
    • Greater max torque of the engine (537 Nm @ 1300 rpm) for tough digging conditions
    • Higher hydraulic tank capacity (129 L) possibly means longer hydraulic system operating times
    • Slightly faster swing speed (13.7 rpm) may contribute to quicker cycle times
    • Larger bucket capacity (0.5 m³) for moving more material per cycle
    Cons:
    • Lower engine horsepower (131 HP) might reduce performance in some conditions
    • Smaller fuel tank capacity (315 L) could mean more frequent refueling
    • Greater ground bearing pressure (48 kPa) might not be ideal for working on delicate surfaces
    • Slightly less max digging reach on the ground (15452 mm)
    Pros:
    Cons:
    Closing Recommendation

    If your priority is heavy-duty performance with a higher digging force and longer reach, the JCB NXT 245HD LR may be the better choice despite its higher cost. On the other hand, if budget is a significant factor and you prefer a machine with a larger bucket capacity and slightly faster swing speed, the Tata Hitachi EX 215LC-SLR might be the preferable option.

    Price, Technical Specifications & Features
    Brand Tata Hitachi JCB
    Type Long Reach Long Reach
    Operating Cost ₹ 69 - 71 Lakhs ₹ 81-83 Lakhs
    Price ₹ 69 - 71 Lakhs ₹ 81-83 Lakhs
    Weight 20800 Kg 23850 Kg
    Bucket 0.5 m³ 0.45 m³
    Max Digging Depth 11628 mm 12040 mm
    Engine Cummins 131 HP Cummins 140 HP
    Warranty 1 Yr. / 2000 hr. 1 Yr. / 2000 hr.
    Boom NA 8700 mm
    Quick Overview:

    Designed for depth and precision, Tata Hitachi EX 215LC-SLR long-reach excavator excels in dredging and waterfront construction.

    Ensuring precision and reliability JCB NXT 245HD LR long-reach excavator used for dredging, mining, and waterfront construction projects.
    Agency review

    Get the best price for the Tata Hitachi EX 215LC-SLR Long Reach Excavator from authorized dealers. Contact us now for exclusive deals!

    Get the best price for the JCB NXT 245HD LR Long Reach Excavator from authorized dealers. Contact us now for exclusive deals!
    Overview Summary

    The JCB NXT 245HD LR and Tata Hitachi EX 215LC-SLR are both long-reach excavators designed for dredging and waterfront construction, with the JCB model offering a higher engine horsepower and stronger digging force, while the Tata Hitachi provides a larger bucket capacity and greater engine torque.

    JCB NXT 245HD LR
    Pros:
    • Higher engine horsepower (140 HP) for potentially better performance
    • Longer undercarriage (4470 mm) for improved stability
    • Larger fuel tank capacity (343 L) for extended operation times
    • Slightly higher max digging reach (15620 mm) for extra reach in excavating
    • Higher bucket digging force (65.5 kN) for stronger digging capability
    Cons:
    • Higher price range (₹ 81-83 Lakhs) compared to Tata Hitachi EX 215LC-SLR
    • Heavier operating weight (23850 Kg) which may affect transportability
    • Ground bearing pressure is lower (37.3 kPa) but this can be an advantage for soft grounds
    • Some hydraulic details like pump type are listed, but the relevance to performance is not clear for users
    Tata Hitachi EX 215LC-SLR
    Pros:
    • Lower price range (₹ 69 - 71 Lakhs) which may be more budget-friendly
    • Greater max torque of the engine (537 Nm @ 1300 rpm) for tough digging conditions
    • Higher hydraulic tank capacity (129 L) possibly means longer hydraulic system operating times
    • Slightly faster swing speed (13.7 rpm) may contribute to quicker cycle times
    • Larger bucket capacity (0.5 m³) for moving more material per cycle
    Cons:
    • Lower engine horsepower (131 HP) might reduce performance in some conditions
    • Smaller fuel tank capacity (315 L) could mean more frequent refueling
    • Greater ground bearing pressure (48 kPa) might not be ideal for working on delicate surfaces
    • Slightly less max digging reach on the ground (15452 mm)
    Pros:
    Cons:
    Closing Recommendation

    If your priority is heavy-duty performance with a higher digging force and longer reach, the JCB NXT 245HD LR may be the better choice despite its higher cost. On the other hand, if budget is a significant factor and you prefer a machine with a larger bucket capacity and slightly faster swing speed, the Tata Hitachi EX 215LC-SLR might be the preferable option.

    Price, Technical Specifications & Features
    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Brand
    Tata Hitachi JCB
    Type
    Long Reach Long Reach
    Price
    ₹ 69 - 71 Lakhs ₹ 81-83 Lakhs
    Weight
    20800 Kg 23850 Kg
    Bucket
    0.5 m³ 0.45 m³
    Max Digging Depth
    11628 mm 12040 mm
    Engine
    Cummins 131 HP Cummins 140 HP
    Warranty
    1 Yr. / 2000 hr. 1 Yr. / 2000 hr.
    Boom
    NA 8700 mm
    Quick Overview:

    Designed for depth and precision, Tata Hitachi EX 215LC-SLR long-reach excavator excels in dredging and waterfront construction.

    Ensuring precision and reliability JCB NXT 245HD LR long-reach excavator used for dredging, mining, and waterfront construction projects.
    Key Highlights
    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Engine Make Cummins 6BT5.9C Cummins 6BT5.9C
    Fuel Tank 315 L 343 L
    Engine Displacment NA 5.88 L
    Under Carriage 4350 mm 4470 mm
    Hydraulic System 220 L 203 L
    Arm NA 6400 mm
    Max Digging Reach 15560 mm 15620 mm
    Fuel Consumption NA 20 L/hour
    Overall Width 2990 mm 2900 mm
    Overall Length 12069 mm 12600 mm
    Bucket Digging Force NA 65.5 kN
    Tailswing Radius 2785 mm 2830 mm
    Track Shoe Width 600 mm 600 mm
    AC Cabin Standard Standard
    GPS Standard Standard
    Key Highlights
    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Engine Make
    Cummins 6BT5.9C Cummins 6BT5.9C
    Fuel Tank
    315 L 343 L
    Engine Displacment
    NA 5.88 L
    Under Carriage
    4350 mm 4470 mm
    Hydraulic System
    220 L 203 L
    Arm
    NA 6400 mm
    Max Digging Reach
    15560 mm 15620 mm
    Fuel Consumption
    NA 20 L/hour
    Overall Width
    2990 mm 2900 mm
    Overall Length
    12069 mm 12600 mm
    Bucket Digging Force
    NA 65.5 kN
    Tailswing Radius
    2785 mm 2830 mm
    Track Shoe Width
    600 mm 600 mm
    AC Cabin
    Standard Standard
    GPS
    Standard Standard
    Specifications

    Engine

    3627 3675
    Model Cummins 131 HP Cummins 140 HP
    Fuel Diesel Diesel
    Type 6 cylinder in-line water cooled NA
    Rated Engine Power 131 HP (97.6 kW) @ 2000 rpm 140 HP (104 kW) @2000 rpm
    Maximum Torque 537 Nm @ 1300 rpm NA
    Piston Displacement NA 5.88 L
    Alternator NA 75A
    Battery 2 x 12V NA
    Starting Motor NA NA

    Undercarriage

    NA NA
    No of Top rollers 2 2
    No of bottom rollers 8 8
    Track Shoes (Each Side) 52 49
    Track Guard NA 2
    Track Shoe width 600 mm 600 mm
    Ground bearing pressure 48 kPa 37.3 kPa
    Track Tensioning Grease Grease
    Gradeability 70% (35°) 70 % (35°) Continuous
    Travel Speed-Low 0-4.2 Km/h NA
    Travel Speed-High 0-4.2 Km/h 3.8 Km/h
    Max Tracking Force 149 kN 166 kN

    Hydraulic System

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Hydraulic pump Variable Displacement Axial Piston Pumps 2 variable displacement axial piston type.
    Maximum Flow 2 x 221 L/min 2 x 220 L/min
    Pilot Pump 1 Gear Pump Gear Type
    Implement Circuit 27.9 MPa 34.3 MPa
    Swing Circuit 26.9 MPa 24 MPa
    Travel circuit 34.3 MPa 34.3 MPa
    Pilot circuit 3.9 MPa 4.0 MPa

    Hydraulic Motors

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Travel NA NA
    Swing NA Axial piston type

    Service Capacities

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Fuel tank 315 L 343 L
    Engine Coolant 35 L 25.5 L
    Engine oil 14 L 19 L
    Hydraulic system 220 L 203 L
    Hydraulic tank 129 L 120 L

    Machine Weight

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Operating Weight 20800 Kg 23850 Kg

    Working Range

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Boom length NA 8700 mm
    Arm length NA 6400 mm
    Max Digging Reach 15560 mm 15620 mm
    Max Digging Reach on ground 15452 mm 15510 mm
    Max digging depth 11628 mm 12040 mm
    Max digging height 11524 mm 12690 mm
    Max Dump Height 11171 mm NA
    Max vertical wallcut depth 10832 mm 11460 mm
    Min swing radius 5040 mm 5450 mm
    Max Height at Min Swing radius NA NA
    Max height (above ground) NA NA
    Dig depth (below ground) NA NA
    Bucket Digging Force NA 65.5 kN
    Arm Digging Force NA 44 kN
    Swing Speed 13.7 rpm 12 rpm

    Dozer Blade

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Dozer Type NA NA
    Dozer Length NA NA
    Digging depth for ground level NA NA
    Approach Angle NA NA
    Width NA NA
    Height NA NA

    Bucket

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Bucket Capacity 0.5 m³ 0.45 m³

    Static Dimensions

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Overall Length 12069 mm 12600 mm
    Overall width 2990 mm 2900 mm
    Overall Height 3463 mm 3050 mm
    Overall Height of Cab NA 3060 mm
    Upper Width 2610 mm 2550 mm
    Track Lengh on Ground 3550 mm 3660 mm
    Undercarriage overall length 4350 mm 4470 mm
    Tailswing radius 2785 mm 2830 mm
    Min Ground clearance 435 mm 456 mm
    Track gauge 2390 mm 2390 mm
    Width over tracks NA 2900 mm / 3190 mm
    Track Height 855 mm 890 mm
    Counterweight Clearance 1050 mm 1050 mm
    Track Shoe Width 600 mm 600 mm
    Specifications

    Engine

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Model
    Cummins 131 HP Cummins 140 HP
    Fuel
    Diesel Diesel
    Type
    6 cylinder in-line water cooled NA
    Rated Engine Power
    131 HP (97.6 kW) @ 2000 rpm 140 HP (104 kW) @2000 rpm
    Maximum Torque
    537 Nm @ 1300 rpm NA
    Piston Displacement
    NA 5.88 L
    Alternator
    NA 75A
    Battery
    2 x 12V NA
    Starting Motor
    NA NA

    Undercarriage

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    No of Top rollers
    2 2
    No of bottom rollers
    8 8
    Track Shoes (Each Side)
    52 49
    Track Guard
    NA 2
    Track Shoe width
    600 mm 600 mm
    Ground bearing pressure
    48 kPa 37.3 kPa
    Track Tensioning
    Grease Grease
    Gradeability
    70% (35°) 70 % (35°) Continuous
    Travel Speed-Low
    0-4.2 Km/h NA
    Travel Speed-High
    0-4.2 Km/h 3.8 Km/h
    Max Tracking Force
    149 kN 166 kN

    Hydraulic Motors

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Hydraulic pump
    Variable Displacement Axial Piston Pumps 2 variable displacement axial piston type.
    Maximum Flow
    2 x 221 L/min 2 x 220 L/min
    Pilot Pump
    1 Gear Pump Gear Type
    Implement Circuit
    27.9 MPa 34.3 MPa
    Swing Circuit
    26.9 MPa 24 MPa
    Travel circuit
    34.3 MPa 34.3 MPa
    Pilot circuit
    3.9 MPa 4.0 MPa

    Service Capacities

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Fuel tank
    315 L 343 L
    Engine Coolant
    35 L 25.5 L
    Engine oil
    14 L 19 L
    Hydraulic system
    220 L 203 L
    Hydraulic tank
    129 L 120 L

    Machine Weight

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Operating Weight
    20800 Kg 23850 Kg

    Working Range

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Boom length
    NA 8700 mm
    Arm length
    NA 6400 mm
    Max Digging Reach
    15560 mm 15620 mm
    Max Digging Reach on ground
    15452 mm 15510 mm
    Max digging depth
    11628 mm 12040 mm
    Max digging height
    11524 mm 12690 mm
    Max Dump Height
    11171 mm NA
    Max vertical wallcut depth
    10832 mm 11460 mm
    Min swing radius
    5040 mm 5450 mm
    Max Height at Min Swing radius
    NA NA
    Max height (above ground)
    NA NA
    Dig depth (below ground)
    NA NA
    Bucket Digging Force
    NA 65.5 kN
    Arm Digging Force
    NA 44 kN
    Swing Speed
    13.7 rpm 12 rpm

    Dozer Blade

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Dozer Type
    NA NA
    Dozer Length
    NA NA
    Digging depth for ground level
    NA NA
    Approach Angle
    NA NA
    Width
    NA NA
    Height
    NA NA

    Bucket

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Bucket Capacity
    0.5 m³ 0.45 m³

    Static Dimensions

    Tata Hitachi EX 215LC-SLR JCB NXT 245HD LR
    Overall Length
    12069 mm 12600 mm
    Overall width
    2990 mm 2900 mm
    Overall Height
    3463 mm 3050 mm
    Overall Height of Cab
    NA 3060 mm
    Upper Width
    2610 mm 2550 mm
    Track Lengh on Ground
    3550 mm 3660 mm
    Undercarriage overall length
    4350 mm 4470 mm
    Tailswing radius
    2785 mm 2830 mm
    Min Ground clearance
    435 mm 456 mm
    Track gauge
    2390 mm 2390 mm
    Width over tracks
    NA 2900 mm / 3190 mm
    Track Height
    855 mm 890 mm
    Counterweight Clearence
    1050 mm 1050 mm
    Track Shoe Width
    600 mm 600 mm
    Enquire Now

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    Help Us Reach You!

      Your Captcha*

      captcha

      Let's get started

      Disclaimer

      Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

      Compare
