Tata Hitachi Shinrai Prime CEV 5 VS Mahindra Earthmaster VX BS-5 Backhoe Loader

Tata Hitachi Shinrai Prime CEV 5

Engine

Kubota 74.3 HP
Bucket

0.27 m³
Shovel

1.1 m³
Dig. Depth

4700 mm
Dump Height

2720 mm
Weight

8120 Kg

₹ 33-35 Lakhs^*

2WD/4WD

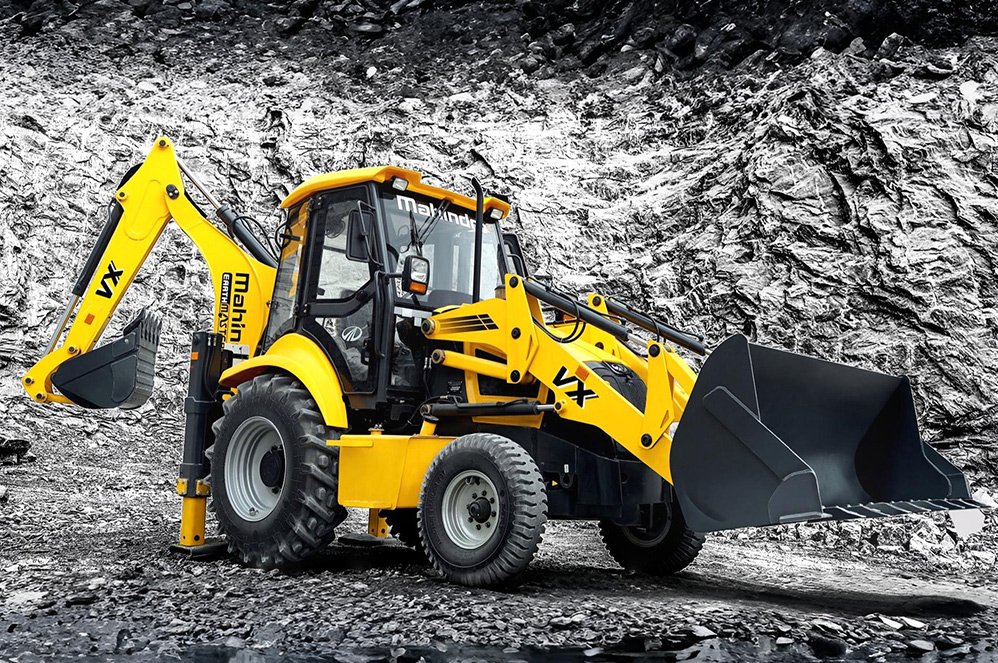

Mahindra Earthmaster VX BS-5

Engine

Mahindra 74 HP
Bucket

0.27 m³
Shovel

1.1 m³
Dig. Depth

4355 mm
Dump Height

2712 mm
Weight

7517 kg

₹ 35 - 37 Lakhs^*

2WD/4WD

Add Equipment

Enquire Now

Key Highlights	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5

Tata Hitachi Shinrai Prime CEV 5

₹ 33-35 Lakhs

Mahindra Earthmaster VX BS-5

₹ 35 - 37 Lakhs

Particulars	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5

Compare

Overview

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Brand	Tata Hitachi	Mahindra CE
Type	2WD/4WD	2WD/4WD
Price	₹ 33-35 Lakhs	₹ 35 - 37 Lakhs
Engine	Kubota 74.3 HP	Mahindra 74 HP
Bucket	0.27 m³	0.27 m³
Shovel	1.1 m³	1.1 m³
Max Digging Depth	4700 mm	4355 mm
Max Dump Height	2720 mm	2712 mm
Weight	8120 Kg	7517 kg
Quick Overview:	The Tata Hitachi Shinrai Prime CEV 5 backhoe loader is designed for efficiency and durability, offering powerful performance for construction and excavation tasks.	The Mahindra Earthmaster VX Backhoe Loader meets updated CEV-5 standards while providing consistent performance, better control, and improved ergonomics for various terrain.

Overview

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Brand
Tata Hitachi	Mahindra CE
Type
2WD/4WD	2WD/4WD
Price
₹ 33-35 Lakhs	₹ 35 - 37 Lakhs
Engine
Kubota 74.3 HP	Mahindra 74 HP
Bucket
0.27 m³	0.27 m³
Shovel
1.1 m³	1.1 m³
Max Digging Depth
4700 mm	4355 mm
Max Dump Height
2720 mm	2712 mm
Weight
8120 Kg	7517 kg
Quick Overview:
The Tata Hitachi Shinrai Prime CEV 5 backhoe loader is designed for efficiency and durability, offering powerful performance for construction and excavation tasks.	The Mahindra Earthmaster VX Backhoe Loader meets updated CEV-5 standards while providing consistent performance, better control, and improved ergonomics for various terrain.

Key Highlights

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Engine Make	Kubota V3800-CR-TE5	Mahindra NEF3508 CEV 5
Fuel Tank	128 L	140 L
Max Torque	310 Nm @ 1500 rpm	400 Nm @ 1100-1200 RPM
Max Speed	32 km/hr	33.0 km/hr
Hydraulic System	NA	102 L
Max Working Height	6050 mm	5241 mm
Excavator Max Lift Capacity	NA	1449 kg
Loader Load Over Height	4200 mm	3599 mm
Overall Length	6040 mm	NA
Wheel Base	2130 mm	2176 mm
Bucket Digging Force	5685 kgf	5592 kgf
Shovel Breakout Force	6580 kgf	6243 kgf
Warranty	1 Yr. / 2000 hr.	1 Year
AC Cabin	Optional	Optional
GPS	Standard	Standard

Key Highlights

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Engine Make
Kubota V3800-CR-TE5	Mahindra NEF3508 CEV 5
Fuel Tank
128 L	140 L
Max Torque
310 Nm @ 1500 rpm	400 Nm @ 1100-1200 RPM
Max Speed
32 km/hr	33.0 km/hr
Hydraulic System
NA	102 L
Max Working Height
6050 mm	5241 mm
Excavator Max Lift Capacity
NA	1449 kg
Loader Load Over Height
4200 mm	3599 mm
Overall Length
6040 mm	NA
Wheel Base
2130 mm	2176 mm
Bucket Digging Force
5685 kgf	5592 kgf
Shovel Breakout Force
6580 kgf	6243 kgf
Warranty
1 Yr. / 2000 hr.	1 Year
AC Cabin
Optional	Optional
GPS
Standard	Standard

Specifications

Engine

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Model	Kubota 74.3 HP	Mahindra 74 HP
Type	Turbo-Charged, Direct Injection, 4 Cylinders	CEV-V, Turbocharged Intercooled
Gross Power	74.3 HP (55.4 kW) @ 2200 RPM	74 HP (55 kW) @ 1950 RPM
Max Torque	310 Nm @ 1500 rpm	400 Nm @ 1100-1200 RPM
Displacement	3.7 L	3.5 L
Battery	12V / 150 Ah	12V / 110 Ah
Alternator	100A	NA

Transmission

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type	Equipped with Carraro-make synchro-shuttle transmission.	CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

Steering

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type	Hydraulic actuation with priority for smooth control.	Hydraulic Power Steering with dedicated pump
Working Pressure	NA	150 ± 10 bar

Steering Turning Circle

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Inner Wheels Braked - Outside Loader Bucket	11730 mm	NA
Inner Wheels Braked - Outside Wheels	8600 mm	NA
Inner Wheels not Braked - Outside Loader Bucket	NA	10660 mm
Inner Wheels not Braked - Outside Wheels	NA	7580 mm

Brakes

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Service	Oil-immersed wet disc; hydraulic-actuated with independent pedals for better control in narrow spaces	Foot operated hydraulically actuated oil immerssed,3 disc wet brakes on rear axle
Parking	Hand operated disc brake on the rear axle.	Hand operated,mechanically actuated caliper typebrake system integral with axle

Tyres

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Front	9 x 16.16 PR	9 X 16 - 16 PR (2WD) / 12.5 X 18 - 12 PR (4WD)
Rear	12 PR , 16.9 x 28	16.9 x 28 - 12 PR

Speed

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Forward- 1st gear	5 km/hr	5.5 km/hr
Reverse- 1st gear	6 km/hr	5.5 km/hr
Forward- 2nd gear	8 km/hr	8.5 km/hr
Reverse- 2nd gear	9 km/hr	8.5 km/hr
Forward- 3rd gear	17 km/hr	18.5 km/hr
Reverse- 3rd gear	Not recommended	Not Recommened
Forward- 4th gear	32 km/hr	33 km/hr
Reverse- 4th gear	Not recommended	Not Recommened

Hydraulics

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type	Excellent Hydraulic system (EHS) with tandem gear pump for lower fuel consumption.	Open system, Fixed displacement, Gear Pump
Maximum Pump Flow	113 L/min @ 1950 RPM	112 L/min @ 2150 rpm
System Pressure	245 bar	250 bar

Axles

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Rear Axle	Rear heavy-duty carraro axle with high brake torque	CARRARO
Front Axle	Heavy-duty; non-powered axle	Mahindra (2WD) / CARRARO (4WD) Oscillating 16°

Service Capacities

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Fuel Tank	128 L	140 L
Engine Coolant	14.4 L	17 L
Engine Oil	13.2 L	13.7 L
Hydraulic Tank	86 L	NA
Hydraulic System	NA	102 L
Transmission	16 L	19.2 L (2WD) / 22 L (4WD)
Rear Axle	17.1 L	17.1 L

Excavator Performance

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Maximum Digging Depth	4700 mm	4355 mm
Reach-Ground Level to Rear Wheel Centre	6880 mm	7038 mm
Reach-Ground Level to Slew Centre	5440 mm	5700 mm
Reach at Full Height to Slew Centre	2001 mm	2980 mm
Side Reach to Centre Line of Machine	6050 mm	NA
Maximum Working Height	6050 mm	5241 mm
Maximum Load Over Height	4200 mm	3599 mm
Bucket Rotation Angle	180°	NA
Bucket Digging force	5685 kgf	5592 kgf
Arm Digging force	3220 kgf	3182 kgf
Maximum Lift Capacity	NA	1449 kg
Standard Bucket Capacity	0.27 m³	0.27 m³
Standard Bucket Width	784 mm	NA

Loader Performance

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Dump Height	2720 mm	2712 mm
Load Over Height	3305 mm	3267 mm
Pin Height	3550 mm	3470 mm
Pin Forward Reach	367 mm	236 mm
Reach At Ground	1620 mm	1368 mm
Maximum Reach at Full Height	1332 mm	1117 mm
Max Reach Full Height Dumped	4840 mm	728 mm
Below Ground Level Dig Depth	110 mm	110 mm
Rollback at Ground	45°	43°
Dump Angle	45°	44°
Shovel Breakout Force	6580 kgf	6243 kgf
Loader Arm Breakout Force	5488 kgf	5594 kgf
Maximum Payload	1920 kg	1800 kg

Overall Dimensions And Weight

	Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Machine Weight	8120 kg	7517 kg
Overall Length	6040 mm	NA
Wheelbase	2130 mm	2176 mm
Slew Centre to Rear Axle Centre	1370 mm	NA
Minimum Ground Clearance	320 mm	326 mm
Slew Ground Clearance	485 mm	NA
Height of Cabin	2940 mm	2950 mm
Overall Height	3530 mm	3620 mm
Track Width-Rear	1700 mm	1722 mm
Track Width-Front	1900 mm	1914 mm (2WD) / 1920 mm (4WD)
Width Over Bucket	2354 mm	2404 mm

Specifications

Engine

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Model
Kubota 74.3 HP	Mahindra 74 HP
Type
Turbo-Charged, Direct Injection, 4 Cylinders	CEV-V, Turbocharged Intercooled
Gross Power
74.3 HP (55.4 kW) @ 2200 RPM	74 HP (55 kW) @ 1950 RPM
Max Torque
310 Nm @ 1500 rpm	400 Nm @ 1100-1200 RPM
Displacement
3.7 L	3.5 L
Battery
12V / 150 Ah	12V / 110 Ah
Alternator
100A	NA

Transmission

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type
Equipped with Carraro-make synchro-shuttle transmission.	CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

Steering

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type
Hydraulic actuation with priority for smooth control.	Hydraulic Power Steering with dedicated pump
Working Pressure
NA	150 ± 10 bar

Steering Turning Circle

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Inner Wheels Braked - Outside Loader Bucket
11730 mm	NA
Inner Wheels Braked - Outside Wheels
8600 mm	NA
Inner Wheels not Braked - Outside Loader Bucket
NA	10660 mm
Inner Wheels not Braked - Outside Wheels
NA	7580 mm

Brakes

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Service
Oil-immersed wet disc; hydraulic-actuated with independent pedals for better control in narrow spaces	Foot operated hydraulically actuated oil immerssed,3 disc wet brakes on rear axle
Parking
Hand operated disc brake on the rear axle.	Hand operated,mechanically actuated caliper typebrake system integral with axle

Tyres

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Front
9 x 16.16 PR	9 X 16 - 16 PR (2WD) / 12.5 X 18 - 12 PR (4WD)
Rear
12 PR , 16.9 x 28	16.9 x 28 - 12 PR

Speed

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Forward- 1st gear
5 km/hr	5.5 km/hr
Reverse- 1st gear
6 km/hr	5.5 km/hr
Forward- 2nd gear
8 km/hr	8.5 km/hr
Reverse- 2nd gear
9 km/hr	8.5 km/hr
Forward- 3rd gear
17 km/hr	18.5 km/hr
Reverse- 3rd gear
Not recommended	Not Recommened
Forward- 4th gear
32 km/hr	33 km/hr
Reverse- 4th gear
Not recommended	Not Recommened

Hydraulics

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Type
Excellent Hydraulic system (EHS) with tandem gear pump for lower fuel consumption.	Open system, Fixed displacement, Gear Pump
Maximum Pump Flow
113 L/min @ 1950 RPM	112 L/min @ 2150 rpm
System Pressure
245 bar	250 bar

Axles

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Rear Axle
Rear heavy-duty carraro axle with high brake torque	CARRARO
Front Axle
Heavy-duty; non-powered axle	Mahindra (2WD) / CARRARO (4WD) Oscillating 16°

Service Capacities

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Fuel Tank
128 L	140 L
Engine Coolant
14.4 L	17 L
Engine Oil
13.2 L	13.7 L
Hydraulic Tank
86 L	NA
Hydraulic System
NA	102 L
Transmission
16 L	19.2 L (2WD) / 22 L (4WD)
Rear Axle
17.1 L	17.1 L

Excavator Performance

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Maximum Digging Depth
4700 mm	4355 mm
Reach-Ground Level to Rear Wheel Centre
6880 mm	7038 mm
Reach-Ground Level to Slew Centre
5440 mm	5700 mm
Reach at Full Height to Slew Centre
2001 mm	2980 mm
Side Reach to Centre Line of Machine
6050 mm	NA
Maximum Working Height
6050 mm	5241 mm
Maximum Load Over Height
4200 mm	3599 mm
Bucket Rotation Angle
180°	NA
Bucket Digging force
5685 kgf	5592 kgf
Arm Digging force
3220 kgf	3182 kgf
Maximum Lift Capacity
NA	1449 kg
Standard Bucket Capacity
0.27 m³	0.27 m³
Standard Bucket Width
784 mm	NA

Loader Performance

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Dump Height
2720 mm	2712 mm
Load Over Height
3305 mm	3267 mm
Pin Height
3550 mm	3470 mm
Pin Forward Reach
367 mm	236 mm
Reach At Ground
1620 mm	1368 mm
Maximum Reach at Full Height
1332 mm	1117 mm
Max Reach Full Height Dumped
4840 mm	728 mm
Below Ground Level Dig Depth
110 mm	110 mm
Rollback at Ground
45°	43°
Dump Angle
45°	44°
Shovel Breakout Force
6580 kgf	6243 kgf
Loader Arm Breakout Force
5488 kgf	5594 kgf
Maximum Payload
1920 kg	1800 kg

Overall Dimensions And Weight

Tata Hitachi Shinrai Prime CEV 5	Mahindra Earthmaster VX BS-5
Machine Weight
8120 kg	7517 kg
Overall Length
6040 mm	NA
Wheelbase
2130 mm	2176 mm
Slew Centre to Rear Axle Centre
1370 mm	NA
Minimum Ground Clearance
320 mm	326 mm
Slew Ground Clearance
485 mm	NA
Height of Cabin
2940 mm	2950 mm
Overall Height
3530 mm	3620 mm
Track Width-Rear
1700 mm	1722 mm
Track Width-Front
1900 mm	1914 mm (2WD) / 1920 mm (4WD)
Width Over Bucket
2354 mm	2404 mm

Frequently Asked Question

1. How does the comparison process work?

Ans.

Our comparison process is designed with simplicity and precision. You have to select the equipment you are interested in and choose models to view specifications, performance metrics, and other features side-by-side.

2. Can I connect with dealers through Desi Machines?

Ans.

Yes, you can. Once you find out your desired product, you can submit the lead form to connect with the local dealers. The local dealers can help you with pricing, availability, and further inquiries.

3. Do you offer financing or insurance options?

Ans.

We help buyers choose from industry-specific financing and insurance providers that are tailor-made for heavy machinery. These ensure that you get coverage and financing options for the needs of construction and engineering equipment.

4. How does Desi Machines earn revenue?

Ans.

Desi Machines earns revenue from selling leads to sellers, financial companies, and insurance providers. It does not charge any single rupee to the buyer.

5. Is Desi Machines suitable for small businesses?

Ans.

Absolutely! It is suitable for all sizes of businesses, from small contractors to large construction firms. We showcase all products that help everyone find their product suitable for their scope of work or budget.

6. Can I compare excavators from different brands?

Ans.

Yes, you can compare excavators from different/same brands. Our comparison tool allows you to select excavators from various brands and see detailed specifications side by side.

7. What types of excavators are there?

Ans.

There are various types of excavators, including standard crawler excavators, wheeled excavators, mini (compact) excavators, and long-reach excavators. Each type is designed for specific applications or work environments.

8. What is an excavator used for?

Ans.

Excavators are heavy construction equipment used for digging, grading, lifting, and moving materials. They are employed in most constructions, demolitions, mining operations, and landscaped works.

9. How do excavators work?

Ans.

Excavators work through the hydraulic system. Its rotating upper part, or the house, has the engine and controls, with a boom, stick, and bucket to scoop up materials during digging or for lifting purposes. The operator can manipulate these to dig trenches, move huge loads, and many others.

10. What is the difference between an excavator and a backhoe?

Ans.

Their main difference is based on design and purpose. An excavator is big, with the rotating upper structure, and is especially used in digging and lifting. A backhoe is smaller, has a fixed cab, and is more flexible for smaller tasks with digging and loading in smaller confinement areas.

Categories

Contact Us

Contact Info

Tata Hitachi Shinrai Prime CEV 5 VS Mahindra Earthmaster VX BS-5 Backhoe Loader

Tata Hitachi Shinrai Prime CEV 5

Engine

Kubota 74.3 HP

Bucket

0.27 m³

Shovel

1.1 m³

Dig. Depth

4700 mm

Dump Height

2720 mm

Weight

8120 Kg

₹ 33-35 Lakhs*

Mahindra Earthmaster VX BS-5

Engine

Mahindra 74 HP

Bucket

0.27 m³

Shovel

1.1 m³

Dig. Depth

4355 mm

Dump Height

2712 mm

Weight

7517 kg

₹ 35 - 37 Lakhs*

Tata Hitachi Shinrai Prime CEV 5

₹ 33-35 Lakhs

Mahindra Earthmaster VX BS-5

₹ 35 - 37 Lakhs

Compare

Overview

Overview

Key Highlights

Key Highlights

Specifications

Engine

Transmission

Steering

Steering Turning Circle

Brakes

Tyres

Speed

Hydraulics

Axles

Service Capacities

Excavator Performance

Loader Performance

Overall Dimensions And Weight

Specifications

Engine

Transmission

Steering

Steering Turning Circle

Brakes

Tyres

Speed

Hydraulics

Axles

Service Capacities

Excavator Performance

Loader Performance

Overall Dimensions And Weight

Kindly fill out the below form. Our representative will get in touch with you

Popular Comparisons with JCB 30 Plus

Related Blogs

Frequently Asked Question

1. How does the comparison process work?

2. Can I connect with dealers through Desi Machines?

3. Do you offer financing or insurance options?

4. How does Desi Machines earn revenue?

5. Is Desi Machines suitable for small businesses?

6. Can I compare excavators from different brands?

7. What types of excavators are there?

₹ 33-35 Lakhs^*

₹ 35 - 37 Lakhs^*
