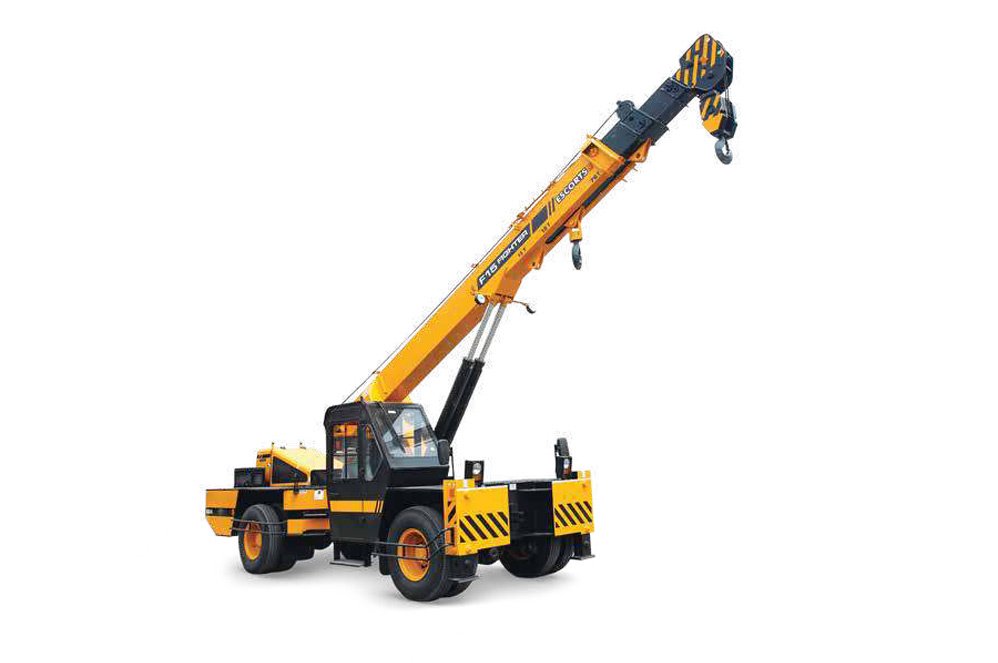

Escorts F15 Fighter Crane

Escorts F15 Fighter offers 15 tonne lifting capacity at 1.5 m, and 0.9 tonne at 15.8 m radius with optional fly‑jib, ideal for heavy-duty sites.

Maximum boom reach of 18.2 m with hook height supports mid-height installations and industrial operations.

Hydraulic hoist with four falls and safety brakes ensures efficient, safe load handling in versatile jobsite scenarios.

Powered by 75 HP (55 kW) Volvo‑Eicher CEV BS‑IV turbocharged water‑cooled engine with ECU management ensuring reliable torque and modern emissions compliance.

Pneumatic‑assisted hydraulic clutch and 10F+2R synchromesh gearbox deliver smooth gear shifts and controlled operation on all terrains.

The F15 Fighter’s 4‑wheel drive and 40

gradeability deliver strong traction on uneven terrain for mining, infrastructure, and industrial jobs.

Travels up to 42 km/h transit speed; 1.3 km/h creep speed offers precision during heavy lifts or tight manoeuvres.

Full-power orbitrol steering with twin hydraulic rams and 40° articulation enhances maneuverability in confined spaces.

Four-part boom:three hydraulically synchronized plus manually pinned fourth section for safety; luffing range from –10° to +65°.

Six-spool, double-acting hydraulic control valve with 46 cc/rev pump allows coordinated boom and winch operation for precision.

Slotted boom with self-compensating snatch block ensures optimal load distribution and minimal structural stress.

Front-mounted all‑weather cabin provides 360° visibility; equipped with wheel guards, reverse‑camera, and optional air‑conditioning for operator comfort.

Dual‑circuit, fully air‑operated S‑cam brakes plus spring‑actuated parking brakes ensure reliable stopping power on slopes.

Built-in safe-load indicator (SLI) with hydraulic cut‑off prevents overloading; optional drag winch and outriggers enhance functional safety.

Rugged high-strength lightweight chassis with low center-of-gravity ensures superior stability and structural resilience in harsh environments.

Equipped with 8×11x20‑16PR tyres and Tata-equivalent axles offering robust durability and reliable off-road navigation.

Supported by extensive dealer network, genuine spare parts availability, and proven field reliability with high resale values across India.
