Complete Guide to Compactors: Types, Uses & Applications

A compactor — what most Indian contractors call a road roller — is one of those machines you don’t think about until the road starts cracking six months after completion. Proper compaction determines whether your highway holds up for 15 years or falls apart in 3. Whether you’re working on an NHAI package in Rajasthan, a PMAY housing foundation in Bihar, or an industrial park access road in Gujarat, the right compactor makes the difference between a project that passes inspection and one that gets flagged for rework. Compactors serve the construction industry in India, primarily for soil and asphalt compaction. This guide focuses on construction compactors — the machines that prepare subgrades, compact embankments, and finish asphalt surfaces on roads, highways, and building foundations across the country. We’ll cover every type available on the Indian market, including the different types of compactors used in India, how they work, what they cost, and how to pick the right one for your project.

What is a Compactor?

A compactor is heavy machinery designed to reduce air voids in soil, gravel, asphalt, or other construction materials by applying concentrated force. The basic principle is simple: push the material particles closer together, squeeze out the air, and increase density. Higher density means better load-bearing capacity, reduced settlement, and longer pavement life.

The force can come from static weight alone — a heavy drum rolling over the surface — or from vibration, impact, or kneading action. Different materials respond to different compaction methods. Sandy soils compact well with vibration. Clay needs kneading action. Asphalt requires a combination of weight and heat retention. That’s why compactors come in so many configurations — each designed to handle specific materials and site conditions.

In India, compactors range up to massive single drum rollers weighing 22,000 kg (used for highway embankments and dam construction). The machine you need depends entirely on what you’re compacting, how deep the layer is, and how much area you need to cover. If you’re comparing options, reviewing different road roller models and prices can help you choose the right machine based on budget and project requirements.

How Does a Compactor Work?

Compactors achieve densification through three primary mechanisms — and most machines use a combination of these:

• Static Weight: The simplest method. A heavy drum presses down on the material, forcing particles together. Effective for thin lifts and finishing passes on asphalt.
• Vibration: Eccentric weights inside the drum rotate at high speed, generating rapid vertical oscillations. These vibrations temporarily reduce friction between soil particles, allowing them to settle into a denser arrangement. Vibration is most effective on granular materials — sand, gravel, crushed stone.
• Impact/Kneading: Sheepsfoot drums and pneumatic tyres apply concentrated pressure that penetrates deeper into the material. The kneading action is essential for cohesive soils like clay, where particles need to be physically rearranged rather than just shaken into place.

The key components involved: an engine (diesel in most Indian models, ranging from 25HP to 200HP), a drum assembly (steel, with smooth or padfoot surface), a vibration mechanism (eccentric shaft with adjustable weights), and operator controls (speed, direction, vibration frequency and amplitude). Modern compactors also include compaction meters that measure stiffness in real-time — though these are still uncommon on Indian job sites outside major NHAI projects.

If you are evaluating different compactor models for road construction, understanding these working mechanisms helps you choose the right machine based on soil type, project scale, and required compaction depth.

History and Evolution of Compactors

Compaction is as old as road-building itself. Ancient civilisations used manual tamping — workers pounding soil with wooden logs or stone hammers. The Romans understood compaction well enough to build roads that lasted centuries. But manual methods couldn’t scale.

The first mechanical rollers appeared in the 1860s — steam-powered behemoths that relied purely on static weight. These evolved into diesel-powered smooth drum rollers by the 1930s. The real breakthrough came in the 1950s when Swedish engineers developed the first vibratory compactors. Vibration reduced the number of passes required by 50–70% and allowed compaction of deeper lifts.

In India, compaction equipment modernised rapidly after the 1990s highway expansion. Today, Indian contractors have access to the same technology as anywhere in the world — GPS-guided compactors, intelligent compaction systems, and telematics for fleet management. But the fundamentals haven’t changed: apply the right force, in the right pattern, to the right material.

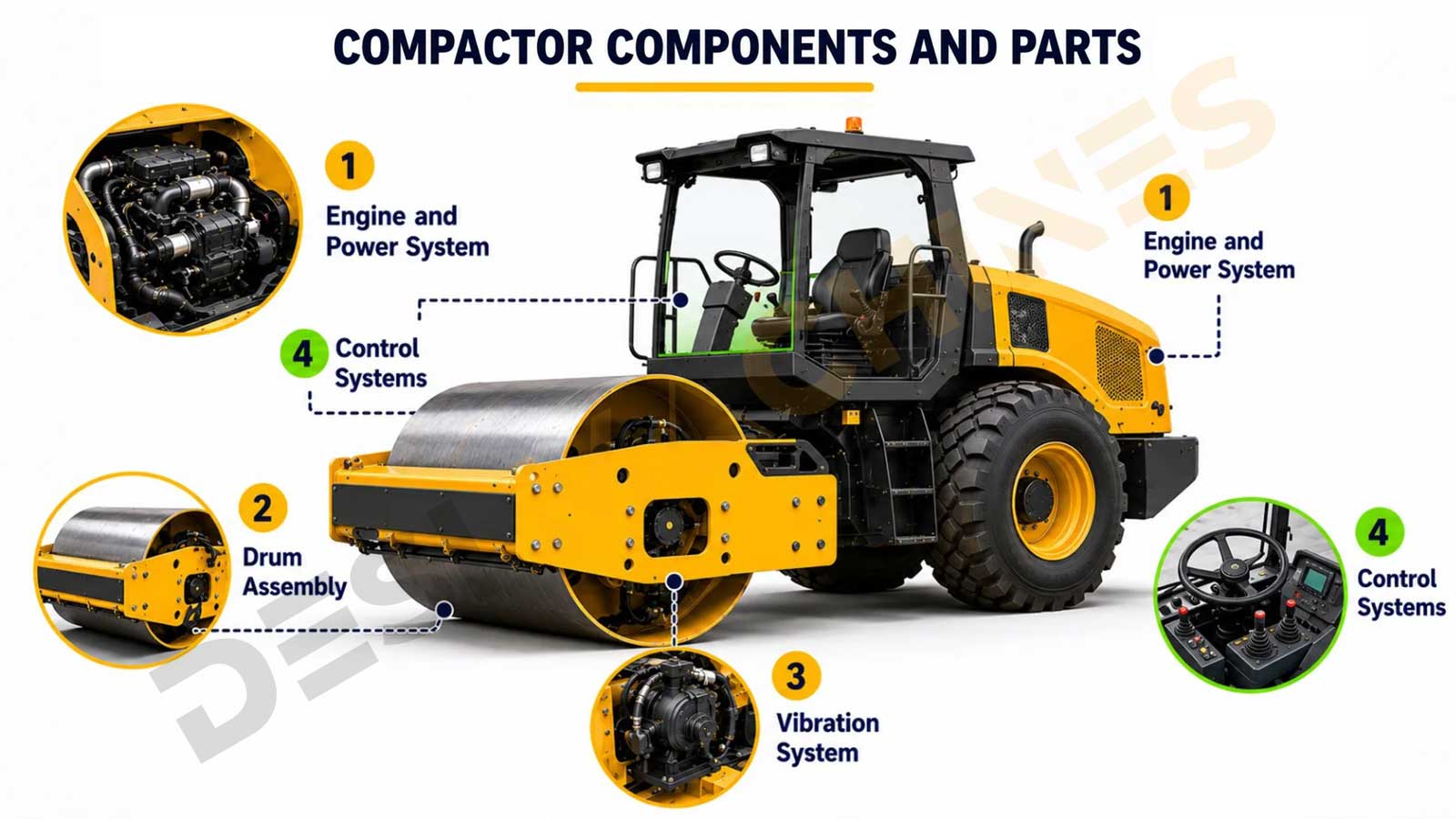

Compactor Components and Parts

Understanding compactor components helps you evaluate machines, diagnose problems, and plan maintenance. Here’s what makes these machines work.

Engine and Power System

Most compactors in India run on diesel engines — reliable, fuel-efficient, and well-supported by service networks. Engine power ranges from 24–25 HP for baby rollers to 130+ HP for large soil compactors. The sweet spot for most highway-class machines is 74–110 HP.

Common engine brands on Indian compactors: Cummins (on SANY, some JCB models), Deutz (on Dynapac, HAMM), Kubota (on smaller machines), and Ashok Leyland or Kirloskar on some domestic models. Cummins and Deutz have the widest service networks in India — something to consider if you’re working in Tier 2/3 towns.

Larger compactors use hydrostatic transmission — hydraulic pumps and motors that provide infinitely variable speed control and smooth direction changes. This is essential for compaction work where precise speed control affects compaction quality. Smaller machines may use mechanical transmissions.

Fuel consumption varies significantly: a 10-tonne tandem roller burns 8–12 litres per hour depending on operating conditions. Over a 10-hour shift, that’s ₹8,000–12,000 in diesel alone at current prices. Fuel efficiency should be a key comparison point when evaluating machines.

Drum Assembly

The drum is the business end of any roller compactor. Drums are fabricated from high-strength steel, typically 12–20 mm thick, with internal stiffening ribs. Drum width ranges from 600 mm on baby rollers to 2,200 mm on full-size machines.

Drum surface options:

• Smooth: Standard for asphalt and granular soils. Provides uniform contact pressure.
• Padfoot: Protruding feet for cohesive soils. Feet are typically 100–150 mm long.
• Shell kits: Some manufacturers offer bolt-on padfoot shells that convert a smooth drum to padfoot configuration.

Drum edges are a wear item — they take the most abuse during operation. Quality machines have replaceable edge cutters. Drum scrapers keep the surface clean; on asphalt work, water spray bars prevent material pickup.

Vibration System

The vibration system is what separates a vibratory compactor from a static roller. Inside the drum, an eccentric shaft with offset weights rotates at high speed. As the weights spin, they generate centrifugal force that translates into rapid vertical oscillation of the drum.

Key vibration parameters:

• Frequency: Measured in Hz (cycles per second). Typical range: 25–35 Hz. Higher frequency for thinner lifts and finishing; lower frequency for thicker lifts.
• Amplitude: The vertical displacement of the drum. High amplitude (1.5–2.0 mm) for deep compaction; low amplitude (0.3–0.8 mm) for surface finishing and asphalt.
• Centrifugal force: The compaction force generated. Ranges from 20 kN on baby rollers to 300+ kN on large soil compactors.

Modern compactors offer variable frequency and amplitude — the operator can adjust settings based on material and lift thickness. Some machines have automatic amplitude control that reduces amplitude when the drum bounces (indicating over-compaction or hard substrate).

Control Systems

Operator controls on compactors include:

• Propel lever/pedal: Controls forward/reverse travel and speed
• Vibration switch: Engages/disengages drum vibration
• Frequency/amplitude selector: Adjusts vibration parameters
• Steering: Articulated steering on most ride-on machines
• Water spray controls: For asphalt work

Premium machines include compaction meters — sensors that measure drum acceleration and calculate material stiffness in real-time. This tells the operator when compaction is complete, preventing over-compaction (which can damage material) and under-compaction (which causes settlement). HAMM, Dynapac, and Volvo offer these systems on their higher-end models.

Safety features: ROPS (rollover protective structure), emergency stop buttons, backup alarms, and working lights. On Indian sites, I’ve seen too many machines running without functional backup alarms. That’s asking for an accident. *Jugaad nahi chalega* when it comes to safety systems.

What is the difference between a compactor and a roller?

Honestly? In everyday Indian usage, there’s no difference. Contractors call them road rollers, compactors, or just “roller” interchangeably. The guy operating a JCB VM117 on an NHAI site calls it a roller. The equipment manager calls it a compactor. Both are correct.

If you want to be technical: “compactor” is the broader term covering all compaction equipment — rollers, plate compactors, rammers, landfill compactors. “Roller” specifically refers to machines with cylindrical drums. So all rollers are compactors, but not all compactors are rollers (a plate compactor isn’t a roller).

In India, “road roller” typically means a tandem roller used for asphalt. “Soil compactor” means a single drum machine for earthwork. But don’t get hung up on terminology — focus on whether the machine is right for your material and application.

How much does a compactor cost in India?

Compactor prices in India vary dramatically based on type, size, and brand:

All prices indicative — verify with dealer before committing.
Factors affecting price: Brand (Volvo and Dynapac command premiums over domestic brands), engine make (Cummins/Deutz vs domestic), vibration system sophistication, and dealer location. A SANY or Escorts compactor often costs 15–25% less than a Volvo or HAMM with similar specs — the trade-off is usually in resale value and parts availability in remote areas.

Used compactors are common in India. A 5-year-old tandem roller with 4,000–5,000 hours might sell for 40–50% of new price. But check the drum condition carefully — a worn drum or damaged vibration bearings can cost ₹3–5 Lakh to repair.

What size compactor do I need for my project?

Match the machine to the job. Here’s a quick framework:

• Driveways, footpaths, colony roads: Mini roller (1,500–3,500 kg)
• Urban roads, parking lots, industrial floors: Tandem roller 8–10 tonnes
• Highway asphalt paving: Tandem roller 9–10 tonnes + PTR for intermediate passes
• Subgrade and embankment: Soil compactor 10–14 tonnes
• Dam and large earthfill: Soil compactor 14+ tonnes, possibly with padfoot drum

The common mistake: buying too small to save money, then needing twice as many passes to achieve density. A 10-tonne roller that achieves compaction in 4 passes is more economical than a 6-tonne roller that needs 8 passes — even if the bigger machine costs more upfront. *Pehle compare karo, phir kharido.*

Can I operate a compactor without training?

Legally, no. Practically, it happens all the time on Indian sites — and it causes accidents and equipment damage.

Compactor operation looks simple. It isn’t. An untrained operator can:

• Over-compact and crack the material
• Under-compact and cause settlement failures
• Damage the vibration system by running at wrong settings
• Roll over edges and tip the machine
• Hit workers, vehicles, or structures

Most equipment dealers offer basic operator training with new machine purchases. ITIs (Industrial Training Institutes) offer heavy equipment operator courses. NHAI and state PWD projects increasingly require certified operators — this will become standard across the industry.

Am I overcomplicating this? No. I’ve seen a ₹35 Lakh tandem roller written off because an untrained operator drove it into a trench. The machine was three months old. Training costs ₹10,000–20,000. The math is obvious.

How do I maintain a compactor?

Daily maintenance takes 15–20 minutes and prevents 80% of breakdowns:

• Check engine oil, hydraulic oil, and coolant levels
• Inspect drum scrapers and replace if worn
• Check water spray system (for asphalt rollers)
• Grease all fittings per manufacturer schedule
• Inspect tyres (on soil compactors and PTRs) for cuts and pressure
• Clean air filter — dusty Indian sites clog filters fast

Scheduled maintenance intervals: engine oil change every 250–500 hours, hydraulic oil every 1,000–2,000 hours, vibration bearing inspection every 1,000 hours. Follow the manufacturer manual — different brands have different requirements.

The vibration system is the most expensive component to repair. Listen for unusual sounds — grinding, knocking, or uneven vibration indicates bearing wear. Catching it early saves ₹2–3 Lakh in repairs.

What is the lifespan of a compactor?

A well-maintained compactor should deliver 8,000–12,000 operating hours before major overhaul. That’s 8–12 years at typical Indian utilisation rates (800–1,000 hours per year for a contractor-owned machine).

Signs that replacement or major overhaul is needed:

• Vibration amplitude drops despite correct settings
• Excessive oil consumption
• Hydraulic system losing pressure
• Drum surface worn beyond acceptable limits
• Frame cracks or structural damage

Extending equipment life: stick to maintenance schedules, use genuine parts, train operators properly, and don’t overload the machine. A compactor run at correct settings on appropriate materials will outlast one that’s abused on every job. *Site pe kaam aata hai* — but only if the machine is still running.

Are electric compactors available in India?

Electric compactors are emerging but not yet mainstream in India. The global market is moving toward electric and hybrid machines — Volvo, HAMM, and others have launched battery-electric rollers in Europe and North America.

In India, availability is limited. Some manufacturers offer electric plate compactors for indoor work (warehouses, factories where diesel exhaust is problematic). Full-size electric rollers are not yet widely available through standard dealer networks.

The challenges for India: charging infrastructure on remote job sites, battery performance in extreme heat, and higher upfront costs. But this will change. As battery technology improves and emission regulations tighten, expect electric compactors to become common within 5–10 years — especially for urban projects where noise and emissions matter.
