CASE 952NX VS Dynapac CC425 T3 ROPS Compactor

₹ 32 - 34 Lakhs^*

CASE 952NX

Drum Width

1675 mm
Weight

9200 kg
Engine

CNH 74 HP
Static Load

27.5 kg/cm
CF - Hi/Low

75.5/59.4 kN
Travel Speed

0 - 11.5 km/hr

Tandem Roller

₹ 32-36 Lakhs^*

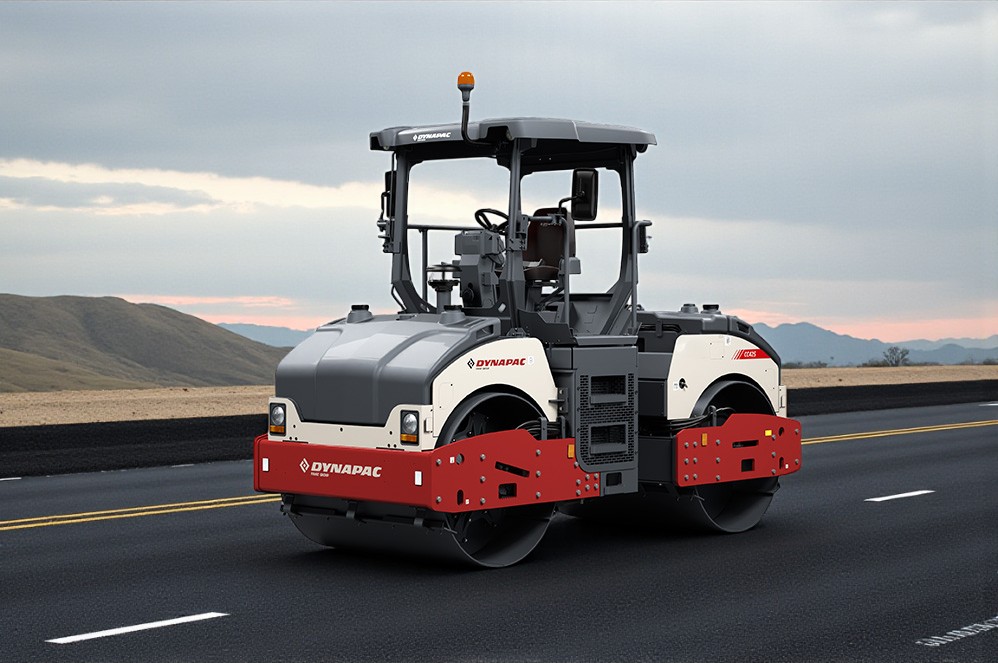

Dynapac CC425 T3 ROPS

Drum Width

1690 mm
Weight

9200 kg
Engine

Cummins 99 HP
Static Load

27.2 kg/cm
CF - Hi/Low

130/60 kN
Travel Speed

0 - 12 km/hr

Tandem Roller

Add Equipment

The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

Key Highlights	CASE 952NX	Dynapac CC425 T3 ROPS

CASE 952NX VS Dynapac CC425 T3 ROPS Compactor

CASE 952NX

₹ 32 - 34 Lakhs

Dynapac CC425 T3 ROPS

₹ 32-36 Lakhs

Particulars	CASE 952NX	Dynapac CC425 T3 ROPS

CASE 952NX Vs Dynapac CC425 T3 ROPS Compactor Price, Technical Specifications & Features


Brand	CASE Compactor	Dynapac Compactor
Type	Tandem	Tandem
Ex-Showroom Price	₹ 32 - 34 Lakhs	₹ 32-36 Lakhs
Weight	9200 kg	9200 kg
Drum Width	1675 mm	1690 mm
Engine	CNH 74 HP	Cummins 99 HP
Static Linear Load	27.5 kg/cm	27.2 kg/cm
Centrifugal Force (High/Low)	130/60 kN	130/60 kN
Travel Speed	0 - 12 km/hr	0 - 12 km/hr
Quick Overview:	The CASE 952 NX, 74 HP vibratory tandem roller is designed for high-performance asphalt and soil compaction. Equipped with a fuel-efficient engine, it delivers reliability with reduced emissions. With an operating weight of 9,200 kg and balanced load distribution, this advanced vibratory soil compactor machine ensures smooth finishes across demanding projects. The dual amplitude-frequency system of the CASE tandem roller generates up to 121.6 kN compaction force, making it a trusted roller compactor for highways and urban applications. Featuring hydrostatic drive, an efficient sprinkler system, ergonomic operator station, and smart telematics, the CASE road roller stands out as a durable road roller and efficient asphalt compactor.	The Dynapac CC425 T3 ROPS tandem roller, powered by a KOEL/Kirloskar diesel engine producing around 74–76 HP, is a heavy-duty double drum roller built for soil and asphalt compaction. With a maximum operating weight of about 9,650 kg and a 1,690 mm drum width, this Dynapac roller delivers uniform compaction, strong surface density, and smooth performance on roads, highways, and infrastructure projects.

CASE 952NX Vs Dynapac CC425 T3 ROPS Compactor Price, Technical Specifications & Features

CASE 952NX	Dynapac CC425 T3 ROPS
Brand
CASE Compactor	Dynapac Compactor
Type
Tandem	Tandem
Ex-Showroom Price
₹ 32 - 34 Lakhs	₹ 32-36 Lakhs
Weight
9200 kg	9200 kg
Drum Width
1675 mm	1690 mm
Engine
CNH 74 HP	Cummins 99 HP
Static Linear Load
27.5 kg/cm	27.2 kg/cm
Centrifugal Force (High/Low)
75.5/59.4 kN	130/60 kN
Travel Speed
0 - 11.5 km/hr	0 - 12 km/hr
Quick Overview:
The CASE 952 NX, 74 HP vibratory tandem roller is designed for high-performance asphalt and soil compaction. Equipped with a fuel-efficient engine, it delivers reliability with reduced emissions. With an operating weight of 9,200 kg and balanced load distribution, this advanced vibratory soil compactor machine ensures smooth finishes across demanding projects. The dual amplitude-frequency system of the CASE tandem roller generates up to 121.6 kN compaction force, making it a trusted roller compactor for highways and urban applications. Featuring hydrostatic drive, an efficient sprinkler system, ergonomic operator station, and smart telematics, the CASE road roller stands out as a durable road roller and efficient asphalt compactor.	The Dynapac CC425 T3 ROPS tandem roller, powered by a KOEL/Kirloskar diesel engine producing around 74–76 HP, is a heavy-duty double drum roller built for soil and asphalt compaction. With a maximum operating weight of about 9,650 kg and a 1,690 mm drum width, this Dynapac roller delivers uniform compaction, strong surface density, and smooth performance on roads, highways, and infrastructure projects.

CASE 952NX Vs Dynapac CC425 T3 ROPS Compactor Key Highlights

	CASE 952NX	Dynapac CC425 T3 ROPS
Engine Make	CNH (India) F28-CF28A001A*U	Cummins T3/QSB 3.3
Fuel Tank	170 L	180 L
Hydraulic Tank	70 L	NA
Frequency High/Low	50/36.5 Hz	36/54 Hz
Nominal Amplitude (High/Low)	0.9/0.4 mm	0.9 /0.4 mm
Max. Gradeability	36%	39%
Steering Angle	± 30°	±29°
Turning Radius, Outside	NA	6500 mm
Wheel Base	3490 mm	NA
Water Tank	780 L	NA
Overall Length	4800 mm	4340 mm
Overall Width	1860 mm	NA
Overall Height	3280 mm	3200 mm
Telematics	Standard	NA
Warranty	1 Year	1 Yr. / 2000 hr.

CASE 952NX Vs Dynapac CC425 T3 ROPS Compactor Key Highlights

CASE 952NX	Dynapac CC425 T3 ROPS
Engine Make
CNH (India) F28-CF28A001A*U	Cummins T3/QSB 3.3
Fuel Tank
170 L	180 L
Hydraulic Tank
70 L	NA
Frequency High/Low
50/36.5 Hz	36/54 Hz
Nominal Amplitude (High/Low)
0.9/0.4 mm	0.9 /0.4 mm
Max. Gradeability
36%	39%
Steering Angle
± 30°	±29°
Turning Radius, Outside
NA	6500 mm
Wheel Base
3490 mm	NA
Water Tank
780 L	NA
Overall Length
4800 mm	4340 mm
Overall Width
1860 mm	NA
Overall Height
3280 mm	3200 mm
Telematics
Standard	NA
Warranty
1 Year	1 Yr. / 2000 hr.

CASE 952NX Vs Dynapac CC425 T3 ROPS Compactor Specifications

Engine

	CASE 952NX	Dynapac CC425 T3 ROPS
Engine Make	CNH (India) F28-CF28A001A*U	Cummins T3/QSB 3.3
Engine Type	CEV Emission Stage-V; 4 Cylinders; Turbocharged intercooled; Electronic; Common Rail Direct lnjection	water cooled Diesel Engine
Max. Power	74 HP (54.6 KW) @ 2200 rpm	99 HP (74 kW) @ 2200 rpm
Displacement	2.8 L	NA
Max Torque	375 Nm @ 1400 RPM	NA
Battery	12V - 110 Ah / 125A	NA

Service Capacities

	CASE 952NX	Dynapac CC425 T3 ROPS
Fuel Tank	170 L	180 L
Hydraulic Tank	70 L	NA
Engine Oil	8 L	NA
Engine Coolant	14 L	NA

Traction

	CASE 952NX	Dynapac CC425 T3 ROPS
Max. Travel Speed	0 - 11.5 km/hr	0 - 12 km/hr
Max. Working Speed	0 - 5.5 km/hr	0 - 12 km/hr
Max. Gradeability	36%	39%

Vibration System

	CASE 952NX	Dynapac CC425 T3 ROPS
Centrifugal Force (High/Low)	75.5/59.4 kN	130/60 kN
Nominal Amplitude (High/Low)	0.9/0.4 mm	0.9 /0.4 mm
Frequency High/Low	50/36.5 Hz	36/54 Hz
Vibration Stages	2	2
SLL (Front/Rear)	27.5 kg/cm	27.2 kg/cm

Hydraulic System

	CASE 952NX	Dynapac CC425 T3 ROPS
Travel System	Axial Piston Motor, Axial Piston Pump with High-Speed Low Torque with Gear Box, Hydrostatic drive	Axial piston pump with variable displacement. Axial piston motor with variable displacement.
Vibration System	Axial Piston Pump with Axial Piston Motor	Axial piston pump with variable displacement. Axial piston motor with fixed displacement.

Steerring

	CASE 952NX	Dynapac CC425 T3 ROPS
Steering Type	Gear pump	Gear pump with constant displacement.
Steering Angle	± 30°	±29°
Oscillation	±10°	±7°

Brakes

	CASE 952NX	Dynapac CC425 T3 ROPS
Service Brakes	Hydrostatic	Hydrostatic in forward and reverse lever.
Parking Brakes	SAHR (Spring Applied Hydraulically Released)	Failsafe multidisc brake.

Water System

	CASE 952NX	Dynapac CC425 T3 ROPS
Water Spray System Type	Pressurized sprinkler system with dual pumps and triple filtration.	NA
Water Tank	780 L	NA

Operational Data

	CASE 952NX	Dynapac CC425 T3 ROPS
Operating Weight	9200 kg	9200 kg
Max. Operating Weight	NA	9600 kg
Front Axle Load	4600 kg	4600 kg
Rear Axle Load	4600 kg	4600 kg

Dimensions

	CASE 952NX	Dynapac CC425 T3 ROPS
Wheel Base	3490 mm	NA
Overall Width	1860 mm	NA
Overall Height	3280 mm	3200 mm
Height (Top of Steering)	2460 mm	2450 mm
Overall Length	4800 mm	4340 mm
Drum Width	1675 mm	1690 mm
Drum Diameter	1220 mm	1220 mm
Drum Thickness	17 mm	17 mm
Ground Clearance	320 mm	282 mm
Curb Clearance	750 mm	400 mm
Turning Radius, Outside	NA	6500 mm
Turning Radius, Inside	5900 mm	4900 mm
