Hyundai HL630I-V VS L&T 9020 Wheel Loader

₹ 48-50 Lakhs^*

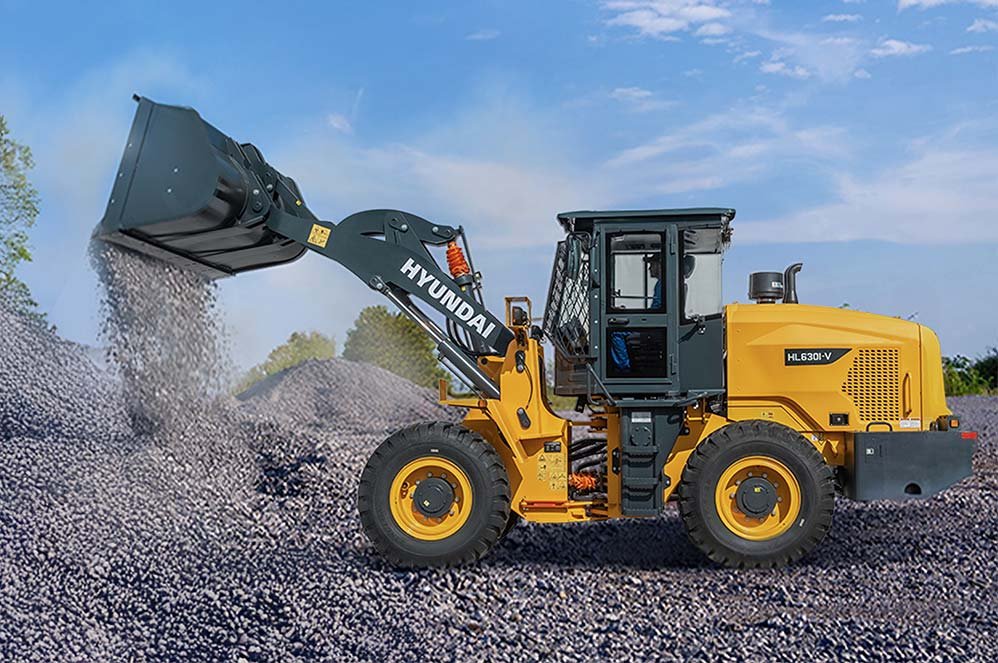

Hyundai HL630I-V

Engine

Weichai 133 HP
Bucket

1.8 m³
Weight

10810 kg
Fwd. Speed

39 km/h
Dump Height

2905 mm
Tripping Load

NA

Small (8-15 Ton)

₹ 53-55 Lakhs^*

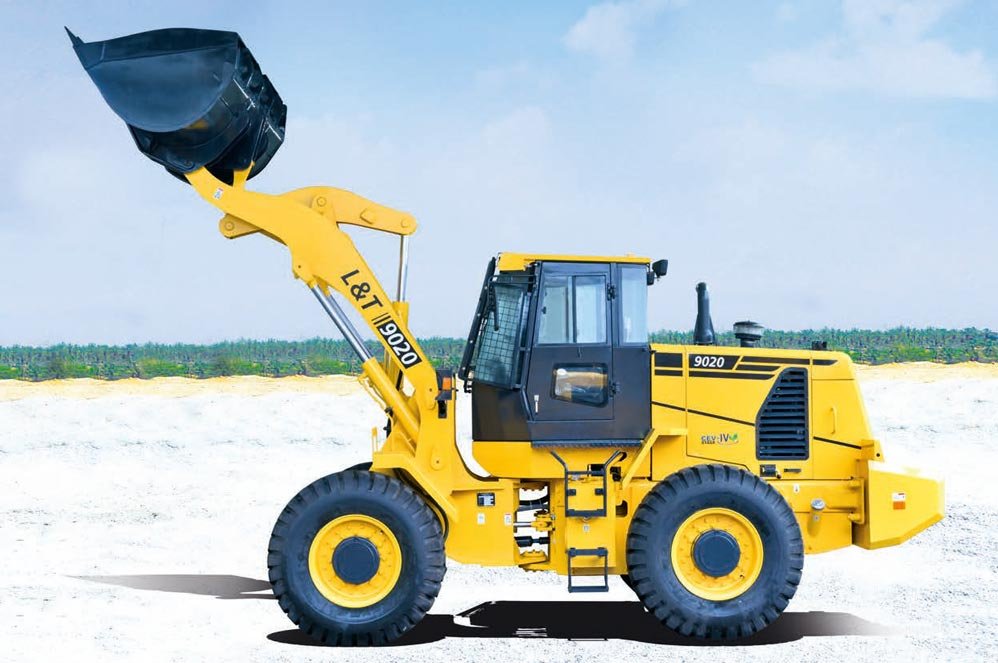

L&T 9020

Engine

Ashok Leyland 133 HP
Bucket

1.5 - 3.5 m³
Weight

11500 kg
Fwd. Speed

29 km/h
Dump Height

2715 mm
Tripping Load

NA

Small (8-15 Ton)

Add Equipment

The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

Key Highlights	Hyundai HL630I-V	L&T 9020

Hyundai HL630I-V VS L&T 9020 Wheel Loader

Hyundai HL630I-V

₹ 48-50 Lakhs

L&T 9020

₹ 53-55 Lakhs

Particulars	Hyundai HL630I-V	L&T 9020

Hyundai HL630I-V Vs L&T 9020 Wheel Loader Price, Technical Specifications & Features


Brand	Hyundai Wheel Loader	L&T Komatsu Wheel loader
Type	Small (8-15 Ton)	Small (8-15 Ton)
Ex-Showroom Price	₹ 48-50 Lakhs	₹ 53-55 Lakhs
Engine	Weichai 133 HP	Ashok Leyland 133 HP
Bucket	1.8 m³	1.5 - 3.5 m³
Weight	10810 kg	11500 kg
Max. Forward Speed	39 km/h	29 km/h
Dump Height	2905 mm	2715 mm
Tripping Load	NA	NA
Quick Overview:	The Hyundai HL630I-V Wheel Loader is a powerful and fuel-efficient payloader made for infrastructure and quarry work. It features a 133 HP Weichai CEV V electronic engine, providing reliable performance with lower emissions and operating costs. With a 3000 kg payload capacity and 1.7 to 3.0 m³ bucket options, it ensures smooth material handling and high productivity. The hydraulics offer precise control, while the ROPS/FOPS cabin, ergonomic controls, and rear-view camera improve safety and comfort. The competitive price of the Hyundai HL630I-V in India makes it a smart choice for fleet operations.	This L&T 9020 Wheel Loader is engineered for Indian construction sites, offering seamless operation and enhanced load-handling capabilities.

Hyundai HL630I-V Vs L&T 9020 Wheel Loader Price, Technical Specifications & Features

Hyundai HL630I-V	L&T 9020
Brand
Hyundai Wheel Loader	L&T Komatsu Wheel loader
Type
Small (8-15 Ton)	Small (8-15 Ton)
Ex-Showroom Price
₹ 48-50 Lakhs	₹ 53-55 Lakhs
Engine
Weichai 133 HP	Ashok Leyland 133 HP
Bucket
1.8 m³	1.5 - 3.5 m³
Weight
10810 kg	11500 kg
Fwd. Speed
39 km/h	29 km/h
Dump Height
2905 mm	2715 mm
Tripping Load
NA	NA
Quick Overview:
The Hyundai HL630I-V Wheel Loader is a powerful and fuel-efficient payloader made for infrastructure and quarry work. It features a 133 HP Weichai CEV V electronic engine, providing reliable performance with lower emissions and operating costs. With a 3000 kg payload capacity and 1.7 to 3.0 m³ bucket options, it ensures smooth material handling and high productivity. The hydraulics offer precise control, while the ROPS/FOPS cabin, ergonomic controls, and rear-view camera improve safety and comfort. The competitive price of the Hyundai HL630I-V in India makes it a smart choice for fleet operations.	This L&T 9020 Wheel Loader is engineered for Indian construction sites, offering seamless operation and enhanced load-handling capabilities.

Hyundai HL630I-V Vs L&T 9020 Wheel Loader Key Highlights

	Hyundai HL630I-V	L&T 9020
Engine Make	Weichai WP4.6NG135E670	Ashok Leyland - H6C413323
Max Torque	630 Nm @ 1300-1500rpm	475 Nm @ 1400-900 rpm
Fuel Tank	200 L	198 L
Hydraulic System	176 L/min	NA
Min. Ground Clearance	355 mm	410 mm
Payload	3000 kg	3500 kg
Steering Angle	±35°	±40°
Drive Type	4-wheel drive (4WD)	4-wheel drive (4WD)
Wheelbase	2850 mm	2800 mm
Tyres	17.5-25 L-3 12PR TT	14.00x25-L3-20PR
Max. Breakout Force	98 kN	106.4 kN
Overall Length	7200 mm	7480 mm
Warranty	1 Yr. / 2000 hr.	1 Yr. / 3000 hr.
AC Cabin	Standard	Optional
GPS	Standard	Standard

Hyundai HL630I-V Vs L&T 9020 Wheel Loader Key Highlights

Hyundai HL630I-V	L&T 9020
Engine Make
Weichai WP4.6NG135E670	Ashok Leyland - H6C413323
Max Torque
630 Nm @ 1300-1500rpm	475 Nm @ 1400-900 rpm
Fuel Tank
200 L	198 L
Hydraulic System
176 L/min	NA
Min. Ground Clearance
355 mm	410 mm
Payload
3000 kg	3500 kg
Steering Angle
±35°	±40°
Drive Type
4-wheel drive (4WD)	4-wheel drive (4WD)
Wheelbase
2850 mm	2800 mm
Tyres
17.5-25 L-3 12PR TT	14.00x25-L3-20PR
Max. Breakout Force
98 kN	106.4 kN
Overall Length
7200 mm	7480 mm
Warranty
1 Yr. / 2000 hr.	1 Yr. / 3000 hr.
AC Cabin
Standard	Optional
GPS
Standard	Standard

Hyundai HL630I-V Vs L&T 9020 Wheel Loader Specifications

Engine

	Hyundai HL630I-V	L&T 9020
Engine Make	Weichai WP4.6NG135E670	Ashok Leyland - H6C413323
Engine Type	4 Cylinders; Electronic Engine	4 Stroke; Liquid cooled; common rail direct injection with turbo charger
Aspiration	NA	Turbocharged
Emission	CEV - V	CEV Stage IV
Max Torque	630 Nm @ 1300-1500rpm	475 Nm @ 1400-900 rpm
Max Power	133 HP (99 kW) @ 2200 rpm	133 HP (98 kW) @ 2300 rpm
Piston Displacement	4.63 L	5.759 L
No Of Cylinders	4	6 Cylinders
Battery	24V / 105Ah	NA
Alternator	24V / 70A	NA

Power Train

	Hyundai HL630I-V	L&T 9020
Transmission	Countershaft Powershift; Mechanical Powershift Control	Powershift Transmission
Drive Type	4-wheel drive (4WD)	4-wheel drive (4WD)
Torque Converter	Single-stage & turbine; 3-element	Avtec TT260

Brakes

	Hyundai HL630I-V	L&T 9020
Service	Single Circuit Caliper; Dry Brake	4 Wheel oil immersed wet multi disc brake fitted at planetary hub.
Parking	Flexible Shaft Controlled Caliper Brake	Internal expanding shoe type fitted on transmission at output to front axle.

Steering System

	Hyundai HL630I-V	L&T 9020
Type	Hydraulic Load Sensing System	Articulated Type - Full-Hydraulic Power Steering
Steering-Angle	±35°	±40°

Axles And Final Drive

	Hyundai HL630I-V	L&T 9020
Front Axle	Rigid axle	Fixed type with a 45% limited slip differential
Rear Axle	Oscillating axle	Standard differential
Oscillating Angle	±10°	±12°

Speed

	Hyundai HL630I-V	L&T 9020
Max. Forward Speed	39 km/h	29 km/h
Max. Reverse Speed	24 km/h	12.6 km/h

Hydraulic System

	Hyundai HL630I-V	L&T 9020
System Type	Joystick Control	Open-Center
Pump Type	NA	Tandem Gear Pump
Maximum Pump Flow	176 L/min	NA
System Pressure	19 MPa	225 bar

Special Refill Capacities

	Hyundai HL630I-V	L&T 9020
Fuel Tank	200 L	198 L
Hydraulic System	NA	110 L
Engine Oil	15 L	14 L
Cooling System	NA	25 L
Rear Axle Oil	18 L	28 L
Front Axle Oil	18 L	28 L
Hydraulic Tank	165 L	90 L
Transmission Oil	36 L	38 L
Def Tank	NA	24 L

Dimensions

	Hyundai HL630I-V	L&T 9020
Overall Length With Bucket	7200 mm	7480 mm
Wheel Base	2850 mm	2800 mm
Height Over Cab	3180 mm	3072 mm
Height Over Exhaust	NA	2961 mm
Min Grond Clearance	355 mm	410 mm
Width Over Tyres	2320 mm	2325 mm
Wheel Tread	1850 mm	1920 mm
Tyre Size	17.5-25 L-3 12PR TT	14.00x25-L3-20PR

Performance

	Hyundai HL630I-V	L&T 9020
Bucket Capacity	1.8 m³	1.5 - 3.5 m³
Bucket Width	2500 mm	2700 mm
Payload	3000 kg	3500 kg
Tipping Load Straight	NA	NA
Tipping Load Full Turn	NA	NA
Max. Breakout Force	98 kN	106.4 kN
Operating Weight	10810 kg	11500 kg
Max Dump Angle	46.6°	50°
Bucket Roll Back Angle Full Height	50.7°	55°
Bucket Roll Back At Carry	46.3°	53°
Bucket Roll Back At Ground Level	40°	47°
Dumping Height, Fully Raised	2905 mm	2715 mm
Dumping Reach, Fully Raised	1070 mm	1248 mm
Max. Hinge Pin Height	3725 mm	3810 mm
Max. Digging Depth	30 - 40 mm	100 mm
Turning Radius Over Tyres	5695 mm	NA
Turning Radius Over Bucket	6250 mm	5829 mm
