    L&T 9020 SX Wheel Loader

    The L&T 9020 SX Wheel Loader delivers superior performance and durability, meeting the demands of India’s infrastructure development.

    L&T 9020 SX Wheel Loader Price

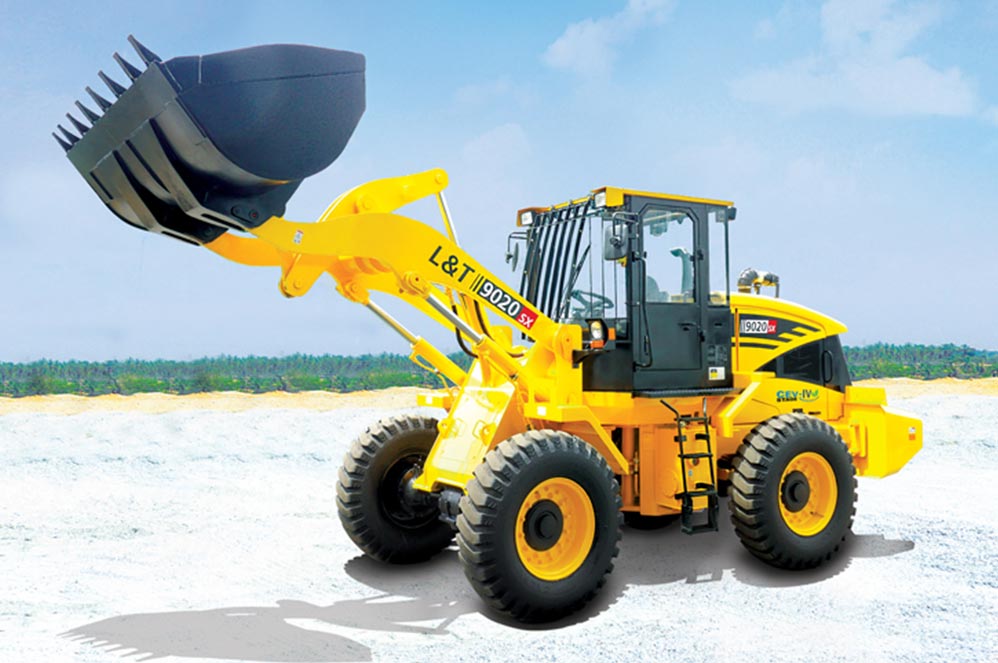

    desi machines l&t 9020sx wheel loader 1

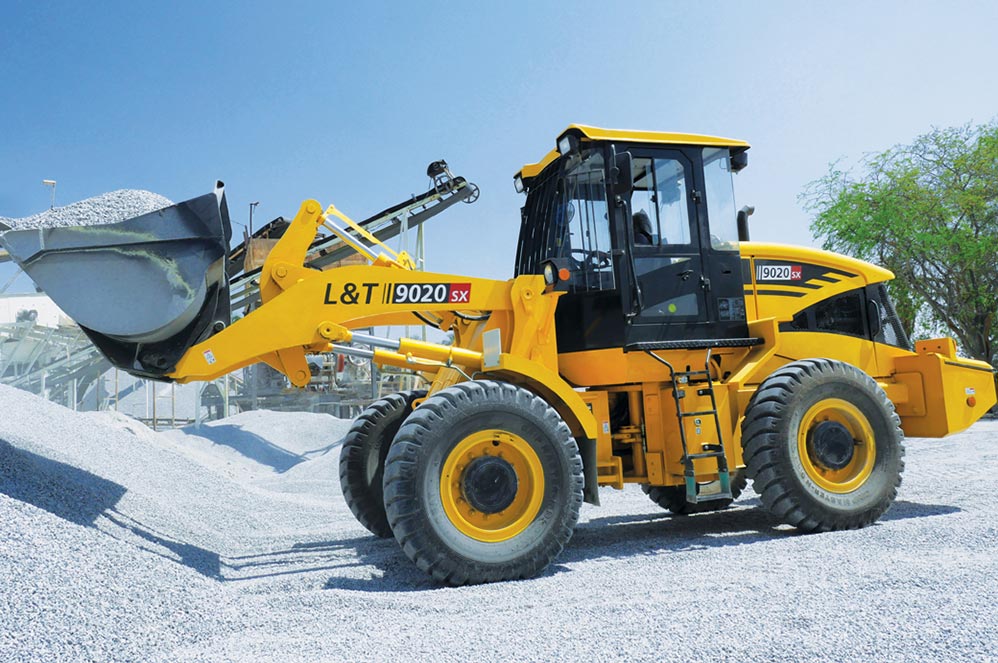

    desi machines l&t 9020sx wheel loader 2
    • Brand

      L&T Komatsu

    • Type

      Small (8-15 Ton)

    • Operating Cost

      ₹ 54-56 Lakhs

    • Ex-Showroom Price

      ₹ 54-56 Lakhs

    • Engine

      Cummins 140 HP

    • featIcon2 (1) alt
      Bucket

      1.5 - 3.5 m³

    • icon alt1
      Weight

      11400 kg

    • Fwd. Speed

      29 km/h

    • dumping height loader
      Dump Height

      2715 mm

    • tipping load
      Tipping Load

      NA

    Connect With Us:

    Get the best price for the L&T 9020 SX wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights of L&T 9020 SX

    Engine Make

    Cummins -QS B4.5 CIV140D222

    Max Torque

    608 Nm @ 1500 rpm

    Fuel Tank

    198 L

    Hydraulic System

    NA

    grounding
    Min. Ground Clearance

    410 mm

    desi machines payload
    Payload

    3500 kg

    Steering Angle

    ±40°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    2800 mm

    Tyres

    14.00x25-L3-20PR

    down
    Max. Breakout Force

    113.5 kN

    Overall Length

    7480 mm

    Medal Image
    Warranty

    1 Yr. / 3000 hr.

    air-conditioner-alt
    AC Cabin

    Optional

    GPS Tracking
    GPS

    Standard

    Features of L&T 9020 SX

    Engine

    • Cummins QS B4.5 CIV140D222 engine - 4 cylinder, Liquid cooled, CRDI with turbocharger compliant with CEV Stage IV emission norms.

    • Best-in-class Gross max torque

    • Low specific fuel consumption

    Limited Slip Differential

    • Improved traction in poor or uneven underfoot conditions

    • Less wear on the tyres

    • Safety for the operator and the machine

    Transmission

    • Power shift Transmission 'Avtec TT222-1' equipped with twin turbine 'Avtec TT270' torque converter, provides Semi-Automatic Speeds

    • Higher stall ratios contribute to more torque transmission to the wheels

    Rugged Frame & Z-Bar Linkage

    • The front and rear frames with high tensile strength.

    • Industry standard Z-bar Linkage withstands high breakout forces.

    Operator Cabin

    • Cabin meets FOPS (Falling Object Protective Structure)

    • The adjustable seat with arm rest provides excellent Lumbar Support and gives operator numerous positions for comfort

    • Excellent 360 degree visibility

    • Cluster-type Dashboard

    • Wide rear view mirrors

    Maintenance

    • Gull-Wing covers assisted by gas springs

    • Easy Maintenance & Service from ground level

    • Effortless access to all Engine Accessories

    • Easy hydraulic and engine oil level checks & air filter cleaning

    • Helical grooved bushings provide better lubrication & grease retention

    Are you interested in buying L&T 9020 SX Wheel Loader

      Note: Uncheck if you're not interested in finance or insurance deals.

      Specifications

      Product specification of L&T 9020 SX Wheel Loader

      ENGINE

      • Make

        Cummins -QS B4.5 CIV140D222

      • Type

        4 Stroke, Liquid cooled, common rail direct injection with turbo charger

      • Aspiration

        Turbocharged

      • Emission

        CEV Stage IV

      • Max. Power

        140 HP (104.4 kW) @ 2200 rpm

      • Max Torque

        608 Nm @ 1500 rpm

      • Piston Displacement

        4.458 L

      • No. of Cylinders

        4 Cylinders

      • Battery

        NA

      • Alternator

        NA

      POWER TRAIN

      • Transmission

        Powershift Transmission

      • Drive Type

        4-wheel drive (4WD)

      • Torque Converter

        Avtec TT270

      BRAKES

      • Service

        4 Wheel oil immersed wet multi disc brake fitted at planetary hub.

      • Parking

        Internal expanding shoe type fitted on transmission at output to front axle.

      STEERING SYSTEM

      • Type

        Articulated Type, Full-Hydraulic Power Steering

      • Steering Angle

        ±40°

      AXLE AND FINAL DRIVE

      • Front Axle Type

        Fixed type with a 45

      • limited slip differential

      • Rear Axle Type

        Standard differential

      • Oscillation Angle

        ±12°

      SPEED

      • Top Forward Speed

        29 km/h

      • Top Reverse Speed

        14.6 km/h

      HYDRAULIC SYSTEM

      • System Type

        Open-Center

      • Pump Type

        Tandem Gear Pump is directly mounted onto the transmission.

      • Max. Pump Flow

        NA

      • System Pressure

        245 bar

      SERVICE REFILL CAPACITIES

      • Fuel Tank

        198 L

      • Hydraulic System

        110 L

      • Engine Oil

        17 L

      • Cooling System

        25 L

      • Rear Axle Oil

        28 L

      • Front Axle Oil

        28 L

      • Hydraulic Tank

        90 L

      • Transmission Oil

        38 L

      • DEF Tank

        24 L

      DIMENSIONS

      • Overall Length With Bucket

        7480 mm

      • Wheel Base

        2800 mm

      • Height Over Cab

        3276 mm

      • Height Over Exhaust

        2910 mm

      • Min. Ground Clearance

        410 mm

      • Width Over Tyres

        2325 mm

      • Wheel Tread

        1920 mm

      • Tyre Size

        14.00x25-L3-20PR

      PERFORMANCE

      • Bucket Capacity

        1.5 - 3.5 m³

      • Bucket Width

        2700 mm

      • Payload

        3500 kg

      • Tipping Load Straight

        NA

      • Tipping Load Full Turn

        NA

      • Max. Breakout Force

        113.5 kN

      • Operating Weight

        11400 kg

      • Maximum Dump Angle

        50°

      • Bucket Roll Back Angle Full Height

        55°

      • Bucket Roll Back At Carry

        53°

      • Bucket Roll Back At Ground Level

        47°

      • Dumping Height, Fully Raised

        2715 mm

      • Dumping Reach, Fully Raised

        1248 mm

      • Max. Hinge Pin Height

        3810 mm

      • Max. Digging Depth

        100 mm

      • Turning Radius Over Tyres

        NA

      • Turning Radius Over Bucket

        5829 mm

      Common Questions

      FAQs about L&T 9020 SX

      What is the L&T 9200 SX wheel loader price in India?

      The L&T 9200 SX wheel loader price in India ranges between ₹ 54-56 Lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

      Where can I buy the L&T 9200 SX wheel loader in India at the best price?

      You can buy the L&T 9200 SX wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized L&T dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest L&T 9200 SX price, compare dealer quotes, and enjoy expert assistance—all in one place.

      What is the engine power of the L&T 9200 SX wheel loader?

      The L&T 9200 SX wheel loader is powered by a Cummins QS B4.5 CIV140D222 diesel engine, delivering 140 HP (104.4 kW) @ 2200 rpm.

      What is the operating weight of the L&T 9200 SX wheel loader?

      The operating weight of the L&T 9200 SX wheel loader is approximately 11400 kg. The operating weight may vary slightly depending on specific configurations and attachments.

      What is the fuel tank capacity of the L&T 9200 SX wheel loader?

      The L&T 9200 SX wheel loader has a 198 litres diesel fuel tank, providing extended operation time without frequent refueling.

      What is the bucket capacity of the L&T 9200 SX wheel loader?

      The bucket capacity of the L&T 9200 SX is 1.5 – 3.5 cubic meters (m³).

      What is the dump height of the L&T 9200 SX wheel loader?

      The L&T 9200 SX wheel loader provides a dump height of 2715 mm, ensuring consistent unloading performance.

      What is the warranty period of L&T 9200 SX wheel loader?

      The L&T 9200 SX wheel loader in India typically comes with a standard warranty of 1 year or 3000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

      How many gears are available in the L&T 9200 SX wheel loader?

      The L&T 9200 SX wheel loader features a 4-wheel drive (4WD) system with a Powershift Transmission. It offers 2 forward and 1 reverse gear, enabling efficient operation at speeds up to 29 km/h.

      What are the key applications and uses of the L&T 9200 SX wheel loader?

      Designed for tough jobs, the L&T 9200 SX loader provides high performance, fuel efficiency, and reliable operation in demanding construction and mining environments.

      Where can I find spare parts for the L&T 9200 SX wheel loader?

      You can find genuine spare parts for the L&T 9200 SX wheeled loader at authorized L&T dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
