    Tata Hitachi EX 3600-6 VS Liebherr R 9400 G6 Excavator

    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi EX 3600-6
    • icon alt1
      Weight
      362000 Kg
    • featIcon2 (1) alt
      Bucket
      21 - 23 m³
    • Dig. Depth
      8580 mm
    • Engine
      Cummins 1944 HP
    • Warranty
      1 Yr. / 2000 hr.
    • Boom
      9600 mm
    Price Available Soon*
    Extra-Large (>50 Ton)

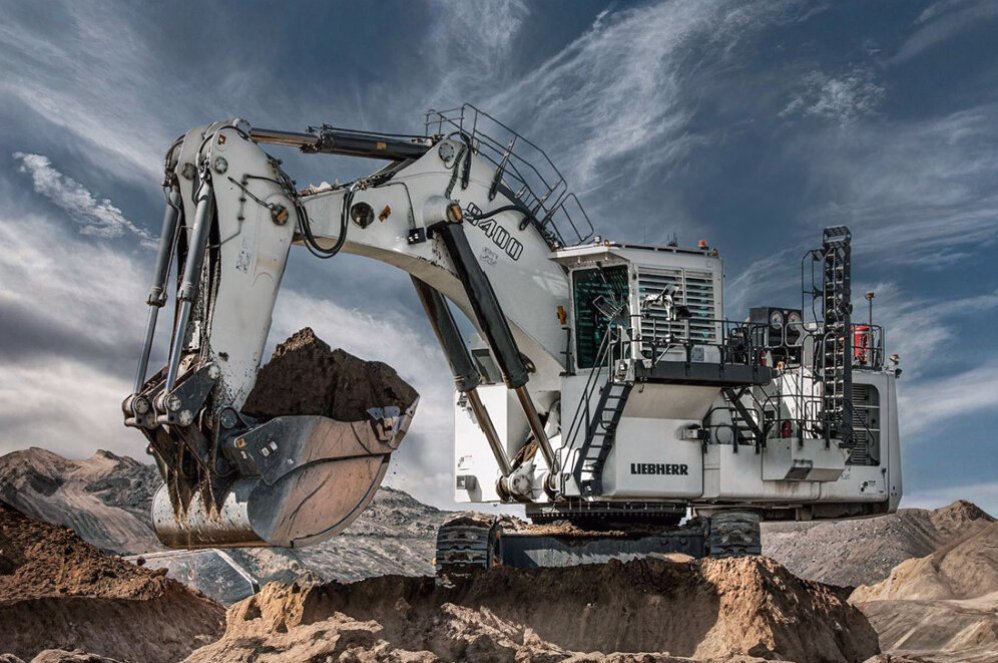

    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr R 9400 G6
    • icon alt1
      Weight
      345500 Kg
    • featIcon2 (1) alt
      Bucket
      24.0 m³
    • Dig. Depth
      9300 mm
    • Engine
      Cummins 1675 HP
    • Warranty
      1 Yr. / 2500 hr.
    • Boom
      9300 mm
    Price Available Soon*
    Extra-Large (>50 Ton)

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights Tata Hitachi EX 3600-6Liebherr R 9400 G6
    Tata Hitachi EX 3600-6 VS Liebherr R 9400 G6 Excavator
    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi EX 3600-6
    Price Available Soon
    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr R 9400 G6
    Price Available Soon
    Particulars Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Overview Summary

    Comparing the Liebherr R 9400 G6 and Tata Hitachi EX 3600-6, both serve as formidable mining excavators with their own strengths. The Liebherr model offers durability with a larger bucket, while the Tata Hitachi model boasts more engine power and higher gradeability for demanding terrains.

    Liebherr R 9400 G6

    Pros:

    • Engineered for exceptional durability in large-scale mining
    • High capacity 24.0 m³ bucket
    • Powerful Cummins 1675 HP engine
    • Standard AC cabin and GPS
    • Lower ground bearing pressure (233.4 kPa) for better flotation

    Cons:

    • Lack of provided information on fuel efficiency (mileage)
    • Less engine power compared to Tata Hitachi EX 3600-6
    • Slower maximum travel speed (2.7 Km/h)

    Tata Hitachi EX 3600-6

    Pros:

    • Durability and efficiency for extreme mining conditions
    • Higher engine power with 1944 HP
    • Larger fuel tank capacity (7540 L) indicates potentially longer operation
    • Gradeability 58% (30° Max) ideal for challenging terrains
    • Higher maximum tracking force (1760 kN) for better traction

    Cons:

    • Bucket capacity slightly lower at 21 - 23 m³
    • Unknown details for warranty compared to Liebherr's clear 1 Yr./2500 hr.
    • Higher ground bearing pressure (188 kPa) which may affect some surfaces

    Pros:

    Cons:

    Closing Recommendation

    The choice between Liebherr R 9400 G6 and Tata Hitachi EX 3600-6 should be based on specific operational needs. If you prioritize bucket capacity and lower ground bearing pressure, the Liebherr might be suitable. Otherwise, for higher engine power and efficiency, particularly on rough terrain, the Tata Hitachi could be a more fitting option.

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Price, Technical Specifications & Features

    Brand Tata Hitachi Liebherr
    Type Extra-Large (>50 Ton) Extra-Large (>50 Ton)
    Operating Cost Price Available Soon Price Available Soon
    Price Price Available Soon Price Available Soon
    Weight 362000 Kg 345500 Kg
    Bucket 21 - 23 m³ 24.0 m³
    Max Digging Depth 8580 mm 9300 mm
    Engine Cummins 1944 HP Cummins 1675 HP
    Warranty 1 Yr. / 2000 hr. 1 Yr. / 2500 hr.
    Boom 9600 mm 9300 mm
    Quick Overview:

    Equipped with durability and high efficiency Tata Hitachi EX 3600-6 extra-large excavator is best suited for extreme mining operations.

    Engineered with exceptional durability Liebherr R 9400 G6 extra-large excavator is efficient for large-scale mining projects.
    Agency review

    Get the best price for the Tata Hitachi EX 3600-6 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

    Get the best price for the Liebherr R 9400 G6 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!
    Overview Summary

    Comparing the Liebherr R 9400 G6 and Tata Hitachi EX 3600-6, both serve as formidable mining excavators with their own strengths. The Liebherr model offers durability with a larger bucket, while the Tata Hitachi model boasts more engine power and higher gradeability for demanding terrains.

    Liebherr R 9400 G6

    Pros:

    • Engineered for exceptional durability in large-scale mining
    • High capacity 24.0 m³ bucket
    • Powerful Cummins 1675 HP engine
    • Standard AC cabin and GPS
    • Lower ground bearing pressure (233.4 kPa) for better flotation

    Cons:

    • Lack of provided information on fuel efficiency (mileage)
    • Less engine power compared to Tata Hitachi EX 3600-6
    • Slower maximum travel speed (2.7 Km/h)

    Tata Hitachi EX 3600-6

    Pros:

    • Durability and efficiency for extreme mining conditions
    • Higher engine power with 1944 HP
    • Larger fuel tank capacity (7540 L) indicates potentially longer operation
    • Gradeability 58% (30° Max) ideal for challenging terrains
    • Higher maximum tracking force (1760 kN) for better traction

    Cons:

    • Bucket capacity slightly lower at 21 - 23 m³
    • Unknown details for warranty compared to Liebherr's clear 1 Yr./2500 hr.
    • Higher ground bearing pressure (188 kPa) which may affect some surfaces

    Pros:

    Cons:

    Closing Recommendation

    The choice between Liebherr R 9400 G6 and Tata Hitachi EX 3600-6 should be based on specific operational needs. If you prioritize bucket capacity and lower ground bearing pressure, the Liebherr might be suitable. Otherwise, for higher engine power and efficiency, particularly on rough terrain, the Tata Hitachi could be a more fitting option.

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Price, Technical Specifications & Features

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Brand
    Tata Hitachi Liebherr
    Type
    Extra-Large (>50 Ton) Extra-Large (>50 Ton)
    Price
    Price Available Soon Price Available Soon
    Weight
    362000 Kg 345500 Kg
    Bucket
    21 - 23 m³ 24.0 m³
    Max Digging Depth
    8580 mm 9300 mm
    Engine
    Cummins 1944 HP Cummins 1675 HP
    Warranty
    1 Yr. / 2000 hr. 1 Yr. / 2500 hr.
    Boom
    9600 mm 9300 mm
    Quick Overview:

    Equipped with durability and high efficiency Tata Hitachi EX 3600-6 extra-large excavator is best suited for extreme mining operations.

    Engineered with exceptional durability Liebherr R 9400 G6 extra-large excavator is efficient for large-scale mining projects.

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Key Highlights

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Engine Make Cummins QSKTA60-CE Cummins QSK50
    Fuel Tank 7540 L 6908 L
    Engine Displacment 60 L 50.3 L
    Under Carriage 8700 mm 8800 mm
    Hydraulic System NA 4200 L
    Arm 4500 mm 4200 mm
    Max Digging Reach 18190 mm NA
    Fuel Consumption NA NA
    Overall Width 9420 mm 8520 mm
    Overall Length NA 18530 mm
    Bucket Digging Force 932 kN 1000 kN
    Tailswing Radius 6780 mm NA
    Track Shoe Width 1270 mm 1000 mm
    AC Cabin Standard Standard
    GPS Standard Standard

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Key Highlights

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Engine Make
    Cummins QSKTA60-CE Cummins QSK50
    Fuel Tank
    7540 L 6908 L
    Engine Displacment
    60 L 50.3 L
    Under Carriage
    8700 mm 8800 mm
    Hydraulic System
    NA 4200 L
    Arm
    4500 mm 4200 mm
    Max Digging Reach
    18190 mm NA
    Fuel Consumption
    NA NA
    Overall Width
    9420 mm 8520 mm
    Overall Length
    NA 18530 mm
    Bucket Digging Force
    932 kN 1000 kN
    Tailswing Radius
    6780 mm NA
    Track Shoe Width
    1270 mm 1000 mm
    AC Cabin
    Standard Standard
    GPS
    Standard Standard

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Specifications

    Engine

    3635 3722
    Model Cummins 1944 HP Cummins 1675 HP
    Fuel Diesel Diesel/Electric
    Type NA 16 cylinder turbocharged V-engine after-cooler separate water cooling circuits common-rail
    Rated Engine Power 1944 HP (1450 kW) @ 1800 rpm 1675 HP (1250 kW) @ 1800 rpm
    Maximum Torque NA NA
    Piston Displacement 60 L 50.3 L
    Alternator NA 24 V / 260 A
    Battery NA 4 x 180 Ah / 12 V service systems
    Starting Motor NA 24 V

    Undercarriage

    24 V 24 V
    No of Top rollers NA 2
    No of bottom rollers NA 9
    Track Shoes (Each Side) NA NA
    Track Guard NA NA
    Track Shoe width 1270 mm 1000 mm
    Ground bearing pressure 188 kPa 233.4 kPa
    Track Tensioning Grease Grease
    Gradeability 58% (30 °) Max NA
    Travel Speed-Low 1.7 Km/h NA
    Travel Speed-High 2.2 Km/h 2.7 Km/h
    Max Tracking Force 1760 kN NA

    Hydraulic System

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Hydraulic pump 8 variable-displacement; axial piston pumps for front attachment; travel and swing 4 variable flow axial piston pumps
    Maximum Flow 8 x 500 L/min 4 x 751 L/min
    Pilot Pump Gear Pump NA
    Implement Circuit 29.4 MPa 32.0 MPa
    Swing Circuit NA NA
    Travel circuit NA NA
    Pilot circuit NA NA

    Hydraulic Motors

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Travel Axial Piston Motor 2 axial piston motors per side frame
    Swing Axial Piston Motor 2 Liebherr axial piston motors

    Service Capacities

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Fuel tank 7540 L 6908 L
    Engine Coolant NA NA
    Engine oil NA NA
    Hydraulic system NA 4200 L
    Hydraulic tank NA 2200 L

    Machine Weight

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Operating Weight 362000 Kg 345500 Kg

    Working Range

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Boom length 9600 mm 9300 mm
    Arm length 4500 mm 4200 mm
    Max Digging Reach 18190 mm NA
    Max Digging Reach on ground 17610 mm 16300 mm
    Max digging depth 8580 mm 9300 mm
    Max digging height 17690 mm 15700 mm
    Max Dump Height 11590 mm 10600 mm
    Max vertical wallcut depth 4060 mm NA
    Min swing radius NA NA
    Max Height at Min Swing radius NA NA
    Max height (above ground) NA NA
    Dig depth (below ground) NA NA
    Bucket Digging Force 932 kN 1000 kN
    Arm Digging Force 922 kN 965 kN
    Swing Speed 3.2 rpm 3.9 rpm

    Dozer Blade

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Dozer Type NA NA
    Dozer Length NA NA
    Digging depth for ground level NA NA
    Approach Angle NA NA
    Width NA NA
    Height NA NA

    Bucket

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Bucket Capacity 21 - 23 m³ 24.0 m³

    Static Dimensions

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Overall Length NA 18530 mm
    Overall width 9420 mm 8520 mm
    Overall Height 7830 mm 8585 mm
    Overall Height of Cab NA 8045 mm
    Upper Width 9420 mm 6300 mm
    Track Lengh on Ground 6660 mm 6645 mm
    Undercarriage overall length 8700 mm 8800 mm
    Tailswing radius 6780 mm NA
    Min Ground clearance 905 mm 1190 mm
    Track gauge 5500 mm 5520 mm
    Width over tracks NA 6930 mm
    Track Height 2305 mm 3000 mm
    Counterweight Clearance 2440 mm 2385 mm
    Track Shoe Width 1270 mm 1000 mm

    Tata Hitachi EX 3600-6 Vs Liebherr R 9400 G6 Excavator Specifications

    Engine

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Model
    Cummins 1944 HP Cummins 1675 HP
    Fuel
    Diesel Diesel/Electric
    Type
    NA 16 cylinder turbocharged V-engine after-cooler separate water cooling circuits common-rail
    Rated Engine Power
    1944 HP (1450 kW) @ 1800 rpm 1675 HP (1250 kW) @ 1800 rpm
    Maximum Torque
    NA NA
    Piston Displacement
    60 L 50.3 L
    Alternator
    NA 24 V / 260 A
    Battery
    NA 4 x 180 Ah / 12 V service systems
    Starting Motor
    NA 24 V

    Undercarriage

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    No of Top rollers
    NA 2
    No of bottom rollers
    NA 9
    Track Shoes (Each Side)
    NA NA
    Track Guard
    NA NA
    Track Shoe width
    1270 mm 1000 mm
    Ground bearing pressure
    188 kPa 233.4 kPa
    Track Tensioning
    Grease Grease
    Gradeability
    58% (30 °) Max NA
    Travel Speed-Low
    1.7 Km/h NA
    Travel Speed-High
    2.2 Km/h 2.7 Km/h
    Max Tracking Force
    1760 kN NA

    Hydraulic Motors

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Hydraulic pump
    8 variable-displacement; axial piston pumps for front attachment; travel and swing 4 variable flow axial piston pumps
    Maximum Flow
    8 x 500 L/min 4 x 751 L/min
    Pilot Pump
    Gear Pump NA
    Implement Circuit
    29.4 MPa 32.0 MPa
    Swing Circuit
    NA NA
    Travel circuit
    NA NA
    Pilot circuit
    NA NA

    Service Capacities

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Fuel tank
    7540 L 6908 L
    Engine Coolant
    NA NA
    Engine oil
    NA NA
    Hydraulic system
    NA 4200 L
    Hydraulic tank
    NA 2200 L

    Machine Weight

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Operating Weight
    362000 Kg 345500 Kg

    Working Range

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Boom length
    9600 mm 9300 mm
    Arm length
    4500 mm 4200 mm
    Max Digging Reach
    18190 mm NA
    Max Digging Reach on ground
    17610 mm 16300 mm
    Max digging depth
    8580 mm 9300 mm
    Max digging height
    17690 mm 15700 mm
    Max Dump Height
    11590 mm 10600 mm
    Max vertical wallcut depth
    4060 mm NA
    Min swing radius
    NA NA
    Max Height at Min Swing radius
    NA NA
    Max height (above ground)
    NA NA
    Dig depth (below ground)
    NA NA
    Bucket Digging Force
    932 kN 1000 kN
    Arm Digging Force
    922 kN 965 kN
    Swing Speed
    3.2 rpm 3.9 rpm

    Dozer Blade

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Dozer Type
    NA NA
    Dozer Length
    NA NA
    Digging depth for ground level
    NA NA
    Approach Angle
    NA NA
    Width
    NA NA
    Height
    NA NA

    Bucket

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Bucket Capacity
    21 - 23 m³ 24.0 m³

    Static Dimensions

    Tata Hitachi EX 3600-6 Liebherr R 9400 G6
    Overall Length
    NA 18530 mm
    Overall width
    9420 mm 8520 mm
    Overall Height
    7830 mm 8585 mm
    Overall Height of Cab
    NA 8045 mm
    Upper Width
    9420 mm 6300 mm
    Track Lengh on Ground
    6660 mm 6645 mm
    Undercarriage overall length
    8700 mm 8800 mm
    Tailswing radius
    6780 mm NA
    Min Ground clearance
    905 mm 1190 mm
    Track gauge
    5500 mm 5520 mm
    Width over tracks
    NA 6930 mm
    Track Height
    2305 mm 3000 mm
    Counterweight Clearence
    2440 mm 2385 mm
    Track Shoe Width
    1270 mm 1000 mm

    Popular Comparisons with Tata Hitachi EX 3600-6

    VS
    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi

    Tata Hitachi EX 3600-6

    4.5 rating
    Price Available Soon
    362000 Kg
    Liebherr R 9350 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9350 G6

    4.5 rating
    Price Available Soon
    302000 Kg
    Compare
    VS
    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi

    Tata Hitachi EX 3600-6

    4.5 rating
    Price Available Soon
    362000 Kg
    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9400 G6

    4.5 rating
    Price Available Soon
    345500 Kg
    Compare
    VS
    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi

    Tata Hitachi EX 3600-6

    4.5 rating
    Price Available Soon
    362000 Kg
    desi-machines-komatsu-mining-excavator-pc4000-6-featured
    L&T Komatsu

    Komatsu PC4000-6

    4.5 rating
    Price Available Soon
    397000 Kg
    Compare

    Popular Comparisons with Liebherr R 9400 G6

    VS
    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9400 G6

    4.5 rating
    Price Available Soon
    345500 Kg

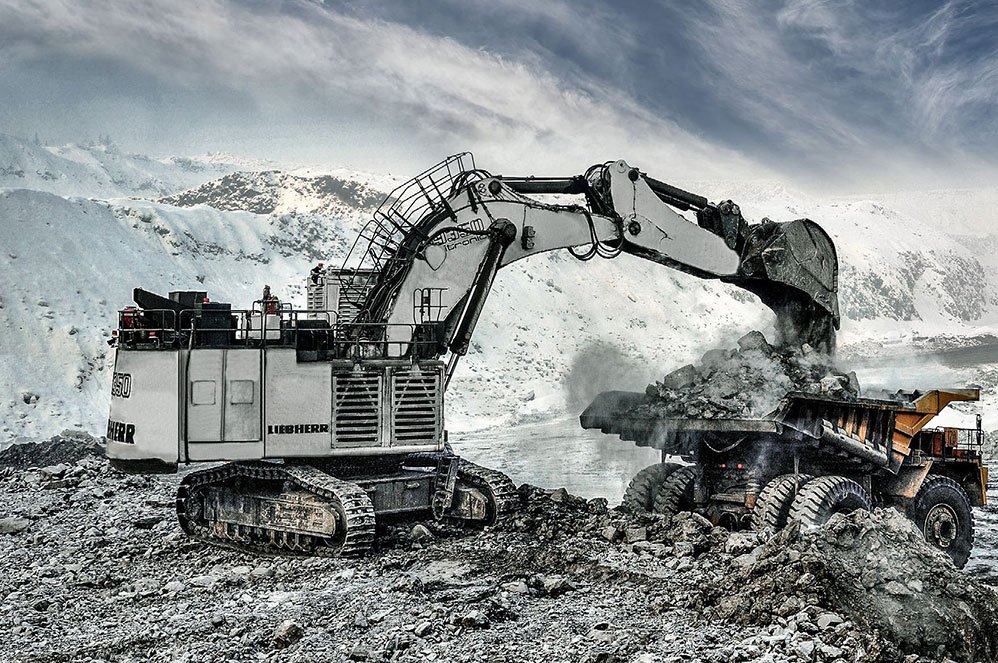

    Liebherr R 9350 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9350 G6

    4.5 rating
    Price Available Soon
    302000 Kg
    Compare
    VS
    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9400 G6

    4.5 rating
    Price Available Soon
    345500 Kg
    Tata Hitachi EX 3600-6 Mining Excavator | Price and Specs on Desi Machines
    Tata Hitachi

    Tata Hitachi EX 3600-6

    4.5 rating
    Price Available Soon
    362000 Kg
    Compare
    VS
    Liebherr R 9400 G6 Mining Excavator | Desi Machines
    Liebherr

    Liebherr R 9400 G6

    4.5 rating
    Price Available Soon
    345500 Kg

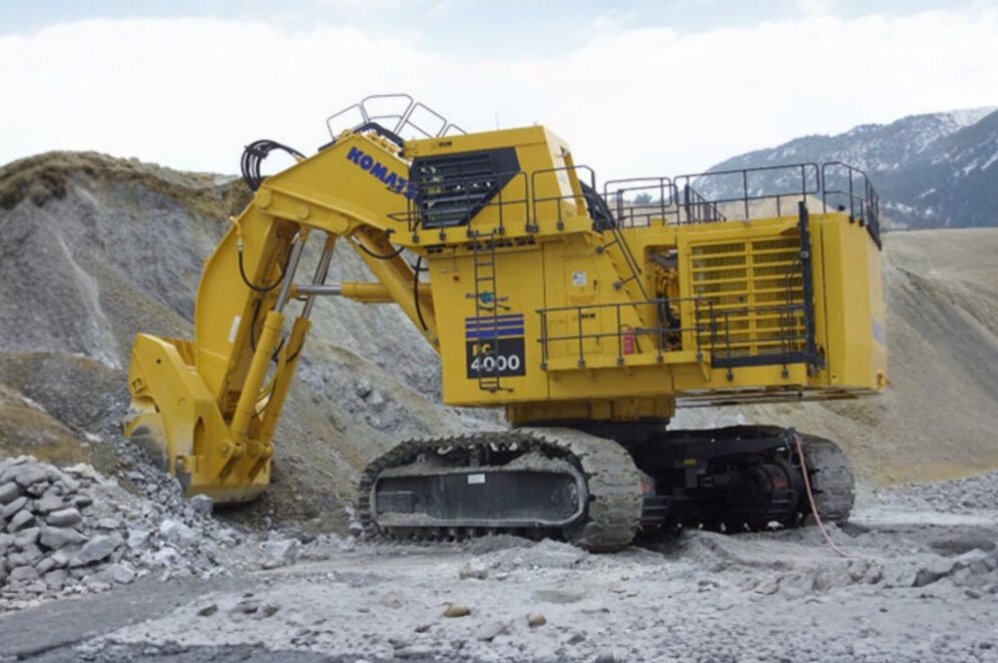

    desi-machines-komatsu-mining-excavator-pc4000-6-featured
    L&T Komatsu

    Komatsu PC4000-6

    4.5 rating
    Price Available Soon
    397000 Kg
    Compare

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    !

    Help Us Reach You!

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare


      Kindly fill out the below form. Our representative will get in touch with you
