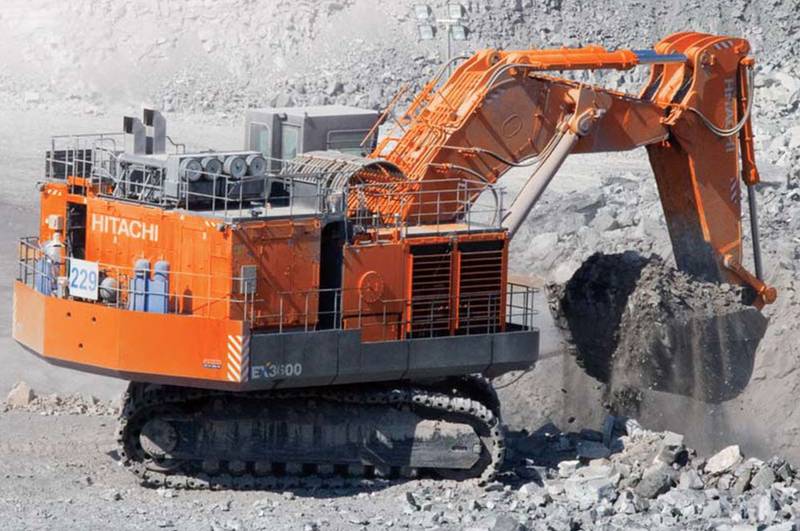

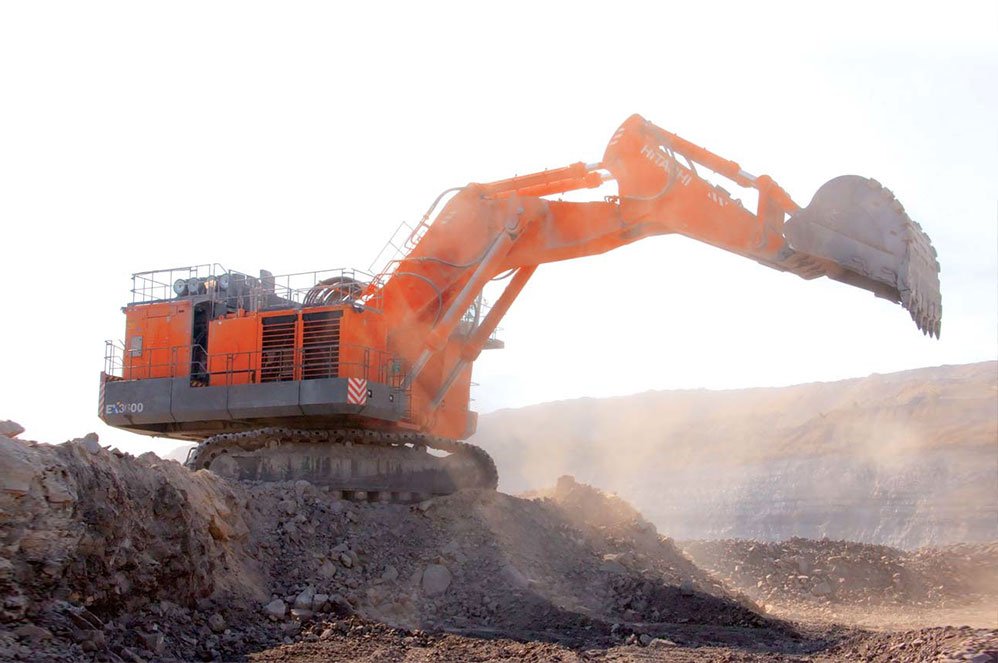

Tata Hitachi EX 3600-6 Excavator

Powerful Single Engine: The time-proven Cummins diesel engine generates a total of 1,450 kW (1,944 HP), making it ideal for handling large excavation jobs.

Emission Control Engine: The engine conforms to U.S. EPA Tier II emission regulations, ensuring environmental protection.

Hitachi's computer-aided Engine-Pump Control (E-P Control) coaxes optimum effi ciency from the engine and hydraulic pumps. This innovative system senses load demand and controls engine and pump output for maximum operating effi ciency.

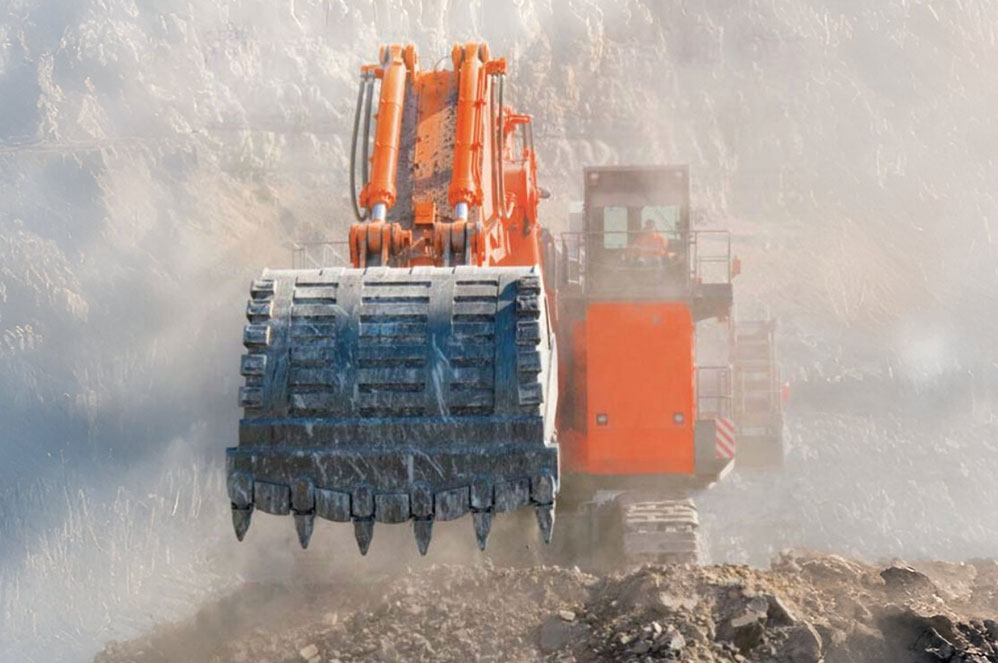

Larger Bucket Provides High Work Capacity: The loading shovel bucket has a capacity of 21.0 m³, while the backhoe bucket offers a capacity of 22.0 m³.

The large bucket has been shaped specifi cally to enhance scooping and loading operations. Its sharp tilt angle helps boost operating effi ciency.

Maximum Excavating Force: The loading shovel provides an arm crowding force of 1,200 kN (122,000 kgf) and a breakout force of 1,050 kN (107,000 kgf), while the backhoe delivers an arm crowd force of 951 kN (97,000 kgf) and a bucket digging force of 1,050 kN (107,000 kgf).

Productivity-Boosting Auto-Leveling Mechanism: This is another unique Hitachi function developed exclusively for more effi cient leveling operations.

Rigid Box Design: Computer-assisted analysis was used to check that the frame box can withstand heavy-duty excavation work.

The center track frame of integral cast steel structure can avoid stress concentration and increase reliability.

Strategically Positioned Oil Coolers: Four oil coolers are used for optimal cooling effi ciency. They are positioned far from the engine radiator for even better cooling potential.

High-Mounted Compact Travel Motors and Optional Travel Motor Guard Help to boost durability at rugged work sites.

Rugged Track Links: This design has proven itself on Hitachi's popular Giant EX Series. The roller guides have been added to help extend service life.

Constant Correct Track Tensio: Helps prevent abnormal track tension from causing damage. Travel is automatically stopped if accumulator pressure exceeds a preset level.

High Visibility 6.83 Meter Cab Height : Gives the operator a clear view, even when a large 190 tonnes class dump truck is being loaded. This high height and forward-sloping cab provides a view that boosts productivity.

Rugged Comfortable Cab: Fluid-fi lled elastic mounts help absorb vibration to provide durability and a comfortable ride. The OPG* top guard level II (ISO) is provided on the cab roof.

Efficient Cab Layout : The ergonomic layout of the cab means the operator will do less stretching and reaching when operating the controls. This adds up to less operator fatigue and greater operating effi ciency.

Electric joystick control levers have a feather-touch allowing long periods of effortless operation. Its stroke is much shorter than that of hydraulic control.

Air Suspension Seat with Auto Operator Weight Adjuster: The operator seat cushion can automatically be adjusted according to the operator weight. This is convenient for a machine operated by two or more operators.

Adjustable Sliding Cockpit : The operator can adjust the position of the levers and the seat to custom fi t his size and operating style.

Constant-Cab-Comfort Air Conditioner Keeps the cab pressurized to keep out dust while maintaining comfortable temperature.

Intelligent Multi-Display Monitor : The operator can monitor machine conditions and operating status with a 10.5-inch color LCD. The controller provides instant fault diagnosis through all sensors, displaying warnings and countermeasures if failure arises.

Outside Cameras (Optional) : The operator can monitor around the machine, using four optional cameras to eliminate blind spots.

Easy access and maintenance speed inspections, with key components like the engine, radiators, hydraulic pumps, filters, and oil tanks all designed for easy reach and servicing. This includes essential parts such as the fan motors, control valves, swing device, lubricator, and cooling systems for optimal performance.

Multipurpose Counterweight: A walkway around the entire counterweight provides easy access to key rear areas. This means faster and safer inspection and maintenance.

Auto Lubrication System : This system automatically lubricates the front joint pins and swing circle. This eliminates cumbersome daily lubrication.

The Centralized Lubrication System: Fast Filling System

Easy-to-Replace Grease Drum Can : The compartment fl oor slides down to lower a drum for simple, easy replacement.

Low Maintenance Dust Ejector : This is one less time-consuming task during routine maintenance.

Folding Stairs with Wide Steps: Folding stairs are designed for easy access to the machine for servicing and maintenance.

Convenient Centralized Filter System: Centralized position means that inspection and maintenance can be performed quickly and easily.

Contamination sensor: This system detects accumulated contaminants that could cause damage and alerts the operator before trouble occurs.

Wide-Open Service Area: This area is conveniently located at the center of the body and provides access to the engine as well as the hydraulic and electrical systems.

The MIC Mining comprises the DLU (Datalogging unit) on the machine DLU continuously records performance of the engine and the hydraulic system. The record can be download by PC and PDA*.
