The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.
| Key Highlights | Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|
| Particulars | Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|

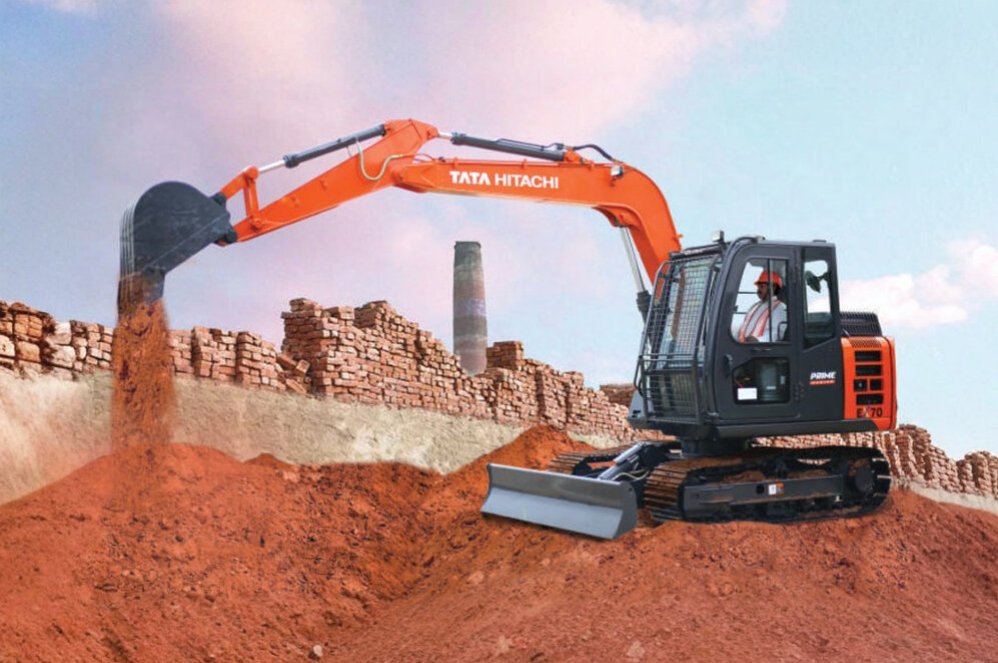

The Tata Hitachi EX 70 Prime is a compact and fuel-efficient excavator with versatile applications in construction and landscaping, whereas the Hyundai R85A SMART Plus offers a stronger engine and better gradeability, making it suitable for more demanding earthmoving tasks. Both models have their distinct advantages, with the Hitachi focused on precision and efficiency, and the Hyundai on power and robust performance.
For tasks that require a compact machine with better fuel efficiency and a broader bucket capacity range, the Tata Hitachi EX 70 Prime could be the better option, while the Hyundai R85A SMART Plus is more suited for heavier-duty operations where engine power and hydraulic capability are prioritized. Assess the specific needs of the job to determine which model aligns best with the requirements.
| Brand | Tata Hitachi | Hyundai |
|---|---|---|
| Type | Small (6-15 Ton) | Small (6-15 Ton) |
| Operating Cost | Price Available Soon | Price Available Soon |
| Price | ₹ 35.25 - 36.25 Lakhs | Price Available Soon |
| Weight | 7200 Kg | 8100 Kg |
| Bucket | 0.13 - 0.68 m³ | 0.35 m³ |
| Max Digging Depth | 4660 mm | 4205 mm |
| Engine | TATA 48.9 HP | Kirloskar 76 HP |
| Warranty | 1 Yr. / 2000 hr. | 1 Yr. / 2000 hr. |
| Boom | 3720 mm | 3700 mm |
| Quick Overview: | Compact and versatile, the Tata Hitachi EX 70 Prime small excavator ensures efficient performance for precise construction and landscaping tasks. |
Efficient and Reliable the Hyundai R85A SMART Plus small excavator by Hyundai is ideal for compact earthmoving and construction tasks. |
| Agency review | Get the best price for the Tata Hitachi EX 70 Prime Small Excavator from authorized dealers. Contact us now for exclusive deals! |
Get the best price for the Hyundai R85A SMART Plus Small Excavator from authorized dealers. Contact us now for exclusive deals! |
The Tata Hitachi EX 70 Prime is a compact and fuel-efficient excavator with versatile applications in construction and landscaping, whereas the Hyundai R85A SMART Plus offers a stronger engine and better gradeability, making it suitable for more demanding earthmoving tasks. Both models have their distinct advantages, with the Hitachi focused on precision and efficiency, and the Hyundai on power and robust performance.
For tasks that require a compact machine with better fuel efficiency and a broader bucket capacity range, the Tata Hitachi EX 70 Prime could be the better option, while the Hyundai R85A SMART Plus is more suited for heavier-duty operations where engine power and hydraulic capability are prioritized. Assess the specific needs of the job to determine which model aligns best with the requirements.
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Brand | |
| Tata Hitachi | Hyundai |
| Type | |
| Small (6-15 Ton) | Small (6-15 Ton) |
| Price | |
| ₹ 35.25 - 36.25 Lakhs | Price Available Soon |
| Weight | |
| 7200 Kg | 8100 Kg |
| Bucket | |
| 0.13 - 0.68 m³ | 0.35 m³ |
| Max Digging Depth | |
| 4660 mm | 4205 mm |
| Engine | |
| TATA 48.9 HP | Kirloskar 76 HP |
| Warranty | |
| 1 Yr. / 2000 hr. | 1 Yr. / 2000 hr. |
| Boom | |
| 3720 mm | 3700 mm |
| Quick Overview: | |
Compact and versatile, the Tata Hitachi EX 70 Prime small excavator ensures efficient performance for precise construction and landscaping tasks. |
Efficient and Reliable the Hyundai R85A SMART Plus small excavator by Hyundai is ideal for compact earthmoving and construction tasks. |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Engine Make | TATA 497 DI 38 BSIII | Kirloskar 4R1040NA |
| Fuel Tank | 135 L | 135 L |
| Engine Displacment | NA | NA |
| Under Carriage | 2700 mm | 3340 mm |
| Hydraulic System | 92 L | 130 L |
| Arm | 2120 mm | 1670 mm |
| Max Digging Reach | 6800 mm | 6287 mm |
| Fuel Consumption | 4.5 L/hour | 5 L/hour |
| Overall Width | 2382 mm | NA |
| Overall Length | 6080 mm | 6110 mm |
| Bucket Digging Force | 47 kN | 51.4 kN |
| Tailswing Radius | 1750 mm | 1780 mm |
| Track Shoe Width | 450 mm | 450 mm |
| AC Cabin | Optional | Optional |
| GPS | Standard | Standard |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Engine Make | |
| TATA 497 DI 38 BSIII | Kirloskar 4R1040NA |
| Fuel Tank | |
| 135 L | 135 L |
| Engine Displacment | |
| NA | NA |
| Under Carriage | |
| 2700 mm | 3340 mm |
| Hydraulic System | |
| 92 L | 130 L |
| Arm | |
| 2120 mm | 1670 mm |
| Max Digging Reach | |
| 6800 mm | 6287 mm |
| Fuel Consumption | |
| 4.5 L/hour | 5 L/hour |
| Overall Width | |
| 2382 mm | NA |
| Overall Length | |
| 6080 mm | 6110 mm |
| Bucket Digging Force | |
| 47 kN | 51.4 kN |
| Tailswing Radius | |
| 1750 mm | 1780 mm |
| Track Shoe Width | |
| 450 mm | 450 mm |
| AC Cabin | |
| Optional | Optional |
| GPS | |
| Standard | Standard |
| 3616 | 3526 | |
| Model | TATA 48.9 HP | Kirloskar 76 HP |
| Fuel | Diesel | Diesel |
| Type | 4 Cylinder in-line , Water Cooled | NA |
| Rated Engine Power | 48.9 HP (36 kW) @ 2100 rpm | 76 HP (56.7 kW) @ 2200 rpm |
| Maximum Torque | 222 Nm @ 1400 rpm | 289.2 Nm @ 1320mm |
| Piston Displacement | NA | NA |
| Alternator | NA | 24V |
| Battery | 2 x 12V | 2 x 12V , 68 Ah |
| Starting Motor | NA | NA |
| NA | NA | |
| No of Top rollers | 1x2 | 1 |
| No of bottom rollers | 5x2 | 5 |
| Track Shoes (Each Side) | 37x2 | 38 |
| Track Guard | NA | 1 |
| Track Shoe width | 450 mm | 450 mm |
| Ground bearing pressure | 33.3 kPa | 37.2 kPa |
| Track Tensioning | Grease | Grease |
| Gradeability | NA | 70% (35°) |
| Travel Speed-Low | 2.5 Km/h | 3.0 Km/h |
| Travel Speed-High | 5.0 Km/h | 4.8 Km/h |
| Max Tracking Force | NA | 57.8 kN |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Hydraulic pump | 2 Variable Displacement Pump Axial Piston | 2 Variable Displacement Piston Pumps |
| Maximum Flow | 2 x 60 L/min | 2 x 75.6 L/min |
| Pilot Pump | 1 Gear Pump | Gear Pump |
| Implement Circuit | 25.9 MPa | 27.4 MPa |
| Swing Circuit | 23.0 MPa | 20.5 MPa |
| Travel circuit | 27.4 MPa | 27.4 MPa |
| Pilot circuit | 3.4 MPa | 3.4 MPa |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Travel | NA | Two speed axial piston motor with counter balance valve and parking brake |
| Swing | NA | Axial piston motor with automatic brake |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Fuel tank | 135 L | 135 L |
| Engine Coolant | 15.5 L | 10.8 L |
| Engine oil | 9.0 L | 11.5 L |
| Hydraulic system | 92 L | 130 L |
| Hydraulic tank | 42 L | 75 L |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Operating Weight | 7200 Kg | 8100 Kg |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Boom length | 3720 mm | 3700 mm |
| Arm length | 2120 mm | 1670 mm |
| Max Digging Reach | 6800 mm | 6287 mm |
| Max Digging Reach on ground | 6660 mm | 6151 mm |
| Max digging depth | 4660 mm | 4205 mm |
| Max digging height | 7550 mm | 7121 mm |
| Max Dump Height | 5470 mm | 5096 mm |
| Max vertical wallcut depth | 4060 mm | 3312 mm |
| Min swing radius | 2060 mm | 1786 mm |
| Max Height at Min Swing radius | NA | NA |
| Max height (above ground) | NA | NA |
| Dig depth (below ground) | NA | NA |
| Bucket Digging Force | 47 kN | 51.4 kN |
| Arm Digging Force | 36.3 kN | 39.6 kN |
| Swing Speed | 12.8 rpm | 12 rpm |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Dozer Type | NA | NA |
| Dozer Length | NA | NA |
| Digging depth for ground level | NA | 400 mm |
| Approach Angle | NA | NA |
| Width | NA | NA |
| Height | NA | NA |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Bucket Capacity | 0.13 - 0.68 m³ | 0.35 m³ |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus | |
| Overall Length | 6080 mm | 6110 mm |
| Overall width | 2382 mm | NA |
| Overall Height | 2690 mm | 2750 mm |
| Overall Height of Cab | 2690 mm | 2640 mm |
| Upper Width | 2264 mm | 2250 mm |
| Track Lengh on Ground | 2090 mm | 2130 mm |
| Undercarriage overall length | 2700 mm | 3340 mm |
| Tailswing radius | 1750 mm | 1780 mm |
| Min Ground clearance | 360 mm | 360 mm |
| Track gauge | NA | 1750 mm |
| Width over tracks | 2150 mm | NA |
| Track Height | NA | NA |
| Counterweight Clearance | 760 mm | 760 mm |
| Track Shoe Width | 450 mm | 450 mm |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Model | |
| TATA 48.9 HP | Kirloskar 76 HP |
| Fuel | |
| Diesel | Diesel |
| Type | |
| 4 Cylinder in-line , Water Cooled | NA |
| Rated Engine Power | |
| 48.9 HP (36 kW) @ 2100 rpm | 76 HP (56.7 kW) @ 2200 rpm |
| Maximum Torque | |
| 222 Nm @ 1400 rpm | 289.2 Nm @ 1320mm |
| Piston Displacement | |
| NA | NA |
| Alternator | |
| NA | 24V |
| Battery | |
| 2 x 12V | 2 x 12V , 68 Ah |
| Starting Motor | |
| NA | NA |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| No of Top rollers | |
| 1x2 | 1 |
| No of bottom rollers | |
| 5x2 | 5 |
| Track Shoes (Each Side) | |
| 37x2 | 38 |
| Track Guard | |
| NA | 1 |
| Track Shoe width | |
| 450 mm | 450 mm |
| Ground bearing pressure | |
| 33.3 kPa | 37.2 kPa |
| Track Tensioning | |
| Grease | Grease |
| Gradeability | |
| NA | 70% (35°) |
| Travel Speed-Low | |
| 2.5 Km/h | 3.0 Km/h |
| Travel Speed-High | |
| 5.0 Km/h | 4.8 Km/h |
| Max Tracking Force | |
| NA | 57.8 kN |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Hydraulic pump | |
| 2 Variable Displacement Pump Axial Piston | 2 Variable Displacement Piston Pumps |
| Maximum Flow | |
| 2 x 60 L/min | 2 x 75.6 L/min |
| Pilot Pump | |
| 1 Gear Pump | Gear Pump |
| Implement Circuit | |
| 25.9 MPa | 27.4 MPa |
| Swing Circuit | |
| 23.0 MPa | 20.5 MPa |
| Travel circuit | |
| 27.4 MPa | 27.4 MPa |
| Pilot circuit | |
| 3.4 MPa | 3.4 MPa |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Fuel tank | |
| 135 L | 135 L |
| Engine Coolant | |
| 15.5 L | 10.8 L |
| Engine oil | |
| 9.0 L | 11.5 L |
| Hydraulic system | |
| 92 L | 130 L |
| Hydraulic tank | |
| 42 L | 75 L |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Operating Weight | |
| 7200 Kg | 8100 Kg |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Boom length | |
| 3720 mm | 3700 mm |
| Arm length | |
| 2120 mm | 1670 mm |
| Max Digging Reach | |
| 6800 mm | 6287 mm |
| Max Digging Reach on ground | |
| 6660 mm | 6151 mm |
| Max digging depth | |
| 4660 mm | 4205 mm |
| Max digging height | |
| 7550 mm | 7121 mm |
| Max Dump Height | |
| 5470 mm | 5096 mm |
| Max vertical wallcut depth | |
| 4060 mm | 3312 mm |
| Min swing radius | |
| 2060 mm | 1786 mm |
| Max Height at Min Swing radius | |
| NA | NA |
| Max height (above ground) | |
| NA | NA |
| Dig depth (below ground) | |
| NA | NA |
| Bucket Digging Force | |
| 47 kN | 51.4 kN |
| Arm Digging Force | |
| 36.3 kN | 39.6 kN |
| Swing Speed | |
| 12.8 rpm | 12 rpm |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Dozer Type | |
| NA | NA |
| Dozer Length | |
| NA | NA |
| Digging depth for ground level | |
| NA | 400 mm |
| Approach Angle | |
| NA | NA |
| Width | |
| NA | NA |
| Height | |
| NA | NA |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Bucket Capacity | |
| 0.13 - 0.68 m³ | 0.35 m³ |
| Tata Hitachi EX 70 Prime | Hyundai R85A SMART Plus |
|---|---|
| Overall Length | |
| 6080 mm | 6110 mm |
| Overall width | |
| 2382 mm | NA |
| Overall Height | |
| 2690 mm | 2750 mm |
| Overall Height of Cab | |
| 2690 mm | 2640 mm |
| Upper Width | |
| 2264 mm | 2250 mm |
| Track Lengh on Ground | |
| 2090 mm | 2130 mm |
| Undercarriage overall length | |
| 2700 mm | 3340 mm |
| Tailswing radius | |
| 1750 mm | 1780 mm |
| Min Ground clearance | |
| 360 mm | 360 mm |
| Track gauge | |
| NA | 1750 mm |
| Width over tracks | |
| 2150 mm | NA |
| Track Height | |
| NA | NA |
| Counterweight Clearence | |
| 760 mm | 760 mm |
| Track Shoe Width | |
| 450 mm | 450 mm |
