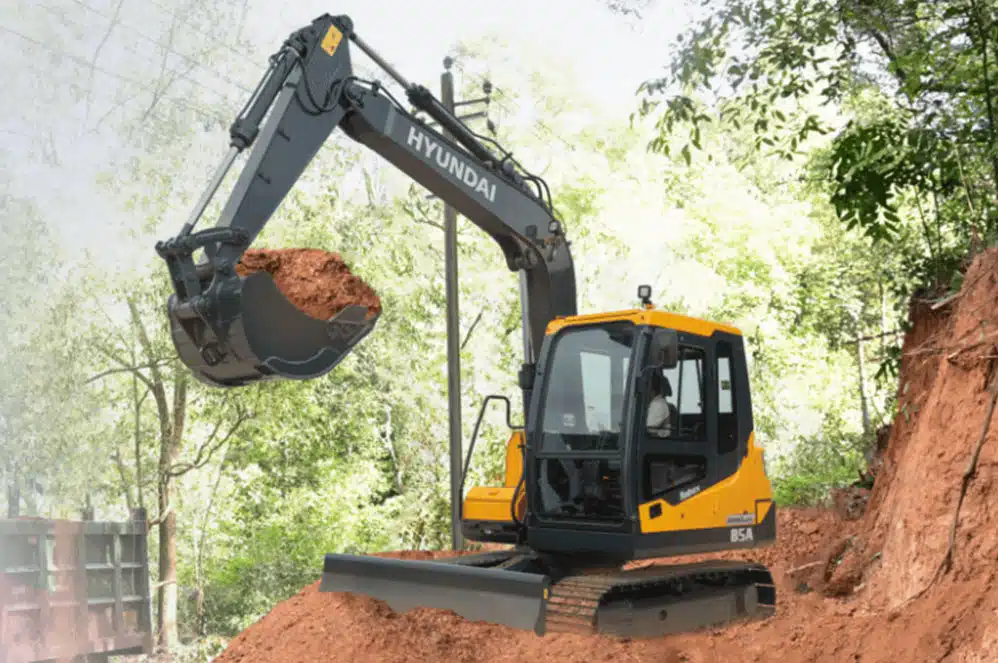

Hyundai R85A SMART Plus Excavator

The heavy duty Kirloskar 4R1040NA engine with a gross power of 76 HP @2200 rpm offers high performance with low fuel and lube oil consumption. The engine also offers high torque that helps in easy cutting operation & better load carrying capacity.

The advanced CAPO (Computer Aided Power Optimization) system tunes engine and pump power to optimum level. Multiple modes selections are available for various workloads, maintaining high performance while reducing the fuel consumption.

Fast synchronization between the joystick and Main Control Valve results in faster response, smooth operation and improved operation cycles.

The Hydraulics and attachments are designed to offer high digging forces, thus making the machine more productive.

The advanced Cluster Machine Control Unit (CMCU) 7” screen automatically displays machine malfunctions and makes it very easy to check machine health and troubleshoot problems. The smart feature of Maintenance Management keeps a record of scheduled service time interval & keep the operator updated at all the times.

The spacious cabin houses a multi adjustment operator seat including seat height movement. Ergonomically designed consoles and soft joystick control ensures increased productivity and higher operator efficiency. New improved Air Conditioner box (optional) for better air flow and cooling comfort. New mobile holder & charging socket for operator convenience.

One touch deceleration lowers the engine RPM when selected and saves fuel by regulating engine RPM. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec, which reduces fuel consumption and operation cost.

Exclusive breaker mode provided in the new age control unit provides optimum engine & hydraulic power, thus improving efficiency. Eco mode helps in reducing the fuel consumption for light duty applications

Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to maximize impact strength

The frames are built to withstand tougher conditions by enduring external shocks and heavy workloads, thus extending machine life. Strengthened dozer cylinder mounting ensures more service life. Heavy-duty track shoe provides better stability and durability.

Side Member reinforcement protects the idler area from any damage in tough terrains. The bucket linkages are reinforced to ensure high durability and high digging forces.

Heavier counterweight with new design increases tail swing to safeguards the engine hood thus improving durability & service life. The engine hood is strengthened with steel mesh at edges providing additional safety.

Auto Engine Overheat Prevention feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing its premature failure.

Anti-Restart System feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine

Warning indicators are provided in the display cluster to alert the operator about various warnings like oil pressure, coolant temperature, battery etc. So that safe levels of the respective components can be maintained easily.

The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
