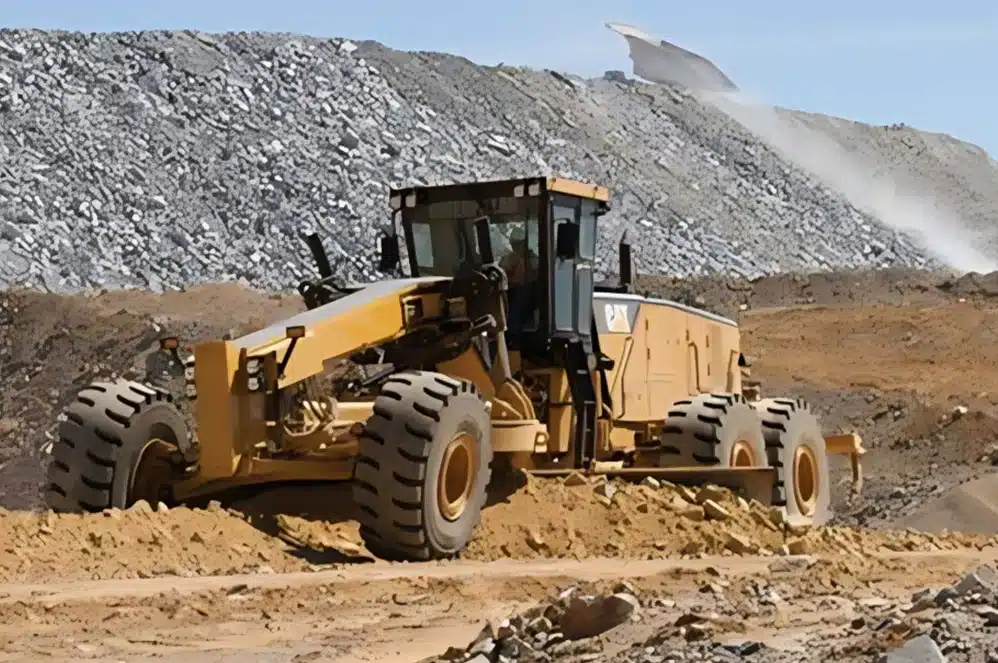

    Cat 24M Motor Grader

    CAT 24M Motor grader, CAT 24M price, CAT 24M specification, CAT 24M price in india

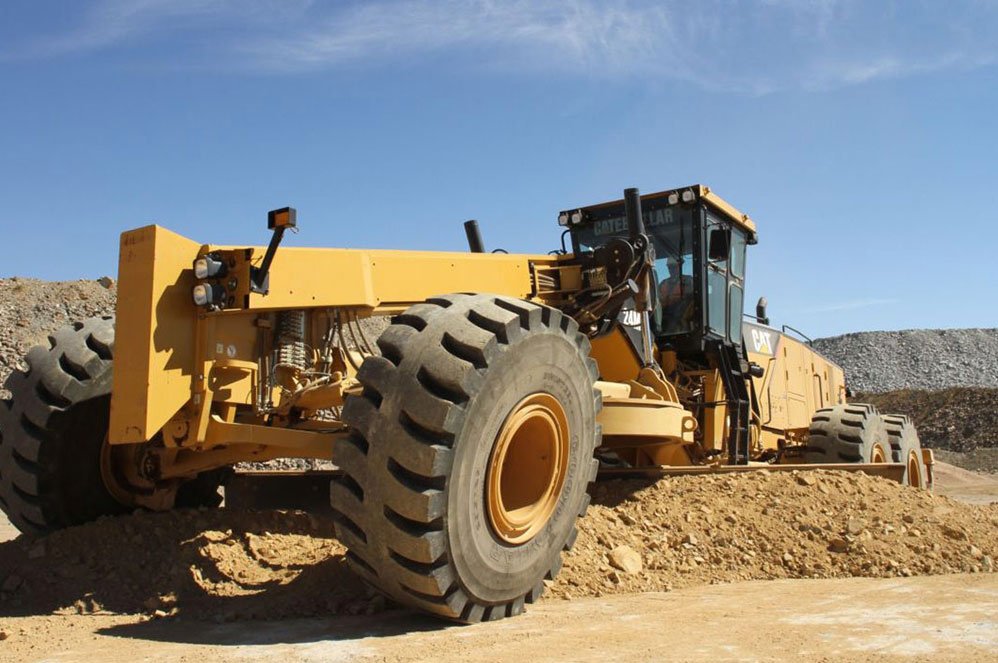

    desi-machines-motor-grader-cat-24m-1

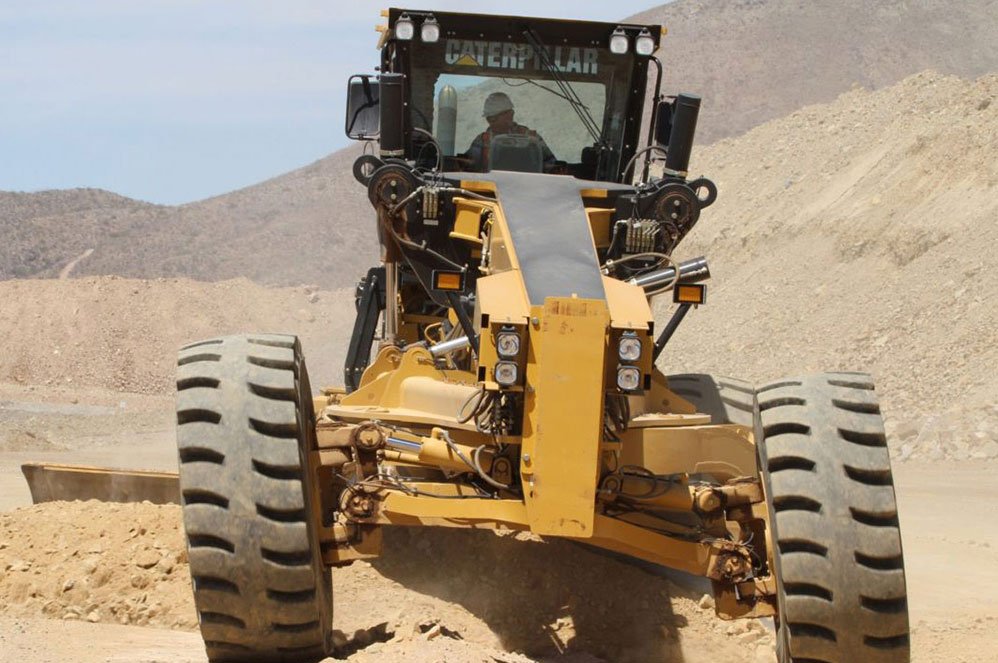

    desi-machines-motor-grader-cat-24m-2

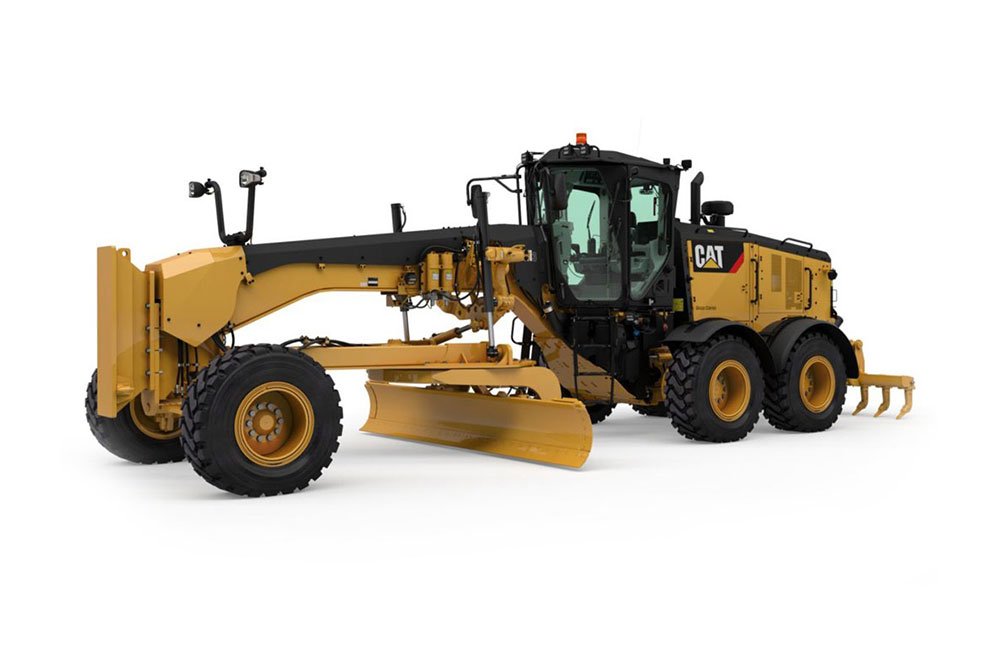

    desi-machines-motor-grader-cat-24m-3
    desi-machines-motor-grader-cat-24m-1
    desi-machines-motor-grader-cat-24m-2
    desi-machines-motor-grader-cat-24m-3

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Caterpillar

    • Type

      Large (>50 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      Cat 533 HP

    • Blade

      7300 mm

    • icon alt1
      Weight

      65840 kg

    • Turning Radius

      12400 mm

    • Forward Speed

      43.4 km/hr

    • Reverse Speed

      41.6 km/hr

    Quick Overview:

    The Cat 24M motor grader delivers exceptional grading control, perfect for mining and large earthworks projects where durability and precision are key.

    Connect With Us:

    Looking for the best price on a Cat 24M from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Cat 18 ACERT

    Max Torque

    2173 Nm

    Fuel Tank

    1326 L

    Hydraulic System

    550 L/min

    Tires

    NA

    Frame Height

    NA

    Max Lift Above Ground

    634 mm

    Max Cutting Depth

    657 mm

    Blade Pitch Angle

    40° forward; 0° backward

    Wheel Base

    NA

    Overall Length

    NA

    Overall Height

    NA

    Medal Image
    Warranty

    1 Year

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Safety

    Safety

    • 15 tie-off points located around engine enclosure and cab provide secure anchorage for fall prevention/protection PPE for technicians when performing service operations.

    • Optional Working at Heights package adds an extra layer of safety by providing handrails and hand holds to improve access and safety.

    • The 24 is Fire Suppression-Ready which means a fire suppression system can be easily installed, further protecting your investment.

    • Rearview camera provides better visibility behind the machine while optional front-facing cameras provide enhanced forward and side visibility.

    Operator Comfort

    Operator Comfort

    • New 10-inch, multi-color/touch screen information display enables monitoring and setting of the 24’s operation and performance parameters.

    • Optional heated and ventilated seats, satellite radio and cab storage provide enhanced operator comfort.

    Performance

    Performance

    • Cat C27 ACERT engine provides enhanced altitude capabilities with no derate up to 3048 m (10,000 ft) for Tier 4/Stage IV emission standards and 4572 m (15,000 ft) for equivalent Tier 2/Stage II emissions.

    • An 11 percent weight increase helps provide more traction and blade down pressure (compared to 24M).

    • Consistent Power-to-the-Ground changes real-time engine power levels resulting in the 24’s best performance at all times.

    Technology

    Technology

    • Asset protection and performance improving technologies include: engine overspeed/underspeed, second generation steering system, Auto Articulation, Cat GRADE with Cross Slope, articulation eStop, ripper auto stow, implement lock out and circle angle limits, to name a few.

    Serviceability

    Serviceability

    • Improved power train rebuild life, new modular design and new machine protection features can save you up to 2,400* servicing hours.

    • The Cat C27 ACERT engine, 533 mm (21 in) transmission and lower power train provide 33 percent additional components’ life before needing to be rebuilt (compared to the 24M).

    • New, innovative main component modular design means components can be removed and installed quicker and easier. Transmission and cooling package can be removed up to 70 percent faster (compared to the 24M).

    Safety

    • 15 tie-off points located around engine enclosure and cab provide secure anchorage for fall prevention/protection PPE for technicians when performing service operations.

    • Optional Working at Heights package adds an extra layer of safety by providing handrails and hand holds to improve access and safety.

    • The 24 is Fire Suppression-Ready which means a fire suppression system can be easily installed, further protecting your investment.

    • Rearview camera provides better visibility behind the machine while optional front-facing cameras provide enhanced forward and side visibility.

    Operator Comfort

    • New 10-inch, multi-color/touch screen information display enables monitoring and setting of the 24’s operation and performance parameters.

    • Optional heated and ventilated seats, satellite radio and cab storage provide enhanced operator comfort.

    Performance

    • Cat C27 ACERT engine provides enhanced altitude capabilities with no derate up to 3048 m (10,000 ft) for Tier 4/Stage IV emission standards and 4572 m (15,000 ft) for equivalent Tier 2/Stage II emissions.

    • An 11 percent weight increase helps provide more traction and blade down pressure (compared to 24M).

    • Consistent Power-to-the-Ground changes real-time engine power levels resulting in the 24’s best performance at all times.

    Technology

    • Asset protection and performance improving technologies include: engine overspeed/underspeed, second generation steering system, Auto Articulation, Cat GRADE with Cross Slope, articulation eStop, ripper auto stow, implement lock out and circle angle limits, to name a few.

    Serviceability

    • Improved power train rebuild life, new modular design and new machine protection features can save you up to 2,400* servicing hours.

    • The Cat C27 ACERT engine, 533 mm (21 in) transmission and lower power train provide 33 percent additional components’ life before needing to be rebuilt (compared to the 24M).

    • New, innovative main component modular design means components can be removed and installed quicker and easier. Transmission and cooling package can be removed up to 70 percent faster (compared to the 24M).

    Specifications

    Product specification of Cat 24M Motor Grader

    ENGINE

    • Model

      Cat 18 ACERT

    • Fuel

      Diesel

    • Type

      NA

    • Number of Cylinders

      6

    • Gross Power

      533 HP (397 kW) @ 1800 rpm

    • Max Torque

      2173 Nm

    • Displacement

      18.L

    • Battery

      NA

    • Alternator

      NA

    TRANSMISSION

    • Type

      Automatic, electronic Powershift Transmission

    SPEED

    • Max. Forward Speed

      43.4 km/hr

    • Max. Reverse Speed

      41.6 km/hr

    AXLES

    • Rear Axle

      NA

    • Front Axle

      NA

    TIRES

    • Size

      NA

    STEERING

    • Type

      NA

    • Minimum Turning Radius

      12400 mm

    • Steering Angle

      47.5°

    BRAKES

    • Service

      Oil-actuated, oil disc

    • Parking

      Spring Applied, hydraulically released.

    FRAME

    • Front Frame Structure - Height

      NA

    • Front Frame Structure - Width

      NA

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      NA

    • Blade Length

      7300 mm

    • Blade Height

      NA

    • Blade Thickness

      50 mm

    • Cutting Edge

      330 x 29 mm

    • Blade Pull

      43518 kgf

    • Blade Down Pressure

      34316 kgf

    • Moldboard Side Shift (Right/Left)

      4902 mm / 4528 mm

    • Maximum Shoulder Reach (Right/Left)

      3228 mm / 3222 mm

    • Maximum Lift Above Ground

      634 mm

    • Maximum Cutting Depth

      657 mm

    • Blade Pitch Angle

      40° forward, 0° backward

    HYDRAULICS

    • Type

      Electro-hydraulic load sensing, closed center, Variable Piston

    • Maximum Pump Flow

      550 L/min

    • Maximum System Pressure

      21.1 MPa

    SERVICE CAPACITIES

    • Fuel Tank

      1326 L

    • Cooling System

      90 L

    • Engine Oil

      60 L

    • DEF Tank

      NA

    • Transmission Oil

      87.1 L

    • Final Drive

      NA

    • Hydraulic System

      264 L

    • Circle Reverse Housing

      7.5 L

    WEIGHT

    • Gross Vehicle Weight

      65840 kg

    STATIC DIMENSIONS

    • Overall Height

      NA

    • Moldboard Base

      NA

    • Wheelbase

      NA

    • Tandem Wheelbase

      NA

    • Width of Standard Moldboard

      7300 mm

    • Overall Length

      NA

    • Tread Gauge

      NA

    • Width of Tires

      NA

    • Articulation, left or right

      25°

    • Minimum Ground Clearence

      NA

    Frequently Asked Question

    01. What is the price of the Cat 24M Motor Grader in India?

    Ans.

    The price of the Cat 24M Motor Grader in India will be available soon. Stay connected with Desi Machines to get the latest and most accurate pricing updates as soon as they are released.

    02. Where can I buy Cat 24M motor grader in india?

    Ans.

    You can buy the Cat 24M motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the Cat 24M motor grader comes with financing & insurance options?

    Ans.

    Yes, the Cat 24M motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the Cat 24M Motor Grader?

    Ans.

    The Cat 24M motor grader is powered by a Cat 18 ACERT diesel engine, delivering 533 HP (397 kW) @ 1800 rpm.

    05. What is the weight of the Cat 24M Motor Grader?

    Ans.

    The weight of the Cat 24M motor grader is approximately 65840 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the Cat 24M Motor Grader?

    Ans.

    The Cat 24M Motor Grader features a blade width of 7300 mm (23.95 feet), making it ideal for large-scale mining and highway projects.

    07. What is the turning radius of the Cat 24M Motor Grader?

    Ans.

    The CAT 24M Motor Grader has a turning radius of 12400 mm, best suited for mining and high-volume road maintenance.

    08. What is the fuel tank capacity of the Cat 24M Motor Grader?

    Ans.

    The Cat 24M motor grader has a 1326-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of Cat 24M motor grader?

    Ans.

    The Cat 24M in India typically comes with a standard warranty of 1 year. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the Cat 24M motor grader?

    Ans.

    You can find genuine spare parts for the Cat 24M at authorized CAT (Gainwell India & GMMCO) dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
