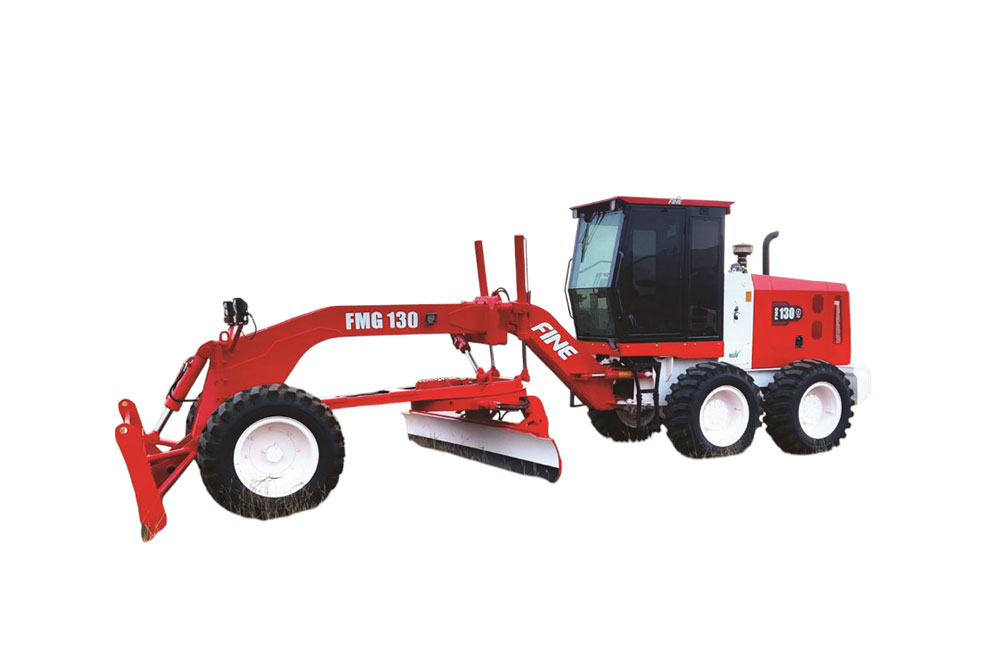

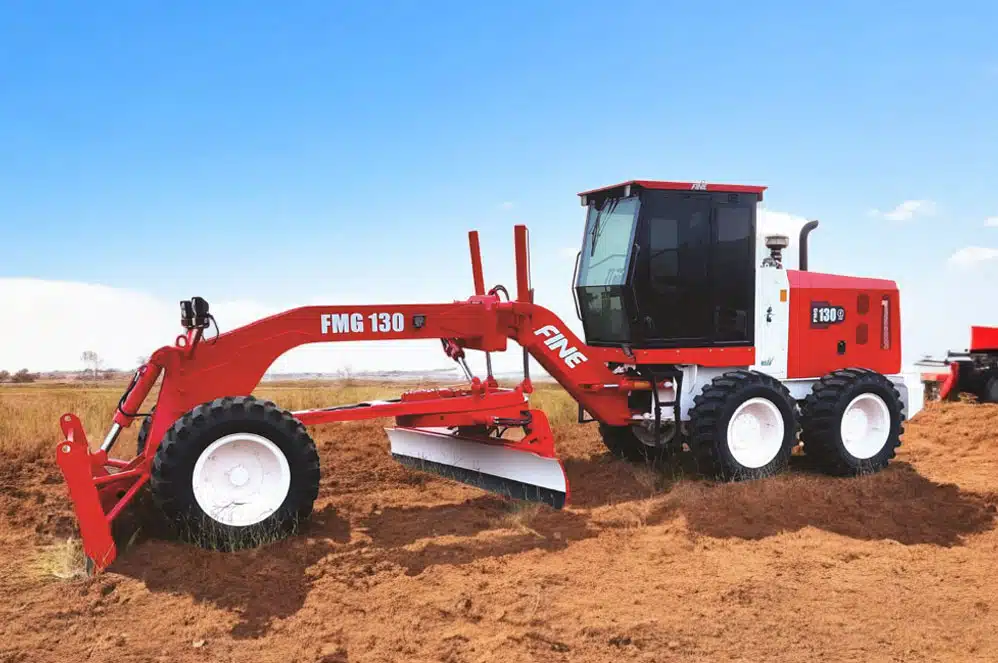

    Fine FMG 130 Motor Grader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      Fine

    • Type

      Small (4-12 Ton)

    • Operating Cost

      ₹ 60-65 Lakhs

    • Ex-Showroom Price

      ₹ 60-65 Lakhs

    • Engine

      Ashok Leyland 130 HP

    • Blade

      3360 mm

    • icon alt1
      Weight

      9100 kg

    • Turning Radius

      9000 mm

    • Forward Speed

      40 km/hr

    • Reverse Speed

      30 km/hr

    Quick Overview:

    The FMG 130 motor grader excels in smaller-scale grading tasks, delivering lightweight, efficient performance for municipal road repairs and everyday leveling needs.

    Connect With Us:

    Looking for the best price on a FMG 130 Motor Grader from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    engine-make-alt
    Engine Make

    Ashok Leyland H4C413022-BSIV

    Max Torque

    480 Nm @ 1800 rpm

    Fuel Tank

    200 L

    Hydraulic System

    60 L/min

    Tires

    16./70 x 124 16 PR

    Frame Height

    NA

    Max Lift Above Ground

    400 mm

    Max Cutting Depth

    350 mm

    Blade Pitch Angle

    35° forward; 5° backward

    Wheel Base

    5400 mm

    Overall Length

    8700 mm

    Overall Height

    2940 mm

    Medal Image
    Warranty

    1 Yr. / 1000 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Engine Performance & Fuel Efficiency

    Engine Performance & Fuel Efficiency

    • Powered by a robust 130 HP Ashok Leyland BS IV engine, the FMG 130 delivers dependable performance for demanding road projects.

    • Generates a high torque output of 450 Nm, enabling smooth operation even under heavy load conditions.

    • The engine is optimized for fuel efficiency, helping contractors reduce overall project fuel costs.

    • Compliant with Indian emission norms, making it eco-friendly and suitable for government projects.

    • Performs reliably across diverse Indian terrains, from rural roads to industrial zones.

    Engine Performance & Fuel Efficiency

    • Powered by a robust 130 HP Ashok Leyland BS IV engine, the FMG 130 delivers dependable performance for demanding road projects.

    • Generates a high torque output of 450 Nm, enabling smooth operation even under heavy load conditions.

    • The engine is optimized for fuel efficiency, helping contractors reduce overall project fuel costs.

    • Compliant with Indian emission norms, making it eco-friendly and suitable for government projects.

    • Performs reliably across diverse Indian terrains, from rural roads to industrial zones.

    Grading Precision & Blade Specifications

    • Comes with a large 3.35-meter-wide (11-foot) blade, allowing wide surface coverage in fewer passes.

    • Designed for precision grading required in national and state highway development.

    • Excellent for tasks like embankment shaping, plot leveling, and rail bed preparation.

    • The blade angle and articulation improve accuracy and surface finish on every job.

    • Delivers consistent and high-quality grading results on both paved and unpaved roads.

    Operator Comfort & Safety

    • Features an air-conditioned and ergonomically designed cabin to enhance operator comfort during long shifts.

    • Rear-view camera and wide-angle mirrors offer increased visibility, reducing blind spots and improving safety.

    • Articulated frame provides enhanced maneuverability in narrow construction zones.

    • Spacious cabin layout with easy-to-access controls reduces operator fatigue and increases productivity.

    • Built-in safety systems and alerts ensure smooth and hazard-free operations on construction sites.

    Maintenance & Support

    • Designed for hassle-free routine maintenance with easily accessible service points and diagnostic tools.

    • Integrated telematics system helps monitor machine health and schedule preventive maintenance.

    • Fine Equipments offers strong nationwide service and support, ensuring quick assistance anywhere in India.

    • Low downtime and cost-effective servicing make it ideal for budget-conscious contractors.

    • Readily available spare parts and accessories reduce wait times and increase machine uptime.

    Versatility & Application Suitability

    • A perfect fit for rural road development, smart city infrastructure, and industrial plot preparation.

    • Adaptable to various soil and surface conditions commonly found across Indian job sites.

    • Can be used in multiple applications including railways, mining, irrigation projects, and urban construction.

    • Performs efficiently in both initial construction and regular road maintenance tasks.

    • Suitable for small contractors as well as large infrastructure companies due to its flexible performance.

    Affordability & Value Proposition

    • Competitively priced around ₹46,00,000, offering a great return on investment for Indian contractors.

    • Combines international-grade quality with affordability, making it a top choice in its category.

    • Delivers long-term performance with low operating and maintenance costs.

    • Comes with a comprehensive warranty of 1 year or 1000 hours, providing peace of mind to buyers.

    • Proudly made in India, reducing import dependency and supporting the "Make in India" initiative.

    Specifications

    Product specification of Fine FMG 130 Motor Grader

    ENGINE

    • Model

      Ashok Leyland H4C413022-BSIV

    • Fuel

      Diesel

    • Type

      BSIV, Turbocharged

    • Number of Cylinders

      NA

    • Gross Power

      130 HP (97 kW) @ 2200 rpm

    • Max Torque

      480 Nm @ 1800 rpm

    • Displacement

      NA

    • Battery

      12 V / 125 AH

    • Alternator

      NA

    TRANSMISSION

    • Type

      Belian

    SPEED

    • Max. Forward Speed

      40 km/hr

    • Max. Reverse Speed

      30 km/hr

    AXLES

    • Rear Axle

      Driven, Non steerable, central pivoted 5 degree oscillation angle.

    • Front Axle

      Non Driven, steerable, central pivoted

    Tires

    • 16./70 x 124 16 PR

    STEERING

    • Type

      Power Steering

    • Minimum Turning Radius

      9000 mm

    • Steering Angle

      NA

    BRAKES

    • Service

      Disc (Foot Operated)

    • Parking

      Disc Brake Mounted on transmission drive shaft mechanically operated.

    FRAME

    • Front Frame Structure - Height

      NA

    • Front Frame Structure - Width

      NA

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      NA

    • Blade Length

      3360 mm

    • Blade Height

      510 mm

    • Blade Thickness

      16 mm

    • Cutting Edge

      NA

    • Blade Pull

      NA

    • Blade Down Pressure

      NA

    • Moldboard Side Shift (Right/Left)

      515 mm / 515 mm

    • Maximum Shoulder Reach (Right/Left)

      NA

    • Maximum Lift Above Ground

      400 mm

    • Maximum Cutting Depth

      350 mm

    • Blade Pitch Angle

      35° forward, 5° backward

    HYDRAULICS

    • Type

      Fixed Displacement Gear Pump.

    • Maximum Pump Flow

      60 L/min

    • Maximum System Pressure

      20.0 MPa

    SERVICE CAPACITIES

    • Fuel Tank

      200 L

    • Cooling System

      20 L

    • Engine Oil

      13 L

    • DEF Tank

      NA

    • Transmission Oil

      15 L

    • Final Drive

      5 L

    • Hydraulic System

      NA

    • Circle Reverse Housing

      NA

    WEIGHT

    • Gross Vehicle Weight

      9100 kg

    STATIC DIMENSIONS

    • Overall Height

      2940 mm

    • Moldboard Base

      2100 mm

    • Wheelbase

      5400 mm

    • Tandem Wheelbase

      NA

    • Width of Standard Moldboard

      3660 mm

    • Overall Length

      8700 mm

    • Tread Gauge

      1660 mm

    • Width of Tires

      2066 mm

    • Articulation, left or right

      NA

    • Minimum Ground Clearence

      NA

    Frequently Asked Question

    01. What is the price of the Fine FMG 130 Motor Grader in India?

    Ans.

    The Fine FMG 130 motor grader price in India ranges between ₹ 60-65 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy Fine FMG 130 motor grader in india?

    Ans.

    You can buy the Fine FMG 130 motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the Fine FMG 130 motor grader comes with financing & insurance options?

    Ans.

    Yes, the Fine FMG 130 motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the Fine FMG 130 Motor Grader?

    Ans.

    The Fine FMG 130 motor grader is powered by a Ashok Leyland H4C413022-BSIV diesel engine, delivering 130 HP (97 kW) @ 2200 rpm.

    05. What is the weight of the Fine FMG 130 Motor Grader?

    Ans.

    The weight of the Fine FMG 130 motor grader is approximately 9100 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the Fine FMG 130 Motor Grader?

    Ans.

    The Fine FMG 130 Motor Grader features a blade width of 3360 mm (11.02 feet), making it ideal for accurate mid-level grading applications.

    07. What is the turning radius of the Fine FMG 130 Motor Grader?

    Ans.

    The Fine FMG 130 Motor Grader has a turning radius of 9000 mm, providing strong handling capabilities.

    08. What is the fuel tank capacity of the Fine FMG 130 Motor Grader?

    Ans.

    The Fine FMG 130 motor grader has a 200-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of Fine FMG 130 motor grader?

    Ans.

    The Fine FMG 130 in India typically comes with a standard warranty of 1 year or 1000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the Fine FMG 130 motor grader?

    Ans.

    You can find genuine spare parts for the Fine FMG 130 at authorized Fine Equipments dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.

    Popular Comparisons with Fine FMG 130

    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg
    Fine FMG 585 HD Motor grader, Fine FMG 585 HD price, Fine FMG 585 HD specification, Fine FMG 585 HD price in india
    Fine

    Fine FMG 585HD

    4.5 rating
    Price Available Soon
    9495 kg
    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg
    BEML BG605I Motor grader
    BEML

    BEML BG605I

    4.5 rating
    Price Available Soon
    11500 kg
    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg

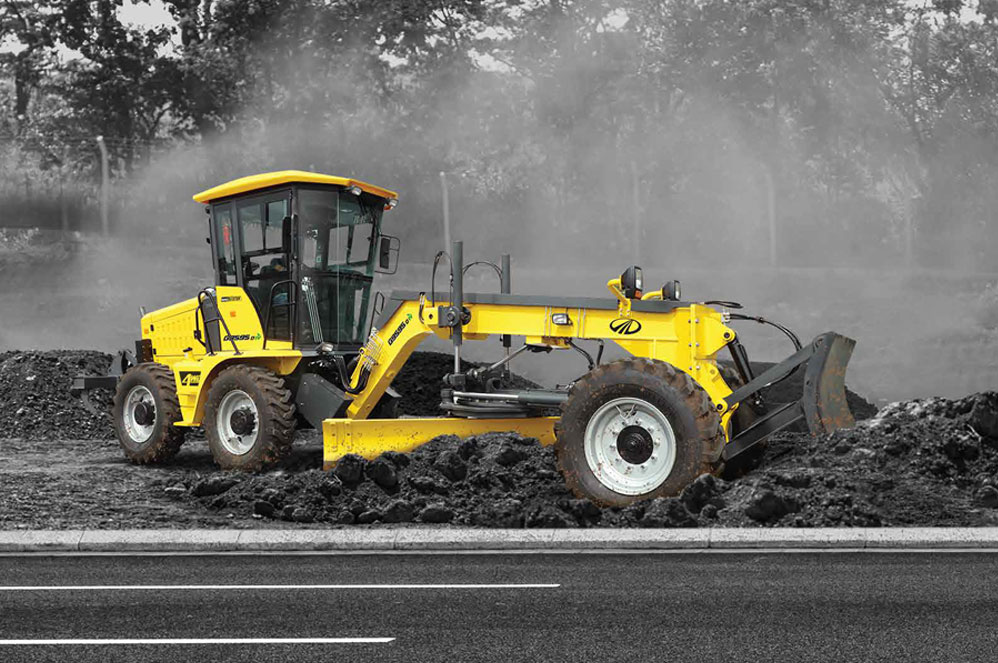

    Mahindra Roadmaster G 9595 Motor grader, Mahindra Roadmaster G 9595 price, Mahindra Roadmaster G 9595 specification, Mahindra Roadmaster G 9595 price in india
    Mahindra

    Mahindra G9595

    4.5 rating
    ₹ 57-59 Lakhs
    9400 kg
    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg
    BEML BG405A Motor Grader
    BEML

    BEML BG405A

    4.5 rating
    Price Available Soon
    11500 kg
    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg
    Mahindra Roadmaster G75 Smart Motor grader, Mahindra Roadmaster G75 Smart price, Mahindra Roadmaster G75 Smart specification, Mahindra Roadmaster G75 Smart price in india
    Mahindra

    Mahindra G75 Smart

    4.5 rating
    ₹ 34-36 Lakhs
    7160 kg
    VS
    Fine FMG 130 Motor grader, Fine FMG 130 price, Fine FMG 130 specification, Fine FMG 130 price in india
    Fine

    Fine FMG 130

    4.5 rating
    ₹ 60-65 Lakhs
    9100 kg

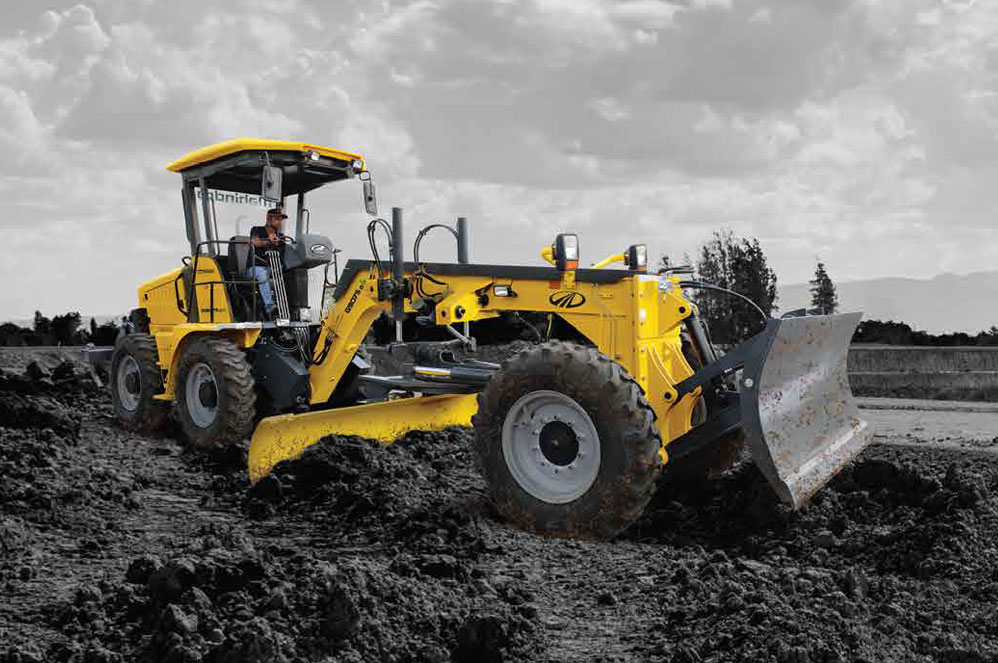

    Mahindra Roadmaster G 9075 Motor grader, Mahindra Roadmaster G9075 price, Mahindra Roadmaster G9075 specification, Mahindra Roadmaster G9075 price in india
