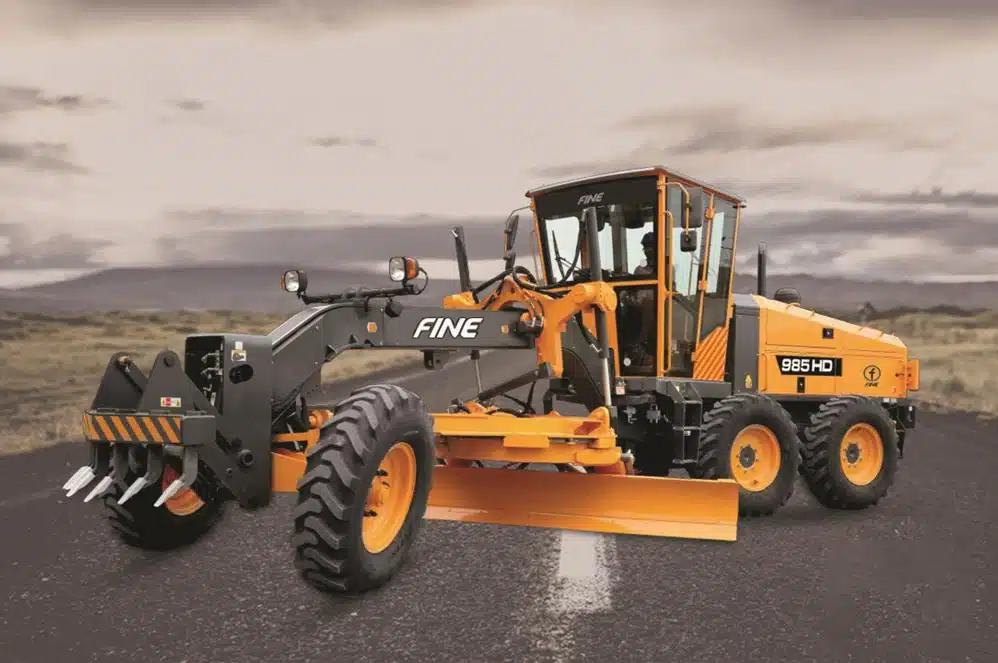

Fine FMG 985 HD Motor Grader

Name: Fine FMG 985 HD Motor Grader
Brand: Fine
Rating: 4.5 (452 reviews)

Fine FMG 985 HD Motor grader, Fine FMG 985 HD price, Fine FMG 985 HD specification, Fine FMG 985 HD price in india

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Fine
Type
Medium
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Cummins 173 HP
Blade
3660 mm
Weight
15800 kg
Turning Radius
9000 mm
Forward Speed
44.5 Km/h
Reverse Speed
30.4 km/h

Quick Overview:

Fine FMG 985 HD Motor Grader offers powerful performance, high torque, precise control, durability, comfort, and efficiency for tough construction tasks.

Connect With Us:

Looking for the best price on a Fine FMG 985 HD from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins QSB6.7

Max Torque

881 Nm @ 1300 rpm

Fuel Tank

300 L

Hydraulic System

160 L/min

Tires

14 x 24" 12 - ply rating

Frame Height

Max Lift Above Ground

460 mm

Max Cutting Depth

Blade Pitch Angle

40° forward; 5° backward

Wheel Base

6180 mm

Overall Length

10180 mm

Overall Height

3550 mm

Warranty

1 Yr. / 1000 hr.

AC Cabin

Standard

GPS

Features

Powerful Engine Performance

The Fine FMG 985HD motor grader is equipped with a robust and fuel-efficient engine for superior performance.
It delivers high torque output, ensuring smooth operation even under the toughest working conditions.
The engine is designed for optimal fuel consumption, reducing overall operational costs.
Advanced cooling systems ensure consistent engine temperature for maximum durability.

Advanced Hydraulic System

The motor grader features a high-performance hydraulic system for precise blade control.
Load-sensing hydraulics provide efficient power distribution to improve grading accuracy.
Quick response time ensures smooth operation during critical grading tasks.
Durable hydraulic components extend the life cycle and minimize maintenance requirements.

Superior Blade Control and Functionality

The Fine FMG 985HD offers multi-angle blade adjustments for enhanced versatility on the job site.
Its moldboard is built with wear-resistant materials for long-lasting performance.
The grader allows for easy blade rotation and side shifting to handle various grading applications.
Operator-friendly controls provide effortless management of blade functions.

Operator Comfort and Convenience

The spacious cabin of the FMG 985HD motor grader is ergonomically designed for maximum operator comfort.
Climate control systems ensure a comfortable working environment in all weather conditions.
The adjustable seat and intuitive controls reduce operator fatigue during long working hours.
Large visibility windows improve safety and enhance operational precision.

Heavy-Duty Build and Durability

The Fine FMG 985HD is constructed with high-strength steel to withstand the most demanding environments.
Reinforced articulation joints and frame components enhance the grader’s lifespan.
Corrosion-resistant coatings and robust construction minimize downtime and maintenance costs.
Heavy-duty axles and reliable braking systems ensure superior durability and safety.

Easy Maintenance and Serviceability

The motor grader is designed with easily accessible service points for quick maintenance.
Onboard diagnostic systems help identify issues early, reducing downtime.
Extended service intervals lower the overall maintenance costs significantly.
Fine provides comprehensive service support and genuine spare parts availability across locations.

Powerful Engine Performance

The Fine FMG 985HD motor grader is equipped with a robust and fuel-efficient engine for superior performance.
It delivers high torque output, ensuring smooth operation even under the toughest working conditions.
The engine is designed for optimal fuel consumption, reducing overall operational costs.
Advanced cooling systems ensure consistent engine temperature for maximum durability.

Advanced Hydraulic System

The motor grader features a high-performance hydraulic system for precise blade control.
Load-sensing hydraulics provide efficient power distribution to improve grading accuracy.
Quick response time ensures smooth operation during critical grading tasks.
Durable hydraulic components extend the life cycle and minimize maintenance requirements.

Superior Blade Control and Functionality

The Fine FMG 985HD offers multi-angle blade adjustments for enhanced versatility on the job site.
Its moldboard is built with wear-resistant materials for long-lasting performance.
The grader allows for easy blade rotation and side shifting to handle various grading applications.
Operator-friendly controls provide effortless management of blade functions.

Operator Comfort and Convenience

The spacious cabin of the FMG 985HD motor grader is ergonomically designed for maximum operator comfort.
Climate control systems ensure a comfortable working environment in all weather conditions.
The adjustable seat and intuitive controls reduce operator fatigue during long working hours.
Large visibility windows improve safety and enhance operational precision.

Heavy-Duty Build and Durability

The Fine FMG 985HD is constructed with high-strength steel to withstand the most demanding environments.
Reinforced articulation joints and frame components enhance the grader’s lifespan.
Corrosion-resistant coatings and robust construction minimize downtime and maintenance costs.
Heavy-duty axles and reliable braking systems ensure superior durability and safety.

Easy Maintenance and Serviceability

The motor grader is designed with easily accessible service points for quick maintenance.
Onboard diagnostic systems help identify issues early, reducing downtime.
Extended service intervals lower the overall maintenance costs significantly.
Fine provides comprehensive service support and genuine spare parts availability across locations.

Specifications

Product specification of Fine FMG 985 HD Motor Grader

ENGINE

Model

Cummins QSB6.7
Fuel

Diesel
Type

CEV, BSIV, Four Stroke, Turbocharged, Charge Air Cooled, Electronic Engine with Aftertreatment
Number of Cylinders

6 Inline
Gross Power

173 HP (129 kW) @ 2200 rpm
Max Torque

881 Nm @ 1300 rpm
Displacement

6.7 L
Battery

24V / 880 cca heavy duty, gel type batteries
Alternator

24V / 90A

TRANSMISSION

Type

Automatic Power-Shift Transmission Direct Drive (ZF), Integrated Torque Converter, lock up clutch & stator free wheel with an Electronic Control Unit (ECU)

SPEED

Max. Forward Speed

44.5 Km/h
Max. Reverse Speed

30.4 km/h

AXLES

Rear Axle

Oerlikon Graziano - Heavy-duty tandem axle with central planetary reduction with no spin differential. All four-wheel hubs are fitted with maintenance-free, oil-immersed Disc Brakes.
Front Axle

Fully welded steel structure for torsional strength, Oscillates on a single centre pivot pin.

TIRES

Size

14 x 24" 12 - ply rating

STEERING

Type

Hydraulic Power Steering
Minimum Turning Radius

9000 mm
Steering Angle

45°

BRAKES

Service

Foot-operated, hydraulically actuated Dual independent valve circuit for increased safety, fully sealed and maintenance free.
Parking

Spring Applied, hydraulically release (SAHR) fail safe parking brake.

FRAME

Front Frame Structure - Height

NA
Front Frame Structure - Width

NA
Front Frame Structure - Thickness

NA

MOLDBOARD

Type

NA
Blade Length

3660 mm
Blade Height

494 mm
Blade Thickness

NA
Cutting Edge

NA
Blade Pull

NA
Blade Down Pressure

NA
Moldboard Side Shift: Right/Left

1524 mm
Maximum Shoulder Reach (Right/Left)

744 mm
Maximum Lift Above Ground

460 mm
Maximum Cutting Depth

NA
Blade Pitch Angle

40° forward, 5° backward

HYDRAULICS

Type

Closer Centre -Variable flow, load sensing axial piston pump with load-independent post-compensated valve with over-centre valve on all functions.
Maximum Pump Flow

160 L/min
Maximum System Pressure

22.0 MPa

SERVICE CAPACITIES

Fuel Tank

300 L
Cooling System

25 L
Engine Oil

25 L
DEF Tank

30 L
Transmission Oil

NA
Final Drive

NA
Hydraulic System

100 L
Circle Reverse Housing

NA

WEIGHT

Gross Vehicle Weight

15800 kg

STATIC DIMENSIONS

Overall Height

3550 mm
Moldboard Base

2825 mm
Wheelbase

6180 mm
Tandem Wheelbase

1570 mm
Width of Standard Moldboard

3660 mm
Overall Length

10180 mm
Tread Gauge

NA
Width of Tyres

2500 mm
Articulation, left or right

20°
Minimun Ground Clearance

NA

Frequently Asked Question

01. What is the price of the FINE FMG 985 HD Motor Grader in India?

Ans.

The price of the FINE FMG 985 HD Motor Grader in India will be available soon. Stay connected with Desi Machines to get the latest and most accurate pricing updates as soon as they are released.

02. Where can I buy FINE FMG 985 HD motor grader in India?

Ans.

You can buy the FINE FMG 985 HD motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the FINE FMG 985 HD motor grader comes with financing & insurance options?

Ans.

Yes, the FINE FMG 985 HD motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the engine power of the FINE FMG 985 HD Motor Grader?

Ans.

The FINE FMG 985 HD motor grader is powered by a Cummins QSB6.7 diesel engine, delivering 173 HP (129 kW) @ 2200 rpm.

05. What is the weight of the FINE FMG 985 HD Motor Grader?

Ans.

The weight of the FINE FMG 985 HD motor grader is approximately 15800 kg. The weight may vary slightly depending on specific configurations and attachments.

06. What is the blade width of the FINE FMG 985 HD Motor Grader?

Ans.

The FINE FMG 985 HD Motor Grader features a blade width of 3660 mm (12 feet), making it ideal for efficient and compact roadwork tasks.

07. What is the turning radius of the FINE FMG 985 HD Motor Grader?

Ans.

The FINE FMG 985 HD Motor Grader has a turning radius of 9000 mm, built for extensive and challenging grading operations.

08. What is the fuel tank capacity of the FINE FMG 985 HD Motor Grader?

Ans.

The FINE FMG 985 HD motor grader has a 300-liter diesel fuel tank, providing extended operation time without frequent refueling.

09. What is the warranty period of FINE FMG 985 HD motor grader?

Ans.

The FINE FMG 985 HD in India typically comes with a standard warranty of 1 year or 1000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

10. Where can I find spare parts for the FINE FMG 985 HD motor grader?

Ans.

You can find genuine spare parts for the FINE FMG 985 HD at authorized Fine Equipment dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
