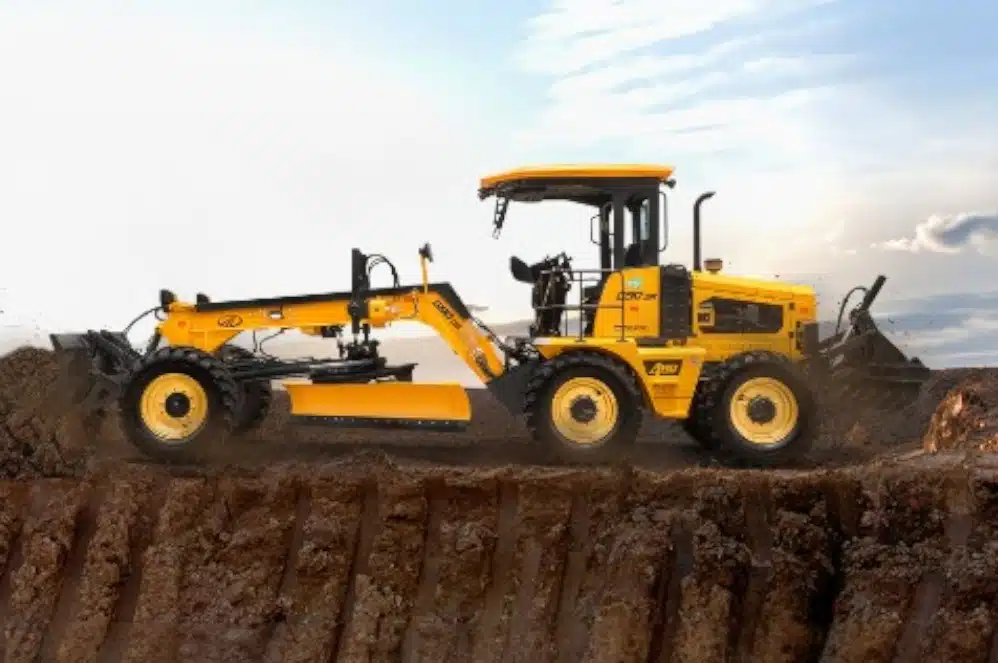

Mahindra Roadmaster G90 Motor Grader

Equipped with a proven 55 kW (74 HP) 4-cylinder CRDI engine for consistent performance.

Delivers peak torque of 400 Nm @ 1100–1200 rpm, ideal for heavy-duty grading applications.

Turbocharged engines ensure high productivity even in challenging terrain.

Best-in-class fuel efficiency, inspired by Mahindra’s tractor technology for reduced operating costs.

Low maintenance engines with widespread spare parts availability ensures reduced downtime.

Conforms to CEV V emission norms, increasing profitability while being environmentally responsible.

Features a fixed displacement tandem gear pump with 96 lpm flow rate at 1950 rpm.

Operates at maximum pressure of 210 bar, delivering superior blade control and grading force.

Larger 26+26 cm³ gear pump increases per-hour output, improving jobsite efficiency.

Load-holding valves with pressure relief improve operational safety and reliability.

Easy-to-adjust wear pad arrangement extends the life of the moldboard and circle assembly.

The open center hydraulic system allows smoother control with better energy efficiency.

Standard 2600 mm blade length ensures longer reach and better surface coverage.

Blade tilt angle ranges up to 25.6°, ideal for precision grading and slope formation.

Moldboard thickness of 16 mm and blade height of 516 mm for enhanced durability.

Circle rotation angle of 50° enables faster grading across complex terrains.

Max cut depth of 300 mm and lift of 395 mm offer superior grading flexibility.

Optional 4-piece cutting edge provides extended blade life and lower maintenance costs.

Ergonomically designed operator station with smooth, easy-to-reach controls.

Comes with a spacious canopy, lockable storage, and mobile charging facilities.

Reduced vibration and operator fatigue even during extended grading operations.

Emergency steering capability adds safety in the event of hydraulic failure.

Excellent visibility and seating comfort enhance accuracy and efficiency.

Ensures a fatigue-free environment, increasing daily work output.

Comes standard with a heavy-duty Dozer blade to pre-break material for grading.

Optional 5 Tyne Ripper shank attachment for ripping through hard compacted surfaces.

Enhances grading performance across PMGSY, SH, NH, ODR, and railway projects.

Ideal for multi-purpose road construction tasks with increased work versatility.

Enables faster preparation and finishing in rough or rocky terrain.

Improves material handling by supporting operations before and after grading.

Features Carraro 4WD Transmission with four forward and reverse gears.

Wide speed range up to 32.5 km/h, enhancing mobility between job sites.

Includes 100% mechanical differential lock for better traction in marshy areas.

Final drive with a damping cylinder improves grading precision and operator comfort.

Service brake: Oil-immersed disc brakes ensure long-lasting and safe operation.

10m turning radius and 45° steering angle make it maneuverable in tight spaces.
