JOHN SLCM 4.3 Self Loading Concrete Mixer

Name: JOHN SLCM 4.3 Self Loading
Brand: John Infra
Price: 4700000 INR
Rating: 4.2 (56 reviews)

The JOHN SLCM 4.3 Self-Loading Concrete Mixer integrates heavy-duty build, live-data reporting, and superior maneuverability across challenging terrain.

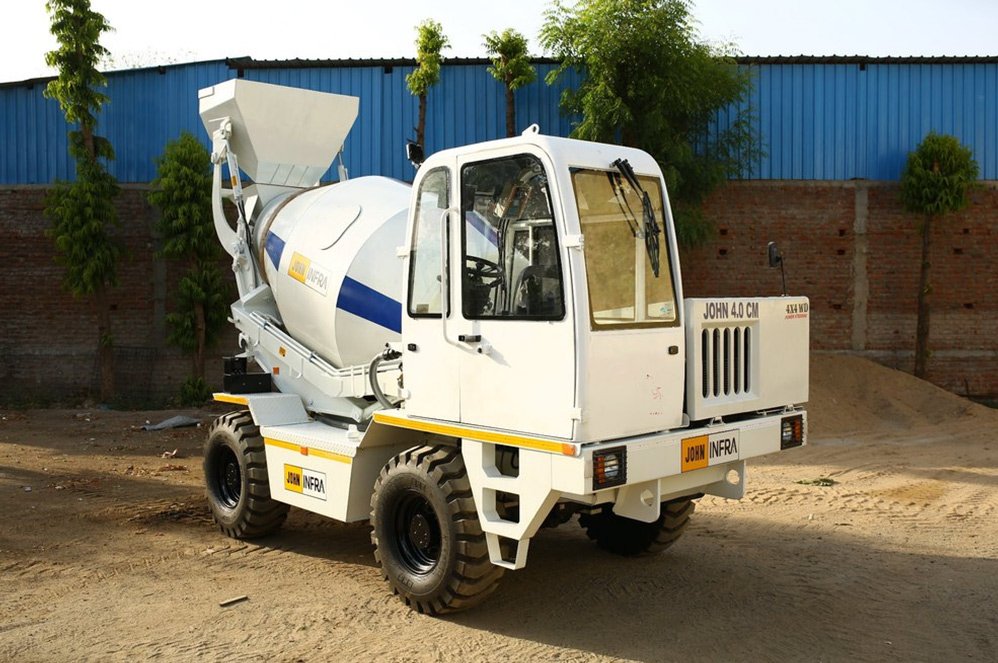

desi-machines-john-4.3-cm-self-loading-concrete-mixer-gallery-1

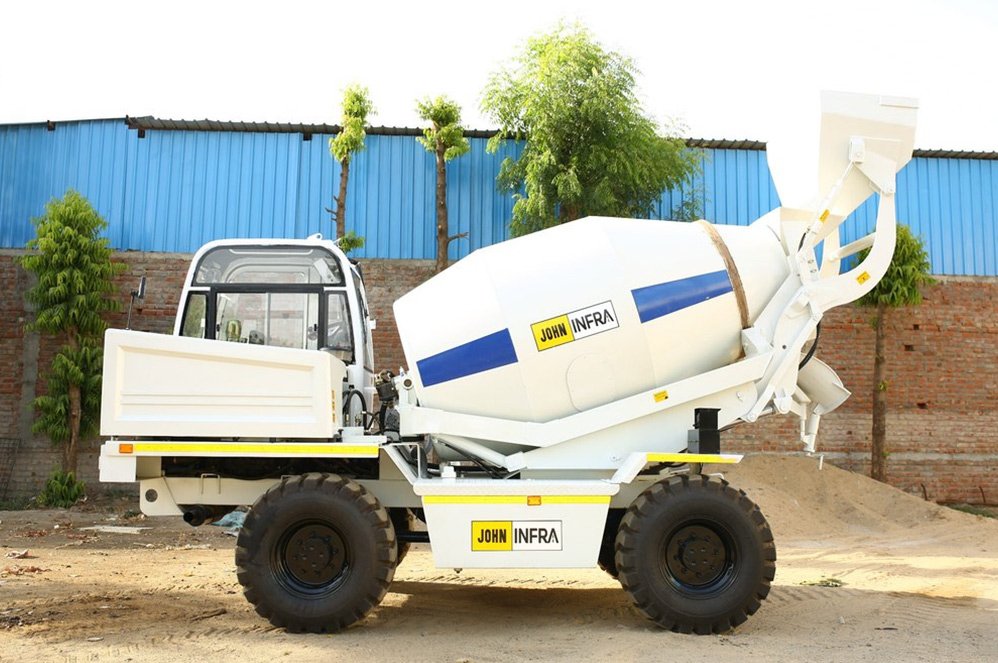

desi-machines-john-4.3-cm-self-loading-concrete-mixer-gallery-2

Brand
John Infra
Type
Self Loading
Operating Cost
₹ 47 – 49 Lakhs
Ex-Showroom Price
₹ 47 – 49 Lakhs

Drum Size
4.3 m³
Engine
KOEL 110 HP
Water Tank
750 L
Max. Speed
28 km/h
Gradeability
25.5°
Drive
4 Wheel Drive

Connect With Us:

Get the best price for the JOHN SLCM 4.3 Self Loading Concrete Mixer from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

KOEL 4R1190TA1

Fuel tank

120 L

Hydraulic Tank

115 L

Bucket Capacity

585 L

Water Pump Capacity

230 L/min

Drum Rotation Speed

0 to 19 rpm

Overall Length

Overall Width

Overall Height

Tyres

16.0/70 - 20 - 14 PR

Features

Heavy-Duty Engine for Concrete Mixing Power

Equipped with Kirloskar 110 HP diesel engine delivering consistent power for tough construction condition.
Engineered for high-load performance, ideal for continuous concrete mixing and transit operation.
Designed for fuel efficiency and minimal emission, suitable for long-duration usage on infrastructure project.

4x4 Drive with Hydrostatic CVT Transmission

Feature 4×4 wheel drive for better traction on rough and inclined terrain.
Come with hydrostatic CVT (Continuously Variable Transmission) for smooth and adaptive speed control.
Ideal for steep gradient and uneven site, improving on-site mobility and operator safety.

Large 4.3 m³ Drum with Integrated Batching

High-capacity 4.3 cubic meter concrete drum suit medium to large volume batching task.
600 L bucket capacity, 120 L diesel tank, and 1000 L water tank ensure uninterrupted operation.
Support high-efficiency self-loading, mixing, and transporting in single machine.

Enhanced Steering with 180° Operator Seat

The 3-way steering system (front, rear, crab) allow flexible navigation in tight job site.
180° rotating operator seat provide superior visibility during loading and discharge.
Imported steering component ensure precision handling and extended durability.

Reliable Braking and Safety System

Equipped with wet disc brake on both front and rear axle for maximum stopping power.
Provide safe and smooth braking, even in wet or muddy job site condition.
Designed with operator and job site safety as top priority, ideal for heavy-duty concrete job.

Built Tough for All Terrain

Operate on gradient up to 25.5°, ideal for hilly and uneven terrain.
Maximum travel speed of 28 km/h help cover job site quickly.
Weigh 8200 kg, ensuring stability, durability, and strong road-holding during operation.

Heavy-Duty Engine for Concrete Mixing Power

Equipped with Kirloskar 110 HP diesel engine delivering consistent power for tough construction condition.
Engineered for high-load performance, ideal for continuous concrete mixing and transit operation.
Designed for fuel efficiency and minimal emission, suitable for long-duration usage on infrastructure project.

4x4 Drive with Hydrostatic CVT Transmission

Feature 4×4 wheel drive for better traction on rough and inclined terrain.
Come with hydrostatic CVT (Continuously Variable Transmission) for smooth and adaptive speed control.
Ideal for steep gradient and uneven site, improving on-site mobility and operator safety.

Large 4.3 m³ Drum with Integrated Batching

High-capacity 4.3 cubic meter concrete drum suit medium to large volume batching task.
600 L bucket capacity, 120 L diesel tank, and 1000 L water tank ensure uninterrupted operation.
Support high-efficiency self-loading, mixing, and transporting in single machine.

Enhanced Steering with 180° Operator Seat

The 3-way steering system (front, rear, crab) allow flexible navigation in tight job site.
180° rotating operator seat provide superior visibility during loading and discharge.
Imported steering component ensure precision handling and extended durability.

Reliable Braking and Safety System

Equipped with wet disc brake on both front and rear axle for maximum stopping power.
Provide safe and smooth braking, even in wet or muddy job site condition.
Designed with operator and job site safety as top priority, ideal for heavy-duty concrete job.

Built Tough for All Terrain

Operate on gradient up to 25.5°, ideal for hilly and uneven terrain.
Maximum travel speed of 28 km/h help cover job site quickly.
Weigh 8200 kg, ensuring stability, durability, and strong road-holding during operation.

Specifications

Product specification of JOHN SLCM 4.3 Self Loading Concrete Mixer

ENGINE

Engine Make

KOEL 4R1190TA1
Engine Type

Diesel Engine 4 Cylinder Turbocharged, Intercooled
Max. Power

110 HP (82 kW) @ 2200 rpm

DRIVE & CONTROL

Transmission

NA
Steering

Fully hydraulic steering, 3‑Way Steering Position System.
Drive

4 Wheel Drive
Brake

Wet discs on front and rear axles
Max. Speed

28 km/h
Gradeability

25.5°

MIXER

Drum Capacity

4.3 m³
Drum Slewing Degree

NA
Drum Rotation Speed

0 to 19 rpm
Bucket Capacity

585 L
Fuel Tank

120 L
Hydraulic Tank

115 L
Water Tank Capacity

750 L
Water Pump Capacity

230 L/min
Weight Unladen**

8200 kg
Weighing Technology

Load‑cell

DIMENSION

Overall Length

NA
Overall Width

NA
Overall Height

NA
Tyres

16.0/70 - 20 - 14 PR
Ground Clearance

NA

Frequently Asked Question

01. What is the price of John SLCM 4.3 self loading concrete mixer in india?

Ans.

The John SLCM 4.3 self loading concrete mixer price in India ranges between ₹47 – 49 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.

02. What is the drum capacity of the JOHN SLCM 4.3 mixer?

Ans.

The JOHN SLCM 4.3 comes with a 4.3 cu.m drum capacity, perfect for heavy construction, industrial, and large infrastructure projects.

03. How much concrete can JOHN SLCM 4.3 mixer produce per hour?

Ans.

The JOHN SLCM 4.3 self-loading concrete mixer can produce about 17–20 cu.m of concrete per hour, ideal for large construction and industrial projects.

04. What type of engine is used in JOHN SLCM 4.3 self-loading concrete mixer?

Ans.

The JOHN SLCM 4.3 is powered by a KOEL 4R1190TA1 diesel engine, delivering 110 HP (82 kW) @ 2200 rpm, with a 4-cylinder turbocharged, intercooled system.

05. What is the unladen weight of JOHN SLCM 4.3 self-loading mixer?

Ans.

The unladen weight of the JOHN SLCM 4.3 self-loading mixer is approximately 8200 kg.

06. How much fuel does the JOHN SLCM 4.3 self-loading concrete mixer consume?

Ans.

The JOHN SLCM 4.3 self-loading concrete mixer has a fuel consumption of approximately 8.8–14.6 liters per hour.

07. What are the main applications of JOHN SLCM 4.3 self-loading mixer?

Ans.

The JOHN SLCM 4.3 self-loading concrete mixer fits medium commercial slabs, industrial floors, and municipal repair projects. It supports high-volume on-site concrete production with reliable mix quality. Contractors value its efficiency and maneuverability.

08. Where can I buy the JOHN SLCM 4.3 self-loading mixer in India at the best price?

Ans.

You can buy the JOHN SLCM 4.3 self-loading mixer in India through Desi Machines, the best online platform to compare and purchase construction equipment. We connect you with the OEM and JOHN dealers across India and help you get the best price quotes from vendors, so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability.
