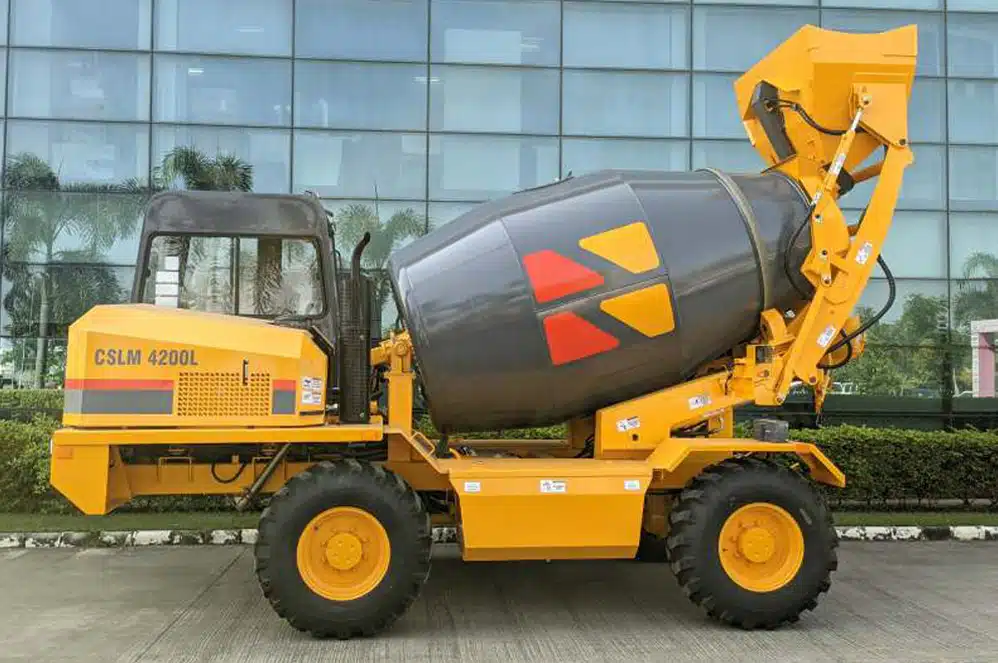

CONMAT CSLM 4200L Self Loading Concrete Mixer

Powered by KOEL 4R1190NA1 BS-V diesel engine, the 4-cylinder water-cooled unit deliver 74.5 HP @ 2200 RPM for steady performance.

The engine is BS-V emission compliant, providing cleaner combustion and better fuel efficiency in high-load, long-duration job site operation.

Built for durability and low maintenance, this powertrain ensure consistent productivity across infrastructure, industrial, and remote project.

The CSLM 4200 feature 4.2 m³ drum output per batch, ideal for road, bridge, building, and irrigation work.

Offer 0 to 20 RPM drum rotation range, ensuring homogenous concrete mix and maintaining optimal strength and consistency.

Designed with spiral mixing blade, enabling faster mixing and cleaner discharge, enhancing hourly output and batching efficiency.

Equipped with full-time 4-wheel drive system, delivering reliable traction on steep slope, loose soil, and uneven terrain.

Capable of climbing up to 20° gradient, performing confidently in hilly or remote project environment with variable condition.

Top speed of 22 km/h support quick movement across batching, pouring, and refueling zone, improving job site cycle time.

Feature four-wheel steering with three selectable mode, including crab steering for maneuverability in confined urban job site.

Integrated with hydraulic powered brake, providing responsive stopping power on steep incline or while carrying full drum load.

Ensure smooth operation across terrain, where tight turning radius and stability are critical for safety.

The machine weigh approximately 7700 kg, offering superior durability and structural strength for heavy-duty concrete transport and mixing.

Dimension 6940 mm (L) × 2410 mm (W) × 4130 mm (H) — compact enough for narrow access while maximizing drum volume.

Low center of gravity and wide stance provide excellent stability, reducing risk of rollover during drum rotation or site travel.

Come with 900 L water tank, 120 L diesel tank, and 600 L loading bucket, enabling uninterrupted mixing and washing cycle.

Equipped with high-pressure 360 LPM water pump ensuring quick cleaning and precise water dosing.

Designed for full-day on-site concrete production, minimizing reliance on external utilities and reducing cycle downtime.
