The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.
| Key Highlights | Hyundai HL650I-V | JCB 455-5N |
|---|
| Particulars | Hyundai HL650I-V | JCB 455-5N |
|---|
| Brand | Hyundai Wheel Loader | JCB Wheel Loader |
|---|---|---|
| Type | Medium (15-30 Ton) | Medium (15-30 Ton) |
| Ex-Showroom Price | ₹ 85-89 Lakhs | Price Available Soon |
| Engine | Weichai 226 HP | Cummins 225 HP |
| Bucket | 3.0 m³ | 3.3 m³ |
| Weight | 17600 kg | 18000 kg |
| Max. Forward Speed | 35 km/h | 38 km/h |
| Dump Height | 3056 mm | 2810 mm |
| Tripping Load | NA | 10975 kg |
| Quick Overview: | The Hyundai HL650I-V Wheel Loader is a heavy-duty payloader built for construction, mining, port, and industrial uses. It comes with a 226 HP Weichai CEV V engine, delivering impressive power, quicker cycle times, and better fuel efficiency. It has a strong 5000 kg payload capacity with 2.7 to 5.0 m³ bucket options, allowing for efficient handling of large material amounts. The roomy ROPS/FOPS cabin, real-time monitoring system, rear-view camera, and automatic braking improve operator safety. Its easy maintenance, low noise, and lower emissions make the HL650I-V a lasting, eco-friendly choice among Hyundai Wheel Loaders. |

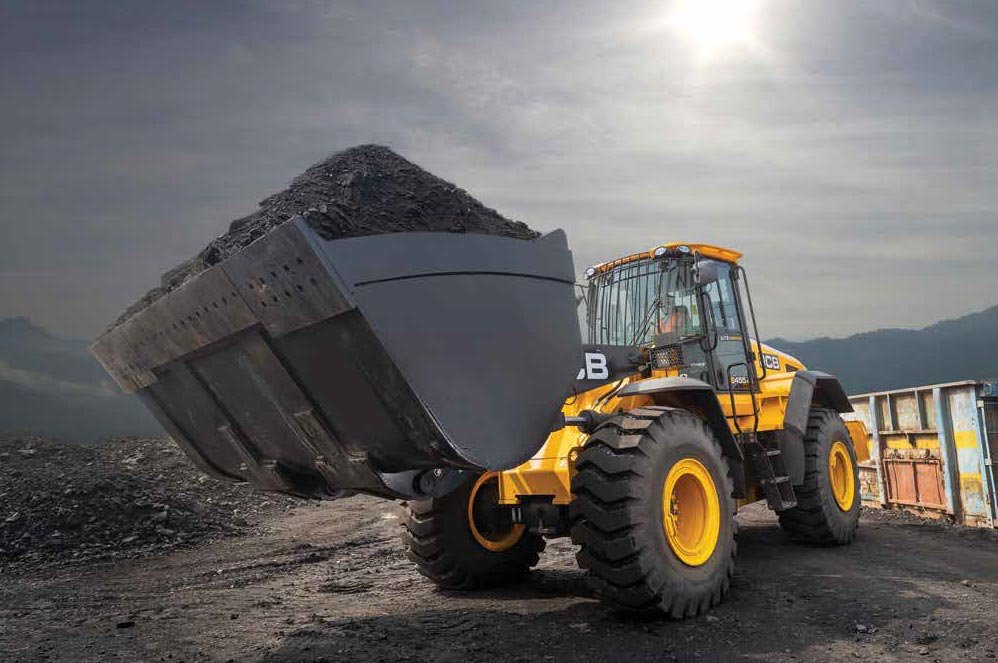

The JCB 455-5N wheel loader is a heavy-duty payloader designed for large-scale material handling in construction, mining, and industrial settings. Powered by a robust 168 HP engine, it delivers high torque, consistent power output, and reliable hydraulic performance for ongoing operations. With a payload capacity of about 5,500 kg, this wheel loader efficiently handles bulk material. Its reinforced design, high stability, and operational durability support sustained productivity in challenging jobsite conditions that require dependable performance. |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Brand | |
| Hyundai Wheel Loader | JCB Wheel Loader |
| Type | |
| Medium (15-30 Ton) | Medium (15-30 Ton) |
| Ex-Showroom Price | |
| ₹ 85-89 Lakhs | Price Available Soon |
| Engine | |
| Weichai 226 HP | Cummins 225 HP |
| Bucket | |
| 3.0 m³ | 3.3 m³ |
| Weight | |
| 17600 kg | 18000 kg |
| Fwd. Speed | |
| 35 km/h | 38 km/h |
| Dump Height | |
| 3056 mm | 2810 mm |
| Tripping Load | |
| NA | 10975 kg |
| Quick Overview: | |
The Hyundai HL650I-V Wheel Loader is a heavy-duty payloader built for construction, mining, port, and industrial uses. It comes with a 226 HP Weichai CEV V engine, delivering impressive power, quicker cycle times, and better fuel efficiency. It has a strong 5000 kg payload capacity with 2.7 to 5.0 m³ bucket options, allowing for efficient handling of large material amounts. The roomy ROPS/FOPS cabin, real-time monitoring system, rear-view camera, and automatic braking improve operator safety. Its easy maintenance, low noise, and lower emissions make the HL650I-V a lasting, eco-friendly choice among Hyundai Wheel Loaders. |
The JCB 455-5N wheel loader is a heavy-duty payloader designed for large-scale material handling in construction, mining, and industrial settings. Powered by a robust 168 HP engine, it delivers high torque, consistent power output, and reliable hydraulic performance for ongoing operations. With a payload capacity of about 5,500 kg, this wheel loader efficiently handles bulk material. Its reinforced design, high stability, and operational durability support sustained productivity in challenging jobsite conditions that require dependable performance. |
| Hyundai HL650I-V | JCB 455-5N | |
| Engine Make | Weichai WP8G231E671 | Cummins QSB 6.7 |
| Max Torque | 1200 Nm @ 1500 rpm | 1000 Nm @ 1300 rpm |
| Fuel Tank | 285 L | 280 L |
| Hydraulic System | 220 L/min | 132 L/min / 94 L/min |
| Min. Ground Clearance | 398 mm | 480 mm |
| Payload | 5000 kg | 5490 kg |
| Steering Angle | ±35° | ±40° |
| Drive Type | 4-wheel drive (4WD) | 4-wheel drive (4WD) |
| Wheelbase | 3300 mm | 3300 mm |
| Tyres | 23.5-25 L-3 16PR TT | 23.5x25 20PR BKT /CEAT L3 Tubeless |
| Max. Breakout Force | 186 kN | 154 kN |
| Overall Length | 8288 mm | 8460 mm |
| Warranty | 1 Yr. / 2000 hr. | 1 Yr. / 2000 hr. |
| AC Cabin | Standard | Optional |
| GPS | Standard | Standard |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Engine Make | |
| Weichai WP8G231E671 | Cummins QSB 6.7 |
| Max Torque | |
| 1200 Nm @ 1500 rpm | 1000 Nm @ 1300 rpm |
| Fuel Tank | |
| 285 L | 280 L |
| Hydraulic System | |
| 220 L/min | 132 L/min / 94 L/min |
| Min. Ground Clearance | |
| 398 mm | 480 mm |
| Payload | |
| 5000 kg | 5490 kg |
| Steering Angle | |
| ±35° | ±40° |
| Drive Type | |
| 4-wheel drive (4WD) | 4-wheel drive (4WD) |
| Wheelbase | |
| 3300 mm | 3300 mm |
| Tyres | |
| 23.5-25 L-3 16PR TT | 23.5x25 20PR BKT /CEAT L3 Tubeless |
| Max. Breakout Force | |
| 186 kN | 154 kN |
| Overall Length | |
| 8288 mm | 8460 mm |
| Warranty | |
| 1 Yr. / 2000 hr. | 1 Yr. / 2000 hr. |
| AC Cabin | |
| Standard | Optional |
| GPS | |
| Standard | Standard |
| Hyundai HL650I-V | JCB 455-5N | |
| Engine Make | Weichai WP8G231E671 | Cummins QSB 6.7 |
| Engine Type | 6 Cylinders; Electronic Engine | Common Rail direct injection; (CRDi); Water cooled diesel with aftertreatment system |
| Aspiration | NA | Turbocharged & charge air cooled |
| Emission | CEV - V | Stage 5 |
| Max Torque | 1200 Nm @ 1500 rpm | 1000 Nm @ 1300 rpm |
| Max Power | 226 HP (170 kW) @ 2200 rpm | 225 HP (168 kW) @ 2200 rpm |
| Piston Displacement | 7.47 L | 6.7 L |
| No Of Cylinders | 6 | 6 Cylinders |
| Battery | 24V / 120Ah | 2 x 12V / 1000 CCA |
| Alternator | 24V / 70A | 28V / 120A |
| Hyundai HL650I-V | JCB 455-5N | |
| Transmission | Countershaft Powershift; Mechanical Powershift Control | Powershift (ZF4WG190) auto transmission |
| Drive Type | 4-wheel drive (4WD) | 4-wheel drive (4WD) |
| Torque Converter | Single-stage & duo turbine; 4-element | Single stage integral torque convertor. |
| Hyundai HL650I-V | JCB 455-5N | |
| Service | Gas Push Oil Caliper Brake | Hydraulic wet disc brakes on all four wheels. |
| Parking | Air Actuated Caliper Brake | Electro-hydraulic disc brake on transmission output shaft. |
| Hyundai HL650I-V | JCB 455-5N | |
| Type | Hydraulic Load Sensing System | Hydraulic Power-Assisted Steering. |
| Steering-Angle | ±35° | ±40° |
| Hyundai HL650I-V | JCB 455-5N | |
| Front Axle | Rigid axle | Limited Slip Differential (LSD) |
| Rear Axle | Oscillating axle | Limited Slip Differential (LSD) |
| Oscillating Angle | ±10° | ±12.5° |
| Hyundai HL650I-V | JCB 455-5N | |
| Max. Forward Speed | 35 km/h | 38 km/h |
| Max. Reverse Speed | 16 km/h | 26 km/h |
| Hyundai HL650I-V | JCB 455-5N | |
| System Type | Joystick Control | Load sensing |
| Pump Type | NA | Variable displacement Piston Pump |
| Maximum Pump Flow | 220 L/min | 132 L/min / 94 L/min |
| System Pressure | 18 MPa | 250 - 310 bar |
| Hyundai HL650I-V | JCB 455-5N | |
| Fuel Tank | 285 L | 280 L |
| Hydraulic System | NA | NA |
| Engine Oil | 22 L | 22 L |
| Cooling System | NA | 38 L |
| Rear Axle Oil | 28 L | 35 L |
| Front Axle Oil | 25 L | 35 L |
| Hydraulic Tank | 265 L | 180 L |
| Transmission Oil | 48 L | 38 L |
| Def Tank | NA | 60 L |
| Hyundai HL650I-V | JCB 455-5N | |
| Overall Length With Bucket | 8288 mm | 8460 mm |
| Wheel Base | 3300 mm | 3300 mm |
| Height Over Cab | 3400 mm | 2400 mm |
| Height Over Exhaust | NA | 3220 mm |
| Min Grond Clearance | 398 mm | 480 mm |
| Width Over Tyres | 2835 mm | 2720 mm |
| Wheel Tread | 2240 mm | 2100 mm |
| Tyre Size | 23.5-25 L-3 16PR TT | 23.5x25 20PR BKT /CEAT L3 Tubeless |
| Hyundai HL650I-V | JCB 455-5N | |
| Bucket Capacity | 3.0 m³ | 3.3 m³ |
| Bucket Width | 3000 mm | 2800 mm |
| Payload | 5000 kg | 5490 kg |
| Tipping Load Straight | NA | 13170 kg |
| Tipping Load Full Turn | NA | 10975 kg |
| Max. Breakout Force | 186 kN | 154 kN |
| Operating Weight | 17600 kg | 18000 kg |
| Max Dump Angle | 43° | 43° |
| Bucket Roll Back Angle Full Height | 57° | 68° |
| Bucket Roll Back At Carry | 45° | 43° |
| Bucket Roll Back At Ground Level | 41° | 38° |
| Dumping Height, Fully Raised | 3056 mm | 2810 mm |
| Dumping Reach, Fully Raised | 1330 mm | 1270 mm |
| Max. Hinge Pin Height | 4115 mm | 4150 mm |
| Max. Digging Depth | 50 mm | 119 mm |
| Turning Radius Over Tyres | 6341 mm | NA |
| Turning Radius Over Bucket | 7264 mm | 6640 mm |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Engine Make | |
| Weichai WP8G231E671 | Cummins QSB 6.7 |
| Engine Type | |
| 6 Cylinders; Electronic Engine | Common Rail direct injection; (CRDi); Water cooled diesel with aftertreatment system |
| Aspiration | |
| NA | Turbocharged & charge air cooled |
| Emission | |
| CEV - V | Stage 5 |
| Max Torque | |
| 1200 Nm @ 1500 rpm | 1000 Nm @ 1300 rpm |
| Max Power | |
| 226 HP (170 kW) @ 2200 rpm | 225 HP (168 kW) @ 2200 rpm |
| Piston Displacement | |
| 7.47 L | 6.7 L |
| No Of Cylinders | |
| 6 | 6 Cylinders |
| Battery | |
| 24V / 120Ah | 2 x 12V / 1000 CCA |
| Alternator | |
| 24V / 70A | 28V / 120A |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Transmission | |
| Countershaft Powershift; Mechanical Powershift Control | Powershift (ZF4WG190) auto transmission |
| Drive Type | |
| 4-wheel drive (4WD) | 4-wheel drive (4WD) |
| Torque Converter | |
| Single-stage & duo turbine; 4-element | Single stage integral torque convertor. |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Service | |
| Gas Push Oil Caliper Brake | Hydraulic wet disc brakes on all four wheels. |
| Parking | |
| Air Actuated Caliper Brake | Electro-hydraulic disc brake on transmission output shaft. |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Type | |
| Hydraulic Load Sensing System | Hydraulic Power-Assisted Steering. |
| Steering-Angle | |
| ±35° | ±40° |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Max. Forward Speed | |
| 35 km/h | 38 km/h |
| Max. Reverse Speed | |
| 16 km/h | 26 km/h |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Front Axle | |
| Rigid axle | Limited Slip Differential (LSD) |
| Rear Axle | |
| Oscillating axle | Limited Slip Differential (LSD) |
| Oscillating Angle | |
| ±10° | ±12.5° |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| System Type | |
| Joystick Control | Load sensing |
| Pump Type | |
| NA | Variable displacement Piston Pump |
| Maximum Pump Flow | |
| 220 L/min | 132 L/min / 94 L/min |
| System Pressure | |
| 18 MPa | 250 - 310 bar |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Size | |
| Not Available | Not Available |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Fuel Tank | |
| 285 L | 280 L |
| Hydraulic System | |
| NA | NA |
| Engine Oil | |
| 22 L | 22 L |
| Cooling System | |
| NA | 38 L |
| Rear Axle Oil | |
| 28 L | 35 L |
| Front Axle Oil | |
| 25 L | 35 L |
| Hydraulic Tank | |
| 265 L | 180 L |
| Transmission Oil | |
| 48 L | 38 L |
| Def Tank | |
| NA | 60 L |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Overall Length With Bucket | |
| 8288 mm | 8460 mm |
| Wheel Base | |
| 3300 mm | 3300 mm |
| Height Over Cab | |
| 3400 mm | 2400 mm |
| Height Over Exhaust | |
| NA | 3220 mm |
| Min Grond Clearance | |
| 398 mm | 480 mm |
| Width Over Tyres | |
| 2835 mm | 2720 mm |
| Wheel Tread | |
| 2240 mm | 2100 mm |
| Tyre Size | |
| 23.5-25 L-3 16PR TT | 23.5x25 20PR BKT /CEAT L3 Tubeless |
| Hyundai HL650I-V | JCB 455-5N |
|---|---|
| Bucket Capacity | |
| 3.0 m³ | 3.3 m³ |
| Bucket Width | |
| 3000 mm | 2800 mm |
| Payload | |
| 5000 kg | 5490 kg |
| Tipping Load Straight | |
| NA | 13170 kg |
| Tipping Load Full Turn | |
| NA | 10975 kg |
| Max. Breakout Force | |
| 186 kN | 154 kN |
| Operating Weight | |
| 17600 kg | 18000 kg |
| Max Dump Angle | |
| 43° | 43° |
| Bucket Roll Back Angle Full Height | |
| 57° | 68° |
| Bucket Roll Back At Carry | |
| 45° | 43° |
| Bucket Roll Back At Ground Level | |
| 41° | 38° |
| Dumping Height, Fully Raised | |
| 3056 mm | 2810 mm |
| Dumping Reach, Fully Raised | |
| 1330 mm | 1270 mm |
| Max. Hinge Pin Height | |
| 4115 mm | 4150 mm |
| Max. Digging Depth | |
| 50 mm | 119 mm |
| Turning Radius Over Tyres | |
| 6341 mm | NA |
| Turning Radius Over Bucket | |
| 7264 mm | 6640 mm |
