CAT 950GC Wheel Loader

The CAT 950 GC features a Cat® C7.1 engine delivering 202 HP, ensuring reliable performance for various construction tasks.

It offers a maximum gross power of 225 HP at 2,200 rpm, providing the necessary strength for heavy-duty operations.

The engine meets India Bharat Stage III emission standards, making it environmentally compliant.

With a displacement of 7.01 liters, it ensures efficient fuel combustion and power delivery.

The engine's design includes a fuel-injection system tailored for fuel available in emerging markets.

The Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) help reduce fuel consumption during idle times.

The 950 GC is equipped with a load-sensing hydraulic system that provides flow and pressure only when needed, enhancing efficiency.

It features a piston-type steering system pump, ensuring precise control and maneuverability.

The implement maximum flow is 256 L/min, allowing for smooth and responsive operations.

The hydraulic system operates at a maximum pressure of 27900 kPa, providing the necessary force for demanding tasks.

The hydraulic cycle time totals 10.1 seconds, ensuring quick and efficient loading cycles.

The system's design contributes to lower fuel consumption and increased productivity.

The CAT 950 GC has an operating weight of 18,849 kg, providing stability during heavy operations.

It offers a bucket capacity ranging from 2.9 m³ to 4.4 m³, suitable for various material handling needs.

The machine's ground clearance is 460 mm, allowing it to navigate uneven terrains with ease.

With a wheelbase of 3300 mm, it ensures balanced weight distribution and maneuverability.

The height to the top of the ROPS (Roll Over Protective Structure) is 3458 mm, providing operator safety.

The machine's design includes a strong frame and durable components for long-term reliability.

The 950 GC features intuitive controls and excellent visibility, ensuring a comfortable working environment for operators.

The cab is designed with ergonomic seating and controls to reduce operator fatigue during long shifts.

It includes a ROPS-certified cab, providing protection in case of rollovers.

The machine offers easy access to maintenance points, reducing downtime and enhancing safety during servicing.

The design ensures low noise levels inside the cab, contributing to operator comfort.

The loader's lighting system provides excellent visibility during night operations, enhancing safety.

The CAT 950 GC is designed with grouped service points and sight gauges for easy daily maintenance.

It features hydraulic and electrical service centers providing ground-level access to maintenance points.

The machine includes a cooling system with a capacity of 50 L, maintaining optimal operating temperatures.

The fuel tank capacity is 290 L, allowing for extended operation between refueling.

The design ensures minimal downtime with easy-to-replace components and accessible service areas.

The loader's diagnostic systems help in early detection of issues, facilitating timely maintenance.

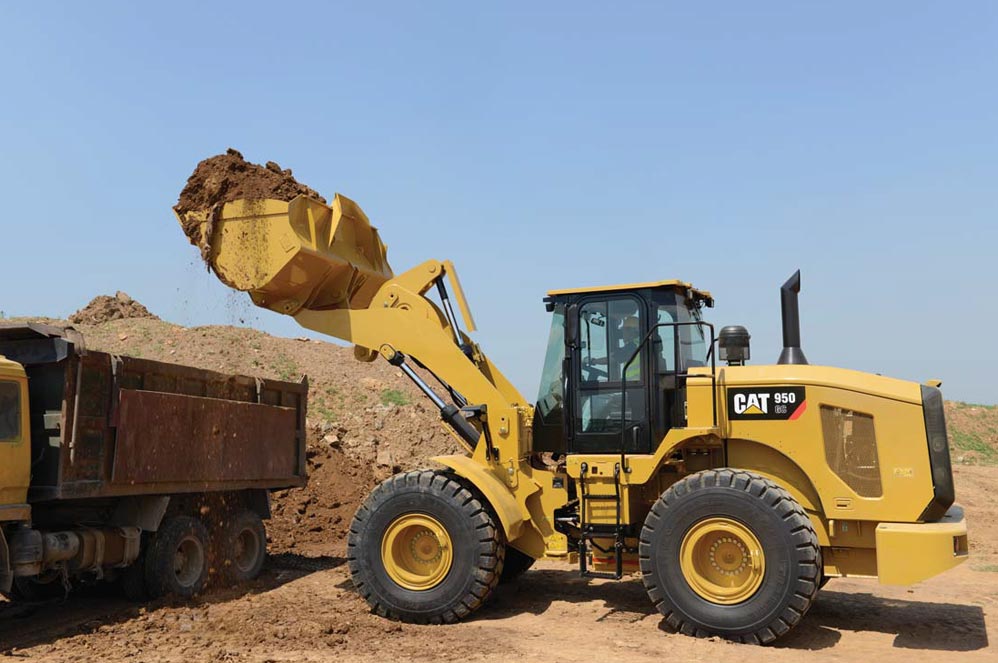

The CAT 950 GC is suitable for various applications, including material handling, truck loading, and general construction.

Its design allows it to handle tasks in industries like mining, agriculture, and waste management.

The loader's compatibility with different attachments enhances its versatility on the job site.

Its robust build and powerful engine make it ideal for heavy-duty operations in challenging environments.

The machine's maneuverability allows it to operate efficiently in confined spaces.

The CAT 950 GC's reliability and performance contribute to increased productivity and reduced operational costs.
