    Sany STG170C-10 VS Cat 140 GC Motor Grader

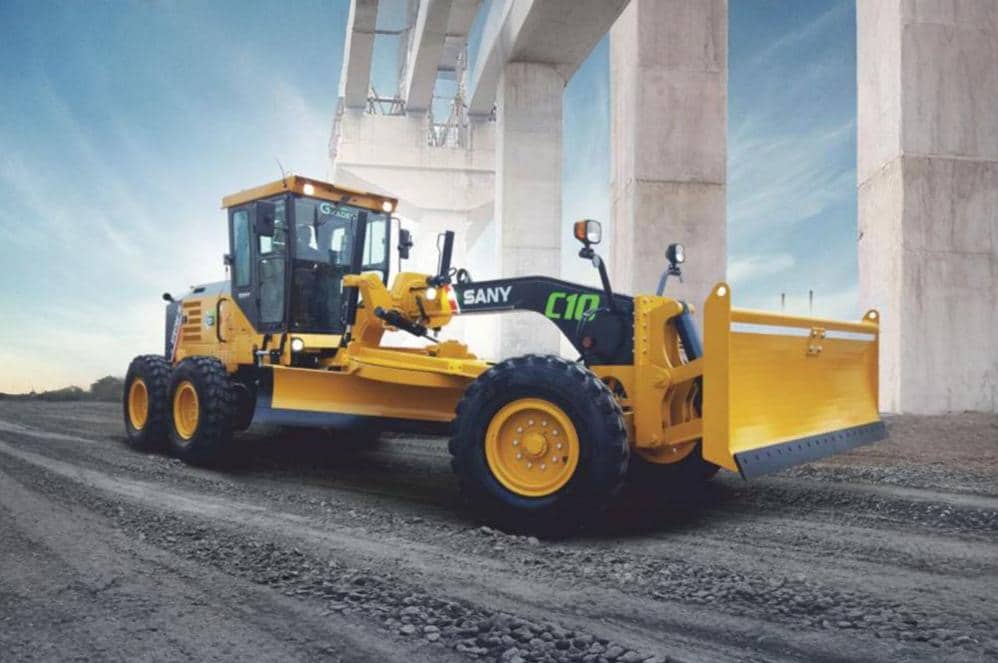

    Sany STG170C-10
    • Engine
      Cummins 173 HP
    • Blade
      3660 mm
    • Weight
      17250 kg
    • Turning Radius
      7300 mm
    • Max Forward Speed
      36.0 km/hr
    • Max Reverse Speed
      26.0 km/hr
    ₹ 44-46 Lakhs*
    Medium (12-20 Ton)

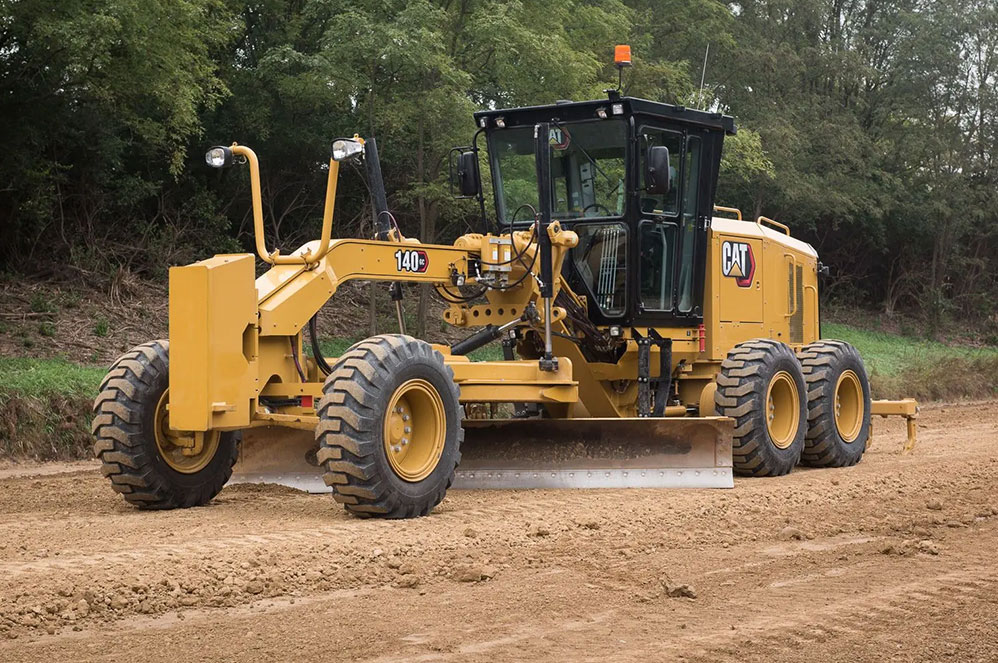

    Cat 140 GC
    • Engine
      Cat 196 HP
    • Blade
      3700 mm
    • Weight
      17650 kg
    • Turning Radius
      7800 mm
    • Max Forward Speed
      41.7 km/hr
    • Max Reverse Speed
      24.0 km/hr
    Price Available Soon*
    Medium (12-20 Ton)

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights Sany STG170C-10Cat 140 GC
    Sany STG170C-10 VS Cat 140 GC Motor Grader
    Sany STG170C-10 Motor grader, Sany STG170C-10 price, Sany STG170C-10 specification, Sany STG170C-10 price in india
    Sany STG170C-10
    ₹ 44-46 Lakhs
    CAT 140 GC Motor grader, CAT 140-GC price, CAT 140-GC specification, CAT 140-GC price in india
    Cat 140 GC
    Price Available Soon
    Particulars Sany STG170C-10 Cat 140 GC
    Overview Summary

    The Sany STG170C-10 and Cat 140 GC both serve as capable motor graders for construction and grading projects. The Sany model offers more torque and a slightly larger blade, while the Cat 140 GC boasts a more powerful engine and a modern emissions-standard compliant engine.

    Sany STG170C-10 Motor Grader

    Pros:

    • Higher torque of 880 Nm for heavy-duty tasks.
    • Somewhat larger blade length of 3660 mm for wider area coverage per sweep.
    • Equipped with ZF Tiptronic Transmission for better gear shifting.
    • No spin differential system with Jingda rear axle offers reliability and efficiency.
    • GPS and AC Cabin come as standard features.
    • Relatively lower price in comparison to the Cat 140 GC.

    Cons:

    • Lower engine power at 173 HP compared to Cat 140 GC.
    • Smaller fuel tank capacity of 350 liters which may require more frequent refueling.
    • A less advanced engine type - CEV IV, compared to Cat 140 GC's engine emission standards.
    • Lower maximum forward speed of 36.0 km/hr.

    Cat 140 GC Motor Grader

    Pros:

    • More powerful engine at 196 HP which may translate to better performance.
    • Meets U.S. EPA Tier 4 Final and EU Stage V emission standards, implying modern and cleaner engine technology.
    • Slightly longer blade at 3700 mm for potentially more efficient grading.
    • Higher max forward speed at 41.7 km/hr, which may lead to quicker operation cycles.
    • Greater maximum cutting depth of 715 mm for deeper grading tasks.

    Cons:

    • Less torque (835 Nm) which could slightly impact performance on heavy-duty tasks.
    • Reduced fuel tank capacity at 295 liters might limit operating time between refuels.
    • No mentioned distinctive rear axle technology like the Sany model.
    • Price is not immediately available, which may make immediate budget planning difficult.

    Pros:

    Cons:

    Closing Recommendation

    If budget constraints are significant and a larger blade is preferred, buyers may lean towards the Sany STG170C-10. Conversely, for buyers prioritizing engine power and environmental compliance, without immediate budget consideration, the Cat 140 GC would be the preferable choice.

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Price, Technical Specifications & Features

    Brand SANY Caterpillar
    Type Medium (12-20 Ton) Medium (12-20 Ton)
    Price ₹ 44-46 Lakhs Price Available Soon
    Engine Cummins 173 HP Cat 196 HP
    Weight 17250 kg 17650 kg
    Min. Turning Radius 7300 mm 7800 mm
    Max. Forward Speed 36.0 km/hr 41.7 km/hr
    Max. Reverse Speed 26.0 km/hr 24.0 km/hr
    Quick Overview:

    The Sany STG170C-10 motor grader ensures precision and consistency in heavy-duty construction zones, making it ideal for large-scale grading projects.

    Cat 140 GC motor grader offers versatility, providing efficient grading and finishing solutions for both light and heavy-duty operations with impressive reliability.
    Overview Summary

    The Sany STG170C-10 and Cat 140 GC both serve as capable motor graders for construction and grading projects. The Sany model offers more torque and a slightly larger blade, while the Cat 140 GC boasts a more powerful engine and a modern emissions-standard compliant engine.

    Sany STG170C-10 Motor Grader

    Pros:

    • Higher torque of 880 Nm for heavy-duty tasks.
    • Somewhat larger blade length of 3660 mm for wider area coverage per sweep.
    • Equipped with ZF Tiptronic Transmission for better gear shifting.
    • No spin differential system with Jingda rear axle offers reliability and efficiency.
    • GPS and AC Cabin come as standard features.
    • Relatively lower price in comparison to the Cat 140 GC.

    Cons:

    • Lower engine power at 173 HP compared to Cat 140 GC.
    • Smaller fuel tank capacity of 350 liters which may require more frequent refueling.
    • A less advanced engine type - CEV IV, compared to Cat 140 GC's engine emission standards.
    • Lower maximum forward speed of 36.0 km/hr.

    Cat 140 GC Motor Grader

    Pros:

    • More powerful engine at 196 HP which may translate to better performance.
    • Meets U.S. EPA Tier 4 Final and EU Stage V emission standards, implying modern and cleaner engine technology.
    • Slightly longer blade at 3700 mm for potentially more efficient grading.
    • Higher max forward speed at 41.7 km/hr, which may lead to quicker operation cycles.
    • Greater maximum cutting depth of 715 mm for deeper grading tasks.

    Cons:

    • Less torque (835 Nm) which could slightly impact performance on heavy-duty tasks.
    • Reduced fuel tank capacity at 295 liters might limit operating time between refuels.
    • No mentioned distinctive rear axle technology like the Sany model.
    • Price is not immediately available, which may make immediate budget planning difficult.

    Pros:

    Cons:

    Closing Recommendation

    If budget constraints are significant and a larger blade is preferred, buyers may lean towards the Sany STG170C-10. Conversely, for buyers prioritizing engine power and environmental compliance, without immediate budget consideration, the Cat 140 GC would be the preferable choice.

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Price, Technical Specifications & Features

    Sany STG170C-10 Cat 140 GC
    Brand
    SANY Caterpillar
    Type
    Medium (12-20 Ton) Medium (12-20 Ton)
    Price
    ₹ 44-46 Lakhs Price Available Soon
    Engine
    Cummins 173 HP Cat 196 HP
    Weight
    17250 kg 17650 kg
    Min. Turning Radius
    7300 mm 7800 mm
    Max. Forward Speed
    36.0 km/hr 41.7 km/hr
    Max. Reverse Speed
    26.0 km/hr 24.0 km/hr
    Quick Overview:

    The Sany STG170C-10 motor grader ensures precision and consistency in heavy-duty construction zones, making it ideal for large-scale grading projects.

    Cat 140 GC motor grader offers versatility, providing efficient grading and finishing solutions for both light and heavy-duty operations with impressive reliability.

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Key Highlights

    Sany STG170C-10 Cat 140 GC
    Engine Make Cummins QSB6.7 Cat C7.1
    Max Torque 880 Nm @ 1300 rpm 835 Nm
    Fuel Tank 350 L 295 L
    Hydraulic System 110 L 45 L
    Tires 14 x 24" 16-PR (G3) 17.5-25 Bias/**17.5R-25
    Frame Height NA NA
    Max Lift Above Ground 480 mm 475 mm
    Max Cutting Depth 630 mm 715 mm
    Blade Pitch Angle NA 40° forward; 5° backward
    Wheel Base 6127 mm NA
    Overall Length 11100 mm 10332 mm
    Overall Height 3310 mm 3798 mm
    Warranty 1 Yr. / 2500 hr. 1 Year
    AC Cabin Standard Standard
    GPS Standard Standard

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Key Highlights

    Sany STG170C-10 Cat 140 GC
    Engine Make
    Cummins QSB6.7 Cat C7.1
    Max Torque
    880 Nm @ 1300 rpm 835 Nm
    Fuel Tank
    350 L 295 L
    Hydraulic System
    110 L 45 L
    Tires
    14 x 24" 16-PR (G3) 17.5-25 Bias/**17.5R-25
    Frame Height
    NA NA
    Max Lift Above Ground
    480 mm 475 mm
    Max Cutting Depth
    630 mm 715 mm
    Blade Pitch Angle
    NA 40° forward; 5° backward
    Wheel Base
    6127 mm NA
    Overall Length
    11100 mm 10332 mm
    Overall Height
    3310 mm 3798 mm
    Warranty
    1 Yr. / 2500 hr. 1 Year
    AC Cabin
    Standard Standard
    GPS
    Standard Standard

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Specifications

    Engine

    Sany STG170C-10 Cat 140 GC
    Model Cummins 173 HP Cat 196 HP
    Fuel Diesel Diesel
    Type CEV IV Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
    Gross Power 173 HP 129 kW @ 2200 rpm 196 HP (147 kW) @ 2200 rpm
    Number Of Cylinders NA NA
    Max Torque 880 Nm @ 1300 rpm 835 Nm
    Displacement 6.7 L 7.01 L
    Battery NA NA
    Alternator NA NA

    Transmission

    Sany STG170C-10 Cat 140 GC
    Type ZF Tiptronic Transmission Powershift transmission

    Speed

    Sany STG170C-10 Cat 140 GC
    Max. Forward Speed 36.0 km/hr 41.7 km/hr
    Max. Reverse Speed 26.0 km/hr 24.0 km/hr

    Axles

    Sany STG170C-10 Cat 140 GC
    Rear Axle No spin differential system with reliable & efficient jingda rear axle. NA
    Front Axle NA NA

    Tyres

    Sany STG170C-10 Cat 140 GC
    Size 14 x 24" 16-PR (G3) 17.5-25 Bias/**17.5R-25

    Steering

    Sany STG170C-10 Cat 140 GC
    Type Hydraulic power; articulated frame steering NA
    Minimum Turning Radius 7300 mm 7800 mm
    Steering-Angle 45° NA

    Brakes

    Sany STG170C-10 Cat 140 GC
    Service Hydraulic wet multi-disc brake NA
    Parking Spring-applied; hydraulically released NA

    Frame

    Sany STG170C-10 Cat 140 GC
    Front Frame Height NA NA
    Front Frame Width NA NA
    Front Frame Thickness NA NA

    MoldBoard

    Sany STG170C-10 Cat 140 GC
    Type NA NA
    Blade Length 3660 mm 3700 mm
    Blade Height 620 mm 610 mm
    Blade Thickness NA NA
    Cutting Edge NA 152 mm
    Blade Pull NA NA
    Blade Down Pressure 8769 kgf NA
    Moldboard Side Shift (Right/Left) 1760 mm / 1760 mm 526 mm / 649 mm
    Maximum Shoulder Reach (Right/Left) NA 1812 mm / 1886 mm
    Maximum Lift Above Ground 480 mm 475 mm
    Maximum Cutting Depth 630 mm 715 mm
    Blade Pitch Angle NA 40° forward; 5° backward

    Hydraulics

    Sany STG170C-10 Cat 140 GC
    Type NA NA
    Maximum Pump Flow NA NA
    Maximum System Pressure NA NA

    Service Capacities

    Sany STG170C-10 Cat 140 GC
    Fuel Tank 350 L 295 L
    Cooling System NA 40 L
    Engine Oil NA 21 L
    DEF Tank 30 L 16 L
    Trasnsmission Oil NA 18 L
    Final Drive NA NA
    Hydraulic System 110 L 45 L
    Circle Reverse Housing NA 2 L

    Weight

    Sany STG170C-10 Cat 140 GC
    Gross Vehicle Weight 17250 kg 17650 kg
    Moldboard Base 2500 mm NA
    Wheelbase 6127 mm NA
    Tandem Wheelbase 1538 mm NA
    Width of Standard Moldboard 3660 mm 3700 mm
    Overall Length 11100 mm 10332 mm
    Tread Gauge 2280 mm NA
    Width of Tires 2740 mm 2493 mm
    Articulation, left or right NA NA
    Minimum Ground Clearence 410 mm NA

    Sany STG170C-10 Vs Cat 140 GC Motor Grader Specifications

    Engine

    Sany STG170C-10 Cat 140 GC
    Model
    Cummins 173 HP Cat 196 HP
    Fuel
    Diesel Diesel
    Type
    CEV IV Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
    Gross Power
    173 HP 129 kW @ 2200 rpm 196 HP (147 kW) @ 2200 rpm
    Number Of Cylinders
    NA NA
    Max Torque
    880 Nm @ 1300 rpm 835 Nm
    Displacement
    6.7 L 7.01 L
    Battery
    NA NA
    Alternator
    NA NA

    Speed

    Sany STG170C-10 Cat 140 GC
    Max. Forward Speed
    36.0 km/hr 41.7 km/hr
    Max. Reverse Speed
    26.0 km/hr 24.0 km/hr

    Axles

    Sany STG170C-10 Cat 140 GC
    Rear Axle
    No spin differential system with reliable & efficient jingda rear axle. NA
    Front Axle
    NA NA

    Tyres

    Sany STG170C-10 Cat 140 GC
    Size
    14 x 24" 16-PR (G3) 17.5-25 Bias/**17.5R-25

    Steering

    Sany STG170C-10 Cat 140 GC
    Type
    Hydraulic power; articulated frame steering NA
    Minimum Turning Radius
    7300 mm 7800 mm
    Steering-Angle
    45° NA

    Brakes

    Sany STG170C-10 Cat 140 GC
    Service
    Hydraulic wet multi-disc brake NA
    Parking
    Spring-applied; hydraulically released NA

    Frame

    Sany STG170C-10 Cat 140 GC
    Front Frame Height
    NA NA
    Front Frame Width
    NA NA
    Front Frame Thickness
    NA NA

    Moldboard

    Sany STG170C-10 Cat 140 GC
    Type
    NA NA
    Blade Length
    3660 mm 3700 mm
    Blade Height
    620 mm 610 mm
    Blade Thickness
    NA NA
    Cutting Edge
    NA 152 mm
    Blade Pull
    NA NA
    Blade Down Pressure
    8769 kgf NA
    Moldboard Side Shift (Right/Left)
    1760 mm / 1760 mm 526 mm / 649 mm
    Maximum Shoulder Reach (Right/Left)
    NA 1812 mm / 1886 mm
    Maximum Lift Above Ground
    480 mm 475 mm
    Maximum Cutting Depth
    630 mm 715 mm
    Blade Pitch Angle
    NA 40° forward; 5° backward

    Hydraulics

    Sany STG170C-10 Cat 140 GC
    Type
    NA NA
    Maximum Pump Flow
    NA NA
    Maximum System Pressure
    NA NA

    Service Capacities

    Sany STG170C-10 Cat 140 GC
    Fuel Tank
    350 L 295 L
    Cooling System
    NA 40 L
    Engine Oil
    NA 21 L
    DEF Tank
    30 L 16 L
    Trasnsmission Oil
    NA 18 L
    Final Drive
    NA NA
    Hydraulic System
    110 L 45 L
    Circle Reverse Housing
    NA 2 L

    Weight

    Sany STG170C-10 Cat 140 GC
    Gross Vehicle Weight
    17250 kg 17650 kg
    Moldboard Base
    2500 mm NA
    Wheelbase
    6127 mm NA
    Tandem Wheelbase
    1538 mm NA
    Width of Standard Moldboard
    3660 mm 3700 mm
    Overall Length
    11100 mm 10332 mm
    Tread Gauge
    2280 mm NA
    Width of Tires
    2740 mm 2493 mm
    Articulation, left or right
    NA NA
    Minimum Ground Clearence
    410 mm NA

    © 2025 Desi Machines All rights reserved.

    Designed & Developed by PromotEdge

    !

    Help Us Reach You!

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare


      Kindly fill out the below form. Our representative will get in touch with you
