The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.
| Key Highlights | Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|
| Particulars | Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|

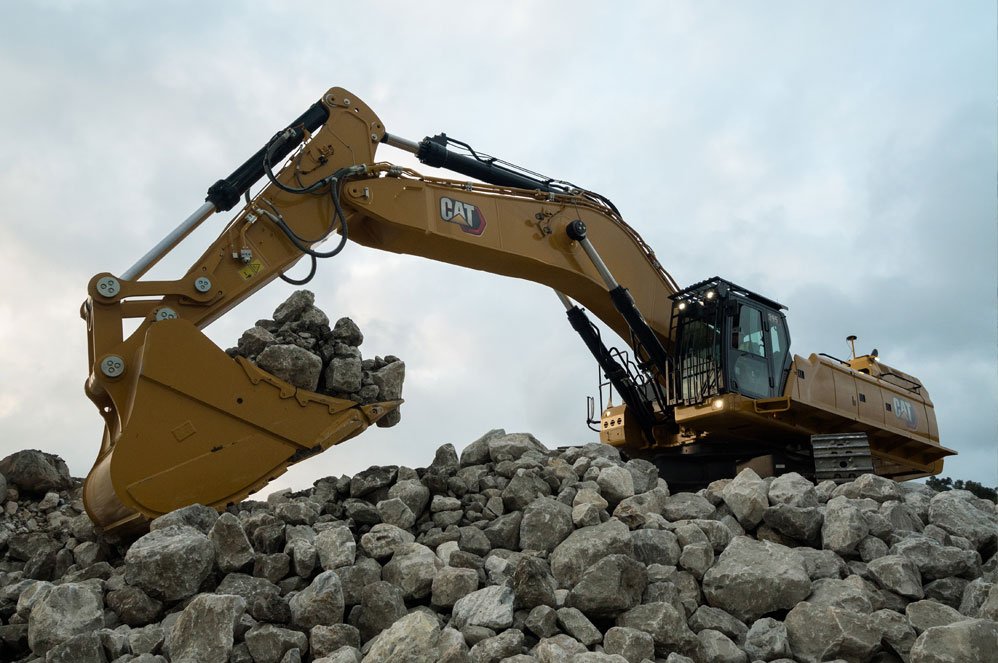

Comparing the CAT 395 and Tata Hitachi Zaxis 870-5G, both excavators are built for heavy-duty tasks, with the CAT 395 boasting higher engine power and larger bucket capacity, while the Zaxis 870-5G offers a good balance between power and size with more detailed specifications on gradeability and maximum force.
The choice between CAT 395 and Tata Hitachi Zaxis 870-5G depends on specific project requirements. The CAT 395 is better suited for projects that require more power and larger capacity, while the Zaxis 870-5G is more versatile in different terrains and offers different bucket sizes. Consider the working environment, the type of material to be handled, and the scale of the project before making a decision.
| Brand | Tata Hitachi | Caterpillar |
|---|---|---|
| Type | Extra-Large (>50 Ton) | Extra-Large (>50 Ton) |
| Operating Cost | Price Available Soon | Price Available Soon |
| Price | Price Available Soon | Price Available Soon |
| Weight | 82300 Kg | 94100 Kg |
| Bucket | 2.9 - 4.5 m³ | 6.5 m³ |
| Max Digging Depth | 8870 mm | 7190 mm |
| Engine | Isuzu 483 HP | Cat 543 HP |
| Warranty | 1 Yr. / 2000 hr. | 1 Year |
| Boom | 8400 mm | 7500 mm |
| Quick Overview: | Tata Hitachi Zaxis 870-5G extra-large excavator is a powerhouse for large-scale mining tasks specially built for heavy-duty operations. |
With advanced hydraulic technology, Cat 395 is an extra-large excavator ensuring maximum productivity in mining and large construction projects. |
| Agency review | Get the best price for the Tata Hitachi Zaxis 870-5G Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals! |
Get the best price for the Cat 395 Extra Large Excavator from authorized dealers. Contact us now for exclusive deals! |
Comparing the CAT 395 and Tata Hitachi Zaxis 870-5G, both excavators are built for heavy-duty tasks, with the CAT 395 boasting higher engine power and larger bucket capacity, while the Zaxis 870-5G offers a good balance between power and size with more detailed specifications on gradeability and maximum force.
The choice between CAT 395 and Tata Hitachi Zaxis 870-5G depends on specific project requirements. The CAT 395 is better suited for projects that require more power and larger capacity, while the Zaxis 870-5G is more versatile in different terrains and offers different bucket sizes. Consider the working environment, the type of material to be handled, and the scale of the project before making a decision.
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Brand | |
| Tata Hitachi | Caterpillar |
| Type | |
| Extra-Large (>50 Ton) | Extra-Large (>50 Ton) |
| Price | |
| Price Available Soon | Price Available Soon |
| Weight | |
| 82300 Kg | 94100 Kg |
| Bucket | |
| 2.9 - 4.5 m³ | 6.5 m³ |
| Max Digging Depth | |
| 8870 mm | 7190 mm |
| Engine | |
| Isuzu 483 HP | Cat 543 HP |
| Warranty | |
| 1 Yr. / 2000 hr. | 1 Year |
| Boom | |
| 8400 mm | 7500 mm |
| Quick Overview: | |

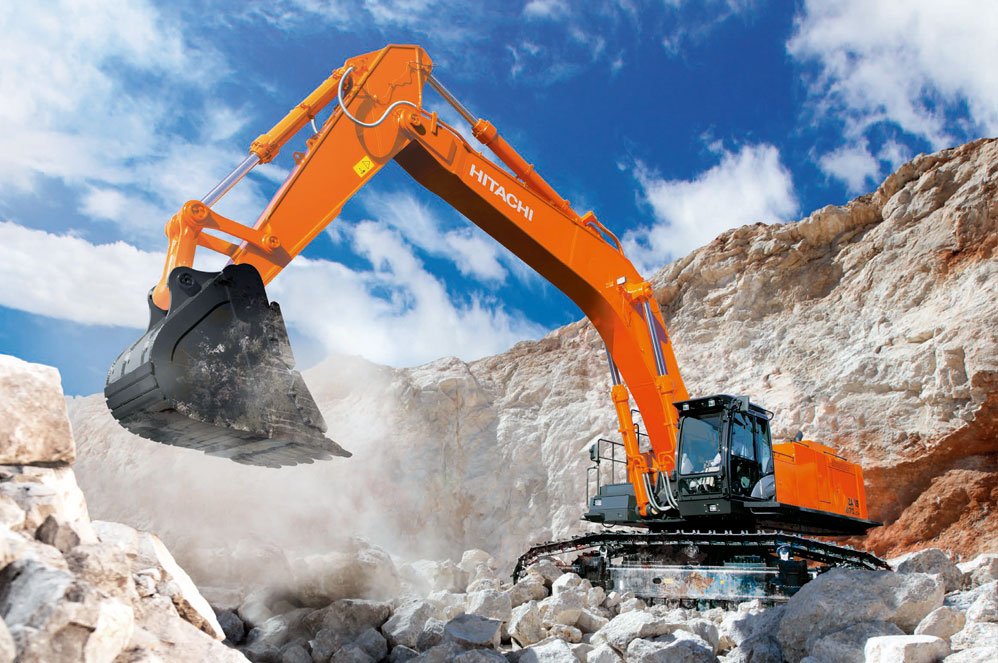

Tata Hitachi Zaxis 870-5G extra-large excavator is a powerhouse for large-scale mining tasks specially built for heavy-duty operations. |
With advanced hydraulic technology, Cat 395 is an extra-large excavator ensuring maximum productivity in mining and large construction projects. |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Engine Make | Isuzu BB-6WG1XQA-04 | Cat C18 |
| Fuel Tank | 1110 L | 1220 L |
| Engine Displacment | 15.68 L | 18.1 L |
| Under Carriage | 5740 mm | 6350 mm |
| Hydraulic System | 1042 L | 740 L |
| Arm | 3700 mm | 2920 mm |
| Max Digging Reach | 14100 mm | NA |
| Fuel Consumption | NA | NA |
| Overall Width | 4450 mm | 3690 mm |
| Overall Length | 14800 mm | 13980 mm |
| Bucket Digging Force | 359 kN | 497 kN |
| Tailswing Radius | 4600 mm | 4840 mm |
| Track Shoe Width | 650 mm | 650 mm |
| AC Cabin | Standard | Standard |
| GPS | Standard | Standard |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Engine Make | |
| Isuzu BB-6WG1XQA-04 | Cat C18 |
| Fuel Tank | |
| 1110 L | 1220 L |
| Engine Displacment | |
| 15.68 L | 18.1 L |
| Under Carriage | |
| 5740 mm | 6350 mm |
| Hydraulic System | |
| 1042 L | 740 L |
| Arm | |
| 3700 mm | 2920 mm |
| Max Digging Reach | |
| 14100 mm | NA |
| Fuel Consumption | |
| NA | NA |
| Overall Width | |
| 4450 mm | 3690 mm |
| Overall Length | |
| 14800 mm | 13980 mm |
| Bucket Digging Force | |
| 359 kN | 497 kN |
| Tailswing Radius | |
| 4600 mm | 4840 mm |
| Track Shoe Width | |
| 650 mm | 650 mm |
| AC Cabin | |
| Standard | Standard |
| GPS | |
| Standard | Standard |
| 3642 | 8860 | |
| Model | Isuzu 483 HP | Cat 543 HP |
| Fuel | Diesel | Diesel |
| Type | 4 Cycle water cooled , 6 Cylinders , direct injection , Turbocharged Intercooled | NA |
| Rated Engine Power | 483 HP (360 kW) @ 1800 rpm | 543 HP (405 kW) |
| Maximum Torque | 1945 Nm @ 1500 rpm | NA |
| Piston Displacement | 15.68 L | 18.1 L |
| Alternator | 50A | NA |
| Battery | 170 Ah , 2 x 12 V | NA |
| Starting Motor | NA | NA |
| NA | NA | |
| No of Top rollers | 3 | NA |
| No of bottom rollers | 8 | NA |
| Track Shoes (Each Side) | 47 | NA |
| Track Guard | 2 | NA |
| Track Shoe width | 650 mm | 650 mm |
| Ground bearing pressure | 121 kPa | NA |
| Track Tensioning | Grease | Grease |
| Gradeability | 70% (35 °) Continuous | NA |
| Travel Speed-Low | 3.0 Km/h | NA |
| Travel Speed-High | 4.5 Km/h | NA |
| Max Tracking Force | 560 kN | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Hydraulic pump | 2 Variable Displacement Axial Piston Pumps | NA |
| Maximum Flow | 2 x 512 L/min | 1064 L/min |
| Pilot Pump | 1 Gear Pump | NA |
| Implement Circuit | 31.9 MPa | 37.0 MPa |
| Swing Circuit | 28.4 MPa | 31.0 MPa |
| Travel circuit | 34.3 MPa | 35.0 MPa |
| Pilot circuit | 3.9 MPa | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Travel | 2 Axial Piston Motors with Parking Brake | NA |
| Swing | 2 Axial Piston Motors | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Fuel tank | 1110 L | 1220 L |
| Engine Coolant | 112 L | 71 L |
| Engine oil | 52 L | 67 L |
| Hydraulic system | 1042 L | 740 L |
| Hydraulic tank | 500 L | 372 L |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Operating Weight | 82300 Kg | 94100 Kg |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Boom length | 8400 mm | 7500 mm |
| Arm length | 3700 mm | 2920 mm |
| Max Digging Reach | 14100 mm | NA |
| Max Digging Reach on ground | 13820 mm | 12260 mm |
| Max digging depth | 8870 mm | 7190 mm |
| Max digging height | 13030 mm | 12370 mm |
| Max Dump Height | 9080 mm | 7960 mm |
| Max vertical wallcut depth | 7170 mm | 4580 mm |
| Min swing radius | 5950 mm | NA |
| Max Height at Min Swing radius | NA | NA |
| Max height (above ground) | NA | NA |
| Dig depth (below ground) | NA | NA |
| Bucket Digging Force | 359 kN | 497 kN |
| Arm Digging Force | 315 kN | 394 kN |
| Swing Speed | NA | 6.3 rpm |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Dozer Type | NA | NA |
| Dozer Length | NA | NA |
| Digging depth for ground level | NA | NA |
| Approach Angle | NA | NA |
| Width | NA | NA |
| Height | NA | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Bucket Capacity | 2.9 - 4.5 m³ | 6.5 m³ |
| Tata Hitachi Zaxis 870-5G | CAT 395 | |
| Overall Length | 14800 mm | 13980 mm |
| Overall width | 4450 mm | 3690 mm |
| Overall Height | 4770 mm | 3670 mm |
| Overall Height of Cab | 3600 mm | NA |
| Upper Width | 4120 mm | NA |
| Track Lengh on Ground | 4590 mm | 5120 mm |
| Undercarriage overall length | 5740 mm | 6350 mm |
| Tailswing radius | 4600 mm | 4840 mm |
| Min Ground clearance | 890 mm | 648 mm |
| Track gauge | 3450 mm | 2750 mm |
| Width over tracks | NA | NA |
| Track Height | 1500 mm | NA |
| Counterweight Clearance | 1680 mm | 1640 mm |
| Track Shoe Width | 650 mm | 650 mm |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Model | |
| Isuzu 483 HP | Cat 543 HP |
| Fuel | |
| Diesel | Diesel |
| Type | |
| 4 Cycle water cooled , 6 Cylinders , direct injection , Turbocharged Intercooled | NA |
| Rated Engine Power | |
| 483 HP (360 kW) @ 1800 rpm | 543 HP (405 kW) |
| Maximum Torque | |
| 1945 Nm @ 1500 rpm | NA |
| Piston Displacement | |
| 15.68 L | 18.1 L |
| Alternator | |
| 50A | NA |
| Battery | |
| 170 Ah , 2 x 12 V | NA |
| Starting Motor | |
| NA | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| No of Top rollers | |
| 3 | NA |
| No of bottom rollers | |
| 8 | NA |
| Track Shoes (Each Side) | |
| 47 | NA |
| Track Guard | |
| 2 | NA |
| Track Shoe width | |
| 650 mm | 650 mm |
| Ground bearing pressure | |
| 121 kPa | NA |
| Track Tensioning | |
| Grease | Grease |
| Gradeability | |
| 70% (35 °) Continuous | NA |
| Travel Speed-Low | |
| 3.0 Km/h | NA |
| Travel Speed-High | |
| 4.5 Km/h | NA |
| Max Tracking Force | |
| 560 kN | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Hydraulic pump | |
| 2 Variable Displacement Axial Piston Pumps | NA |
| Maximum Flow | |
| 2 x 512 L/min | 1064 L/min |
| Pilot Pump | |
| 1 Gear Pump | NA |
| Implement Circuit | |
| 31.9 MPa | 37.0 MPa |
| Swing Circuit | |
| 28.4 MPa | 31.0 MPa |
| Travel circuit | |
| 34.3 MPa | 35.0 MPa |
| Pilot circuit | |
| 3.9 MPa | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Fuel tank | |
| 1110 L | 1220 L |
| Engine Coolant | |
| 112 L | 71 L |
| Engine oil | |
| 52 L | 67 L |
| Hydraulic system | |
| 1042 L | 740 L |
| Hydraulic tank | |
| 500 L | 372 L |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Operating Weight | |
| 82300 Kg | 94100 Kg |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Boom length | |
| 8400 mm | 7500 mm |
| Arm length | |
| 3700 mm | 2920 mm |
| Max Digging Reach | |
| 14100 mm | NA |
| Max Digging Reach on ground | |
| 13820 mm | 12260 mm |
| Max digging depth | |
| 8870 mm | 7190 mm |
| Max digging height | |
| 13030 mm | 12370 mm |
| Max Dump Height | |
| 9080 mm | 7960 mm |
| Max vertical wallcut depth | |
| 7170 mm | 4580 mm |
| Min swing radius | |
| 5950 mm | NA |
| Max Height at Min Swing radius | |
| NA | NA |
| Max height (above ground) | |
| NA | NA |
| Dig depth (below ground) | |
| NA | NA |
| Bucket Digging Force | |
| 359 kN | 497 kN |
| Arm Digging Force | |
| 315 kN | 394 kN |
| Swing Speed | |
| NA | 6.3 rpm |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Dozer Type | |
| NA | NA |
| Dozer Length | |
| NA | NA |
| Digging depth for ground level | |
| NA | NA |
| Approach Angle | |
| NA | NA |
| Width | |
| NA | NA |
| Height | |
| NA | NA |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Bucket Capacity | |
| 2.9 - 4.5 m³ | 6.5 m³ |
| Tata Hitachi Zaxis 870-5G | CAT 395 |
|---|---|
| Overall Length | |
| 14800 mm | 13980 mm |
| Overall width | |
| 4450 mm | 3690 mm |
| Overall Height | |
| 4770 mm | 3670 mm |
| Overall Height of Cab | |
| 3600 mm | NA |
| Upper Width | |
| 4120 mm | NA |
| Track Lengh on Ground | |
| 4590 mm | 5120 mm |
| Undercarriage overall length | |
| 5740 mm | 6350 mm |
| Tailswing radius | |
| 4600 mm | 4840 mm |
| Min Ground clearance | |
| 890 mm | 648 mm |
| Track gauge | |
| 3450 mm | 2750 mm |
| Width over tracks | |
| NA | NA |
| Track Height | |
| 1500 mm | NA |
| Counterweight Clearence | |
| 1680 mm | 1640 mm |
| Track Shoe Width | |
| 650 mm | 650 mm |
