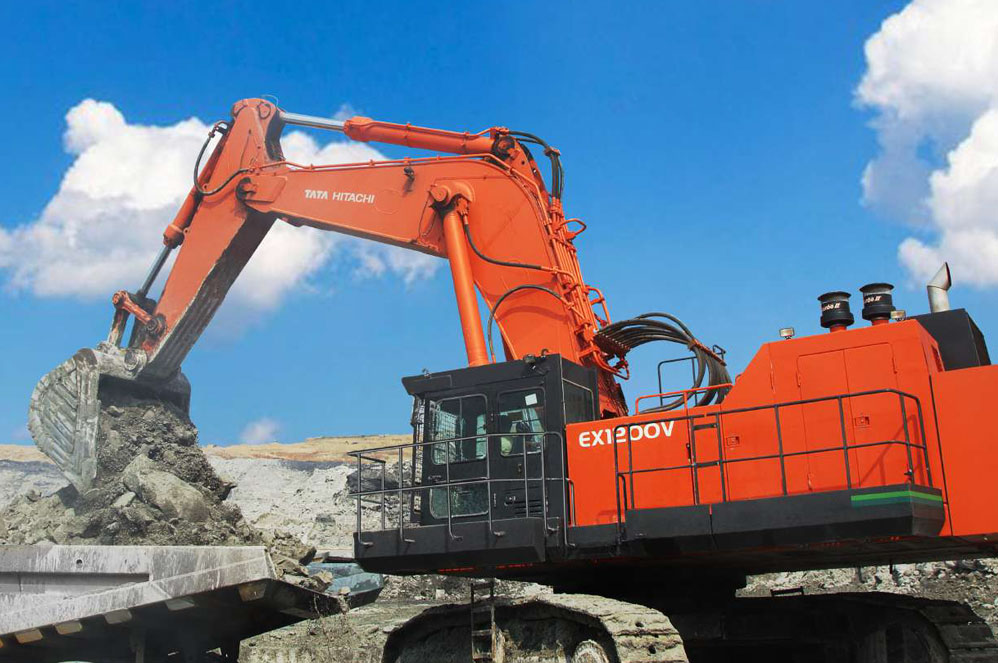

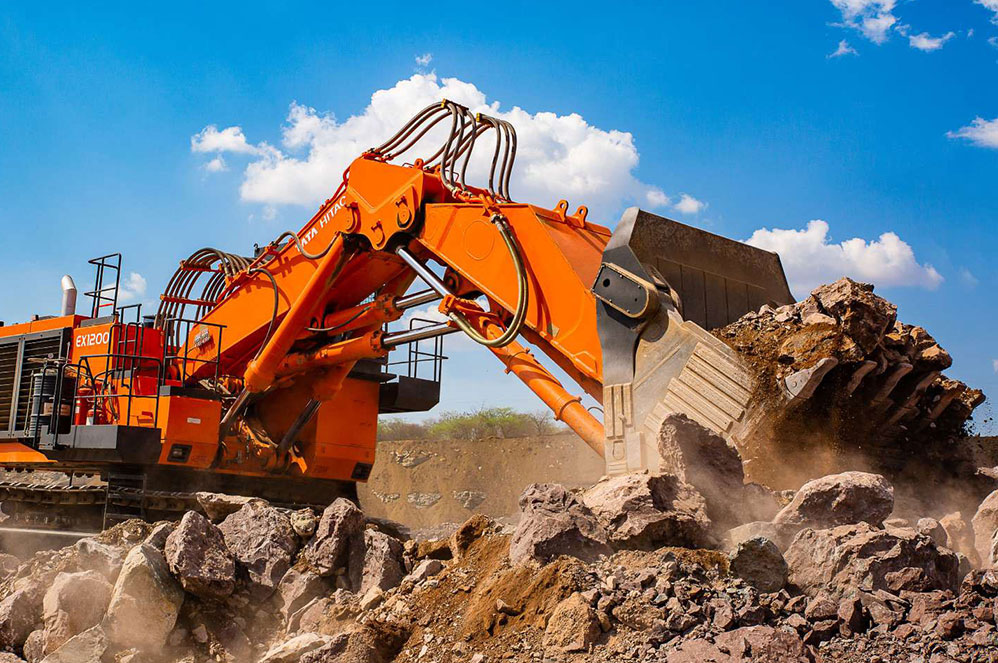

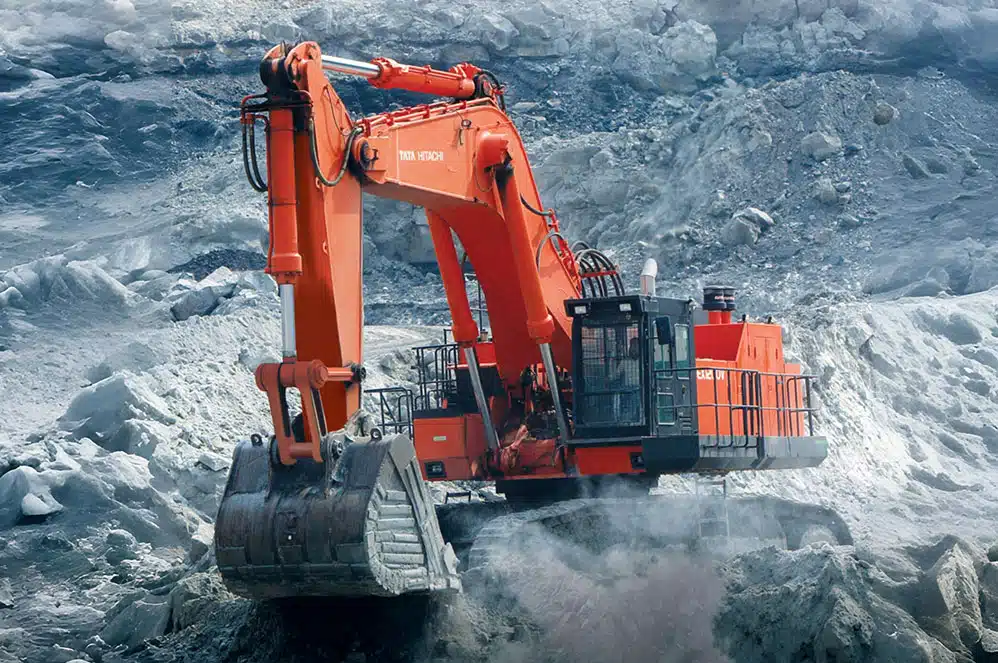

Tata Hitachi EX 1200V Excavator

The EX1200V is equipped with a powerful large-displacement engine. An intercooler is used to provide optimal fuel efficiency: helping to keep total running costs down.

The large capacity bucket offers an increased excavating power-to-width ratio. The result is increased work efficiency for higher production.

The powerful engine is combined with a highly efficient hydraulic system to offer excavating power for even the toughest sites.

The popular Optimum Hydraulic System (OHS) is used along with the newly developed arm regenerative and boom regenerative mechanism for smooth and efficient front operations.

With the help of Auto Idle and Quick Idle you can reduce fuel consumption even more.

Steps have been taken to reduce harmful exhaust gas emissions. This engine is equipped with an Electronic Governor and meets strict EPA* Tier II standards. (*Environmental Protection Agency of the United States of America).

E/P Control balances economical operation and power by using speed sensing control to efficiently regulate engine output, with a micro-computer adjusting engine and hydraulic pump output based on the work being performed; the S/P Mode boosts power for strenuous tasks, while the E Mode reduces fuel consumption during light-duty operations.

Rock Bucket has been designed for harsh work conditions. The reinforced bucket has been specially designed to withstand the impact encountered when handling crushed rock.

Designed for durability, the H Boom and Arm is a box-section structure that has been adopted on the front attachment for its large cross-sectional area. In addition, the bulkheads arranged inside the front attachment increase rigidity to resist torsion, further strengthening the structure. The enhanced durability will be especially welcome for extended operations at tough work sites, such as mines.

Under Plate Protection: A special plate and square bars are used to help prevent the arm from denting. The damage prevention plate — fitted with reinforcing square bars — is the standard fitment installed on the arm. This protects the bottom of the arm from damage caused by loaded rocks.

Increases boom lift performance by 10%: A touch of the button gives the added power for breaking up rocks or working under harsh conditions.

Large displacement engine with low operating RPM provides a reliable power source. This engine, with its abundant power, is designed for long service life and exceptional durability.

The reinforced pin section is designed to provide a long service life to the arm end, featuring a replaceable wear-resistant plate at the arm tip boss and a conversion of the arm tip pin from a fixed type to a floating pin, which extends the service life.

Independently Mounted Oil Cooler: Reduced heat helps increase hydraulic component durability. The oil cooler and the radiator have been mounted in separate locations to reduce the build-up of heat and increase cooling efficiency. A lower hydraulic oil temperature helps to increase the durability of the hydraulic components.

Strong Undercarriage : Forming the base for powerful operations, the large undercarriage — 4,610 mm wide and 6,410 mm long — provides stability.

Rugged Travel Device: This damage-resistant travel device keeps the giant moving. The shape of the frame has been changed and thicker steel plates have been used to boost durability and reduce downtime from damage.

Built for high reliability, the mounting section for the track centre frame swing gear has an integral cast steel design to reduce the concentration of stress forces; thereby boosting reliability.

Rugged Pressurised Cab with Integrated Head Guard Offers solid protection to the operator. The operator’s cab meets strict ISO Operator Protective Guards (OPG) standards*. The cab structure is formed from an integral internal frame that is designed to resist operating vibrations. It stands ready to protect the operator from falling objects. (*Front guard is optional).

Wide sidewalks with handrails are provided at key locations for easy access to the cab, and simplified servicing. Handrails conform to EN (European Norm), a world-class safety standard.

Adjustable Headlights and step light: Headlights above the cab can be adjusted downward to shine light on the work area.

Safety features include the AFDSS (Automatic Fire Detection & Suppression System), a hammer, a fire extinguisher, a travel motion alarm, and an automatic centralized lubrication system.

Large Comfortable Cab Provides comfort to reduce operator fatigue. It has been designed to offer clear visibility of the work area. The fluid-filled elastic mounts help reduce fatigue-causing vibrations.

Levers and switches are near the operator to reduce the need to reach for them. The levers and switches have been strategically located to reduce the amount of operator movement required to operate them. Frequently used switches have been centralised at a location next to the operator.

Air Conditioner Keeps the operator’s cab at a comfortable temperature.

One-Glance Instrument Panel is aptly positioned within the natural line of sight so as to ensure that all key operating conditions can be monitored with just a glance.

Boom Mode Selector Helps reduce shaking and jerking of the body during scraping operations. The amount the body can lift or pull by the front of the machine, can be selected. This helps to provide for more comfortable operations, and contributes to longer component service life.

Data Logging System: The DLU (Data Logging Unit) continuously records performance of the engine and the hydraulic systems. The record can be downloaded by a PC.

Wide access helps speed-up essential inspection time and reduce maintenance costs. Key components have been centrally positioned and walkways have been provided to make inspection

High Cab (optional for Backhoe)

Auto-Grease Lubricator dramatically reduces the work required for lubrication.

Longer Filter Life reduces the overall time and expense for replacement. The service life of the engine oil filter and the fuel filter have been increased to 250 and 1,000 hours respectively

The inspection doors open wide to provide easy access to the engine and pump compartments
