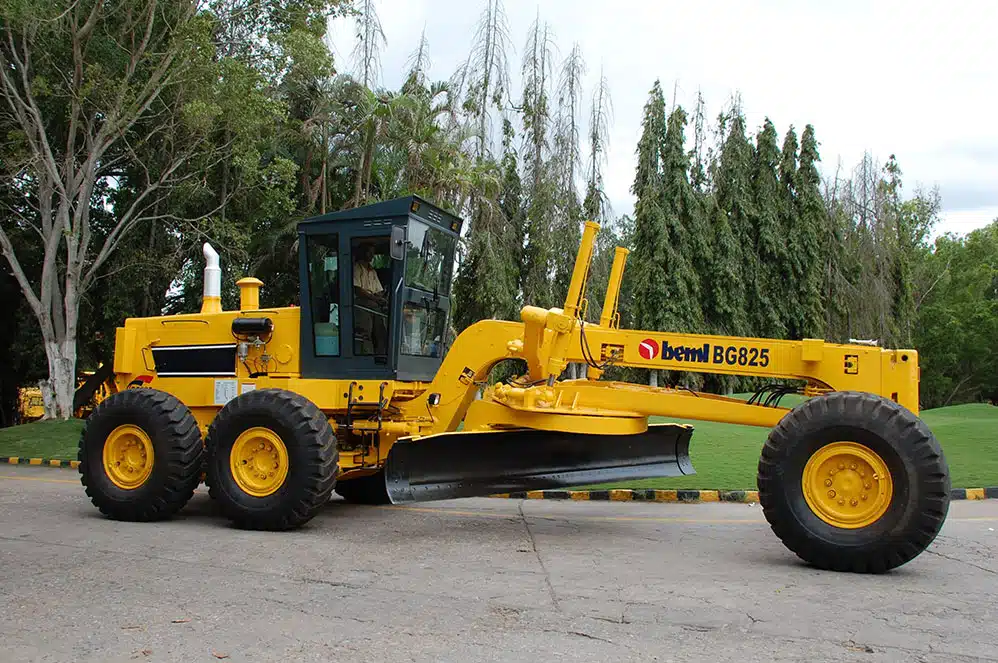

    BEML BG825 Motor Grader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      BEML

    • Type

      Large (>50 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      BEML 280 HP

    • Blade

      4928 mm

    • icon alt1
      Weight

      25750 kg

    • Turning Radius

      7900 mm

    • Forward Speed

      44.9 km/hr

    • Reverse Speed

      47.9 km/hr

    Quick Overview:

    Offering power and precision, the BEML BG825 motor grader is perfect for large-scale earthmoving and grading tasks, ensuring maximum efficiency and durability.

    Connect With Us:

    Looking for the best price on a BEML BG825 from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    BEML BS6140

    Max Torque

    NA

    Fuel Tank

    500 L

    Hydraulic System

    268 L/min

    Tires

    18.00 x 25 - 12PR(L-3) rock-type tubeless tyres

    Frame Height

    400 mm

    Max Lift Above Ground

    490 mm

    Max Cutting Depth

    680 mm

    Blade Pitch Angle

    49° forward; 5° backward

    Wheel Base

    7100 mm

    Overall Length

    11470 mm

    Overall Height

    3750 mm

    Medal Image
    Warranty

    1 Yr. / 2500 hr.

    air-conditioner-alt
    AC Cabin

    Not Available

    GPS Tracking
    GPS

    Not Available

    Features

    High Performance

    High Performance

    • With its high engine horse power and operating weight BG825 is ideal for heavy duty road construction / maintenance jobs at mining yards and demanding job sites

    Enhanced Productivity

    Enhanced Productivity

    • High Power BEML engine, high performance blade equipment and frame articulation ensure high productivity

    Operating Ease

    Operating Ease

    • The finger tip control of a smooth , electrically controlled transmission provides high maneuverability

    Comfort Friendly Cabin

    Comfort Friendly Cabin

    • Rear Frame Mounted Operator's compartment enables greater viewing ease of the machine's travelling direction. Operator's comfort is enhanced by adjustable oil suspension seat and rubber pad mounted Operator’s compartment. Electronic display monitoring system facilitates daily maintenance checks and alerts the operator in the event of malfunctions.

    High Performance

    • With its high engine horse power and operating weight BG825 is ideal for heavy duty road construction / maintenance jobs at mining yards and demanding job sites

    Enhanced Productivity

    • High Power BEML engine, high performance blade equipment and frame articulation ensure high productivity

    Operating Ease

    • The finger tip control of a smooth , electrically controlled transmission provides high maneuverability

    Comfort Friendly Cabin

    • Rear Frame Mounted Operator's compartment enables greater viewing ease of the machine's travelling direction. Operator's comfort is enhanced by adjustable oil suspension seat and rubber pad mounted Operator’s compartment. Electronic display monitoring system facilitates daily maintenance checks and alerts the operator in the event of malfunctions.

    Specifications

    Product specification of BEML BG825 Motor Grader

    ENGINE

    • Model

      BEML BS6140

    • Fuel

      Diesel

    • Type

      4 stroke, water-cooled

    • Number of Cylinders

      6 inline

    • Gross Power

      280 HP (209 kW) @ 2100 rpm

    • Max Torque

      NA

    • Displacement

      15.24 L

    • Battery

      2 x 12 V / 200Ah maintenance free batteries

    • Alternator

      24V, 45A

    TRANSMISSION

    • Type

      BEML - Hydro Shift Transmission

    SPEED

    • Max. Forward Speed

      44.9 km/hr

    • Max. Reverse Speed

      47.9 km/hr

    AXLES

    • Rear Axle

      Full-flotaing rear is made of forged heat treated steel

    • Front Axle

      Reverse Elliot-type

    TIRES

    • Size

      18.00 x 25 - 12PR(L-3) rock-type tubeless tyres

    STEERING

    • Type

      Orbitrol, Full Hydraulic Steering System

    • Minimum Turning Radius

      7900 mm

    • Steering Angle

      50°

    BRAKES

    • Service

      Foot-operated, oil disc brakes, air actuated on 4 rear wheels and sealed for adjustment-free operation. Two crossed brakes lines for sure braking.

    • Parking

      Mechanical, dry disc type actuated on transmission output shaft, spring applied and air tested.

    FRAME

    • Front Frame Structure - Height

      400 mm

    • Front Frame Structure - Width

      350 mm

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      Box-section construction with wear-resistant steel, hydraulic blade side shift, and tip control. Reversible overlay end bits, side edgesare attached.

    • Blade Length

      4928 mm

    • Blade Height

      800 mm

    • Blade Thickness

      25 mm

    • Cutting Edge

      203 x 19 mm

    • Blade Pull

      NA

    • Blade Down Pressure

      NA

    • Moldboard Side Shift (Right/Left)

      NA

    • Maximum Shoulder Reach (Right/Left)

      2400 mm / 2400 mm

    • Maximum Lift Above Ground

      490 mm

    • Maximum Cutting Depth

      680 mm

    • Blade Pitch Angle

      49° forward, 5° backward

    HYDRAULICS

    • Type

      Three gear pump (tandem) type

    • Maximum Pump Flow

      268 L/min

    • Maximum System Pressure

      20.6 MPa

    SERVICE CAPACITIES

    • Fuel Tank

      500 L

    • Cooling System

      58 L

    • Engine Oil

      38 L

    • DEF Tank

      NA

    • Transmission Oil

      25 L

    • Final Drive

      34 L

    • Hydraulic System

      105 L

    • Circle Reverse Housing

      NA

    WEIGHT

    • Gross Vehicle Weight

      25750 kg

    STATIC DIMENSIONS

    • Overall Height

      3750 mm

    • Moldboard Base

      3100 mm

    • Wheelbase

      7100 mm

    • Tandem Wheelbase

      1840 mm

    • Width of Standard Moldboard

      4928 mm

    • Overall Length

      11470 mm

    • Tread Gauge

      2460 mm

    • Width of Tires

      3050 mm

    • Articulation, left or right

      25°

    • Minimum Ground Clearence

      680 mm

    Frequently Asked Question

    01. What is the price of the BEML BG825 Motor Grader in India?

    Ans.

    The price of the BEML BG825 Motor Grader in India will be available soon. Stay connected with Desi Machines to get the latest and most accurate pricing updates as soon as they are released.

    02. Where can I buy BEML BG825 motor grader in india?

    Ans.

    You can buy the BEML BG825 motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the BEML BG825 motor grader comes with financing & insurance options?

    Ans.

    Yes, the BEML BG825 motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the BEML BG825 Motor Grader?

    Ans.

    The BEML BG825 motor grader is powered by a BEML BS6140 diesel engine, delivering 280 HP (209 kW) @ 2100 rpm.

    05. What is the weight of the BEML BG825 Motor Grader?

    Ans.

    The weight of the BEML BG825 motor grader is approximately 25750 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the BEML BG825 Motor Grader?

    Ans.

    The BEML BG825 Motor Grader features a blade width of 4928 mm (16.17 feet), making it ideal for high-output and industrial grading projects.

    07. What is the turning radius of the BEML BG825 Motor Grader?

    Ans.

    The BEML BG825 Motor Grader has a turning radius of 7900 mm, providing balanced control for multiple construction needs.

    08. What is the fuel tank capacity of the BEML BG825 Motor Grader?

    Ans.

    The BEML BG825 motor grader has a 500-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of BEML BG825 motor grader?

    Ans.

    The BEML BG825 in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the BEML BG825 motor grader?

    Ans.

    You can find genuine spare parts for the BEML BG825 at authorized BEML dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
