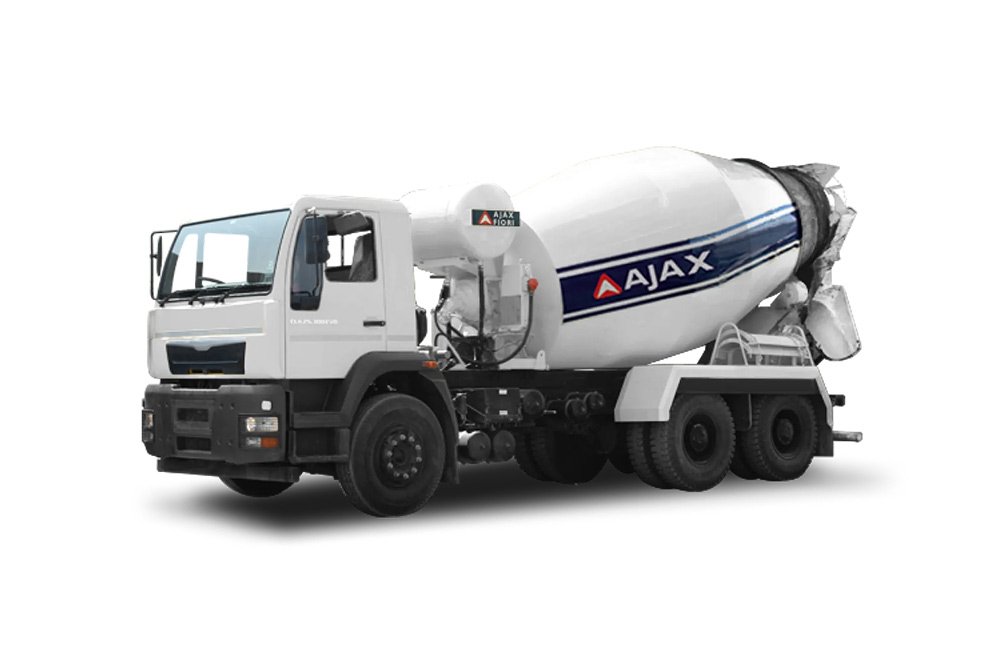

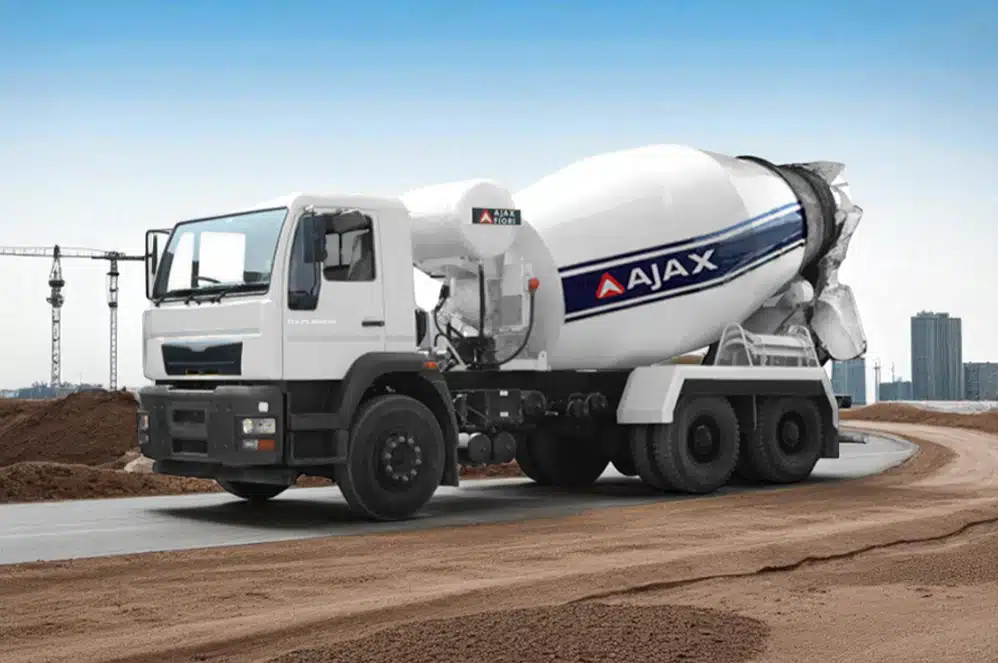

Ajax AF 6XE Concrete Mixer

Offers a 6 m³ nominal filling capacity (6,000 L), which is ideal for large concrete batches.

The 11,700 L geometric volume allows for thorough aggregation.

An adjustable drum speed of 0–12 rpm keeps the concrete uniformly mixed during transit.

The drum is built with high-strength steel and anti-wear protection for longevity.

The optimized spiral layout ensures faster and more consistent discharge flow.

Wear-resistant lining inside the durable spiral flutes improves service life.

The 450 L pressurized water tank reduces leakage risks during high-pressure mixing.

It includes a water-level indicator for easy monitoring and refill control.

This enables onboard cleaning and minor aggregate adjustments while in motion.

Steel extension chutes come with wear-protection liners to ensure long chute life.

The liner helps smooth the flow of concrete, reducing blockages.

This setup provides precise concrete placement and allows for easy chute adjustment.

Mounted on a strong 3-axle truck chassis, this mixer is perfect for site mobility.

It is designed for ready-mix transit, combining central batching plant efficiency with on-site delivery flexibility.

Continuous drum rotation during transport keeps the concrete fresh.

It is equipped with AJAX’s hydraulic systems to improve operational productivity.

PTO-driven or separate engine drive options cater to specific power needs.

The design focuses on fuel efficiency and reduces emissions for eco-friendly concrete transport.
