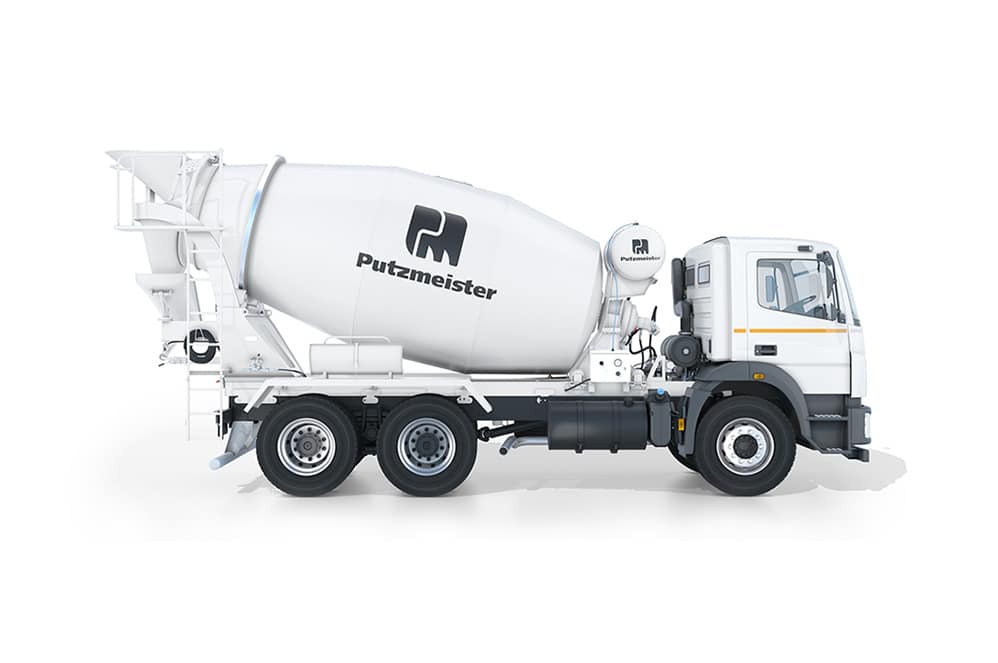

Putzmeister P10 PTO Transit Mixer

Optimized spiral-drum design delivers better mix quality and faster discharge.

Uniform concrete output ensures consistent batch delivery across all zones.

PTO-driven power availability up to 208 kW at 2 950 rpm, enabling demanding load cycles.

Constructed with IS2062 E350 steel and boron-magnesium hardened drum shell.

Box-type sub-frame adds rugged reliability, ideal for rough road conditions.

Heavy-reinforced (HR) and ultra-light (UL) frame versions offer weight and durability options.

Equipped with 72 cc / 90 cc hydraulic motor for higher torque on tough concrete mixes.

Features an 18 L hydraulic oil cooler to maintain optimal system performance.

Built-in 32% larger discharge chute enables faster concrete pour and reduced cycle times.

Nominal filling capacity of 10 m³ and waterline volume of 10.8 m³ for large batch jobs.

Geometric drum volume at 17.5 m³, with a solid filling ratio of 57 %.

Drum speed adjustable from 0–14 rpm, optimizing mix time and consistency.

Formed with automated welding, providing consistent structural integrity.

Advanced surface coating and painting reduce corrosion and long-term wear.

Reliable in operation with less residual concrete, minimizing cleaning efforts.

PTO drive enables connection via slave engine or tractor PTO, offering flexible integration.

Available in multiple chassis fits (4-axle), suitable for different truck platforms.

Multiple versions (standard, L, UL, HR, DS) allow customization for weight, strength, and road use.
