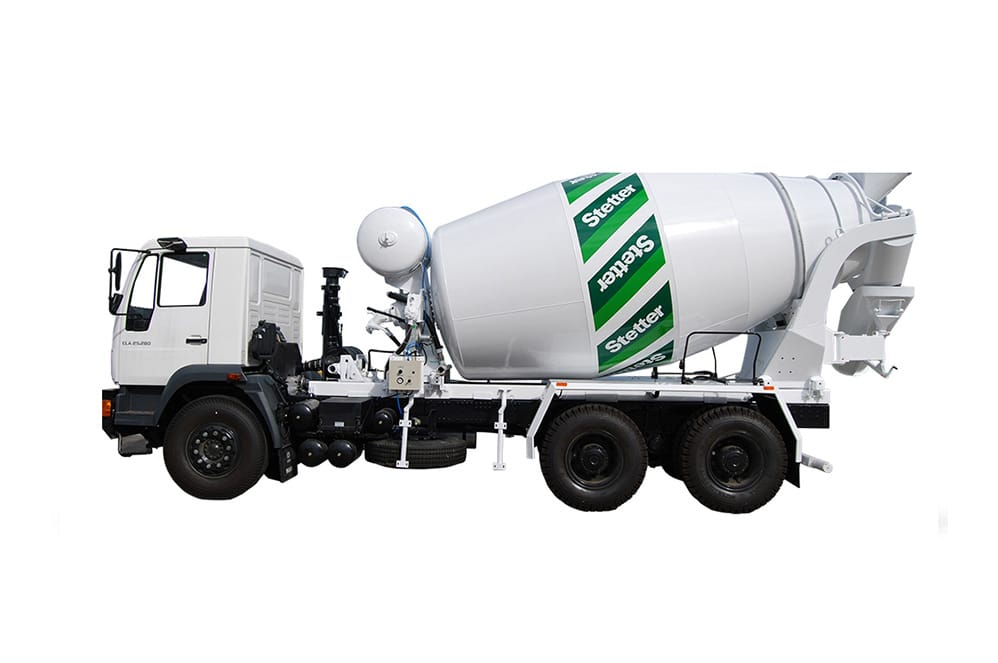

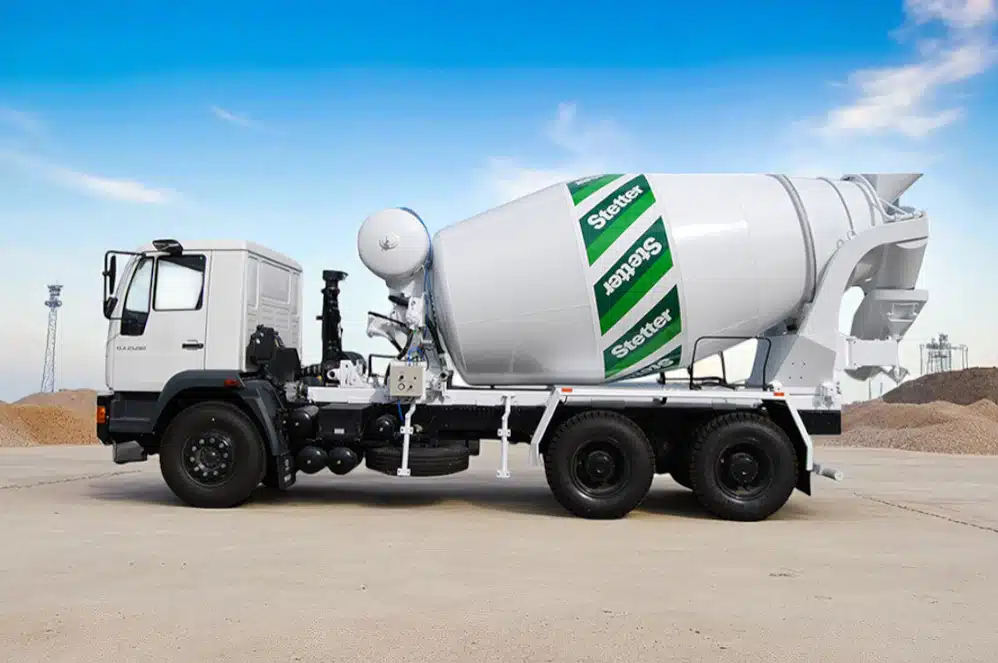

Schwing Stetter AM 8 (C2) Transit Mixer

The nominal filling capacity of 8 m³ ensures large concrete loads per trip, making it ideal for mid-sized construction sites.

The total geometric volume of 14,170 L (14.4 m³) provides extra space for mixing and a water reserve.

A 56% fill ratio balances both optimal mixing performance and safe weight distribution during transport.

The 2300 mm drum diameter with spiral blades promotes thorough concrete mixing and quick discharge.

Hard-wearing inner plates and a discharge shell resist abrasion, which increases the overall lifespan.

Variable drum speed (0–12 rpm) allows for controlled mixing and efficient discharge on site.

The 79 kW (105 hp) prime mover power delivers strong torque for continuous drum operation.

It is compatible with truck engines of 300 hp and above, ensuring consistent performance and fuel efficiency.

Engine-driven or auxiliary drive options provide flexibility in fleet operations and vehicle compatibility.

The water line capacity is approximately 9,200 L, with a built-in 650 L pressurized tank for active mixing.

The volumetric water meter ensures precise water dosing, which reduces material waste and improves mix quality.

The pressurized water system allows for continuous cleaning of the drum and chute, minimizing maintenance downtime.

The chassis weighs about 3.98 tons (without truck), providing enhanced ruggedness and on-road stability.

Sturdy support rollers and a 260 mm drum support add structural strength, making it ideal for tough terrains.

A wear-resistant steel feed hopper and discharge chute ensure long-lasting performance during heavy-duty use.

The low center of gravity design improves vehicle balance and driving safety, especially on uneven roads.

Infinitely variable speed control allows for precise mixing and better control during discharge.

Easy-access service panels simplify routine maintenance and reduce equipment downtime.
