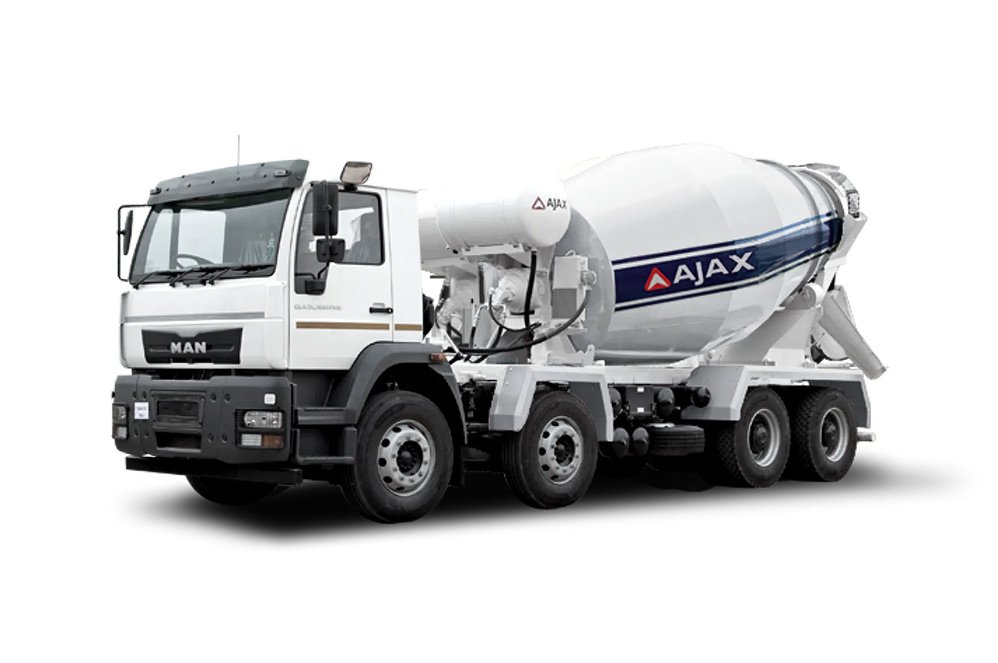

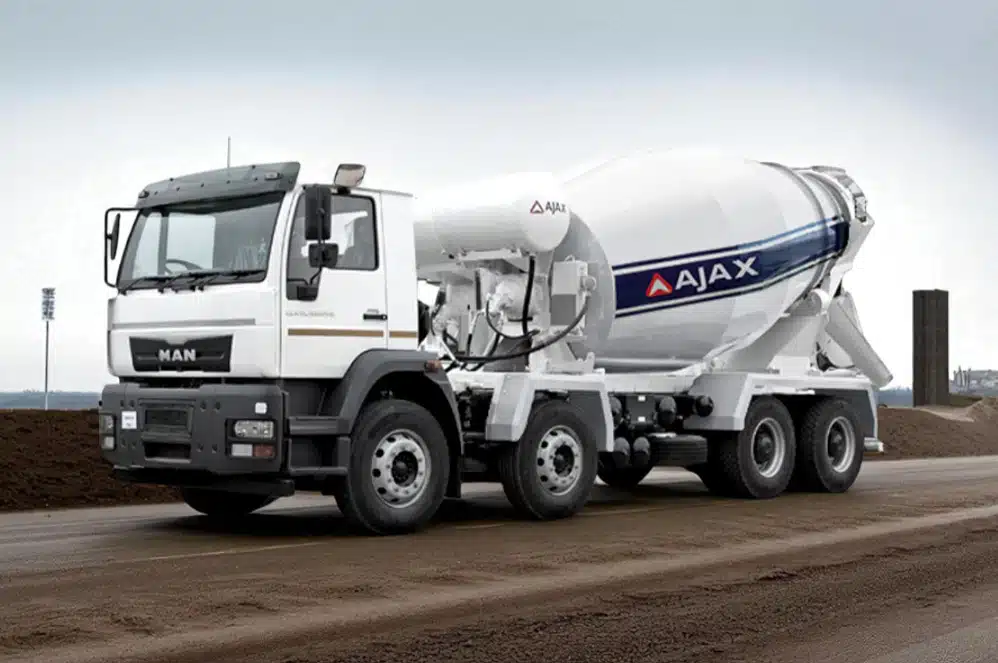

Ajax AF 8XE Concrete Mixer

The AJAX AF8 XE concrete mixer has a nominal drum capacity of 8 m³. This allows for large concrete batches in a single trip.

With a geometric volume of 14,450 L and an optimized filling ratio of 56%, , it reduces mix segregation and improves consistency.

The drum diameter of 2,300 mm supports optimal concrete flow and mixing action. This maximizes the performance of the transit mixer and enhances project efficiency.

Made from high-strength steel, the AJAX AF8 XE concrete mixer drum resists abrasion and deformation during heavy-duty mixing jobs.

Internal spiral blades are positioned to optimize concrete flow. They improve homogeneity while reducing wear and extending the drum’s life.

The drum surfaces have anti-wear liners, ensuring the transit mixer lasts even in tough construction site conditions.

The mixer comes with a 450 L pressurized water tank, providing on-board cleaning. This reduces downtime and improves hygiene at job sites.

High-flow water jets deliver 250–300 L/min at 5–6 bar. They ensure fast and efficient cleaning of the drum and chute after mixing rounds.

Integrated water level indicators prevent overflow and help operators maintain peak performance during concrete transit.

The drum rotation speed can range from 0–12 rpm. This allows precise control over mixing consistency and uniform concrete delivery.

Variable speed control lowers the risk of segregation, ensuring uniform concrete quality from batch to batch.

This feature helps maintain a smooth workflow for the transit mixer, adapting to different project demands and environmental conditions.

Steel extension chutes increase versatility. They enable precise placement of concrete, even in challenging or tight site locations.

Wear protection liners in sliding areas reduce abrasion, prolonging service life and lowering maintenance needs.

This setup improves operator control and reduces material loss, making concrete delivery more efficient and cost-effective.

The AJAX AF8 XE concrete mixer has a compact width of 2,400 mm and a moderate total weight of 4.47 t, balancing capacity with mobility.

Three- or four-axle setups can support heavy loads while ensuring stable steering and agility for the transit mixer.

With an overall length of 5.95 m and a height of 2.71 m, it is site-friendly and fits well within most urban and semi-urban concrete logistics environments.
