    ACE ALN 300 Wheel Loader

    ACE ALN 300 Wheel Loader Price

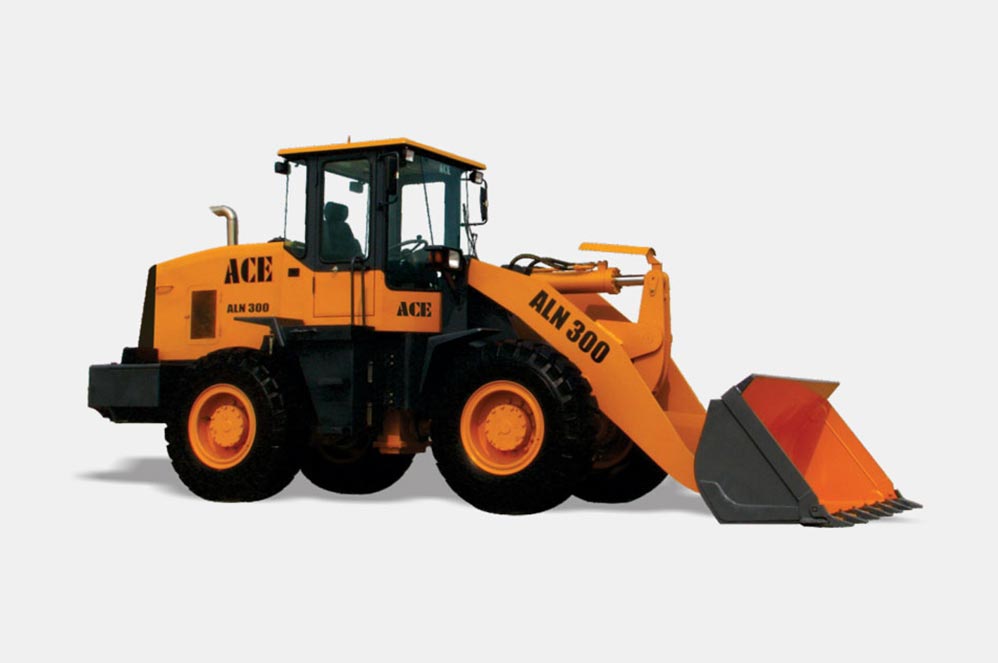

    desi machines ace aln 300 wheel loader wheel loader 1
    desi machines ace aln 300 wheel loader wheel loader 1

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      ACE

    • Type

      Small (8-15 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      Cummins 123 HP

    • featIcon2 (1) alt
      Bucket

      1.7 m³

    • icon alt1
      Weight

      9970 kg

    • Fwd. Speed

      40 km/h

    • dumping height loader
      Dump Height

      NA

    • tipping load
      Tipping Load

      NA

    Quick Overview:

    ACE ALN 300 Wheel Loader is designed for Indian infrastructure projects, providing efficient loading and material handling capabilities.

    Connect With Us:

    Get the best price for the ACE ALN 300 wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Cummins 6BT5.9-C125

    Max Torque

    540 Nm @ 1400 rpm

    Fuel Tank

    168 L

    Hydraulic System

    189 L/min

    grounding
    Min. Ground Clearance

    NA

    desi machines payload
    Payload

    NA

    360 degree
    Steering Angle

    ±35°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    NA

    Tyres

    17.5 x 25-20 PR

    down
    Max. Breakout Force

    NA

    Overall Length

    NA

    Medal Image
    Warranty

    1 Year

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    NA

    Features

    Powerful 123 HP Cummins Engine

    Powerful 123 HP Cummins Engine

    • Strong performance is provided by the ACE ALN 300 wheel loader's 123 HP Cummins 6BT5.9-C125 turbocharged diesel engine.

    • Delivers a maximum torque of 540 Nm at 1400 rpm, making it perfect for heavy-duty construction and earthmoving tasks in India.

    • All job sites benefit from improved fuel economy and efficient combustion thanks to the water-cooled and direct injection design.

    Heavy-Duty Transmission and Axle

    Heavy-Duty Transmission and Axle

    • Features two reverse gears and a 4-speed power shift transmission for smooth operation even under load.

    • Includes both fixed front and floating rear axles, which are strengthened by spiral bevel gears.

    • On uneven terrain, the rear axle's +12° oscillation improves wheel contact and stability.

    Z-Bar Linkage & Bucket Performance

    Z-Bar Linkage & Bucket Performance

    • For quick loading cycles, the ACE ALN 300 features a 1.7 m³ general-purpose bucket with a width of 2430 mm.

    • Z-Bar linkage reduces spills in material handling while increasing breakout force and productivity.

    • A 9970 kg operating weight guarantees bucket stability when operating at full load.

    Advanced Hydraulics & Braking

    Advanced Hydraulics & Braking

    • For responsive hydraulic control, a tandem gear pump with a flow rate of 189 LPM and a pressure of 16 MPa is used.

    • Safe and efficient stopping power is ensured by caliper disc brakes with an air-assisted oil disc system.

    • Additional safety during stationary operations is provided by the disc-type parking brake and soft shaft control.

    Spacious Air-Conditioned Cabin

    Spacious Air-Conditioned Cabin

    • For extended workdays, a wide-view, vibration-absorbing cabin provides comfort and improved visibility.

    • For seamless machine handling, the cabin has ergonomic controls, noise reduction, and a well-designed instrument panel.

    • Factory-fitted air conditioning boosts operator efficiency in Indian climate conditions.

    Refill Capacities & Tyre Details

    Refill Capacities & Tyre Details

    • ACE ALN 300 includes large tanks: 168L fuel, 120L hydraulic oil, 32L transmission, and 25L cooling.

    • Equipped with a 6000 mm turning radius and 17.5 x 25-20 PR tires for improved maneuverability.

    • For heavy-duty cycle support, the front and rear axles can hold a total of 8L of oil, while the final drive uses 4L per axle.

    Powerful 123 HP Cummins Engine

    • Strong performance is provided by the ACE ALN 300 wheel loader's 123 HP Cummins 6BT5.9-C125 turbocharged diesel engine.

    • Delivers a maximum torque of 540 Nm at 1400 rpm, making it perfect for heavy-duty construction and earthmoving tasks in India.

    • All job sites benefit from improved fuel economy and efficient combustion thanks to the water-cooled and direct injection design.

    Heavy-Duty Transmission and Axle

    • Features two reverse gears and a 4-speed power shift transmission for smooth operation even under load.

    • Includes both fixed front and floating rear axles, which are strengthened by spiral bevel gears.

    • On uneven terrain, the rear axle's +12° oscillation improves wheel contact and stability.

    Z-Bar Linkage & Bucket Performance

    • For quick loading cycles, the ACE ALN 300 features a 1.7 m³ general-purpose bucket with a width of 2430 mm.

    • Z-Bar linkage reduces spills in material handling while increasing breakout force and productivity.

    • A 9970 kg operating weight guarantees bucket stability when operating at full load.

    Advanced Hydraulics & Braking

    • For responsive hydraulic control, a tandem gear pump with a flow rate of 189 LPM and a pressure of 16 MPa is used.

    • Safe and efficient stopping power is ensured by caliper disc brakes with an air-assisted oil disc system.

    • Additional safety during stationary operations is provided by the disc-type parking brake and soft shaft control.

    Spacious Air-Conditioned Cabin

    • For extended workdays, a wide-view, vibration-absorbing cabin provides comfort and improved visibility.

    • For seamless machine handling, the cabin has ergonomic controls, noise reduction, and a well-designed instrument panel.

    • Factory-fitted air conditioning boosts operator efficiency in Indian climate conditions.

    Refill Capacities & Tyre Details

    • ACE ALN 300 includes large tanks: 168L fuel, 120L hydraulic oil, 32L transmission, and 25L cooling.

    • Equipped with a 6000 mm turning radius and 17.5 x 25-20 PR tires for improved maneuverability.

    • For heavy-duty cycle support, the front and rear axles can hold a total of 8L of oil, while the final drive uses 4L per axle.

    Specifications

    Product specification of ACE ALN 300 Wheel Loader

    ENGINE

    • Make

      Cummins 6BT5.9-C125

    • Type

      Direct Injection, Diesel Engine, Watercooled

    • Aspiration

      Tubocharged

    • Emission

      U.S. EPA Tier 2 Final

    • Max. Power

      123 HP (92 kW) @ 2000 rpm

    • Max Torque

      540 Nm @ 1400 rpm

    • Piston Displacement

      5.39 L

    • No. of Cylinders

      6 Cylinders

    • Battery

      24V

    • Alternator

      NA

    POWER TRAIN

    • Transmission

      Power Shift, Constant Mesh Transmission

    • Drive Type

      4-wheel drive (4WD)

    • Torque Converter

      NA

    BRAKES

    • Service

      Caliper disc brakes.

    • Parking

      Soft shaft control, disc brake

    STEERING SYSTEM

    • Type

      Center articulated frame steering

    • Steering Angle

      ±35°

    AXLE AND FINAL DRIVE

    • Front Axle Type

      Fixed

    • Rear Axle Type

      Floating

    • Oscillation Angle

      ±12°

    SPEED

    • Top Forward Speed

      40 km/h

    • Top Reverse Speed

      29.5 km/h

    HYDRAULIC SYSTEM

    • System Type

      NA

    • Pump Type

      Tandem Gear pump

    • Max. Pump Flow

      189 L/min

    • System Pressure

      160 bar

    SERVICE REFILL CAPACITIES

    • Fuel Tank

      168 L

    • Hydraulic System

      NA

    • Engine Oil

      16.3 L

    • Cooling System

      25 L

    • Rear Axle Oil

      8

    • Front Axle Oil

      8

    • Hydraulic Tank

      120 L

    • Transmission Oil

      32 L

    • DEF Tank

      NA

    DIMENSIONS

    • Overall Length With Bucket

      NA

    • Wheel Base

      NA

    • Height Over Cab

      NA

    • Height Over Exhaust

      NA

    • Min. Ground Clearance

      NA

    • Width Over Tyres

      NA

    • Wheel Tread

      NA

    • Tyre Size

      17.5 x 25-20 PR

    PERFORMANCE

    • Bucket Capacity

      1.7 m³

    • Bucket Width

      2430 mm

    • Payload

      NA

    • Tipping Load Straight

      NA

    • Tipping Load Full Turn

      NA

    • Max. Breakout Force

      NA

    • Operating Weight

      9970 kg

    • Maximum Dump Angle

      NA

    • Bucket Roll Back Angle Full Height

      NA

    • Bucket Roll Back At Carry

      NA

    • Bucket Roll Back At Ground Level

      NA

    • Dumping Height, Fully Raised

      NA

    • Dumping Reach, Fully Raised

      NA

    • Max. Hinge Pin Height

      NA

    • Max. Digging Depth

      NA

    • Turning Radius Over Tyres

      6000 mm

    • Turning Radius Over Bucket

      6470 mm

    Frequently Asked Question

    01. What is the ACE ALN 300 wheel loader price in India?

    Ans.

    The ACE ALN 300 wheel loader price in India is available on request. To get the latest on-road price of the ACE ALN 300 based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

    02. Where can I buy the ACE ALN 300 wheel loader in India at the best price?

    Ans.

    You can buy the ACE ALN 300 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized ACE dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest ACE ALN 300 price, compare dealer quotes, and enjoy expert assistance—all in one place.

    03. What is the engine power of the ACE ALN 300 wheel loader?

    Ans.

    The ACE ALN 300 wheel loader is powered by a Cummins 6BT5.9-C125 diesel engine, delivering 123 HP (92 kW) @ 2000 rpm.

    04. What is the operating weight of the ACE ALN 300 wheel loader?

    Ans.

    The operating weight of the ACE ALN 300 wheel loader is approximately 9970 kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What is the fuel tank capacity of the ACE ALN 300 wheel loader?

    Ans.

    The ACE ALN 300 wheel loader has a 168 litres diesel fuel tank, providing extended operation time without frequent refueling.

    06. What is the bucket capacity of the ACE ALN 300 wheel loader?

    Ans.

    The bucket capacity of the ACE ALN 300 is 1.7 cubic meters (m³).

    07. What is the warranty period of ACE ALN 300 wheel loader?

    Ans.

    The ACE ALN 300 wheel loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    08. How many gears are available in the ACE ALN 300 wheel loader?

    Ans.

    The ACE ALN 300 wheel loader features a 4-wheel drive (4WD) system with a Power Shift & Constant Mesh Transmission. It offers 4 forward and 2 reverse gears, enabling efficient operation at speeds up to 40 km/h.

    09. What are the key applications and uses of the ACE ALN 300 wheel loader?

    Ans.

    The ACE ALN 300 is a compact loader ideal for construction and material handling, offering easy maneuverability and efficient fuel use.

    10. Where can I find spare parts for the ACE ALN 300 wheel loader?

    Ans.

    You can find genuine spare parts for the ACE ALN 300 wheeled loader at authorized ACE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
