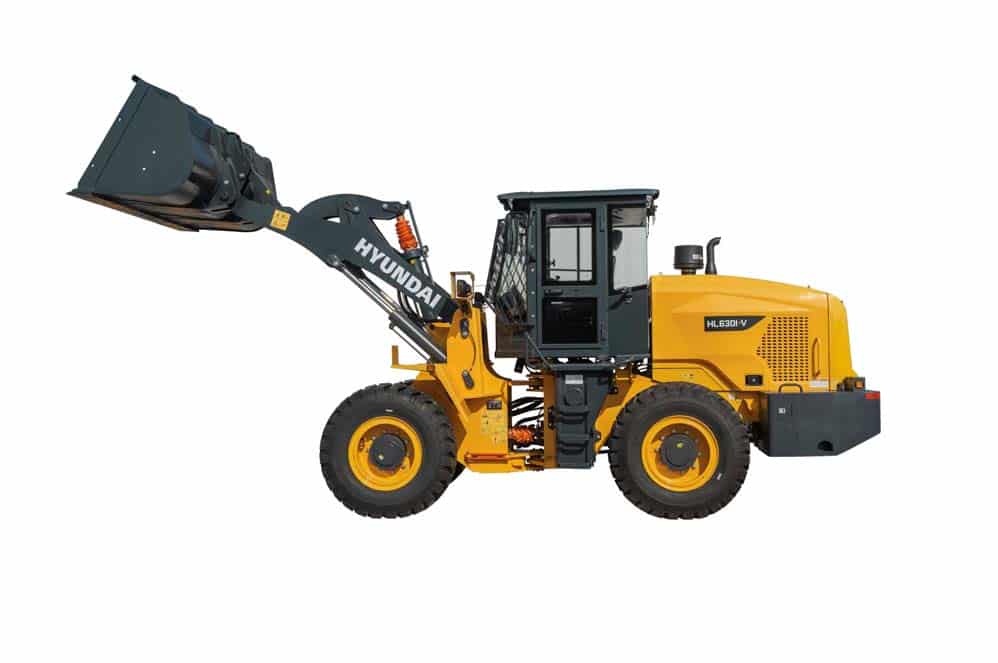

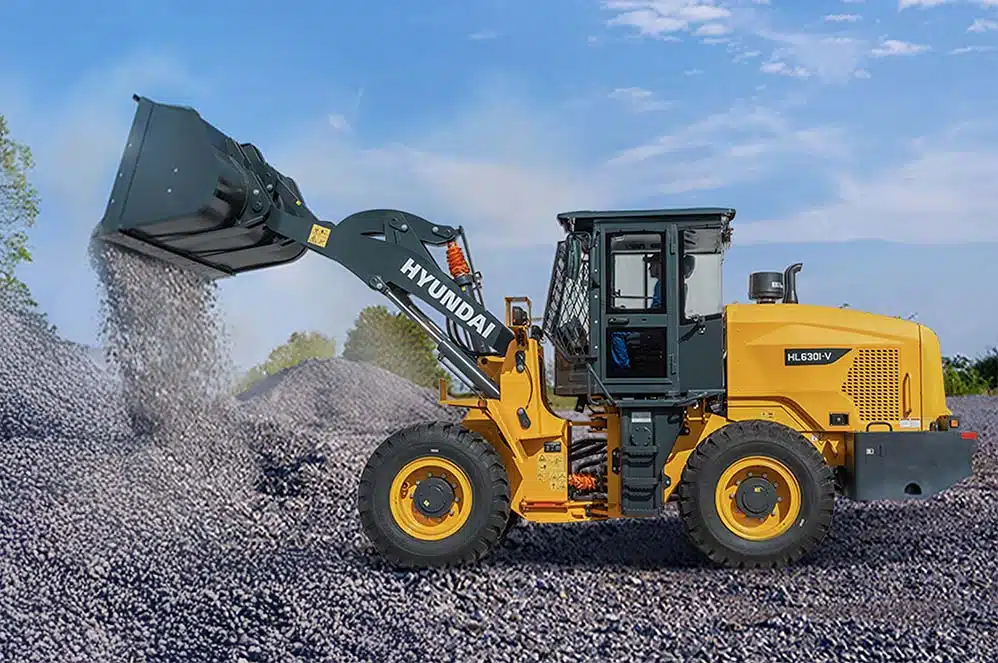

    Hyundai HL630I-V Wheel Loader

    The Hyundai HL630I-V Wheel Loader is a powerful and fuel-efficient payloader made for infrastructure and quarry work. It features a 133 HP Weichai CEV V electronic engine, providing reliable performance with lower emissions and operating costs. With a 3000 kg payload capacity and 1.7 to 3.0 m³ bucket options, it ensures smooth material handling and high productivity. The hydraulics offer precise control, while the ROPS/FOPS cabin, ergonomic controls, and rear-view camera improve safety and comfort. The competitive price of the Hyundai HL630I-V in India makes it a smart choice for fleet operations.

    • Brand

      Hyundai

    • Type

      Small (8-15 Ton)

    • Operating Cost

      ₹ 48-50 Lakhs

    • Ex-Showroom Price

      ₹ 48-50 Lakhs

    • Engine

      Weichai 133 HP

    • featIcon2 (1) alt
      Bucket

      1.8 m³

    • icon alt1
      Weight

      10810 kg

    • Fwd. Speed

      39 km/h

    • dumping height loader
      Dump Height

      2905 mm

    • tipping load
      Tipping Load

      NA

    Connect With Us:

    Get the best price for the Hyundai HL630I-V wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Weichai WP4.6NG135E670

    Max Torque

    630 Nm @ 1300-1500rpm

    Fuel Tank

    200 L

    Hydraulic System

    176 L/min

    grounding
    Min. Ground Clearance

    355 mm

    desi machines payload
    Payload

    3000 kg

    Steering Angle

    ±35°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    2850 mm

    Tyres

    17.5-25 L-3 12PR TT

    down
    Max. Breakout Force

    98 kN

    Overall Length

    7200 mm

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Performance & Efficiency

    • Powered by a 133 HP BS-V compliant Weichai electronic engine that delivers strong output for demanding loading applications.

    • Three working modes (L/M/H) help operators optimize machine performance while improving overall fuel efficiency.

    • Z-bar linkage system provides high breakout force, ensuring efficient digging, lifting, and material handling operations.

    • Fast cycle times achieved through well-matched engine and hydraulic systems for higher daily productivity.

    Operator Comfort & Cabin Features

    • Spacious ROPS/FOPS certified cabin designed with wide glass areas to offer excellent all-round visibility.

    • Adjustable deluxe suspension seat with armrest support reduces operator fatigue during long working shifts.

    • 5-inch digital LED display shows real-time machine status, error codes, warnings, and operating speed.

    • Comfort features include air conditioning, HVAC system, USB charging port, sun visor, cabin fan, MP3 radio, and ergonomically positioned controls.

    Safety Features

    • ROPS/FOPS approved operator cabin ensures maximum protection during heavy-duty site operations.

    • Standard rear-view camera enhances rear visibility and improves overall job-site safety.

    • Safety equipment includes front cabin guard, battery cut-off switch, warning beacon, lamp guards, large rear-view mirrors, and heavy-duty access steps with handrails.

    Durability & Maintenance

    • Planetary type power-shift transmission designed for smooth gear shifting and long-term operational reliability.

    • Heavy-duty axles with dry standard configuration and optional wet axle setup for demanding applications.

    • Multiple bucket options available for different materials, including general purpose, rock, heavy-duty, coal, and light material handling.

    • Easy maintenance access with large side opening panels and onboard diagnostic support for faster service and reduced downtime.

    Are you interested in buying Hyundai HL630I-V Wheel Loader

      Note: Uncheck if you're not interested in finance or insurance deals.

      Specifications

      Product specification of Hyundai HL630I-V Wheel Loader

      ENGINE

      • Model

        Weichai WP4.6NG135E670

      • Type

        4 Cylinders, Electronic Engine

      • Emission

        CEV - V

      • Max. Power

        133 HP (99 kW) @ 2200 rpm

      • Max Torque

        630 Nm @ 1300-1500rpm

      • Piston Displacement

        4.63 L

      • No. of Cylinders

        4

      • Battery

        2-24V, 105Ah

      • Alternator

        70A

      POWER TRAIN

      • Transmission

        Countershaft Powershift, Mechanical Powershift Control

      • Type

        4-wheel drive (4WD)

      • Torque Converter

        Single-stage & turbine, 3-element

      BRAKES

      • Service

        Single Circuit Caliper,Dry Brake

      • Parking

        Flexible Shaft Controlled Caliper Brake

      STEERING SYSTEM

      • Type

        Hydraulic Load Sensing System

      • Steering Angle

        ±35°

      AXLE AND FINAL DRIVE

      • Front Axle Type

        Rigid axle

      • Rear Axle Type

        Oscillating axle

      • Oscillation Angle

        ±10°

      SPEED

      • Top Forward Speed

        39 km/hr

      • Top Reverse Speed

        28 km/hr

      HYDRAULIC SYSTEM

      • System Type

        Joystick Control

      • Maximum Pump Flow

        176 L/min

      • System Pressure

        19 MPa

      SERVICE REFILL CAPACITIES

      • Fuel Tank

        200 L

      • Engine Oil

        15 L

      • Rear Axle Oil

        18 L

      • Front Axle Oil

        18 L

      • Hydraulic Tank

        165 L

      • Transmission

        36 L

      STATIC DIMENSIONS

      • Overall Length With Bucket

        7200 mm

      • Wheel Base

        2850 mm

      • Height Over Cab

        3180 mm

      • Minimum Ground Clearance

        355 mm

      • Overall Width Over Tyres

        2320 mm

      • Wheel Tread

        1850 mm

      • Tyre Size

        17.5-25 L-3 12PR TT

      PERFORMANCE

      • Bucket Capacity

        1.8 m³

      • Bucket Width

        2500 mm

      • Payload

        3000 kg

      • Maximum Breakout Force

        98 KN

      • Operating Weight

        10810 kg

      • Maximum Dump Angle

        46.6°

      • Bucket Roll Back Angle Full Height

        50.7°

      • Bucket Roll Back At Carry

        46.3°

      • Bucket Roll Back At Ground Level

        40°

      • Dumping Height, Fully Raised

        2905 mm

      • Dumping Reach, Fully Raised

        1070 mm

      • Maximum Hinge Pin Height

        3725 mm

      • Max. Digging Depth

        30 - 40 mm

      • Turning Radius Over Tyres

        5695 mm

      • Turning Radius Over Bucket

        6250 mm

      Faq's

      Common Questions about Hyundai HL630I-V

      What is the Hyundai HL630I-V wheel loader price in India?

      The Hyundai HL630I-V wheel loader price in India ranges between ₹ 48-50 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.

      Where can I buy the Hyundai HL630I-V wheel loader in India at the best price?

      You can buy the Hyundai HL630I-V wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Hyundai dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Hyundai HL630I-V price, compare dealer quotes, and enjoy expert assistance—all in one place.

      What is the engine power of the Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V wheel loader is powered by a Weichai WP4.6NG135E670 diesel engine, delivering 133 HP (99 kW) @ 2200 rpm.

      What is the operating weight of the Hyundai HL630I-V wheel loader?

      The operating weight of the Hyundai HL630I-V wheel loader is approximately 10810 kg. The operating weight may vary slightly depending on specific configurations and attachments.

      What is the fuel tank capacity of the Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V wheel loader has a 200 litres diesel fuel tank, providing extended operation time without frequent refueling.

      What is the bucket capacity of the Hyundai HL630I-V wheel loader?

      The bucket capacity of the Hyundai HL630I-V is 1.8 cubic meters (m³).

      What is the dump height of the Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V wheel loader features a dump height of 2905 mm, ideal for precise material dumping on job sites.

      What is the warranty period of Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

      How many gears are available in the Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V wheel loader features a 4-wheel drive (4WD) system with a Countershaft Powershift, Mechanical Powershift Control. It offers 4 forward and 2 reverse gears, enabling efficient operation at speeds up to 39 km/h.

      What are the key applications and uses of the Hyundai HL630I-V wheel loader?

      The Hyundai HL630I-V is a medium-duty loader suited for construction and general material handling, offering strong lift capacity and good maneuverability on site.

      Where can I find spare parts for the Hyundai HL630I-V wheel loader?

      You can find genuine spare parts for the Hyundai HL630I-V wheeled loader at authorized Hyundai dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
