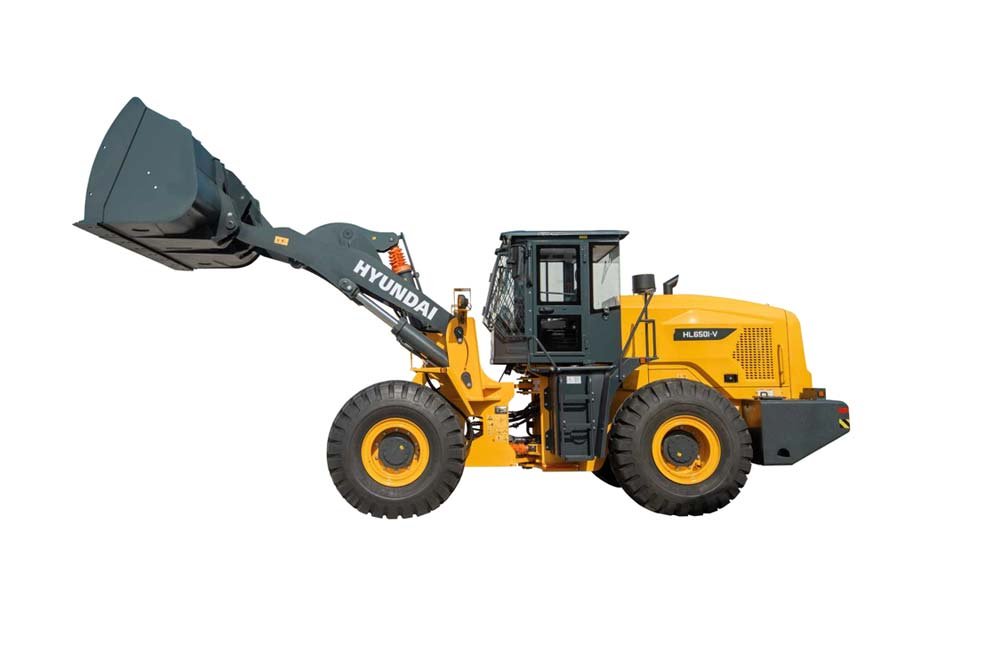

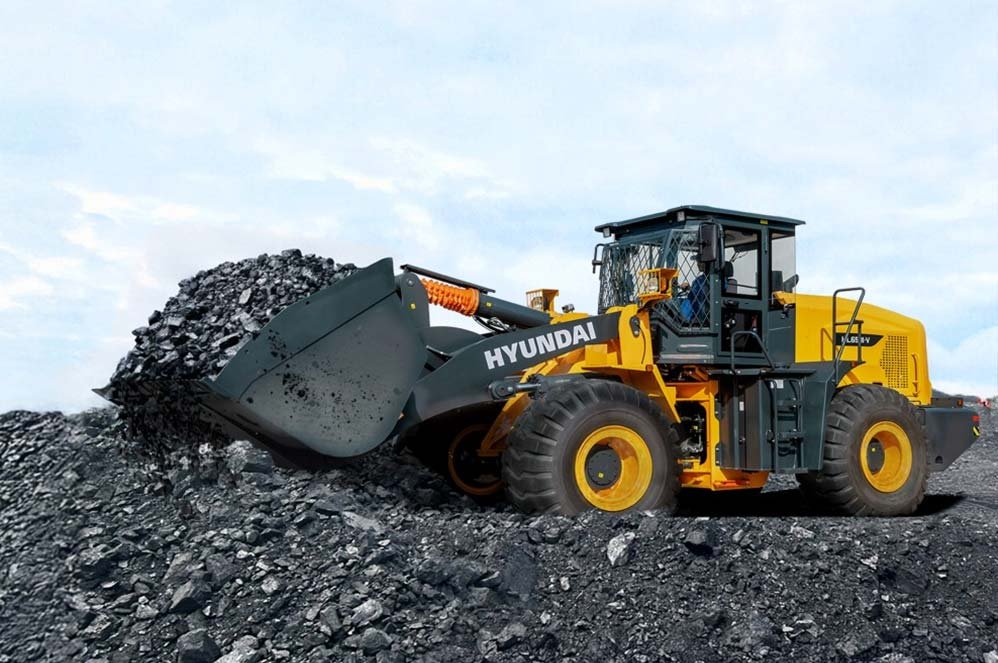

    Hyundai HL650I-V Wheel Loader

    The Hyundai HL650I-V Wheel Loader is a heavy-duty payloader built for construction, mining, port, and industrial uses. It comes with a 226 HP Weichai CEV V engine, delivering impressive power, quicker cycle times, and better fuel efficiency. It has a strong 5000 kg payload capacity with 2.7 to 5.0 m³ bucket options, allowing for efficient handling of large material amounts. The roomy ROPS/FOPS cabin, real-time monitoring system, rear-view camera, and automatic braking improve operator safety. Its easy maintenance, low noise, and lower emissions make the HL650I-V a lasting, eco-friendly choice among Hyundai Wheel Loaders.

    • Brand

      Hyundai

    • Type

      Medium (15-30 Ton)

    • Operating Cost

      ₹ 85-89 Lakhs

    • Ex-Showroom Price

      ₹ 85-89 Lakhs

    • Engine

      Weichai 226 HP

    • featIcon2 (1) alt
      Bucket

      3.0 m³

    • icon alt1
      Weight

      17600 kg

    • Fwd. Speed

      35 km/h

    • dumping height loader
      Dump Height

      3056 mm

    • tipping load
      Tipping Load

      NA

    Connect With Us:

    Get the best price for the Hyundai HL650I-V wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Weichai WP8G231E671

    Max Torque

    1200 Nm @ 1500 rpm

    Fuel Tank

    285 L

    Hydraulic System

    220 L/min

    grounding
    Min. Ground Clearance

    398 mm

    desi machines payload
    Payload

    5000 kg

    Steering Angle

    ±35°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    3300 mm

    Tyres

    23.5-25 L-3 16PR TT

    down
    Max. Breakout Force

    186 kN

    Overall Length

    8288 mm

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Performance

    • Powerful BS‑IV compliant Weichai electronically controlled diesel engine with high fuel efficiency.

    • Three working modes (L/M/H) for optimal productivity and fuel economy.

    • Z‑bar linkage with high breakout force for easier loading and dozing.

    • Efficient hydraulic system and engine combine for faster cycle times.

    Operator Comfort & Controls

    • Spacious air‑conditioned cabin with wide 360° visibility.

    • Comfortable adjustable deluxe operator seat.

    • 5″ LED digital display shows work status, speed, error codes, warnings.

    • Added conveniences like cabin fan, USB charger, MP3 radio, LED work lights.

    Safety Features

    • ROPS/FOPS certified reinforced cabin for operator protection.

    • Cabin front guard and large mirrors for enhanced site safety.

    • Rear view camera as standard for better visibility.

    • Additional safety items: battery cut‑off switch, beacons, lamp guards, heavy‑duty steps & handrails.

    Durability & Maintenance

    • Planetary power‑shift transmission and robust axle design for long service life.

    • Wide range of bucket options for various materials and tasks.

    • Heavy duty structural frame optimized with ANSYS technology.

    • Simplified maintenance with large access doors and error code display; supported by 24×7 dealer support.

    Are you interested in buying Hyundai HL650I-V Wheel Loader

      Note: Uncheck if you're not interested in finance or insurance deals.

      Specifications

      Product specification of Hyundai HL650I-V Wheel Loader

      ENGINE

      • Model

        Weichai WP8G231E671

      • Type

        6 Cylinders, Electronic Engine

      • Emission

        CEV - V

      • Max. Power

        226 HP (170 kW) @ 2200 rpm

      • Max Torque

        1200 Nm @ 1500 rpm

      • Piston Displacement

        6

      • No. of Cylinders

        7.47 L

      • Battery

        2-24V, 120Ah

      • Alternator

        70A

      POWER TRAIN

      • Transmission

        Countershaft Powershift, Mechanical Powershift Control

      • Type

        4-wheel drive (4WD)

      • Torque Converter

        Single-stage & duo turbine, 4-element

      BRAKES

      • Service

        Gas Push Oil Caliper brake

      • Parking

        Air Actuated caliper brake

      STEERING SYSTEM

      • Type

        Hydraulic Load Sensing System

      • Steering Angle

        ±35°

      AXLE AND FINAL DRIVE

      • Front Axle Type

        Rigid axle

      • Rear Axle Type

        Oscillating axle

      • Oscillation Angle

        ±10°

      SPEED

      • Top Forward Speed

        35 km/hr

      • Top Reverse Speed

        16 km/hr

      HYDRAULIC SYSTEM

      • System Type

        Joystick Control

      • Maximum Pump Flow

        220 L/min

      • System Pressure

        18 Mpa

      SERVICE REFILL CAPACITIES

      • Fuel Tank

        285 L

      • Engine Oil

        22 L

      • Rear Axle Oil

        28 L

      • Front Axle Oil

        25 L

      • Hydraulic Tank

        265 L

      • Transmission

        48 L

      STATIC DIMENSIONS

      • Overall Length With Bucket

        8288 mm

      • Wheel Base

        3300 mm

      • Height Over Cab

        3400 mm

      • Minimum Ground Clearance

        398 mm

      • Overall Width Over Tyres

        2835 mm

      • Wheel Tread

        2240 mm

      • Tyre Size

        23.5-25 L-3 16PR TT

      PERFORMANCE

      • Bucket Capacity

        3 m³

      • Bucket Width

        3000 mm

      • Payload

        5000 kg

      • Maximum Breakout Force

        186 KN

      • Operating Weight

        17600 kg

      • Maximum Dump Angle

        43°

      • Bucket Roll Back Angle Full Height

        57°

      • Bucket Roll Back At Carry

        45°

      • Bucket Roll Back At Ground Level

        41°

      • Dumping Height, Fully Raised

        3056 mm

      • Dumping Reach, Fully Raised

        1330 mm

      • Maximum Hinge Pin Height

        4115 mm

      • Max. Digging Depth

        50 mm

      • Turning Radius Over Tyres

        6341 mm

      • Turning Radius Over Bucket

        7264 mm

      Faq's

      Common Questions about Hyundai HL650I-V

      What is the Hyundai HL650I-V wheel loader price in India?

      The Hyundai HL650I-V wheel loader price in India ranges between ₹ 85-89 Lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

      Where can I buy the Hyundai HL650I-V wheel loader in India at the best price?

      You can buy the Hyundai HL650I-V wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Hyundai dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Hyundai HL650I-V price, compare dealer quotes, and enjoy expert assistance—all in one place.

      What is the engine power of the Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V wheel loader is powered by a Weichai WP8G231E671 diesel engine, delivering 226 HP (170 kW) @ 2200 rpm.

      What is the operating weight of the Hyundai HL650I-V wheel loader?

      The operating weight of the Hyundai HL650I-V wheel loader is approximately 17600 kg. The operating weight may vary slightly depending on specific configurations and attachments.

      What is the fuel tank capacity of the Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V wheel loader has a 285 litres diesel fuel tank, providing extended operation time without frequent refueling.

      What is the bucket capacity of the Hyundai HL630I-V wheel loader?

      The bucket capacity of the Hyundai HL630I-V is 3 cubic meters (m³).

      What is the dump height of the Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V wheel loader features a dump height of 3056 mm, ideal for precise material dumping on job sites.

      What is the warranty period of Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

      How many gears are available in the Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V wheel loader features a 4-wheel drive (4WD) system with a Countershaft Powershift, Mechanical Powershift Control. It offers 4 forward and 2 reverse gears, enabling efficient operation at speeds up to 35 km/h.

      What are the key applications and uses of the Hyundai HL650I-V wheel loader?

      The Hyundai HL650I-V is a medium-duty loader suited for construction and general material handling, offering strong lift capacity and good maneuverability on site.

      Where can I find spare parts for the Hyundai HL650I-V wheel loader?

      You can find genuine spare parts for the Hyundai HL650I-V wheeled loader at authorized Hyundai dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
