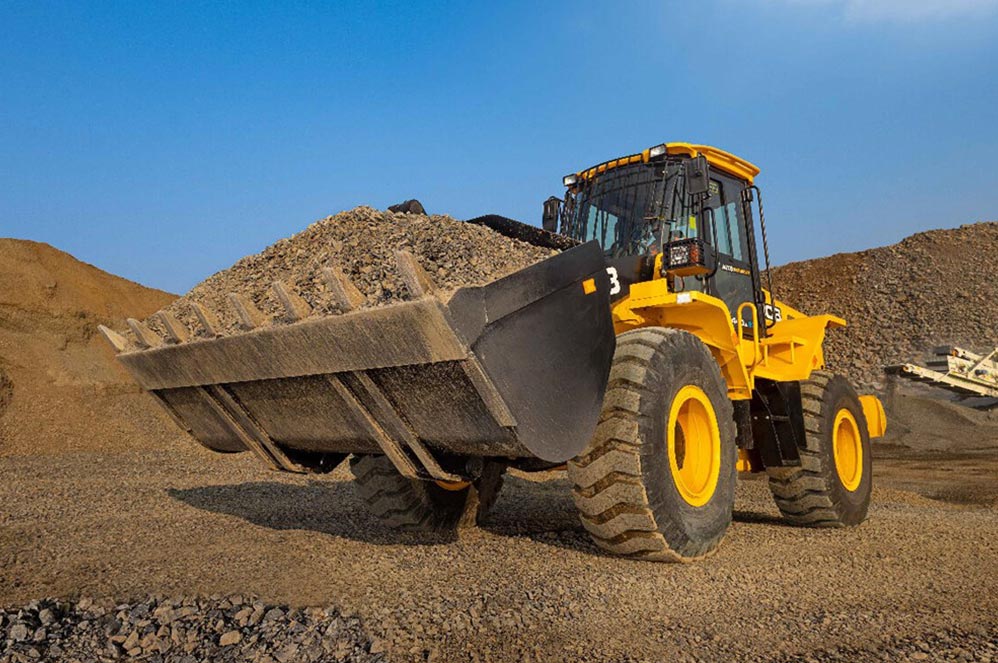

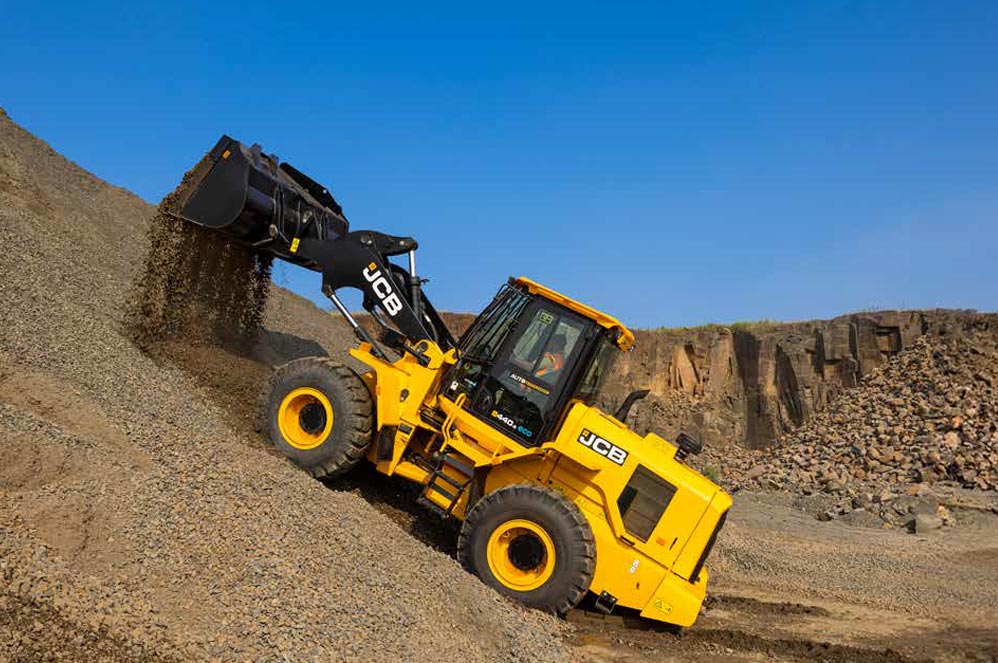

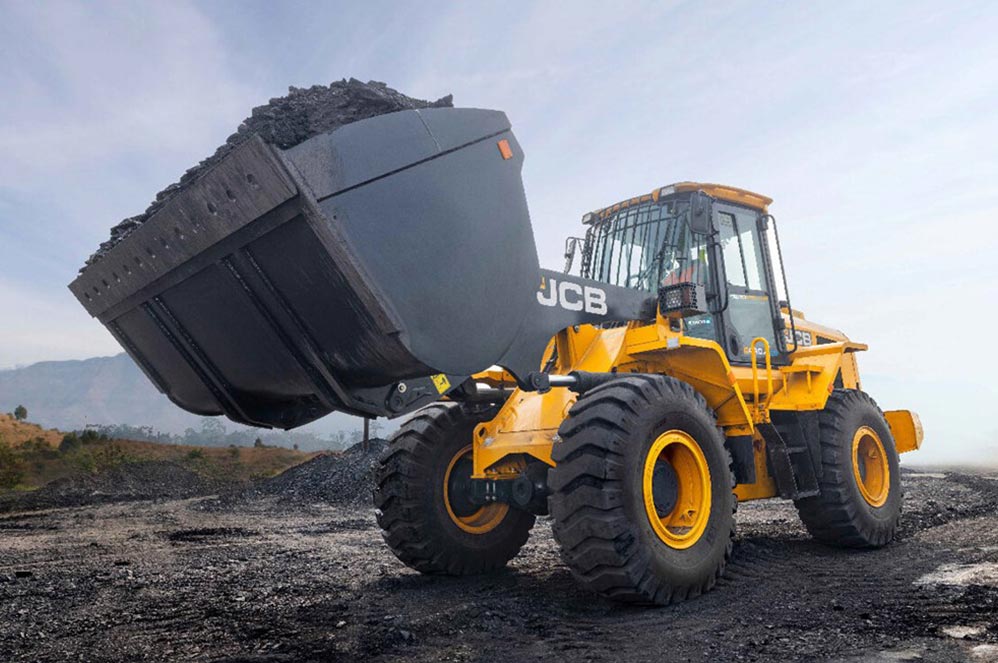

    JCB 440-5 Wheel Loader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      JCB

    • Type

      Small (8-15 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      JCB 150 HP

    • featIcon2 (1) alt
      Bucket

      2.5 m³

    • icon alt1
      Weight

      12480 kg

    • Fwd. Speed

      33 km/h

    • dumping height loader
      Dump Height

      2710 mm

    • tipping load
      Tipping Load

      7936 kg

    Quick Overview:

    Engineered for high performance, the JCB 440-5 Wheel Loader excels in heavy-duty Indian applications, ensuring durability and operator comfort.

    Connect With Us:

    Get the best price for the JCB 440-5 wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    JCB ecoMAX 448

    Max Torque

    600 Nm @ 1500 rpm

    Fuel Tank

    210 L

    Hydraulic System

    176 L/min

    grounding
    Min. Ground Clearance

    380 mm

    desi machines payload
    Payload

    3950 kg

    360 degree
    Steering Angle

    ±40°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    3000 mm

    Tyres

    17.5 x 25(20PR) E3/L3 (BKT/CEAT)

    down
    Max. Breakout Force

    130 kN

    Overall Length

    7580 mm

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    air-conditioner-alt
    AC Cabin

    Optional

    GPS Tracking
    GPS

    Standard

    Features

    Better Fuel Efficiency

    Better Fuel Efficiency

    • The JCB ECO Max 448- 4 cylinder engine is engineered to offer 10%* better efficiency on fuel costs while enhancing performance. With high torque at lower RPMs, it delivers impressive fuel efficiency while delivering optimal productivity.

    • Up to 10%* better fuel efficiency that gives you savings of 2.8* lakh per year in Standard mode with proven and reliable JCB 448 engine

    • Better payload capacity up to 8%* with 600 Nm torque for optimal performance

    • Switch between Standard and Power modes to match your needs - fuel savings or maximum productivity, it’s your choice.

    • Enjoy smoother operations with 4 forward and 3 reverse gears and clutch cut-off - less engine strain and better suitability for every task.

    Low and Ease of Maintenance

    Low and Ease of Maintenance

    • The JCB 440-5 Wheel Loader is built for long-lasting performance, saving you ₹4.5 lakhs* in 5 years on maintenance costs. With longer service intervals, it ensures that you spend more time working and less time on repairs.

    • Save better on maintenance costs every year, freeing up resources for other needs.

    • Hydraulic oil changes at 4000 hours and fuel filters at 1 000 hours - less hassle, more work done.

    • More productivity with fewer service stops, keeping your projects on track.

    Better Performance

    Better Performance

    • The JCB 440-5 Wheel Loader combines speed and power, ensuring faster job completion with its high power-to-weight ratio. Its limited-slip differential axles provide superior traction and dozing power, even in tough terrains. The hydraulic actuated wet disc brakes offer reliable stopping power, ensuring safety in demanding conditions.

    • Up to 6%* better productivity in Power mode

    • Experience quick accelerations with the high power-to-weight ratio, reducing your cycle times.

    • Limited-slip differential axles give you the traction needed for challenging work environments.

    • Hydraulic actuated wet disc brakes offer excellent stopping power for added confidence.

    Uptime and Reliability

    Uptime and Reliability

    • The JCB 440-5 Wheel Loader ensures maximum uptime and reliability. With a 3-stage fuel filtration system and robust electrical components, it keeps your engine in top condition for longer. Sourced from trusted suppliers, the high-quality parts are built to handle the toughest tasks.

    • Global Quality Standards ensuring your investment lasts

    • Fuel Efficiency with a 3-stage filtration system, saving you time and money

    • Built to Last with premium parts that keep you moving forward

    • Engineered for Tough Jobs so you can trust it on any site

    • Better uptime with remote diagnostics

    Better Monitoring & Service Support

    Better Monitoring & Service Support

    • With JCB’s LiveLink technology, monitoring your machine’s performance has never been easier. The LiveLink report provides key insights on daily fuel consumption, working hours, idle times, and power bands, ensuring you stay informed and efficient. The large LED display offers clear, real-time operational data, keeping everything in check at a glance.

    • LiveLink report for fuel consumption, working hours, and power bands

    • Better LED display with real-time machine operation data

    • Easy tracking of daily performance for optimal efficiency

    • The JCB 440-5 Wheel Loader ensures you're never alone on the job with its unmatched service support. Backed by JCB’s own engine and parts shared with the reliable backhoe loaders, you’re investing in a machine that’s built for durability and ease of maintenance.

    • Uses JCB’s own parts, ensuring compatibility and quick fixes.

    • 24x7 service call centre ready to support you, day or night.

    • With over 750+ facilities, you're never far from expert help.

    • Service engineers covering every taluka, bringing JCB’s world-class support straight to your doorstep.

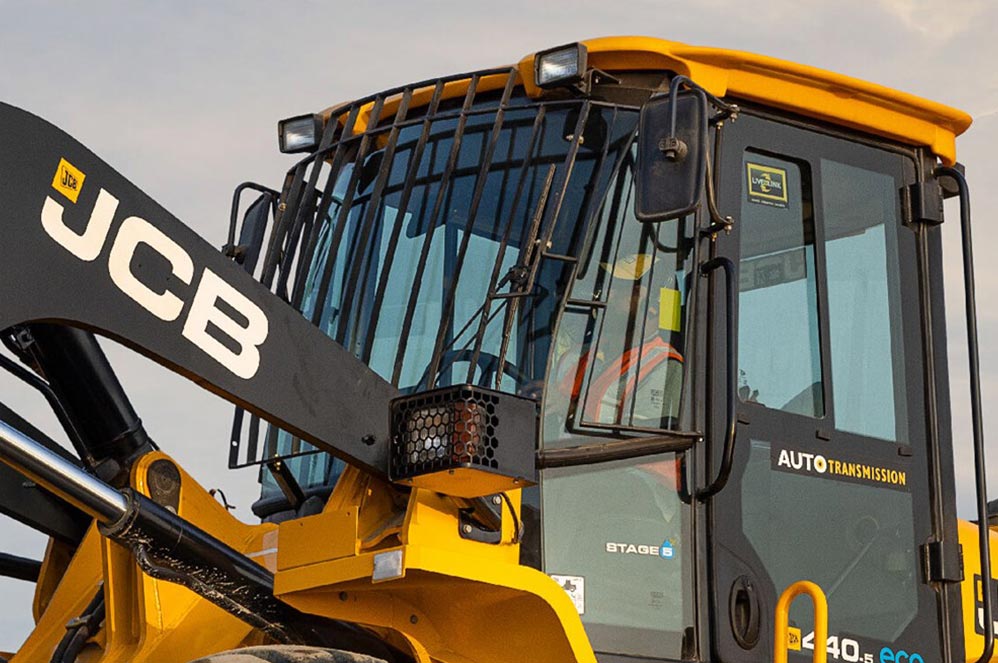

    Better Safety and Comfort

    Better Safety and Comfort

    • The JCB 440-5 Wheel Loader is designed for operator comfort, ensuring a smooth, productive workday even in challenging environments. The spacious cabin provides excellent visibility, while cushioned suspension seats and a powerful A/C system keep the operator comfortable. Low-effort joystick controls and premium cabin materials enhance the overall experience.

    • Standard ROPS and FOPS compliant cabin

    • Larger cabin for better visibility and comfort

    • Cushioned suspension seats for reduced fatigue

    • Powerful A/C for comfort in all weather conditions

    • Low-effort joystick for smooth, easy operation

    • High-quality cabin materials for a premium feel

    Better Fuel Efficiency

    • The JCB ECO Max 448- 4 cylinder engine is engineered to offer 10%* better efficiency on fuel costs while enhancing performance. With high torque at lower RPMs, it delivers impressive fuel efficiency while delivering optimal productivity.

    • Up to 10%* better fuel efficiency that gives you savings of 2.8* lakh per year in Standard mode with proven and reliable JCB 448 engine

    • Better payload capacity up to 8%* with 600 Nm torque for optimal performance

    • Switch between Standard and Power modes to match your needs - fuel savings or maximum productivity, it’s your choice.

    • Enjoy smoother operations with 4 forward and 3 reverse gears and clutch cut-off - less engine strain and better suitability for every task.

    Low and Ease of Maintenance

    • The JCB 440-5 Wheel Loader is built for long-lasting performance, saving you ₹4.5 lakhs* in 5 years on maintenance costs. With longer service intervals, it ensures that you spend more time working and less time on repairs.

    • Save better on maintenance costs every year, freeing up resources for other needs.

    • Hydraulic oil changes at 4000 hours and fuel filters at 1 000 hours - less hassle, more work done.

    • More productivity with fewer service stops, keeping your projects on track.

    Better Performance

    • The JCB 440-5 Wheel Loader combines speed and power, ensuring faster job completion with its high power-to-weight ratio. Its limited-slip differential axles provide superior traction and dozing power, even in tough terrains. The hydraulic actuated wet disc brakes offer reliable stopping power, ensuring safety in demanding conditions.

    • Up to 6%* better productivity in Power mode

    • Experience quick accelerations with the high power-to-weight ratio, reducing your cycle times.

    • Limited-slip differential axles give you the traction needed for challenging work environments.

    • Hydraulic actuated wet disc brakes offer excellent stopping power for added confidence.

    Uptime and Reliability

    • The JCB 440-5 Wheel Loader ensures maximum uptime and reliability. With a 3-stage fuel filtration system and robust electrical components, it keeps your engine in top condition for longer. Sourced from trusted suppliers, the high-quality parts are built to handle the toughest tasks.

    • Global Quality Standards ensuring your investment lasts

    • Fuel Efficiency with a 3-stage filtration system, saving you time and money

    • Built to Last with premium parts that keep you moving forward

    • Engineered for Tough Jobs so you can trust it on any site

    • Better uptime with remote diagnostics

    Better Monitoring & Service Support

    • With JCB’s LiveLink technology, monitoring your machine’s performance has never been easier. The LiveLink report provides key insights on daily fuel consumption, working hours, idle times, and power bands, ensuring you stay informed and efficient. The large LED display offers clear, real-time operational data, keeping everything in check at a glance.

    • LiveLink report for fuel consumption, working hours, and power bands

    • Better LED display with real-time machine operation data

    • Easy tracking of daily performance for optimal efficiency

    • The JCB 440-5 Wheel Loader ensures you're never alone on the job with its unmatched service support. Backed by JCB’s own engine and parts shared with the reliable backhoe loaders, you’re investing in a machine that’s built for durability and ease of maintenance.

    • Uses JCB’s own parts, ensuring compatibility and quick fixes.

    • 24x7 service call centre ready to support you, day or night.

    • With over 750+ facilities, you're never far from expert help.

    • Service engineers covering every taluka, bringing JCB’s world-class support straight to your doorstep.

    Better Safety and Comfort

    • The JCB 440-5 Wheel Loader is designed for operator comfort, ensuring a smooth, productive workday even in challenging environments. The spacious cabin provides excellent visibility, while cushioned suspension seats and a powerful A/C system keep the operator comfortable. Low-effort joystick controls and premium cabin materials enhance the overall experience.

    • Standard ROPS and FOPS compliant cabin

    • Larger cabin for better visibility and comfort

    • Cushioned suspension seats for reduced fatigue

    • Powerful A/C for comfort in all weather conditions

    • Low-effort joystick for smooth, easy operation

    • High-quality cabin materials for a premium feel

    Specifications

    Product specification of JCB 440-5 Wheel Loader

    ENGINE

    • Make

      JCB ecoMax 448

    • Type

      4 stroke, direct injection, Water cooled, 4 cylinder, Turbo charged, after cooler with after treatment system

    • Aspiration

      Water cooled, Turbo charged

    • Emission

      Stage 5

    • Max. Power

      150 HP (112 kW) @ 2200 rpm

    • Max Torque

      600 Nm @ 1500 rpm

    • Piston Displacement

      4.8 L

    • No. of Cylinders

      4 Cylinders

    • Battery

      2 x 12V / 110Ah

    • Alternator

      28V /100A

    POWER TRAIN

    • Transmission

      Fully Automatic Powershift Transmission

    • Drive Type

      4-wheel drive (4WD)

    • Torque Converter

      Single stage integral torque convertor.

    BRAKES

    • Service

      Hydraulic, wet disc brakes, Pedal-operated, providing braking to all four wheels

    • Parking

      Spring-applied, hydraulic-release (SAHR)

    STEERING SYSTEM

    • Type

      Articulated Power Steering

    • Steering Angle

      ±40°

    AXLE AND FINAL DRIVE

    • Front Axle Type

      Limited Slip Differential (LSD)

    • Rear Axle Type

      Limited Slip Differential (LSD)

    • Oscillation Angle

      ±12.5°

    SPEED

    • Top Forward Speed

      33 km/h

    • Top Reverse Speed

      23 km/h

    HYDRAULIC SYSTEM

    • System Type

      Load-Sensing, Closed Center System

    • Pump Type

      Variable Displacement Axial Piston Pump

    • Max. Pump Flow

      176 L/min

    • System Pressure

      280 bar

    SERVICE REFILL CAPACITIES

    • Fuel Tank

      210 L

    • Hydraulic System

      190 L

    • Engine Oil

      14 L

    • Cooling System

      29 L

    • Rear Axle Oil

      26 L

    • Front Axle Oil

      26 L

    • Hydraulic Tank

      NA

    • Transmission Oil

      36 L

    • DEF Tank

      23.1 L

    DIMENSIONS

    • Overall Length With Bucket

      7580 mm

    • Wheel Base

      3000 mm

    • Height Over Cab

      3258 mm

    • Height Over Exhaust

      2785 mm

    • Min. Ground Clearance

      380 mm

    • Width Over Tyres

      2400 mm

    • Wheel Tread

      1955 mm

    • Tyre Size

      17.5 x 25(20PR) E3/L3 (BKT/CEAT)

    PERFORMANCE

    • Bucket Capacity

      2.5 m³

    • Bucket Width

      2732 mm

    • Payload

      3950 kg

    • Tipping Load Straight

      9160 kg

    • Tipping Load Full Turn

      7936 kg

    • Max. Breakout Force

      130 kN

    • Operating Weight

      12480 kg

    • Maximum Dump Angle

      43.6°

    • Bucket Roll Back Angle Full Height

      52.0°

    • Bucket Roll Back At Carry

      42.7°

    • Bucket Roll Back At Ground Level

      38.7°

    • Dumping Height, Fully Raised

      2710 mm

    • Dumping Reach, Fully Raised

      1320 mm

    • Max. Hinge Pin Height

      3827 mm

    • Max. Digging Depth

      88 mm

    • Turning Radius Over Tyres

      5320 mm

    • Turning Radius Over Bucket

      5987 mm

    Frequently Asked Question

    01. What is the JCB 440-5 wheel loader price in India?

    Ans.

    The JCB 440-5 wheel loader price in India is available on request. To get the latest on-road price of the JCB 440-5 based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

    02. Where can I buy the JCB 440-5 wheel loader in India at the best price?

    Ans.

    You can buy the JCB 440-5 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized JCB dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest JCB 440-5 price, compare dealer quotes, and enjoy expert assistance—all in one place.

    03. What is the engine power of the JCB 440-5 wheel loader?

    Ans.

    The JCB 440-5 wheel loader is powered by a JCB ecoMAX 448 diesel engine, delivering 150 HP (112 kW) @ 2200 rpm.

    04. What is the operating weight of the JCB 440-5 wheel loader?

    Ans.

    The operating weight of the JCB 440-5 wheel loader is approximately 12480 kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What is the fuel tank capacity of the JCB 440-5 wheel loader?

    Ans.

    The JCB 440-5 wheel loader has a 210 litres diesel fuel tank, providing extended operation time without frequent refueling.

    06. What is the bucket capacity of the JCB 440-5 wheel loader?

    Ans.

    The bucket capacity of the JCB 440-5 is 2.5 cubic meters (m³).

    07. What is the dump height of the JCB 440-5 wheel loader?

    Ans.

    The JCB 440-5 wheel loader offers a dump height of 2710 mm, supporting smooth and precise material dumping on site.

    08. What is the warranty period of JCB 440-5 wheel loader?

    Ans.

    The JCB 440-5 wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    09. How many gears are available in the JCB 440-5 wheel loader?

    Ans.

    The JCB 440-5 wheel loader features a 4-wheel drive (4WD) system with a Fully Automatic Powershift Transmission. It offers 4 forward and 3 reverse gears, enabling efficient operation at speeds up to 33 km/h.

    10. What are the key applications and uses of the JCB 440-5 wheel loader?

    Ans.

    This JCB 440-5 model suits heavy construction and mining projects, providing smooth operation for loading, transporting bulk materials, site clearance, and versatile earthmoving tasks with strong power and durability.

    11. Where can I find spare parts for the JCB 440-5 wheel loader?

    Ans.

    You can find genuine spare parts for the JCB 440-5 wheeled loader at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.

    Popular Comparisons with JCB 440-5

    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    Hindustan 2021E Wheel Loader price
    Caterpillar

    Hindustan 2021E

    4.5 rating
    ₹ 51-53 Lakhs
    11637 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    L&T 9020 SX Wheel Loader Price
    L&T Komatsu

    L&T 9020 SX

    4.5 rating
    ₹ 54-56 Lakhs
    11400 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    L&T 9020 Wheel Loader price
    L&T Komatsu

    L&T 9020

    4.5 rating
    ₹ 53-55 Lakhs
    11500 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    Hyundai HL930I Wheel Loader Price
    Hyundai

    Hyundai HL930I

    4.5 rating
    ₹ 48-50 Lakhs
    10600 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    XCMG ZL33FV Wheel Loader Price
    XCMG

    XCMG ZL33FV

    4.5 rating
    ₹ 53-55 Lakhs
    10600 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    Liugong 838H MAX Wheel Loader Price
    LiuGong

    Liugong 838H MAX

    4.5 rating
    ₹ 53-55 Lakhs
    12210 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    Liugong 836N Wheel Loader Price
    LiuGong

    Liugong 836N

    4.5 rating
    ₹ 54-56 Lakhs
    11660 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    desi machines tata hitachi tl340h prime wheel loader featured
    Tata Hitachi

    Tata Hitachi TL340H Prime

    4.5 rating
    ₹ 47-49 Lakhs
    10980 kg
    VS
    Jcb 440 5 wheel loader price | Front End loader
    JCB

    JCB 440-5

    4.5 rating
    Price Available Soon
    12480 kg
    Jcb 433 5 wheel loader price in india | front End Loader
    JCB

    JCB 433-5

    4.5 rating
    Price Available Soon
    10835 kg

    Are you interested in buying JCB 440-5 Wheel Loader

    Note: Uncheck if you're not interested in finance or insurance deals.

      About JCB

      JCB India, part of the UK based JCB (Joseph Cyril Bamford) Group, is a prominent manufacturer of construction and earthmoving equipment. Established in 1979, it operates five manufacturing plants in India that utilize cutting-edge technologies. Known for its popular backhoe loaders, JCB India also manufactures and delivers excavators, compactors, and skid-steer loaders, caring for infrastructure, construction, and mining sectors. The organization underscores advancement, quality, and sustainability, which helps in India’s development and export, contributing essentially to India’s turn of events and products. It upholds clients with a broad dealer network across the country.

      Product Portfolio: Excavators, Backhoe Loaders, Wheel Loaders

      Related Blogs

      desi machines wheel loader vs backhoe

      Wheel Loader vs Backhoe Loader: Understanding the Key Differences

      Summary: This blog compares backhoe loaders and wheel loaders, detailing...

      Jun 17, 2025
      Why Genuine Exacavator Parts Matter (12)

      Wheel Loaders: Benefits, Applications, Features, Brands, Models and Costs

      Summary: This detailed blog explores the benefits, applications, and pricing...

      Jun 10, 2025
      Why Genuine Exacavator Parts Matter (11)

      The Wheel Loader: Everything You Need To Know

      Summary: This blog covers everything about wheel loaders, a vital...

      Jun 10, 2025
      Jcb 440 5 wheel loader price | Front End loader
      • JCB 440-5
      • Price:

        Price Available Soon

      © 2025 Desi Machines All rights reserved.

      Designed & Developed by PromotEdge

      Help Us Reach You!

        Your Captcha*

        captcha

        Let's get started

        Disclaimer

        Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

        Compare

          Kindly fill out the below form. Our representative will get in touch with you
