Tata Hitachi ZW 310-5A Wheel Loader

Name: Tata Hitachi ZW 310-5A Wheel Loader
Brand: Tata Hitachi
Rating: 4.5 (69 reviews)

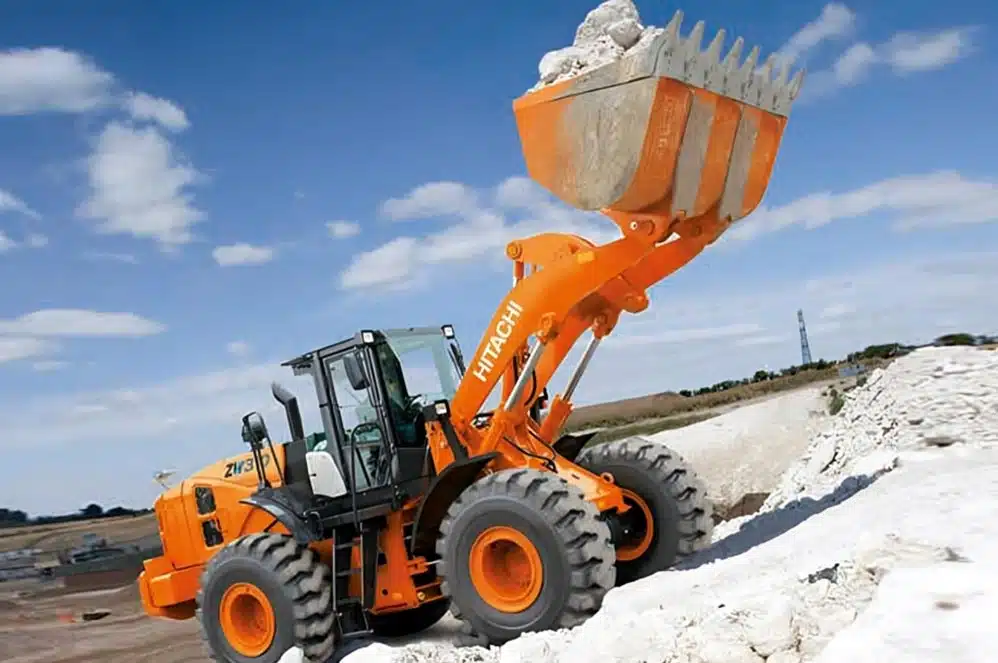

desi machines tata hitachi zw310 5a wheel loader featured

desi machines tata hitachi zw310 5a wheel loader 1

desi machines tata hitachi zw310 5a wheel loader 2

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Tata Hitachi
Type
Medium (15-30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Cummins 320 HP
Bucket
3.4 - 4.5 m³
Weight
22540 kg
Fwd. Speed
34.7 km/h
Dump Height
3095 mm
Tipping Load
14910 kg

Quick Overview:

Built for durability, the Tata Hitachi ZW 310-5A Wheel Loader performs efficiently in India’s diverse terrains and heavy-duty applications.

Connect With Us:

Get the best price for the Tata Hitachi ZW 310-5A wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cummins GSM1 1

Max Torque

1478 Nm @ 1000 - 1400 rpm

Fuel Tank

370 L

Hydraulic System

323 L/min @ 2000 rpm

Min. Ground Clearance

505 mm

Payload

7000 kg

Steering Angle

±37°

Drive Type

4-wheel drive (4WD)

Wheelbase

3450 mm

Tyres

26.5-25-16PR (L3)

Max. Breakout Force

184 kN

Overall Length

8790 mm

Warranty

1 Yr. / 2000 hr.

AC Cabin

Standard

GPS

Standard

Features

Powerful and Efficient

2 Ways to Activate Power Mode – Power mode can be activated by 2 ways and operators can choose either switch depending on the site required.
Active Engine Control System – It helps in achieving economical operation. Detects movements throughout the machine and adjusts engine speed accordingly for smooth and fuel-efficient operation.
Parallel Tandem for Smooth Operation – It carries out simultaneous operations. Boosts the efficiency with smooth loading and excavation.
ECO Mark Indicator for Fuel – Efficient Operation – This function encourages operators to utilize fuel efficiently.
Extra Power with power mode – Standard mode is preselected and sufficient for ordinary work. On the other hand, the power mode gives extra power when needed.

Enhanced Controllability

New Levers for Easy Operation – New type of lever suits both fingertip control and grip control.
Speed-Responding Clutch Cut-Off System – Adjustable clutch cut-off timing for smooth and efficient truck loading.
Lift Arm Restriction Valve – Eliminates shaking of the machine to improve operator comfort and avoid load spills.
New transmission – New transmission comes standard with the Auto mode* that can automatically select an optimum gear according to the load, thereby reducing fuel consumption.

Operator-Friendly

Bi-Level Auto Air Conditioner – Bi-level control function: warming at foot space and cooling at overhead.
Panoramic Cab – Near all-round visibility through pillar-less bonded windows, enhancing safety. Adjustable seat and steering wheel to suit the operator, keeping the operator in an optimum position.
Tiltable Steering Wheel – Tiltable steering wheel for comfortable operation.
Comfort-Designed Suspension Seat – The mechanical suspension seat absorbs shocks and vibration to reduce operator’s physical stress.
AM/FM Radio with 2 Speakers – Auto-tuning feature and 2 speakers stereo system provides excellent sound quality.

Simplified Maintenance and Durability

Robust Frame – Strengthened main frame and its joins. Optimally determines frame plate thicknesses.
Automatic Reversible Cooling Fan to Reduce Dust Deposits (Optional) – Keeps the radiator clean at all times. It automatically self-reverses every 30 minutes to blow dust off the radiator.
Wide Fin Pitch Radiator (Optional) – Advantageous in dusty environments, avoids dust clogging and overheating.

Powerful and Efficient

2 Ways to Activate Power Mode – Power mode can be activated by 2 ways and operators can choose either switch depending on the site required.
Active Engine Control System – It helps in achieving economical operation. Detects movements throughout the machine and adjusts engine speed accordingly for smooth and fuel-efficient operation.
Parallel Tandem for Smooth Operation – It carries out simultaneous operations. Boosts the efficiency with smooth loading and excavation.
ECO Mark Indicator for Fuel – Efficient Operation – This function encourages operators to utilize fuel efficiently.
Extra Power with power mode – Standard mode is preselected and sufficient for ordinary work. On the other hand, the power mode gives extra power when needed.

Enhanced Controllability

New Levers for Easy Operation – New type of lever suits both fingertip control and grip control.
Speed-Responding Clutch Cut-Off System – Adjustable clutch cut-off timing for smooth and efficient truck loading.
Lift Arm Restriction Valve – Eliminates shaking of the machine to improve operator comfort and avoid load spills.
New transmission – New transmission comes standard with the Auto mode* that can automatically select an optimum gear according to the load, thereby reducing fuel consumption.

Operator-Friendly

Bi-Level Auto Air Conditioner – Bi-level control function: warming at foot space and cooling at overhead.
Panoramic Cab – Near all-round visibility through pillar-less bonded windows, enhancing safety. Adjustable seat and steering wheel to suit the operator, keeping the operator in an optimum position.
Tiltable Steering Wheel – Tiltable steering wheel for comfortable operation.
Comfort-Designed Suspension Seat – The mechanical suspension seat absorbs shocks and vibration to reduce operator’s physical stress.
AM/FM Radio with 2 Speakers – Auto-tuning feature and 2 speakers stereo system provides excellent sound quality.

Simplified Maintenance and Durability

Robust Frame – Strengthened main frame and its joins. Optimally determines frame plate thicknesses.
Automatic Reversible Cooling Fan to Reduce Dust Deposits (Optional) – Keeps the radiator clean at all times. It automatically self-reverses every 30 minutes to blow dust off the radiator.
Wide Fin Pitch Radiator (Optional) – Advantageous in dusty environments, avoids dust clogging and overheating.

Specifications

Product specification of Tata Hitachi ZW 310-5A Wheel Loader

ENGINE

Make

Cummins GSM1 1
Type

4-cycle, water-cooked, direct Injection,
Aspiration

Turbocharged and intercooled
Emission

U.S. EPA Tier 3, CARB Tier 3, and EU Stage IIIA
Max. Power

320 HP (239 (kW) @ 1800 rpm
Max Torque

1478 Nm @ 1000 - 1400 rpm
Piston Displacement

10.82 L
No. of Cylinders

6 Cylinders
Battery

2 x 12V / 120 Ah
Alternator

NA

POWER TRAIN

Transmission

Countershaft Powershift Transmission
Drive Type

4-wheel drive (4WD)
Torque Converter

Three element, single stage, single phase

BRAKES

Service

Inboard mounted fully hydraulic 4 wheel wet disc brake. Front & rear independent brake circuit
Parking

Spiing applied, hydrauically released, located in transmission

STEERING SYSTEM

Type

Articulated Frame Steering
Steering Angle

±37°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed to the front frame
Rear Axle Type

Trunnion support
Oscillation Angle

±10°

SPEED

Top Forward Speed

34.7 km/h
Top Reverse Speed

34.7 km/h

HYDRAULIC SYSTEM

System Type

Load sensing closed center
Pump Type

Variable displacement axial piston pump
Max. Pump Flow

323 L/min @ 2000 rpm
System Pressure

294 bar

SERVICE REFILL CAPACITIES

Fuel Tank

370 L
Hydraulic System

NA
Engine Oil

34 L
Cooling System

40 L
Rear Axle Oil

48 L
Front Axle Oil

48 L
Hydraulic Tank

123 L
Transmission Oil

52 L
DEF Tank

NA

DIMENSIONS

Overall Length With Bucket

8790 mm
Wheel Base

3450 mm
Height Over Cab

3470 mm
Height Over Exhaust

NA
Min. Ground Clearance

505 mm
Width Over Tyres

2930 mm
Wheel Tread

2230 mm
Tyre Size

26.5-25-16PR (L3)

PERFORMANCE

Bucket Capacity

3.4 - 4.5 m³
Bucket Width

3100 mm
Payload

7000 kg
Tipping Load Straight

17090 kg
Tipping Load Full Turn

14910 kg
Max. Breakout Force

184 kN
Operating Weight

22540 kg
Maximum Dump Angle

NA
Bucket Roll Back Angle Full Height

NA
Bucket Roll Back At Carry

50°
Bucket Roll Back At Ground Level

NA
Dumping Height, Fully Raised

3095 mm
Dumping Reach, Fully Raised

1215 mm
Max. Hinge Pin Height

4410 mm
Max. Digging Depth

95 mm
Turning Radius Over Tyres

6270 mm
Turning Radius Over Bucket

NA

Frequently Asked Question

01. What is the Tata Hitachi ZW 310-5A wheel loader price in India?

Ans.

The Tata Hitachi ZW 310-5A wheel loader price in India is available on request. To get the latest on-road price of the Tata Hitachi ZW 310-5A based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Tata Hitachi ZW 310-5A wheel loader in India at the best price?

Ans.

You can buy the Tata Hitachi ZW 310-5A wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Tata dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Tata Hitachi ZW 310-5A price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The Tata Hitachi ZW 310-5A wheel loader is powered by a Cummins GSM1 1 diesel engine, delivering 320 HP (239 kW) @ 1800 rpm.

04. What is the operating weight of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The operating weight of the Tata Hitachi ZW 310-5A wheel loader is approximately 22540 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The Tata Hitachi ZW 310-5A wheel loader has a 370 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The bucket capacity of the Tata Hitachi ZW 310-5A is 3.4 – 4.5 cubic meters (m³).

07. What is the dump height of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The Tata Hitachi ZW 310-5A wheel loader has a dump height of 3095 mm, offering excellent reach for stockpiling and transport.

08. What is the warranty period of Tata Hitachi ZW 310-5A wheel loader?

Ans.

The Tata Hitachi ZW 310-5A wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Tata Hitachi ZW 310-5A wheel loader?

Ans.

The Tata Hitachi ZW 310-5A wheel loader features a 4-wheel drive (4WD) system with a Countershaft Powershift Transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 34.7 km/h.

10. What are the key applications and uses of the Tata Hitachi ZW 310-5A wheel loader?

Ans.

Suitable for medium to large-scale projects, the Tata Hitachi ZW 310-5A offers efficient material handling, loading, and transport with reliable power and smooth operation for construction and mining industries.

11. Where can I find spare parts for the Tata Hitachi ZW 310-5A wheel loader?

Ans.

You can find genuine spare parts for the Tata Hitachi ZW 310-5A wheeled loader at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
