    XCMG ZL33FV Wheel Loader

    XCMG ZL33FV Wheel Loader Price

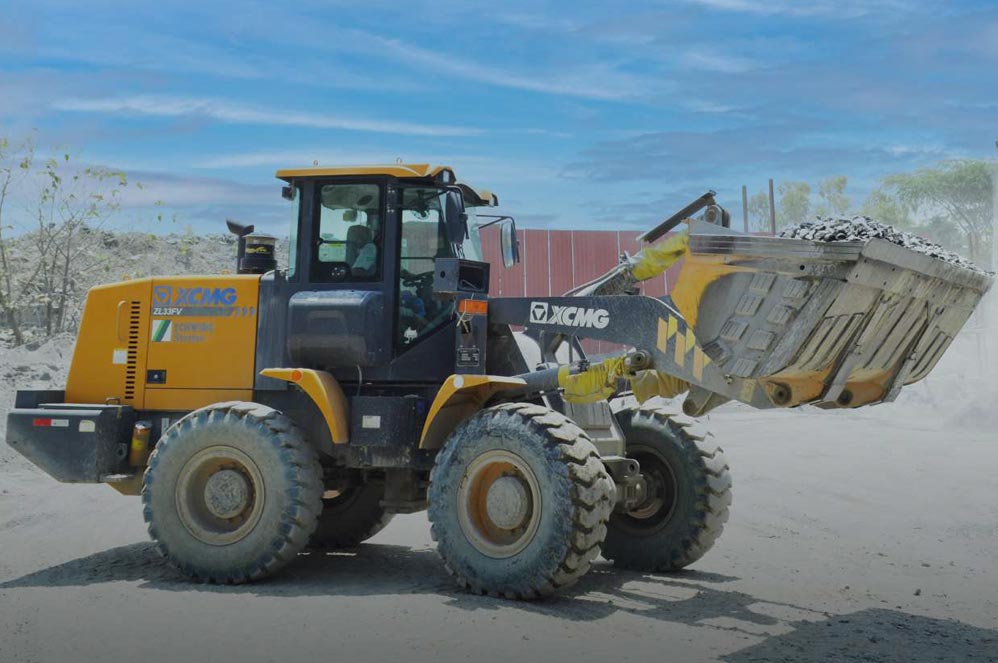

    desi machines xcmg schwing stetter zl33fv wheeled loader 1

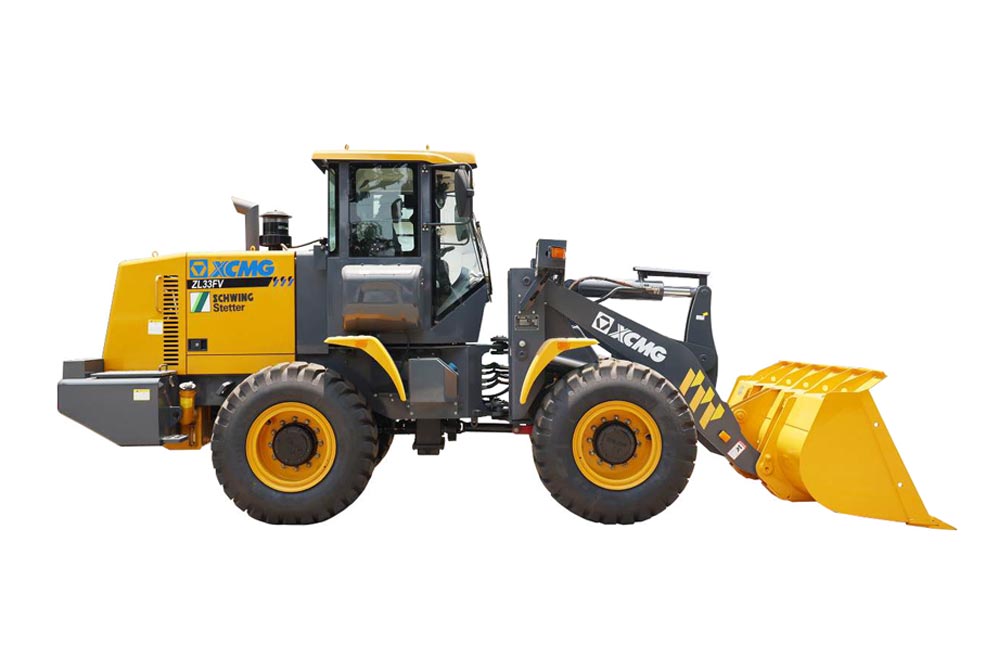

    desi machines xcmg schwing stetter zl33fv wheeled loader 2

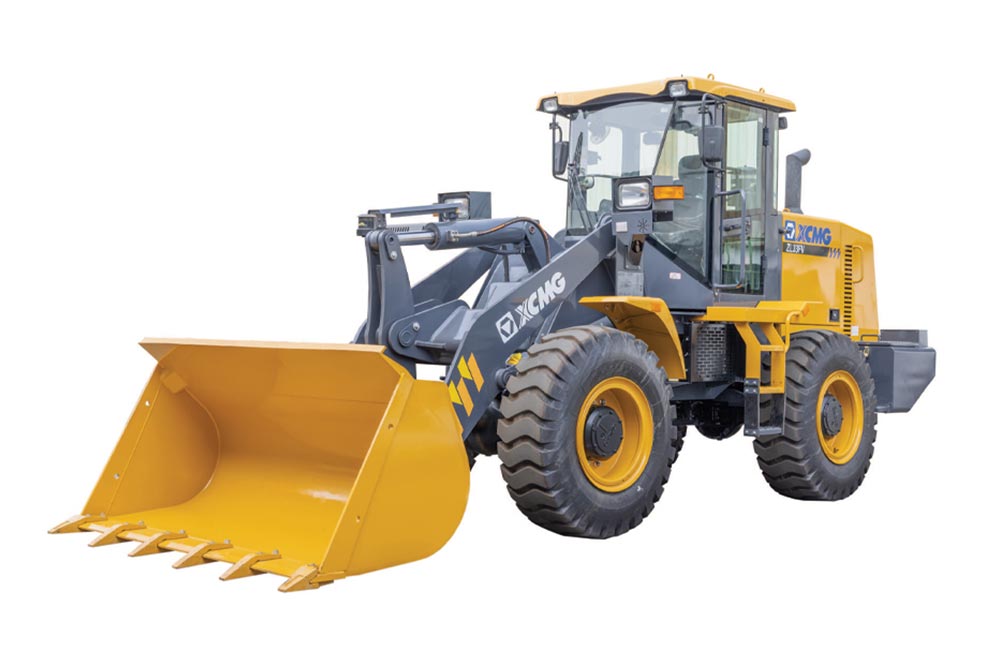

    desi machines xcmg schwing stetter zl33fv wheeled loader 3
    desi machines xcmg schwing stetter zl33fv wheeled loader 1
    desi machines xcmg schwing stetter zl33fv wheeled loader 2
    desi machines xcmg schwing stetter zl33fv wheeled loader 3

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      XCMG

    • Type

      Small (8-15 Ton)

    • Operating Cost

      ₹ 53-55 Lakhs

    • Ex-Showroom Price

      ₹ 53-55 Lakhs

    • Engine

      Weichai 133 HP

    • featIcon2 (1) alt
      Bucket

      1.8 - 3.1 m³

    • icon alt1
      Weight

      10600 kg

    • Fwd. Speed

      40 km/h

    • dumping height loader
      Dump Height

      2850 mm

    • tipping load
      Tipping Load

      6000 kg

    Quick Overview:

    The XCMG ZL33FV Wheel Loader delivers exceptional performance in Indian agricultural and construction sectors, thanks to its advanced engineering.

    Connect With Us:

    Get the best price for the XCMG ZL33FV wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Weichai WP4.6NG135E502

    Max Torque

    610 Nm @ 1400-1600 rpm

    Fuel Tank

    170 L

    Hydraulic System

    NA

    grounding
    Min. Ground Clearance

    400 mm

    desi machines payload
    Payload

    3300 kg

    360 degree
    Steering Angle

    ±35°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    2660 mm

    Tyres

    17.5 - 25 12 PR

    down
    Max. Breakout Force

    130 kN

    Overall Length

    7150 mm

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Powerful Performance

    Powerful Performance

    • Fuel Efficient Weichai Engine (CEV Stage IV)

    • High Torque for Maximum Productivity

    • Extreme Breakout Force for Best Fill Factor

    Impeccable Power

    Impeccable Power

    • 10% more Payload for high Productivity

    • Wide Range of Buckets for all your Job needs

    • Carry Heavy Loads with Ease

    Ease of Maintenance

    Ease of Maintenance

    • Large Opening angle of side doors for Easy Accessibility

    • Fast Daily Maintenance Saves Time

    Reliable Hydraulics

    Reliable Hydraulics

    • Renowned Hydraulic Components for Better Life

    • Smart Hydraulics ensures Energy Saving

    • Fast and Short Cycle time for better Productivity

    Comfortable Operator Cabin

    Comfortable Operator Cabin

    • Spacious and Premium cabin

    • Ergonomically designed Operator seat for Max Comfort

    • HVAC cabin suitable for Comfortable Long Working Hours

    • ROPS/FOPS* ensure Operators Safety

    Powerful Performance

    • Fuel Efficient Weichai Engine (CEV Stage IV)

    • High Torque for Maximum Productivity

    • Extreme Breakout Force for Best Fill Factor

    Impeccable Power

    • 10% more Payload for high Productivity

    • Wide Range of Buckets for all your Job needs

    • Carry Heavy Loads with Ease

    Ease of Maintenance

    • Large Opening angle of side doors for Easy Accessibility

    • Fast Daily Maintenance Saves Time

    Reliable Hydraulics

    • Renowned Hydraulic Components for Better Life

    • Smart Hydraulics ensures Energy Saving

    • Fast and Short Cycle time for better Productivity

    Comfortable Operator Cabin

    • Spacious and Premium cabin

    • Ergonomically designed Operator seat for Max Comfort

    • HVAC cabin suitable for Comfortable Long Working Hours

    • ROPS/FOPS* ensure Operators Safety

    Specifications

    Product specification of XCMG ZL33FV Wheel Loader

    ENGINE

    • Make

      Weichai WP4.6NG135E502

    • Type

      NA

    • Aspiration

      Turbocharged

    • Emission

      CEV Stage IV

    • Max. Power

      133 HP (99 kW) @ 2200 rpm

    • Max Torque

      610 Nm @ 1400-1600 rpm

    • Piston Displacement

      4.58 L

    • No. of Cylinders

      4 Cylinders

    • Battery

      NA

    • Alternator

      NA

    POWER TRAIN

    • Transmission

      Powershift Transmission

    • Drive Type

      4-wheel drive (4WD)

    • Torque Converter

      Single-stage, three-element hydraulic torque converter

    BRAKES

    • Service

      Disc Caliper, Air Over Hydraulic

    • Parking

      Drum Brake, Mechnaical

    STEERING SYSTEM

    • Type

      Hydrostatic Articulated Steering

    • Steering Angle

      ±35°

    AXLE AND FINAL DRIVE

    • Front Axle Type

      Fixed

    • Rear Axle Type

      Oscillating

    • Oscillation Angle

      ±12°

    SPEED

    • Top Forward Speed

      40 km/h

    • Top Reverse Speed

      30 km/h

    HYDRAULIC SYSTEM

    • System Type

      Open-center hydraulic system

    • Pump Type

      Gear Pump

    • Max. Pump Flow

      NA

    • System Pressure

      160 bar

    SERVICE REFILL CAPACITIES

    • Fuel Tank

      170 L

    • Hydraulic System

      NA

    • Engine Oil

      12.1 L

    • Cooling System

      30 L

    • Rear Axle Oil

      16 L

    • Front Axle Oil

      16 L

    • Hydraulic Tank

      170 L

    • Transmission Oil

      38 L

    • DEF Tank

      NA

    DIMENSIONS

    • Overall Length With Bucket

      7150 mm

    • Wheel Base

      2660 mm

    • Height Over Cab

      NA

    • Height Over Exhaust

      NA

    • Min. Ground Clearance

      400 mm

    • Width Over Tyres

      2300 mm

    • Wheel Tread

      NA

    • Tyre Size

      17.5 - 25 12 PR

    PERFORMANCE

    • Bucket Capacity

      1.8 - 3.1 m³

    • Bucket Width

      NA

    • Payload

      3300 kg

    • Tipping Load Straight

      6500 kg

    • Tipping Load Full Turn

      6000 kg

    • Max. Breakout Force

      130 kN

    • Operating Weight

      10600 kg

    • Maximum Dump Angle

      45°

    • Bucket Roll Back Angle Full Height

      53.2°

    • Bucket Roll Back At Carry

      46°

    • Bucket Roll Back At Ground Level

      43°

    • Dumping Height, Fully Raised

      2850 mm

    • Dumping Reach, Fully Raised

      1010 mm

    • Max. Hinge Pin Height

      3840 mm

    • Max. Digging Depth

      40 mm

    • Turning Radius Over Tyres

      5385 mm

    • Turning Radius Over Bucket

      6000 mm

    Frequently Asked Question

    01. What is the XCMG ZL33FV wheel loader price in India?

    Ans.

    The XCMG ZL33FV wheel loader price in India ranges between ₹ 53-55 Lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

    02. Where can I buy the XCMG ZL33FV wheel loader in India at the best price?

    Ans.

    You can buy the XCMG ZL33FV wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized XCMG dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest XCMG ZL33FV price, compare dealer quotes, and enjoy expert assistance—all in one place.

    03. What is the engine power of the XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV wheel loader is powered by a Weichai WP4.6NG135E502 diesel engine, delivering 133 HP (99 kW) @ 2200 rpm.

    04. What is the operating weight of the XCMG ZL33FV wheel loader?

    Ans.

    The operating weight of the XCMG ZL33FV wheel loader is approximately 10600 kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What is the fuel tank capacity of the XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV wheel loader has a 170 litres diesel fuel tank, providing extended operation time without frequent refueling.

    06. What is the bucket capacity of the XCMG ZL33FV wheel loader?

    Ans.

    The bucket capacity of the XCMG ZL33FV is 1.8 – 3.1 cubic meters (m³).

    07. What is the dump height of the XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV wheel loader offers a dump height of 2850 mm, providing reliable unloading performance in construction.

    08. What is the warranty period of XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    09. How many gears are available in the XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV wheel loader features a 4-wheel drive (4WD) system with a Powershift Transmission. It offers 4 forward and 2 reverse gears, enabling efficient operation at speeds up to 40 km/h.

    10. What are the key applications and uses of the XCMG ZL33FV wheel loader?

    Ans.

    The XCMG ZL33FV is a versatile loader widely used in construction and material handling, offering reliable performance, easy maintenance, and good fuel efficiency for various earthmoving tasks.

    11. Where can I find spare parts for the XCMG ZL33FV wheel loader?

    Ans.

    You can find genuine spare parts for the XCMG ZL33FV wheeled loader at authorized XCMG dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
