CASE 770 EX Plus Backhoe Loader

Name: CASE 770 EX Plus Backhoe Loader
Brand: Case
Price: 2700000 INR
Rating: 4.1 (56 reviews)

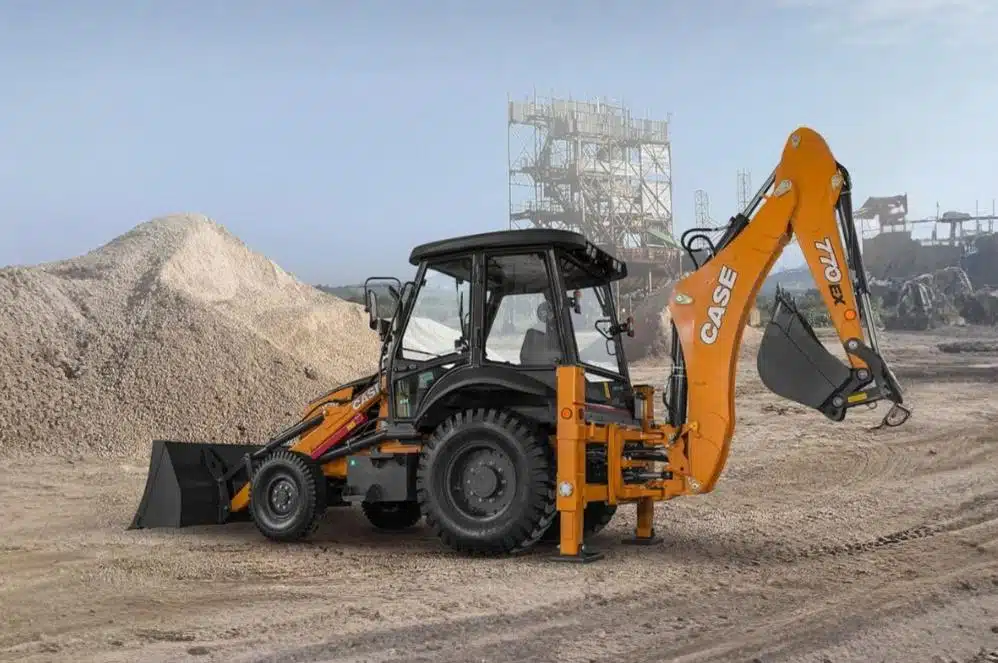

desi-machines-backhoe-loader-case-ex-plus-featured

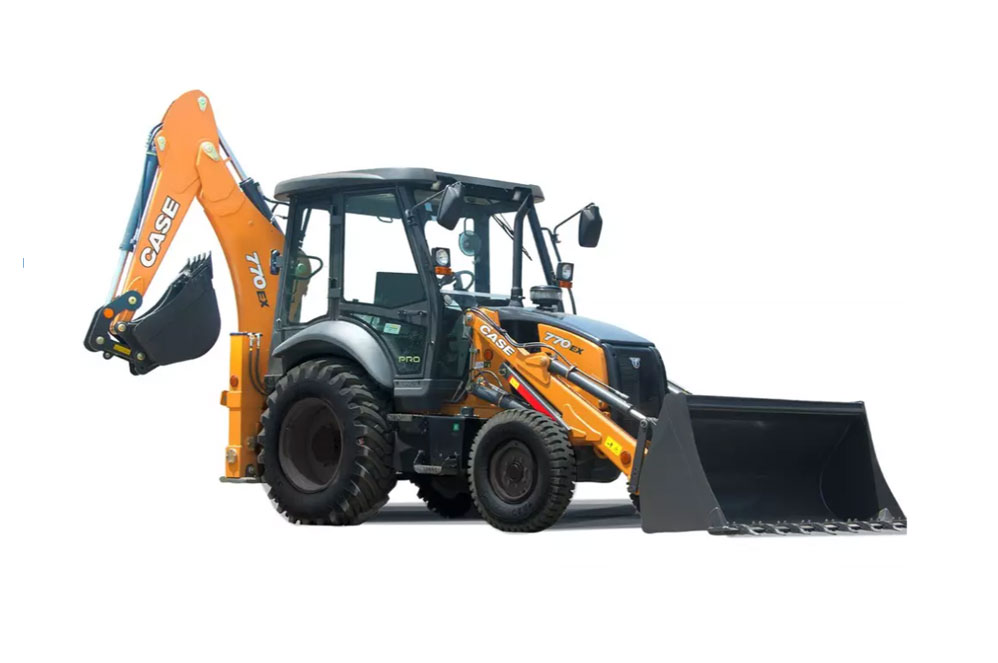

desi-machines-backhoe-loader-case-ex-plus-1

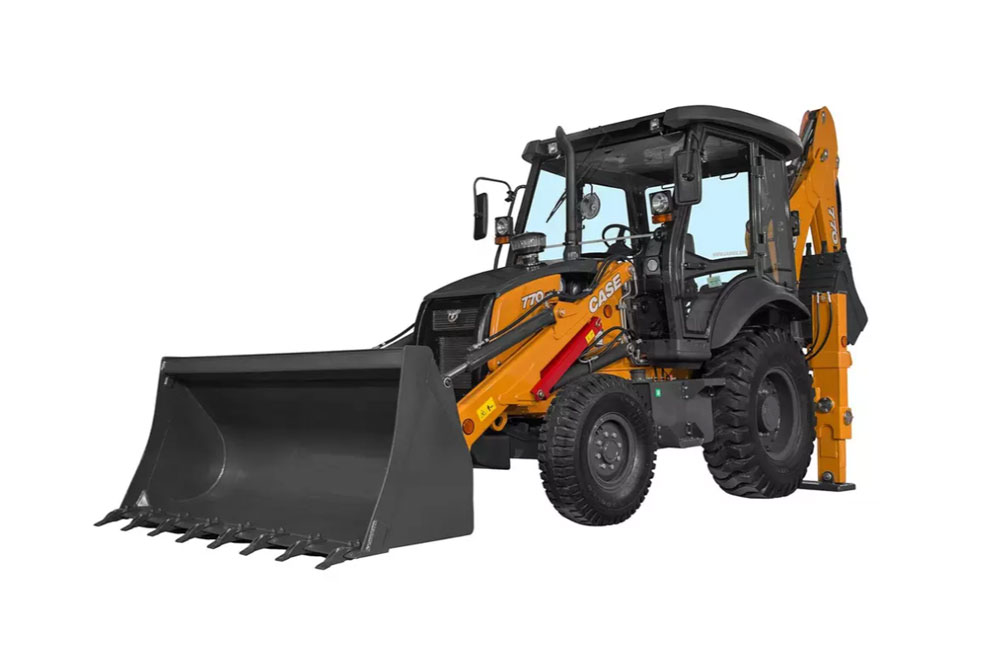

desi-machines-backhoe-loader-case-ex-plus-2

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Case
Type
2WD/4WD
Operating Cost
₹ 27-32 Lakhs
Ex-Showroom Price
₹ 27-32 Lakhs

Engine
Ashok Leyland 74 HP
Bucket
0.30 m³
Shovel
1.1 m³
Digging Depth
4700 mm
Dump Height
2730 mm
Weight
7955 Kg

Quick Overview:

The CASE 770 EX Plus backhoe loader ensures higher lifting capacity, improved breakout force, and exceptional efficiency for tough job site conditions.

Connect With Us:

Looking for the best price on a CASE 770 EX Plus backhoe loader? Connect with authorized dealers today for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Ashok Leyland H4C4E7422*W

Fuel Tank

129 L

Max Torque

340 Nm @ 1400 -1500 RPM

Max Speed

35.0 km/hr

Hydraulic System

146 L/min

Max Working Height

5700 mm

Excavator Max Lift Capacity

1545 kg

Loader Load Over Height

3300 mm

Overall Length

5960 mm

Wheel Base

2180 mm

Bucket Digging Force

5616 kgf

Shovel Break Out Force

6250 kgf

Warranty

1 Year

AC Cabin

Optional

GPS

Standard

Features

Excellent Design & Loader Productivity

Sloping & lockable engine hood for better worksite visibility
Easy accessibility to all major components means lower maintenance time
Secured engine compartment with lockable hood
Improved FNR location supports fast directional change, improving maneuverability & productivity
Improved fill factor with spill proof bucket
More than 35 attachment options for added versatility

Better Reliability

Reinforced robotically welded structures, sturdy axle, pins & bushes
Proven transmission & high pressure common rail system
Protected hoses for less breakdown and high reliability

Backhoe Productivity With Versatility

With new Variable Displacement Pump*, optimum cycle time and high productivity
Standard lifting hook for material handling like pipe laying, towing etc.
2 inch increase in swing frame height (ground clearance) for better maneuverability & loader productivity
More than 25 attachment options for added versatility
Bucket options from 0.08 to 0.30 m3

Connected Machine

CASE “SiteWatch” Telematics as standard offering
Fleet Management - Enhanced productivity by efficient resource allocation
Asset Tracking & Recovery - Improved Safety
Maintenance & Downtime reduction - Enhanced Customer service
Data Driven decision making - Improved profitability

Improved Fuel Efficiency

Up to 14% better fuel efficiency with the advanced hydraulic system-load sensing Variable Displacement Pump*
New ECO Mode, Auto Idle and Auto Shutdown features ensure fuel savings up to 20%*

Straight Loader Arm & Loader Bucket Option

Offers better work visibility, tipping & loading height
Ease of serviceability with lesser pins, bushes & thereby less daily maintenance time
1.0m3BDB (Bottom Dump Bucket)
1.1m3 HDB (4m High Dump Bucket)

Excellent Design & Loader Productivity

Sloping & lockable engine hood for better worksite visibility
Easy accessibility to all major components means lower maintenance time
Secured engine compartment with lockable hood
Improved FNR location supports fast directional change, improving maneuverability & productivity
Improved fill factor with spill proof bucket
More than 35 attachment options for added versatility

Better Reliability

Reinforced robotically welded structures, sturdy axle, pins & bushes
Proven transmission & high pressure common rail system
Protected hoses for less breakdown and high reliability

Backhoe Productivity With Versatility

With new Variable Displacement Pump*, optimum cycle time and high productivity
Standard lifting hook for material handling like pipe laying, towing etc.
2 inch increase in swing frame height (ground clearance) for better maneuverability & loader productivity
More than 25 attachment options for added versatility
Bucket options from 0.08 to 0.30 m3

Connected Machine

CASE “SiteWatch” Telematics as standard offering
Fleet Management - Enhanced productivity by efficient resource allocation
Asset Tracking & Recovery - Improved Safety
Maintenance & Downtime reduction - Enhanced Customer service
Data Driven decision making - Improved profitability

Improved Fuel Efficiency

Up to 14% better fuel efficiency with the advanced hydraulic system-load sensing Variable Displacement Pump*
New ECO Mode, Auto Idle and Auto Shutdown features ensure fuel savings up to 20%*

Straight Loader Arm & Loader Bucket Option

Offers better work visibility, tipping & loading height
Ease of serviceability with lesser pins, bushes & thereby less daily maintenance time
1.0m3BDB (Bottom Dump Bucket)
1.1m3 HDB (4m High Dump Bucket)

Specifications

Product specification of CASE 770 EX Plus Backhoe Loader

ENGINE

Model

Ashok Leyland H4C4E7422*W
Type

Tier 4B/ CEV BS-IV, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection
Gross Power

74 HP (54.4 kW) @ 2200 RPM
Max Torque

340 Nm @ 1400 -1500 RPM
Displacement

3.84 L
Battery

12V / 110 Ah
Alternator

NA

TRANSMISSION

Type

CARRARO 2WD, 4F-4R Power Shuttle Synchromesh Transmission

STEERING

Type

Power Steering
Working Pressure

140 bar

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

9800 mm
Inner Wheels Braked - Outside Wheels

NA
Inner Wheels not Braked - Outside Loader Bucket

11200 mm
Inner Wheels not Braked -Outside Wheels

NA

BRAKES

Service

Hydraulic foot operated, 2 disc per side
Parking

Mechanically actuated caliper type brake pack on rear axle input shaft

TYRES

Front

9 x 16 - 16 PR
Rear

16.9 x 28 - 12 PR

SPEED

Forward- 1st gear

5.8 km/hr
Reverse- 1st gear

6.8 km/hr
Forward- 2nd Gear

9.3 Km.h
Reverse- 2nd Gear

10.8 km/hr
Forward- 3rd gear

19.5 km/hr
Reverse- 3rd gear

22.1 km/hr
Forward- 4th gear

35.0 km/hr
Reverse- 4th gear

HYDRAULICS

Type

Open Center Load Sensing, Variable Displacement Pump
Maximum Pump Flow

146 L/min
System Pressure

210 bar

AXLES

Rear axle

CARRARO 28.32M
Front axle

CNH PS1300 (2WD)

SERVICE CAPACITIES

Fuel Tank

129 L
Engine Coolant

20 L
Engine Oil

9.1 L
Hydraulic Tank

80 L
Hydraulic System

107 L
Transmission

18 L
Rear Axle

17.1 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

4700 mm
Reach-Ground Level to Rear Wheel Centre

7220 mm
Reach-Ground Level to Slew Centre

5895 mm
Reach at Full Height to Slew Centre

2400 mm
Side Reach to Centre Line of Machine

NA
Maximum Working Height

5700 mm
Maximum Load Over Height

3800 mm
Bucket Rotation Angle

204°
Bucket Digging force

5616 kgf
Arm Digging force

3780 kgf
Maximum Lift Capacity

1545 kg
Standard Bucket Capacity

0.30 m³
Standard Bucket Width

NA

LOADER PERFORMANCE

Dump Height

2730 mm
Load Over Height

3300 mm
Pin Height

3600 mm
Pin Forward Reach

240 mm
Reach at Ground

1980 mm
Maximum Reach at Full Height

1190 mm
Maximum Reach at Full Height - Bucket Dumped

760 mm
Below Ground Level Dig Depth

110 mm
Rollback at Ground

33°
Dump Angle

45°
Shovel Breakout Force

6250 kgf
Loader Arm Breakout Force

5115 kgf
Maximum Payload

1925 kg
Standard Shovel Capacity

1.1 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

7955-8015 kg
Overall Length

5960 mm
Wheelbase

2180 mm
Slew Centre to Rear Axle Centre

NA
Minimum Ground Clearance

380 mm
Slew Ground Clearance

NA
Height of Cabin

2800 mm
Overall Height

3850 mm
Track width - Rear

1700 mm
Track width - Front

1880 mm
Width Over Bucket

2800 mm

Frequently Asked Question

01. What is the CASE 770 EX Plus backhoe loader price in India?

Ans.

The CASE 770 EX Plus backhoe loader price in india ranges between ₹ 27-32 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

02. Where can I buy CASE 770 EX Plus backhoe loader in India?

Ans.

You can buy the CASE 770 EX Plus backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the CASE 770 EX Plus backhoe loader come with financing and insurance options?

Ans.

Yes, the CASE 770 EX Plus backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the mileage of CASE 770 EX Plus backhoe loader?

Ans.

The mileage of the CASE 770 EX Plus backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

05. What is the engine power of CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader is powered by a Ashok Leyland H4C4E7422*W diesel engine, delivering 74 HP (54.4 kW) @ 2200 rpm.

06. What is the weight of CASE 770 EX Plus backhoe loader?

Ans.

The weight of the CASE 770 EX Plus backhoe loader is approximately 7955 kg. The weight may vary slightly depending on specific configurations and attachments.

07. What is the fuel tank capacity of the CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader has a 129 litres diesel fuel tank, providing extended operation time without frequent refueling.

08. What is the lifting capacity of CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader has a lifting capacity of 1545 kg, making it ideal for versatile applications.

09. What is the maximum digging depth of CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader has a maximum digging depth of 4700 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

10. What is the loader bucket capacity of the CASE 770 EX Plus?

Ans.

The loader bucket capacity of the CASE 770 EX Plus is 1.1 cubic meters (m³).

11. What is the backhoe bucket capacity of the CASE 770 EX Plus?

Ans.

The backhoe bucket capacity of the CASE 770 EX Plus is 0.30 cubic meters (m³).

12. What is the warranty period of CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

13. How many gears are available in CASE 770 EX Plus backhoe loader?

Ans.

The CASE 770 EX Plus backhoe loader also comes with a 4-speed synchromesh transmission, offering 4 forward and 4 reverse gears for efficient performance and ease of maneuverability.

14. Where can I find spare parts for the CASE 770 EX Plus backhoe loader?

Ans.

You can find genuine spare parts for the CASE 770 EX Plus backhoe loader at authorized CASE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.

Popular Comparisons with CASE 770 EX Plus

Case

Login

Categories

Contact Us

Contact Info

CASE 770 EX Plus Backhoe Loader

Quick Overview:

Connect With Us:

Download Brochure

Key Highlights

Engine Make

Fuel Tank

Max Torque

Max Speed

Hydraulic System

Max Working Height

Excavator Max Lift Capacity

Loader Load Over Height

Overall Length

Wheel Base

Bucket Digging Force

Shovel Break Out Force

Warranty

AC Cabin

GPS

Features

Excellent Design & Loader Productivity

Excellent Design & Loader Productivity

Better Reliability

Better Reliability

Backhoe Productivity With Versatility

Backhoe Productivity With Versatility

Connected Machine

Connected Machine

Improved Fuel Efficiency

Improved Fuel Efficiency

Straight Loader Arm & Loader Bucket Option

Straight Loader Arm & Loader Bucket Option

Excellent Design & Loader Productivity

Better Reliability

Backhoe Productivity With Versatility

Connected Machine

Improved Fuel Efficiency

Straight Loader Arm & Loader Bucket Option

Specifications

ENGINE

TRANSMISSION

STEERING

STEERING TURNING CIRCLE

BRAKES

TYRES

SPEED

HYDRAULICS

AXLES

SERVICE CAPACITIES

EXCAVATOR PERFORMANCE

LOADER PERFORMANCE

OVERALL DIMENSIONS & WEIGHT

Frequently Asked Question

01. What is the CASE 770 EX Plus backhoe loader price in India?

02. Where can I buy CASE 770 EX Plus backhoe loader in India?

03. Does the CASE 770 EX Plus backhoe loader come with financing and insurance options?

04. What is the mileage of CASE 770 EX Plus backhoe loader?

05. What is the engine power of CASE 770 EX Plus backhoe loader?

06. What is the weight of CASE 770 EX Plus backhoe loader?

07. What is the fuel tank capacity of the CASE 770 EX Plus backhoe loader?

08. What is the lifting capacity of CASE 770 EX Plus backhoe loader?

09. What is the maximum digging depth of CASE 770 EX Plus backhoe loader?

10. What is the loader bucket capacity of the CASE 770 EX Plus?

11. What is the backhoe bucket capacity of the CASE 770 EX Plus?

12. What is the warranty period of CASE 770 EX Plus backhoe loader?

13. How many gears are available in CASE 770 EX Plus backhoe loader?

14. Where can I find spare parts for the CASE 770 EX Plus backhoe loader?

Popular Comparisons with CASE 770 EX Plus

Are you interested in buying CASE 770 EX Plus Backhoe Loader

Finance

Insurance

Products

Related Backhoe Loader

Engine

Ashok Leyland 74 HP

₹ 25-27 Lakhs^*

₹ 25-27 Lakhs ^*

₹ 25-27 Lakhs ^*

₹ 22-24 lakh^*

₹ 22-24 lakh ^*
