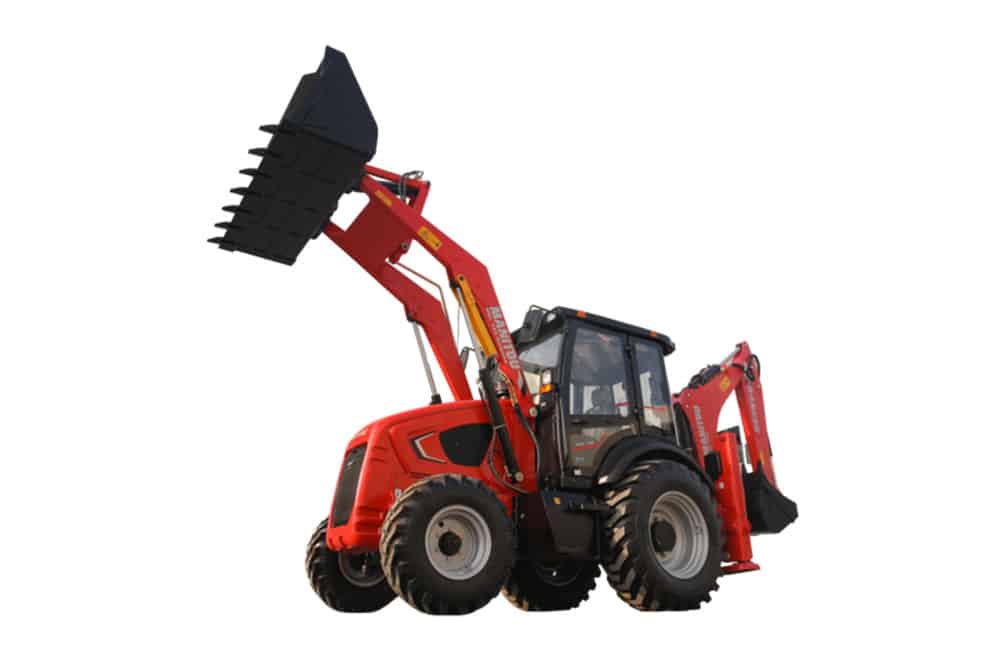

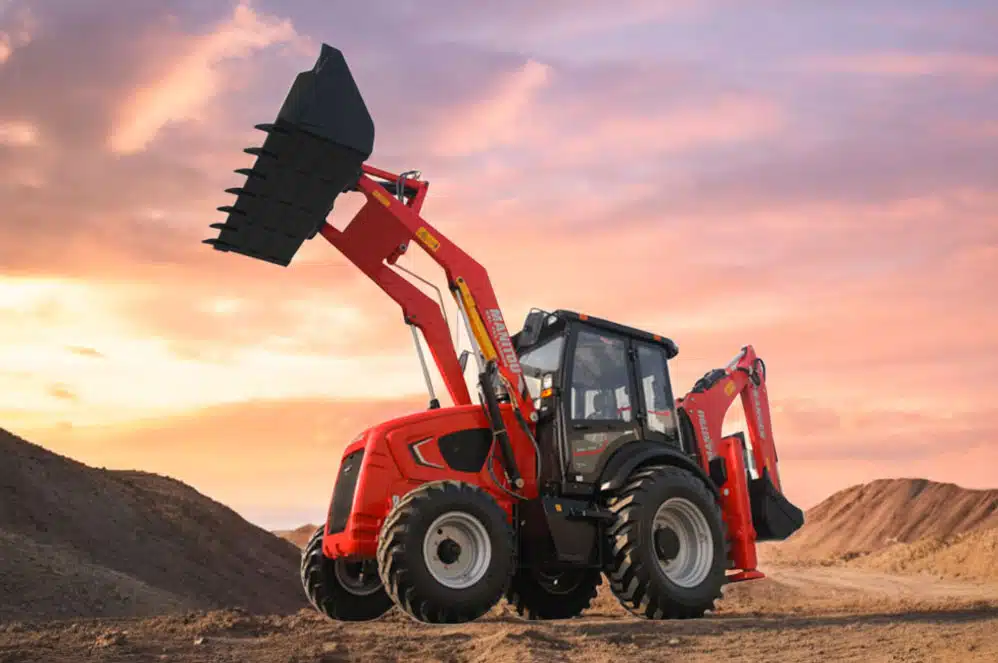

Manitou MBL 745 HT Ranger BSV Backhoe Loader

By Manitou · Manitou Backhoe Loader →

The MBL 745 HT Ranger Backhoe Loader from Manitou is designed for challenging conditions where durability and control are essential. It features a 74.8 HP Mahindra engine and is built to perform well on hard surfaces and rough terrain. The Ranger variant is notable for its curved boom design, which improves digging performance and visibility, especially in tight spaces. Its stable build and smooth operation make it suitable for infrastructure projects, road work, and demanding excavation tasks. The machine is also easier to control in confined areas, enhancing overall site efficiency. The price of the Manitou MBL 745 HT Ranger Backhoe Loader in India is expected to be around ₹36 to 38 lakh, making it a good choice for contractors needing reliability and performance in difficult environments.

Manitou MBL 745 HT range: which model is this?

The Manitou MBL 745 HT range includes 2 models — choose by engine power and application:

Model	Engine	Best for
Manitou MBL 745 HT	74.8 HP	Versatile all-rounder for construction and utility work
Manitou MBL 745 HT Ranger BSV (this page)	74.8 HP	Built for hard surfaces and challenging conditions

2WD/4WD

2WD/4WD

Engine
M&M 74.80 HP
Bucket
0.27 m³
Shovel
1 m³
Digging Depth
4415 mm
Dump Height
2780 mm
Weight
7845 kg

Download Brochure

Ex-Showroom Price
₹ 36-38 Lakhs
EMI Starts
₹59,088/ Month
Insurance
Check Availability

Connect With Us:

Planning to buy the Manitou MBL 745 HT Ranger BSV Backhoe Loader in India? Get the best price, EMI & finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Manitou MBL 745 HT range: which model is this?

The Manitou MBL 745 HT range includes 2 models — choose by engine power and application:

Model	Engine	Best for
Manitou MBL 745 HT	74.8 HP	Versatile all-rounder for construction and utility work
Manitou MBL 745 HT Ranger BSV (this page)	74.8 HP	Built for hard surfaces and challenging conditions

Key Highlights of Manitou MBL 745 HT Ranger BSV

Engine Make

M&M MCVNC35TI074CE5A CEV BS-V

Fuel Tank

130 L

Max Torque

400 Nm @ 1200 RPM

Max Speed

40 km/hr

Hydraulic System

119 L/min

Max Working Height

5650 mm

Excavator Max Lift Capacity

1460 kg

Loader Load Over Height

3310 mm

Overall Length

7340mm

Wheel Base

2140 mm (4WD) / 2185 mm (2WD)

Bucket Digging Force

5685 kgf

Shovel Break Out Force

5229 kgf

Warranty

2 Year

AC Cabin

Optional

GPS

Standard

Features of Manitou MBL 745 HT Ranger BSV

Durability and Versatile Transmission System

Built on a rugged chassis weighing up to 8135 kg, ideal for tough job sites.
Carraro 4x4 transmission with 4 forward and 4 reverse gears enhances versatility.
Torque converter stall ratio of 2.64:1 ensures efficient torque delivery.
Max travel speed of 40 km/h enables fast transit between job sites.
Optional tyre configurations support various terrains including soft, hard, or rocky surfaces.
Designed for multi-application construction tasks, combining loading, lifting, and digging.

Hydraulic Excellence and Fuel Capacity

119 l/min hydraulic flow rate supports fast, responsive operations.
Gear pump system with 225 bar main relief pressure for optimized hydraulic performance.
Hydraulic oil tank holds 75 liters, ensuring long and uninterrupted work cycles.
Comes with a 130-liter fuel tank, reducing downtime due to frequent refueling.
Advanced wet disc brakes ensure smooth braking even under heavy loads.
Supports power steering for fatigue-free operator control during long shifts.

Compact Design with Excellent Maneuverability

External turning radius over tyres (braked) is only 3.85 m, great for tight job sites.
Ground clearance of 315 mm supports off-road and rugged terrain navigation.
Overall width of 2330 mm allows it to work in confined urban and industrial zones.
Cabin height of 2900 mm ensures proper operator visibility and comfort.
The curved boom enhances rear visibility, reducing blind spots while reversing.
Designed to deliver tight turning and efficient mobility on narrow construction sites.

High-Performance BS-V Turbocharged Engine

Equipped with a M&M BS-V turbocharged diesel engine, delivering 74.80 HP @ 2200 rpm.
Generates a peak torque of 400 Nm at 1200 rpm, ensuring powerful digging and lifting.
3.5-litre displacement optimized for fuel efficiency in heavy-duty operations.
Compliant with CEV BS-V norms, making it environmentally responsible.
Ideal for construction and excavation on hard surfaces, delivering consistent performance.
High-capacity 165 Ah battery ensures reliable starts and continuous power.

High-Performance Loader Capabilities

Loader bucket capacity of 1 cubic meter, with a width of 2235 mm for faster loading.
Delivers a shovel breakout force of 5229 kgf, ensuring powerful material handling.
Arms breakout force rated at 4691 kgf for high-pressure applications.
Lifts up to 3467 kg at full height, perfect for construction and material transport.
Max dump height at 45° is 2780 mm, offering optimal clearance during loading.
3570 mm hinge pin height enhances compatibility with large trucks and tippers.

Superior Backhoe Excavation and Digging

Backhoe bucket capacity of 0.27 m³ with a width of 889 mm for precise trenching.
Delivers bucket tearout force of 5685 kgf and dipper tearout of 3163 kgf.
Can dig up to 4415 mm depth, reaching deeper than many standard backhoe loaders.
Offers a maximum reach of 5710 mm at ground level to slew center.
Ideal for tough and confined site conditions due to its curved boom design.
197° bucket rotation for greater flexibility during excavation tasks.

Are you interested in buying Manitou MBL 745 HT Ranger BSV Backhoe Loader

Specifications of Manitou MBL 745 HT Ranger BSV

ENGINE
TRANSMISSION
STEERING
STEERING TURNING CIRCLE
BRAKES
TYRES
SPEED
HYDRAULICS
AXLES
SERVICE CAPACITIES
EXCAVATOR PERFORMANCE
LOADER PERFORMANCE
OVERALL DIMENSIONS & WEIGHT

ENGINE

Model

M&M MCVNC35TI074CE5A CEV BS-V
Type

Turbocharged
Gross Power

74.80 HP (55.8 KW) @ 2200 rpm
Max Torque

400 Nm @ 1200 rpm
Displacement

3.50 L
Battery

12 V / 165 Ah
Alternator

NA

TRANSMISSION

Type

Carraro synchro-shuttle transmission

STEERING

Type

Power Steering
Working Pressure

225 bar

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

5000 mm (2WD) / 5500 mm (4WD)
Inner Wheels Braked - Outside Wheels

3300 mm (2WD) / 3850 mm (4WD)
Inner Wheels not Braked - Outside Loader Bucket

5750 mm
Inner Wheels not Braked -Outside Wheels

4300 MM (4WD) / 4200 mm (4WD)

BRAKES

Service

Wet disc brakes
Parking

Mechanical hand-operated parking brake

TYRES

Front

9.0 x 16 - 16 PR
Rear

16.9 x 28-12 PR

SPEED

Forward- 1st gear

5.40 km/h
Reverse- 1st gear

NA
Forward- 2nd Gear

8.60 km/h
Reverse- 2nd Gear

NA
Forward- 3rd gear

19.90 km/hr
Reverse- 3rd gear

NA
Forward- 4th gear

40 km/hr
Reverse- 4th gear

n

HYDRAULICS

Type

Gear pump
Maximum Pump Flow

119 L/min
System Pressure

225 bar

AXLES

Rear axle

NA
Front axle

NA

SERVICE CAPACITIES

Fuel Tank

130 L
Engine Coolant

16 L
Engine Oil

13.50 L
Hydraulic Tank

75 L
Hydraulic System

NA
Transmission

17.50 L
Rear Axle

17.10 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

4415 mm
Reach-Ground Level to Rear Wheel Centre

NA
Reach-Ground Level to Slew Centre

5710 mm
Reach at Full Height to Slew Centre

NA
Side Reach to Centre Line of Machine

NA
Maximum Working Height

5650 mm
Maximum Load Over Height

3555 mm
Bucket Rotation Angle

197°
Bucket Digging force

5685 kgf
Arm Digging force

3163 kgf
Maximum Lift Capacity

1460 kg
Standard Bucket Capacity

0.27 m³
Standard Bucket Width

889 mm

LOADER PERFORMANCE

Dump Height

2780 mm
Load Over Height

3310 mm
Pin Height

3570 mm
Pin Forward Reach

NA
Reach at Ground

NA
Maximum Reach at Full Height

4230 mm
Maximum Reach at Full Height - Bucket Dumped

710 mm
Below Ground Level Dig Depth

156 mm
Rollback at Ground

45°
Dump Angle

51°
Shovel Breakout Force

5229 kgf
Loader Arm Breakout Force

4691 kgf
Maximum Payload

NA
Standard Shovel Capacity

1 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

7750 kg (2WD) / 7845 kg (4WD)
Overall Length

7340 mm
Wheelbase

2140 mm (4WD) / 2185 mm (2WD)
Slew Centre to Rear Axle Centre

1308 mm
Minimum Ground Clearance

315 mm
Slew Ground Clearance

NA
Height of Cabin

2900 mm
Overall Height

3520 mm
Track width - Rear

NA
Track width - Front

NA
Width Over Bucket

2235 mm

Why Choose Manitou MBL 745 HT Ranger BSV

The HT Ranger BSV combines the HT BS-V platform (M&M 74.80 HP engine with Mahindra rural service reach) with the Ranger-trim tough-site positioning — reinforced undercarriage, protective guarding and the structural upgrades that Ranger branding signals in Manitou's line-up.
Why this specific configuration? Because contractors working genuinely rough-terrain sites need three things at once: global build quality for fatigue life, Indian engine-service reach for remote breakdowns, and structural reinforcement for the daily duty cycle. The HT Ranger BSV packages all three.
Real-world fit for tough-site work. Reinforced front and rear axles for continuous rough-surface travel; protective guarding on the engine bay and hydraulic plumbing — meaningful when operating in forestry, hill-state and remote-pipeline geographies; switchable 2WD/4WD gives traction on wet, sloped or loose ground while keeping fuel economy reasonable on standard work.
Same M&M engine rural-service path through Mahindra tractor dealer networks — particularly valuable when the site is deep-rural and Manitou's own specialist support is far away. BS-V emission certification for government and urban-compliance tenders.
For mid-tier contractors working genuinely rough sites in remote and hill-state geographies, the HT Ranger BSV is the considered pick combining European build with Indian serviceability.

Common Questions

FAQs about Manitou MBL 745 HT Ranger BSV

What is the Manitou MBL 745 HT Ranger BSV backhoe loader price in India?

The Manitou MBL 745 HT Ranger BSV backhoe loader price in india ranges between ₹ 36-38 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

Where can I buy Manitou MBL 745 HT Ranger BSV backhoe loader in India?

You can buy the Manitou MBL 745 HT Ranger BSV backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

Does the Manitou MBL 745 HT Ranger BSV backhoe loader come with financing and insurance options?

Yes, the Manitou MBL 745 HT Ranger BSV backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

What is the mileage of Manitou MBL 745 HT Ranger BSV backhoe loader?

The mileage of the Manitou MBL 745 HT Ranger BSV backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

What is the engine power of Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader is powered by a M&M MCVNC35TI074CE5A diesel engine, delivering 74.80 HP (55.8 KW) @ 2200 rpm

What is the weight of Manitou MBL 745 HT Ranger BSV backhoe loader?

The weight of the Manitou MBL 745 HT Ranger BSV backhoe loader is approximately 7750 kg (2WD) / 7845 kg (4WD). The weight may vary slightly depending on specific configurations and attachments.

What is the fuel tank capacity of the Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader has a 130 litres diesel fuel tank, providing extended operation time without frequent refueling.

What is the lifting capacity of Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader has a lifting capacity of 1460 kg, making it ideal for versatile applications.

What is the maximum digging depth of Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader has a maximum digging depth of 4415 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

What is the loader bucket capacity of the Manitou MBL 745 HT Ranger BSV?

The loader bucket capacity of the Manitou MBL 745 HT Ranger BSV is 1 cubic meters (m³).

What is the backhoe bucket capacity of the Manitou MBL 745 HT Ranger BSV?

The backhoe bucket capacity of the Manitou MBL 745 HT Ranger BSV is 0.27 cubic meters (m³).

What is the warranty period of Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader in India typically comes with a standard warranty of 2 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

How many gears are available in Manitou MBL 745 HT Ranger BSV backhoe loader?

The Manitou MBL 745 HT Ranger BSV backhoe loader comes with a Carraro transmission featuring 4 forward and 4 reverse gears.

Where can I find spare parts for the Manitou MBL 745 HT Ranger BSV backhoe loader?

You can find genuine spare parts for the Manitou MBL 745 HT Ranger BSV backhoe loader at authorized Manitou dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.

Popular Comparisons with Manitou MBL 745 HT Ranger BSV

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Escorts Kubota E-Kubota BLX75

4.5 rating

₹ 32 - 36 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

CASE CASE 770 NX Magnum

4.5 rating

₹ 33- 36 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Mahindra CE Mahindra Earthmaster VX

4.5 rating

₹ 29.5 Lakhs Onwards

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Mahindra CE Mahindra Earthmaster SX

4.5 rating

₹ 29.5 lakh onwards*

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

CASE CASE 851 NX

4.5 rating

₹ 34 - 37 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

CASE CASE 770 NX

4.5 rating

₹ 33 - 36 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Manitou Manitou MBL 745 HT+ BS-V

4.5 rating

₹ 31-33 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Manitou Manitou MBL 745 HT

4.5 rating

₹ 29-32 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Escorts Kubota Escorts Digmax Super

4.5 rating

₹ 35-37 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Caterpillar CAT 424

4.5 rating

₹ 34-35 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

CASE CASE 770 EX Plus

4.5 rating

₹ 27-34 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

CASE CASE 770 EX

4.5 rating

₹ 27 - 34 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Bobcat Bobcat B900

4.5 rating

₹ 32-34 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

ACE ACE AX 130

4.5 rating

₹ 29-35 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

ACE ACE AX 124

4.5 rating

₹ 29-35 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

JCB JCB 4DX

4.5 rating

₹ 36-40 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

JCB JCB 3DX Xtra

4.5 rating

₹ 35-39 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

JCB JCB 3DX Super

4.5 rating

₹ 35 - 39 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

JCB JCB 3DX Plus

4.5 rating

₹ 35-39 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

JCB JCB 3DX

4.5 rating

₹ 30-32 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Tata Hitachi Tata Hitachi Shinrai Prime

4.5 rating

₹ 33-35 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Bull Machines Bull HD76 BS4 Heavy Duty

4.5 rating

₹ 30-35 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Bull Machines Bull SD76 BS5 Super Smart

4.5 rating

₹ 30-36 Lakhs

2WD/4WD

Compare

Manitou Manitou MBL 745 HT Ranger BSV

4.5 rating

₹ 36-38 Lakhs

2WD/4WD

Bull Machines Bull SD76 BS4 Champion

4.5 rating

₹ 30-34 Lakhs

2WD/4WD

Compare

Manitou MBL 745 HT Ranger BSV EMI Calculator

Down Payment ₹7.2 L

₹

₹7.20 L₹36.00 L

Loan after down payment: ₹28.80 L

Loan Amount ₹28.80 L

₹

₹0 L₹28.80 L

Annual Interest Rate 8.5%

1%30%

Loan Tenure 5 Years

Yrs

1 Yr5 Yrs

Monthly EMI

₹

Principal Amount

₹L

Total Interest

₹L

Total Amount

₹L

Principal vs Interest

Principal: 48% Interest: 52%

Apply Now

Disclaimer: EMI is calculated based on the starting price with a default 20% down payment, 8.5% interest rate, and 5-year tenure. Interest rates typically range from 8.5% to 17%. Users can manually adjust the down payment, interest rate, and tenure to estimate different EMI options. Final loan terms, interest rate, down payment, and eligibility are subject to buyer profile and bank/NBFC approval. EMI shown is indicative only.

Get Loan and Insurance for Manitou MBL 745 HT Ranger BSV

Finance*

Emi option from reliable banks & NBFC

Shriram Finance | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

CNH Capital | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Chola Mandalam FInance | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Tata Capital | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

SBI | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Bajaj Finserv | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

IIFL Finance | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Union Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

PNB | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

HDB Financial Services | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Hinduja Leyland Finance | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

ICICI Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Kotak Mahindra Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Mahindra Finance | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Poonawala Fincorp | Construction Equipment Loan

Sakthi Financial Services | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Central Bank of India | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Bank of Baroda | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Aditya Birla Capital | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

AU Small Finance Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Axis Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Bandhan Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Yes Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

HDFC Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Canara Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

IDBI Bank | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Ratnaafin | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Volvo Financial Services | Construction Equipment Loan | Finance Your Construction & Heavy Equipment

Explore Financing Options

Insurance*

Get secured with trusted partners

New India Assurance | Construction Equipment Insurance

Shriram General Insurance | Construction Equipment Insurance

Royal Sundaram | Construction Equipment Insurance

SBI General Insurance | Construction Equipment Insurance

ICICI Lombard Insurance | Construction Equipment Insurance

HDFC Ergo Insurance | Construction Equipment Insurance

IFFCO TOKIO Insurance | Construction Equipment Insurance

Kotak General Insurance | Construction Equipment Insurance

TATA AIG Insurance | Construction Equipment Insurance

Future General Insurance | Construction Equipment Insurance

Liberty General Insurance | Construction Equipment Insurance

AXA XL Insurance | Construction Equipment Insurance

Bajaj Allianz | Construction Equipment Insurance

Magma HDI | Construction Equipment Insurance

Raheja QBE Insurance | Construction Equipment Insurance

Reliance General Insurance | Construction Equipment Insurance

Oriental Insurance | Construction Equipment Insurance

United India Insurance | Construction Equipment Insurance

Cholamandalam MS | Construction Equipment Insurance

Universal Sompo | Construction Equipment Insurance

Browse Insurance Deals

About Manitou

Manitou is a renowned global manufacturer specializing in material handling equipment, including telehandlers, forklifts, and aerial work platforms. With a legacy spanning over 60 years, the company has established a strong presence in India, catering to diverse industries such as construction, agriculture, and warehousing. Manitou’s commitment to innovation and quality ensures that Indian businesses benefit from reliable and efficient machinery, enhancing productivity and safety. Their extensive dealer network across the country provides comprehensive after-sales support, reinforcing Manitou’s reputation as a trusted partner in India’s industrial growth.

Product Portfolio: Backhoe Loaders, Skid Steer Loaders, , Telehandlers

Blogs

Related Blogs

Top 10 Backhoe Loaders in India for 2026

Jan 13, 2026

Chayan Sarkar

Top 10 Backhoe Loaders in India for 2026 : A Comprehensive Guide

If you are looking to purchase the best backhoe loader...

Jan 9, 2026

Milton Das

The Backhoe Loaders Market Trends In 2026?

The backhoe loader market in 2026 is experiencing significant growth...

Guide to The Right CASE Backhoe Loader Machine

Jan 7, 2026

Chayan Sarkar

CASE Backhoe Loaders in India: Complete Buyer’s Guide 2026

Backhoe loaders are some of the most widely used machines...

Nov 24, 2025

Puloma Nath

Backhoe Loader vs Excavator - Which is Better for your project?

Choosing the right heavy construction machine can be confusing, especially...

Jul 1, 2025

Sanjiv Yadav

Escorts Backhoe Loaders – Made for Indian Terrains

Escorts Kubota backhoe loaders are engineered for India’s demanding terrains,...

Manitou MBL 745 HT Ranger BSV - Price & Availability Across 600+ Locations in India

Manitou MBL 745 HT Ranger BSV is available for purchase and enquiry across all major cities in India including Mumbai, Pune, Kolkata, Hyderabad, Chennai, Bengaluru, Delhi, Ahmedabad, Indore, Jaipur, Guwahati, and 600+ more locations.

West (3)
South (5)
North (10)
East (3)

Maharashtra

26 cities

Mumbai
Pune
Nagpur
Navi Mumbai
Thane
Nashik
Aurangabad (Chhatrapati Sambhajinagar)
Solapur
Kolhapur
Amravati
Chandrapur
Yavatmal
Latur
Dhule
Ahmednagar
Jalgaon
Raigad
Beed
Wardha
Palghar
Sangli
Ratnagiri
Satara
Nanded
Akola
Buldhana

Gujarat

21 cities

Ahmedabad
Gandhinagar
Surat
Vadodara
Rajkot
Bhavnagar
Jamnagar
Mundra
Kutch
Vapi
Anand
Mehsana
Morbi
Surendranagar
Amreli
Bharuch
Navsari
Dahej
Alang
Dholera
Gandhidham

Goa

5 cities

Panaji
Vasco da Gama
Margao
Calangute
Mormugao

Tamil Nadu

21 cities

Chennai
Coimbatore
Madurai
Tiruchirappalli
Hosur
Salem
Tirunelveli
Vellore
Erode
Thoothukudi
Neyveli
Cuddalore
Virudhunagar
Dharmapuri
Krishnagiri
Thanjavur
Tiruppur
Kancheepuram
Ranipet
Chengalpattu
Kanyakumari

Karnataka

21 cities

Bengaluru
Mysuru
Hubballi-Dharwad
Belagavi
Mangaluru
Davanagere
Ballari
Hospet
Tumakuru
Shivamogga
Chitradurga
Raichur
Kolar
Hassan
Hoskote
Doddaballapura
Kalaburagi
Bidar
Koppal
Vijayapura
Chamarajanagar

Andhra Pradesh

20 cities

Visakhapatnam
Vijayawada
Amaravati
Guntur
Tirupati
Nellore
Kurnool
Kadapa
Anantapur
Rajahmundry
Kakinada
Eluru
Ongole
Srikakulam
Bheemunipatnam
Machilipatnam
Proddatur
Hindupur
Srikalahasti
Nandyal

Telangana

20 cities

Hyderabad
Warangal
Karimnagar
Nizamabad
Khammam
Maheshwaram
Sangareddy
Nalgonda
Adilabad
Suryapet
Siddipet
Ramagundam
Mancherial
Peddapalli
Bhadrachalam
Zaheerabad
Narayanpet
Vikarabad
Medak
Kothagudem

Kerala

20 cities

Thiruvananthapuram
Kochi
Kozhikode
Thrissur
Kollam
Palakkad
Malappuram
Alappuzha
Kannur
Kasaragod
Kottayam
Idukki
Wayanad
Pathanamthitta
Ernakulam
Aluva
Angamaly
Perumbavoor
Munnar
Ponnani

Uttar Pradesh

24 cities

Lucknow
Kanpur
Varanasi
Prayagraj
Noida
Ghaziabad
Meerut
Jhansi
Aligarh
Moradabad
Gorakhpur
Mathura
Bareilly
Saharanpur
Ayodhya
Mirzapur
Dadri
Muzaffarnagar
Deoria
Kushinagar
Ballia
Sonbhadra
Gonda
Etawah

Rajasthan

20 cities

Jaipur
Jodhpur
Udaipur
Kota
Ajmer
Bikaner
Alwar
Bhilwara
Barmer
Jaisalmer
Pali
Nagaur
Banswara
Dungarpur
Chittorgarh
Sikar
Sawai Madhopur
Tonk
Bundi
Sriganganagar

Punjab

20 cities

Ludhiana
Amritsar
Jalandhar
Patiala
Mohali
Bathinda
Hoshiarpur
Moga
Gurdaspur
Pathankot
Firozpur
Rupnagar
Fatehgarh Sahib
Sangrur
Faridkot
Kapurthala
Nawanshahr
Muktsar
Tarn Taran
Fazilka

Haryana

20 cities

Gurugram
Faridabad
Panipat
Ambala
Sonipat
Rohtak
Hisar
Karnal
Rewari
Manesar
Panchkula
Bhiwani
Yamunanagar
Jhajjar
Nuh (Mewat)
Sirsa
Kaithal
Kurukshetra
Bahadurgarh
Palwal

Himachal Pradesh

16 cities

Shimla
Manali
Dharamshala
Solan
Baddi
Mandi
Kullu
Bilaspur
Una
Chamba
Kangra
Rampur
Lahaul-Spiti
Hamirpur
Sirmaur
Kinnaur

Uttarakhand

20 cities

Dehradun
Haridwar
Rishikesh
Nainital
Roorkee
Haldwani
Kashipur
Rudrapur
Pantnagar
Champawat
Pithoragarh
Bageshwar
Chamoli
Uttarkashi
Almora
Vikasnagar
Kotdwar
Ramnagar
Srinagar (Pauri)
Tehri

Delhi

20 cities

Central Vista
Dwarka
Rohini
Narela
Okhla
Tughlakabad
Shahdara
Janakpuri
Badarpur
Uttam Nagar
Saket
Mundka
Burari
Bawana
Kanjhawala
Najafgarh
Deoli
Mehrauli
Vasant Kunj
Mayur Vihar

Jammu & Kashmir

20 cities

Srinagar
Jammu
Udhampur
Katra
Anantnag
Baramulla
Sopore
Pulwama
Ganderbal
Bandipora
Kupwara
Kathua
Reasi
Ramban
Doda
Rajouri
Poonch
Kishtwar
Shopian
Kulgam

Ladakh

12 cities

Leh
Kargil
Drass
Hanle
Chushul
Zanskar
Nubra
Shyok
Khaltse
Dha-Hanu
Nyoma
Mulbekh

Chandigarh

12 cities

Sector 17 (City Core)
Sector 62 (IT Park)
Industrial Area Ph-1
Industrial Area Ph-2
Manimajra
Panchkula Extension
Mohali Phase 8
ISBT 43
Daria
Hallomajra
Rock Garden Area
Sector 82 (Aerocity)

West Bengal

20 cities

Kolkata
Durgapur
Asansol
Haldia
Siliguri
Kharagpur
Bardhaman
Medinipur
Howrah
Raniganj
Burnpur
Bankura
Kalyani
Purulia
New Town (Rajarhat)
Bidhannagar
Barasat
Malda
Jalpaiguri
Cooch Behar

Odisha

20 cities

Bhubaneswar
Cuttack
Rourkela
Sambalpur
Berhampur
Angul
Talcher
Jharsuguda
Sundargarh
Paradip
Koraput
Rayagada
Keonjhar
Bolangir
Kalahandi
Dhenkanal
Baripada
Jajpur
Kendrapara
Puri

Jharkhand

20 cities

Ranchi
Jamshedpur
Dhanbad
Bokaro
Hazaribagh
Deoghar
Giridih
Ramgarh
Dumka
Lohardaga
Gumla
Palamu
Chatra
West Singhbhum
Pakur
Sahibganj
Koderma
Simdega
Godda
Khunti

Manitou MBL 745 HT Ranger BSV Backhoe Loader

Key Highlights of Manitou MBL 745 HT Ranger BSV

Features of Manitou MBL 745 HT Ranger BSV

Durability and Versatile Transmission System

Hydraulic Excellence and Fuel Capacity

Compact Design with Excellent Maneuverability

High-Performance BS-V Turbocharged Engine

High-Performance Loader Capabilities

Superior Backhoe Excavation and Digging

Are you interested in buying Manitou MBL 745 HT Ranger BSV Backhoe Loader

Specifications of Manitou MBL 745 HT Ranger BSV

ENGINE

TRANSMISSION

STEERING

STEERING TURNING CIRCLE

BRAKES

TYRES

SPEED

HYDRAULICS

AXLES

SERVICE CAPACITIES

EXCAVATOR PERFORMANCE

LOADER PERFORMANCE

OVERALL DIMENSIONS & WEIGHT

Why Choose Manitou MBL 745 HT Ranger BSV

FAQs about Manitou MBL 745 HT Ranger BSV

What is the Manitou MBL 745 HT Ranger BSV backhoe loader price in India?

Where can I buy Manitou MBL 745 HT Ranger BSV backhoe loader in India?

Does the Manitou MBL 745 HT Ranger BSV backhoe loader come with financing and insurance options?

What is the mileage of Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the engine power of Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the weight of Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the fuel tank capacity of the Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the lifting capacity of Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the maximum digging depth of Manitou MBL 745 HT Ranger BSV backhoe loader?

What is the loader bucket capacity of the Manitou MBL 745 HT Ranger BSV?

What is the backhoe bucket capacity of the Manitou MBL 745 HT Ranger BSV?

What is the warranty period of Manitou MBL 745 HT Ranger BSV backhoe loader?

How many gears are available in Manitou MBL 745 HT Ranger BSV backhoe loader?

Where can I find spare parts for the Manitou MBL 745 HT Ranger BSV backhoe loader?

Popular Comparisons with Manitou MBL 745 HT Ranger BSV

Manitou MBL 745 HT Ranger BSV EMI Calculator

₹

₹L

₹L

₹L

Get Loan and Insurance for Manitou MBL 745 HT Ranger BSV

Finance*

Insurance*

About Manitou

Related Blogs

Top 10 Backhoe Loaders in India for 2026 : A Comprehensive Guide

The Backhoe Loaders Market Trends In 2026?

CASE Backhoe Loaders in India: Complete Buyer’s Guide 2026

Backhoe Loader vs Excavator - Which is Better for your project?

Escorts Backhoe Loaders – Made for Indian Terrains

Manitou MBL 745 HT Ranger BSV - Price & Availability Across 600+ Locations in India

Let's get started

Disclaimer

Compare
