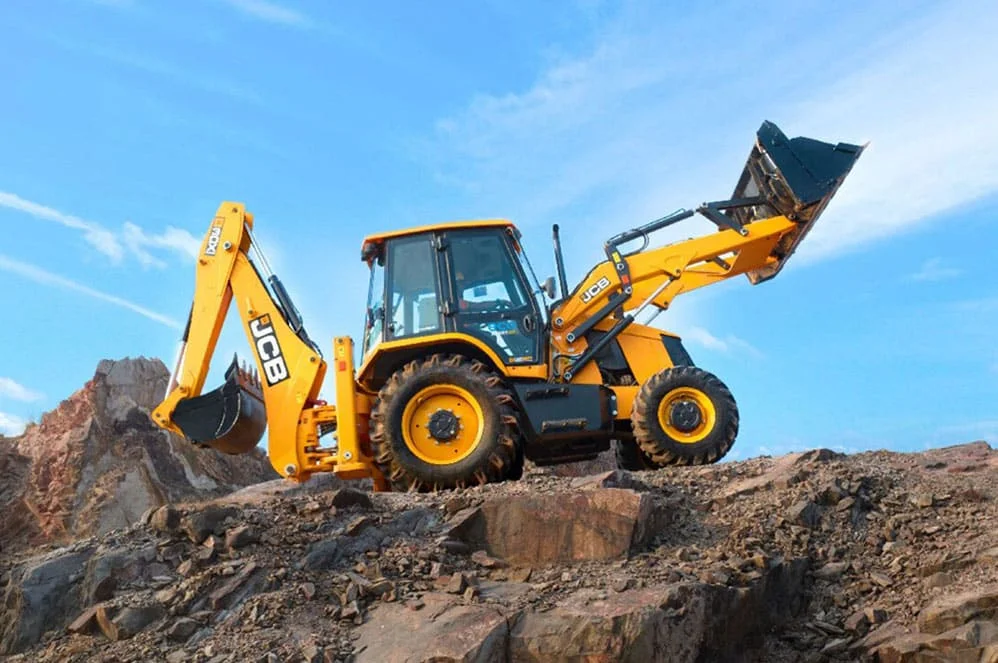

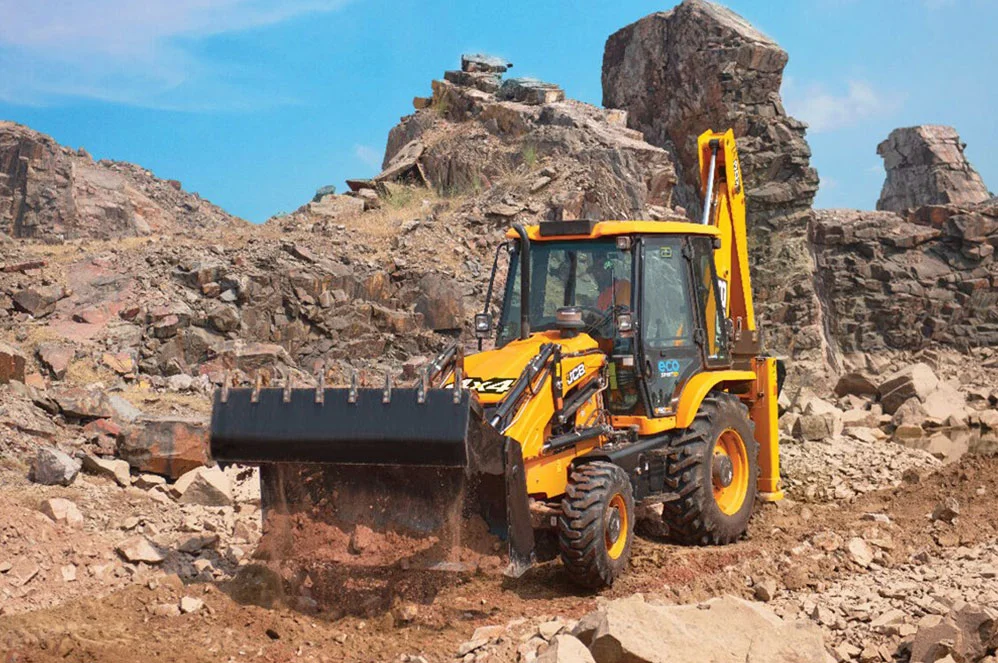

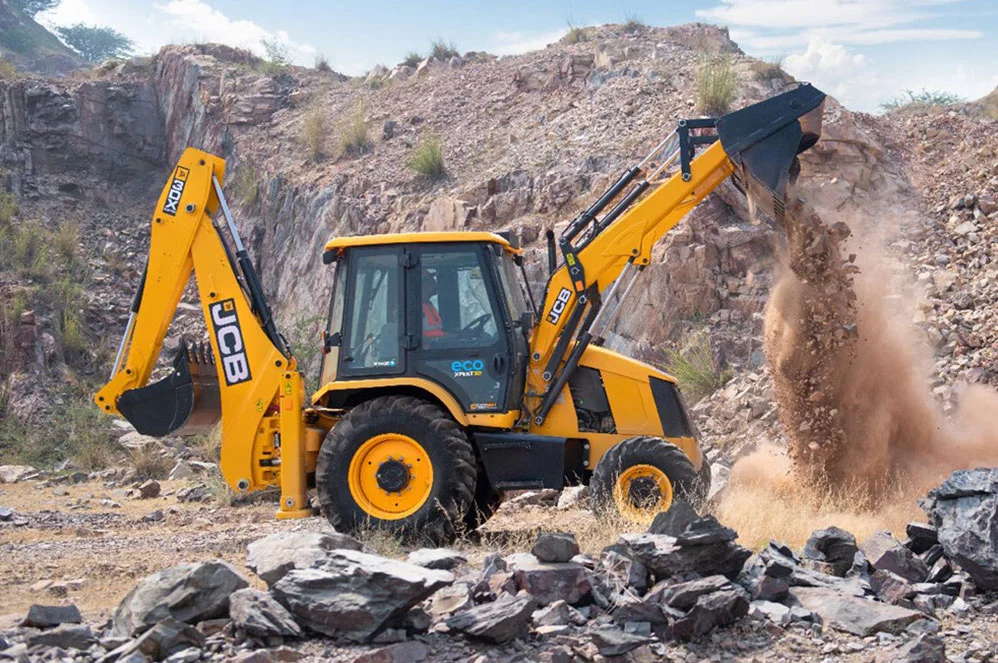

    JCB 3DX Super Backhoe Loader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      JCB

    • Type

      2WD/4WD

    • Operating Cost

      ₹ 34-36 Lakhs

    • Ex-Showroom Price

      ₹ 34-36 Lakhs

    • Engine

      JCB 74 HP

    • Bucket

      0.30 m³

    • Shovel

      1.0 m³

    • Digging Depth

      5050 mm

    • Dump Height

      2930 mm

    • Weight

      7880 Kg

    Quick Overview:

    Designed for heavy-duty work, the JCB 3DX SUPER backhoe loader provides superior traction, efficiency, and robust construction for excavation and material handling.

    Connect With Us:

    Looking for the best price on a JCB 3DX SUPER backhoe loader? Connect with authorized dealers today for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    JCB 430

    Fuel Tank

    128 L

    Max Torque

    440 Nm @ 1150 RPM

    Max Speed

    40.0 km/hr

    Hydraulic System

    92 L

    Max Working Height

    6200 mm

    Excavator Max Lift Capacity

    1490 Kg

    Loader Load Over Height

    3370 mm

    Overall Length

    6250 mm

    Wheel Base

    2240 mm

    Bucket Digging Force

    5959 kgf

    Shovel Break Out Force

    5687 kgf

    Warranty

    1 Yr. / 2000 hr.

    AC Cabin

    Optional

    GPS

    Standard

    Features

    Better Fuel Efficiency

    Better Fuel Efficiency

    • The JCB Super 3DX has the Stage 5-430 engine. The new 3DX Super is very fuel-efficient, being cost-efficient while still producing magnificent outputs.

    • Up to 10%* Lower Fuel Consumption

    • Variable Displacement Hydraulic Pump reduces hydraulic losses, improving fuel efficiency and extending oil life

    • Auto Stop shuts off the engine after 6 minutes of idling, conserving fuel

    • Auto Idle Mode activates after 10 seconds, reducing idle speed to save fuel

    • Multiple Working Modes optimize fuel consumption based on specific tasks

    Better Performance & Productivity

    Better Performance & Productivity

    • Great performance and high productivity characterize the JCB 3DX SUPER backhoe loader with advanced features and unique capabilities that would be suitable for several applications.

    • 4WD for enhanced tractive effort and improved loading/dozing.

    • Best-in-class 440Nm torque, 10%* higher than the outgoing model

    • Multi-purpose 6-in-1 bucket.

    • Extra reach with a 2.93m dump height and 5.05m dig depth.

    • Effortless gear shifting with a rotating knob.

    • Semi-Automatic Kick Down for seamless operation.

    • Smooth Ride System# for better stability and comfort. #optional

    Better Comfort & Ease Of Use

    Better Comfort & Ease Of Use

    • The JCB 3DX Super is designed to offer superior comfort and safety, making it a preferred choice for operators. With advanced features focused on ease of use, this machine ensures a smooth and secure working experience. The enhanced comfort and user-friendly design add immense value, making the JCB 3DX Super price worth considering for long-term operational benefits.

    • Standard ROPS & FOPS ROPS (Roll-Over Protection Structure) and FOPS (Falling Object Protective Structure) increase the safety of the operator.

    • Reduced In-Cab Noise enables a quieter cabin, which therefore makes the longer working time more comfortable.

    Better Maintenance

    Better Maintenance

    • JCB ensures seamless serviceability with its vast network of 750+ outlets, trained experts, and genuine parts availability. With advanced features and extended service intervals, maintenance becomes effortless and highly productive.

    • Remote Diagnostics identifies error codes for quicker troubleshooting. Primary fuel filter replacement interval extended from 500* hours to 1000* hours.

    • Hydraulic oil change interval increased to 4000 hours with advanced filtration.

    • Open Loop Crankcase Ventilation eliminates filter changes, reducing maintenance.

    • Better uptime with remote diagnostics

    Better Fuel Efficiency

    • The JCB Super 3DX has the Stage 5-430 engine. The new 3DX Super is very fuel-efficient, being cost-efficient while still producing magnificent outputs.

    • Up to 10%* Lower Fuel Consumption

    • Variable Displacement Hydraulic Pump reduces hydraulic losses, improving fuel efficiency and extending oil life

    • Auto Stop shuts off the engine after 6 minutes of idling, conserving fuel

    • Auto Idle Mode activates after 10 seconds, reducing idle speed to save fuel

    • Multiple Working Modes optimize fuel consumption based on specific tasks

    Better Performance & Productivity

    • Great performance and high productivity characterize the JCB 3DX SUPER backhoe loader with advanced features and unique capabilities that would be suitable for several applications.

    • 4WD for enhanced tractive effort and improved loading/dozing.

    • Best-in-class 440Nm torque, 10%* higher than the outgoing model

    • Multi-purpose 6-in-1 bucket.

    • Extra reach with a 2.93m dump height and 5.05m dig depth.

    • Effortless gear shifting with a rotating knob.

    • Semi-Automatic Kick Down for seamless operation.

    • Smooth Ride System# for better stability and comfort. #optional

    Better Comfort & Ease Of Use

    • The JCB 3DX Super is designed to offer superior comfort and safety, making it a preferred choice for operators. With advanced features focused on ease of use, this machine ensures a smooth and secure working experience. The enhanced comfort and user-friendly design add immense value, making the JCB 3DX Super price worth considering for long-term operational benefits.

    • Standard ROPS & FOPS ROPS (Roll-Over Protection Structure) and FOPS (Falling Object Protective Structure) increase the safety of the operator.

    • Reduced In-Cab Noise enables a quieter cabin, which therefore makes the longer working time more comfortable.

    Better Maintenance

    • JCB ensures seamless serviceability with its vast network of 750+ outlets, trained experts, and genuine parts availability. With advanced features and extended service intervals, maintenance becomes effortless and highly productive.

    • Remote Diagnostics identifies error codes for quicker troubleshooting. Primary fuel filter replacement interval extended from 500* hours to 1000* hours.

    • Hydraulic oil change interval increased to 4000 hours with advanced filtration.

    • Open Loop Crankcase Ventilation eliminates filter changes, reducing maintenance.

    • Better uptime with remote diagnostics

    Specifications

    Product specification of JCB 3DX Super Backhoe Loader

    ENGINE

    • Model

      JCB 430, CRDi Stage 5 Engine

    • Type

      "4 cylinder, water cooled, Turbocharged with EGR and aftertreatment system DOC and DPF."

    • Gross Power

      74 HP (55 kW) @ 2200 RPM

    • Max Torque

      440 Nm @ 1150 RPM

    • Displacement

      3.0 L

    • Battery

      12V

    • Alternator

      130A

    TRANSMISSION

    • Type

      Easy Shift JCB synchroshuttle transmission provides effortless gear shifting with column mounted rotating switch. It consists of a 4-speed, fully synchromesh, smooth shift gear box with integral torque convertor

    STEERING

    • Type

      Power track steering rod system provides equal turn steering & quick response with less operating force.

    • Working Pressure

      160 bar

    STEERING TURNING CIRCLE

    • Inner Wheels Braked - Outside Loader Bucket

      10400 mm

    • Inner Wheels Braked - Outside Wheels

      7210 mm

    • Inner Wheels not Braked - Outside Loader Bucket

      11500 mm

    • Inner Wheels not Braked -Outside Wheels

      8320 mm

    BRAKES

    • Service

      JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance.

    • Parking

      Hand operated, disc brakes on rear axle input disc.

    TYRES

    • Front

      9 x 16 - 16 PR

    • Rear

      16.9 x 28 - 12 PR (Industrial)

    SPEED

    • Forward- 1st gear

      5.7 km/hr

    • Reverse- 1st gear

      5.7 km/hr

    • Forward- 2nd Gear

      9.2 km/hr

    • Reverse- 2nd Gear

      9.2 km/hr

    • Forward- 3rd gear

      19.8 km/hr

    • Reverse- 3rd gear

      Not Recommeded

    • Forward- 4th gear

      40.0 km/hr

    • Reverse- 4th gear

      Not recommended

    HYDRAULICS

    • Type

      Filtration through suction strainer and return line ‘JCB Filtromatic Filter’.

    • Maximum Pump Flow

      125 L/min @ 2200 RPM

    • System Pressure

      270 bar

    AXLES

    • Rear axle

      Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box.

    • Front axle

      Steer axle, centrally pivoted, with oscillation angle of 16º

    SERVICE CAPACITIES

    • Fuel Tank

      128 L

    • Engine Coolant

      20.5 L

    • Engine Oil

      15 L

    • Hydraulic Tank

      NA

    • Hydraulic System

      92 L

    • Transmission

      17.5 L

    • Rear Axle

      20 L

    EXCAVATOR PERFORMANCE

    • Maximum Digging Depth

      5050 mm

    • Reach-Ground Level to Rear Wheel Centre

      7000 mm

    • Reach-Ground Level to Slew Centre

      5610 mm

    • Reach at Full Height to Slew Centre

      26500 mm

    • Side Reach to Centre Line of Machine

      6140 mm

    • Maximum Working Height

      6200 mm

    • Maximum Load Over Height

      4350 mm

    • Bucket Rotation Angle

      185°

    • Bucket Digging force

      5959 kgf

    • Arm Digging force

      3257 kgf

    • Maximum Lift Capacity

      1490 kg

    • Standard Bucket Capacity

      0.30 m³

    • Standard Bucket Width

      820 mm

    LOADER PERFORMANCE

    • Dump Height

      2930 mm

    • Load Over Height

      3370 mm

    • Pin Height

      3640 mm

    • Pin Forward Reach

      410 mm

    • Reach at Ground

      1700 mm

    • Maximum Reach at Full Height

      1220 mm

    • Maximum Reach at Full Height - Bucket Dumped

      900 mm

    • Below Ground Level Dig Depth

      150 mm

    • Rollback at Ground

      43°

    • Dump Angle

      41°

    • Shovel Breakout Force

      5687 kgf

    • Loader Arm Breakout Force

      5285 kgf

    • Maximum Payload

      1650 kg

    • Standard Shovel Capacity

      1.0 m³

    OVERALL DIMENSIONS & WEIGHT

    • Machine Weight

      7880 kg

    • Overall Length

      6250 mm

    • Wheelbase

      2240 mm

    • Slew Centre to Rear Axle Centre

      1320 mm

    • Minimum Ground Clearance

      310 mm

    • Slew Ground Clearance

      510 mm

    • Height of Cabin

      2870 mm

    • Overall Height

      3900 mm

    • Track width - Rear

      1730 mm

    • Track width - Front

      1910 mm

    • Width Over Bucket

      2230 mm

    Frequently Asked Question

    01. What is the JCB 3DX Super backhoe loader price in India?

    Ans.

    The JCB 3DX Super backhoe loader price in india ranges between ₹ 34-36 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

    02. Where can I buy JCB 3DX Super backhoe loader in India?

    Ans.

    You can buy the JCB 3DX Super backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the JCB 3DX Super backhoe loader come with financing and insurance options?

    Ans.

    Yes, the JCB 3DX Super backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the mileage of JCB 3DX Super backhoe loader?

    Ans.

    The mileage of the JCB 3DX Super backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

    05. What is the engine power of JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader is powered by a JCB 430, CRDi Stage 5 Engine diesel engine, delivering 74 HP (55 kW) @ 2200 rpm.

    06. What is the weight of JCB 3DX Super backhoe loader?

    Ans.

    The weight of the JCB 3DX Super backhoe loader is approximately 7880 kg. The weight may vary slightly depending on specific configurations and attachments.

    07. What is the fuel tank capacity of the JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader has a 128 litres diesel fuel tank, providing extended operation time without frequent refueling.

    08. What is the lifting capacity of JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader has a lifting capacity of 1490 kg, making it ideal for versatile applications.

    09. What is the maximum digging depth of JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader has a maximum digging depth of 5050 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    10. What is the loader bucket capacity of the JCB 3DX Super?

    Ans.

    The loader bucket capacity of the JCB 3DX Super is 1.0 cubic meters (m³).

    11. What is the backhoe bucket capacity of the JCB 3DX Super?

    Ans.

    The backhoe bucket capacity of the JCB 3DX Super is 0.30 cubic meters (m³).

    12. What is the warranty period of JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    13. How many gears are available in JCB 3DX Super backhoe loader?

    Ans.

    The JCB 3DX Super backhoe loader features a 4-speed, full synchromesh, smooth shift gearbox with an integral torque converter and electrically operated reversing shuttle.

    14. Where can I find spare parts for the JCB 3DX Super backhoe loader?

    Ans.

    You can find genuine spare parts for the JCB 3DX Super backhoe loader at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
