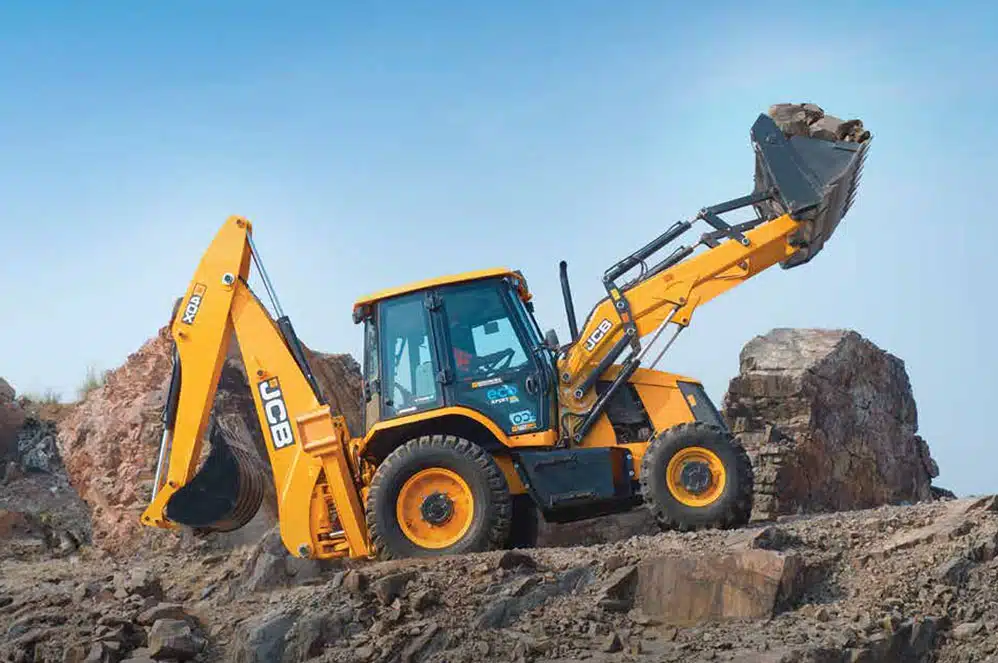

JCB 4DX Backhoe Loader

desi-machines-backhoe-loader-jcb-4dx-featured

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
JCB
Type
2WD/4WD
Operating Cost
₹ 36-40 Lakhs
Ex-Showroom Price
₹ 36-40 Lakhs

Engine
JCB 74 HP
Bucket
0.32 m³
Shovel
1.2 m³
Digging Depth
5360 mm
Dump Height
2930 mm
Weight
8450 Kg

Quick Overview:

The JCB 4DX backhoe loader features a powerful engine, increased digging depth, and enhanced lifting capacity, ensuring exceptional performance on challenging job sites.

Connect With Us:

Looking for the best price on a JCB 4DX backhoe loader? Connect with authorized dealers today for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

JCB 430

Fuel Tank

128 L

Max Torque

440 Nm @ 1150 RPM

Max Speed

40.0 km/hr

Hydraulic System

148 L/min @ 2200 RPM

Max Working Height

6250 mm

Excavator Max Lift Capacity

2547 kg

Loader Load Over Height

3370 mm

Overall Length

6350 mm

Wheel Base

2340 mm

Bucket Digging Force

6716 kgf

Shovel Break Out Force

6264 mm

Warranty

1 Yr. / 2000 hr.

AC Cabin

Optional

GPS

Standard

Features

Better Fuel Efficiency

The JCB 4DX Backhoe Loader offers unmatched fuel efficiency with its advanced Stage 5-430 engine, designed for optimal performance and savings. Equipped with cutting-edge technology, it ensures lower fuel consumption and operational cost savings.
Up to 10%* Lower Fuel Consumption for significant savings.
Variable Displacement Hydraulic Pump minimizes losses and extends hydraulic oil life.
Auto Stop and Auto Idle Modes reduce unnecessary fuel use during idle periods.
Multiple Working Modes tailor fuel usage to specific tasks for maximum efficiency.

Better Performance & Productivity

The JCB Backhoe Loader ensures superior performance and productivity with its advanced features, perfect for tough applications.
4WD for better tractive effort
440Nm torque, 10%* higher for quick response
0.40 cu.m (short dipper) and 0.32 cu.m (long dipper) bucket capacity for bulk digging
2.9m dump height and 5.36m dig depth
Easy Shift with rotating knob
Semi-Automatic Kick Down for smooth gear shifts
Smooth Ride System for reduced oscillation *compared to outgoing model

Better Comfort & Ease Of Use

The JCB 4DX offers superior comfort and ease of use, making it the preferred choice for customers seeking advanced safety features. Its innovative design ensures a quieter cabin environment and enhanced safety, providing a productive and comfortable experience for the operator.
Standard ROPS & FOPS: Enhanced safety with Roll-Over Protection Structure and Falling Object Protective Structure.
Reduced In-Cab Noise: Quieter cabin for improved operator comfort.

Better Reliability & Durability

The JCB 4DX price and performance balance make it a standout choice for demanding tasks. The JCB Stage 5-430 engine has been rigorously tested over 2 lakh+ hours in tough Indian conditions, ensuring exceptional reliability and durability. Designed for demanding environments, this machine features heavy-duty Boom & Dipper, robust filtration systems, and advanced Q-breaks to enhance performance and reduce maintenance.
Heavy-duty Boom & Dipper for tough environments
Efficient fuel and hydraulic filtration system
Q-breaks protected from dirt and water for reliability

Better Maintenance

The JCB Backhoe Loaders ensure seamless maintenance with quick, efficient service support and advanced technology. The largest network of 750+ outlets and expert engineers, along with easy access to genuine parts, guarantees minimal downtime for your machine. If you're exploring the JCB 4DX specifications, you'll notice its emphasis on performance and durability.
Remote Diagnostics for efficient error code troubleshooting
Extended primary fuel filter replacement interval from 500* to 1000* hours
Hydraulic system and filtration technology extend oil changing intervals to 4 000 hours
Open Loop Crankcase Ventilation eliminates filter change requirements
Better uptime with remote diagnostics

Better Fuel Efficiency

The JCB 4DX Backhoe Loader offers unmatched fuel efficiency with its advanced Stage 5-430 engine, designed for optimal performance and savings. Equipped with cutting-edge technology, it ensures lower fuel consumption and operational cost savings.
Up to 10%* Lower Fuel Consumption for significant savings.
Variable Displacement Hydraulic Pump minimizes losses and extends hydraulic oil life.
Auto Stop and Auto Idle Modes reduce unnecessary fuel use during idle periods.
Multiple Working Modes tailor fuel usage to specific tasks for maximum efficiency.

Better Performance & Productivity

The JCB Backhoe Loader ensures superior performance and productivity with its advanced features, perfect for tough applications.
4WD for better tractive effort
440Nm torque, 10%* higher for quick response
0.40 cu.m (short dipper) and 0.32 cu.m (long dipper) bucket capacity for bulk digging
2.9m dump height and 5.36m dig depth
Easy Shift with rotating knob
Semi-Automatic Kick Down for smooth gear shifts
Smooth Ride System for reduced oscillation *compared to outgoing model

Better Comfort & Ease Of Use

The JCB 4DX offers superior comfort and ease of use, making it the preferred choice for customers seeking advanced safety features. Its innovative design ensures a quieter cabin environment and enhanced safety, providing a productive and comfortable experience for the operator.
Standard ROPS & FOPS: Enhanced safety with Roll-Over Protection Structure and Falling Object Protective Structure.
Reduced In-Cab Noise: Quieter cabin for improved operator comfort.

Better Reliability & Durability

The JCB 4DX price and performance balance make it a standout choice for demanding tasks. The JCB Stage 5-430 engine has been rigorously tested over 2 lakh+ hours in tough Indian conditions, ensuring exceptional reliability and durability. Designed for demanding environments, this machine features heavy-duty Boom & Dipper, robust filtration systems, and advanced Q-breaks to enhance performance and reduce maintenance.
Heavy-duty Boom & Dipper for tough environments
Efficient fuel and hydraulic filtration system
Q-breaks protected from dirt and water for reliability

Better Maintenance

The JCB Backhoe Loaders ensure seamless maintenance with quick, efficient service support and advanced technology. The largest network of 750+ outlets and expert engineers, along with easy access to genuine parts, guarantees minimal downtime for your machine. If you're exploring the JCB 4DX specifications, you'll notice its emphasis on performance and durability.
Remote Diagnostics for efficient error code troubleshooting
Extended primary fuel filter replacement interval from 500* to 1000* hours
Hydraulic system and filtration technology extend oil changing intervals to 4 000 hours
Open Loop Crankcase Ventilation eliminates filter change requirements
Better uptime with remote diagnostics

Specifications

Product specification of JCB 4DX Backhoe Loader

ENGINE

Model

JCB 430, CRDi Stage 5 Engine
Type

"4 cylinder, water cooled, Turbocharged with EGR and aftertreatment system DOC and DPF."
Gross Power

74 HP (55 kW) @ 2200 RPM
Max Torque

440 Nm @ 1150 RPM
Displacement

3.0 L
Battery

12V
Alternator

130A

TRANSMISSION

Type

Easy Shift JCB synchroshuttle transmission provides effortless gear shifting with column mounted rotating switch. It consists of a 4-speed, fully synchromesh, smooth shift gear box with integral torque convertor.

STEERING

Type

Power track steering rod system provides equal turn steering & quick response with less operating force.
Working Pressure

160 bar

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

10200 mm
Inner Wheels Braked - Outside Wheels

7610 mm
Inner Wheels not Braked - Outside Loader Bucket

11700 mm
Inner Wheels not Braked -Outside Wheels

9110 mm

BRAKES

Service

JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, requiring no maintenance.
Parking

Hand operated, disc brakes on rear axle input disc.

TYRES

Front

9 x16 - 16 PR
Rear

16.9 x 28 - 12 PR

SPEED

Forward- 1st gear

6.2 km/hr
Reverse- 1st gear

6.2 km/hr
Forward- 2nd Gear

10.1 km/hr
Reverse- 2nd Gear

10.1 km/hr
Forward- 3rd gear

21.9 km/hr
Reverse- 3rd gear

Not recommended
Forward- 4th gear

40.0 km/hr
Reverse- 4th gear

39.97 km/hr

HYDRAULICS

Type

Filtration through suction strainer and return line ‘JCB Filtromatic Filter’.
Maximum Pump Flow

148 L/min @ 2200 RPM
System Pressure

250 bar

AXLES

Rear axle

Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box.
Front axle

Steer axle, centrally pivoted, with oscillation angle of 16º

SERVICE CAPACITIES

Fuel Tank

128 L
Engine Coolant

20.5 L
Engine Oil

15 L
Hydraulic Tank

NA
Hydraulic System

115 L
Transmission

17.5 L
Rear Axle

20 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

5360 mm
Reach-Ground Level to Rear Wheel Centre

7570 mm
Reach-Ground Level to Slew Centre

6380 mm
Reach at Full Height to Slew Centre

2180 mm
Side Reach to Centre Line of Machine

NA
Maximum Working Height

6250 mm
Maximum Load Over Height

3960 mm
Bucket Rotation Angle

185°
Bucket Digging force

6716 kgf
Arm Digging force

4551 kgf
Maximum Lift Capacity

2547 kg
Standard Bucket Capacity

0.32 m³
Standard Bucket Width

940 mm

LOADER PERFORMANCE

Dump Height

2930 mm
Load Over Height

3370 mm
Pin Height

3640 mm
Pin Forward Reach

NA
Reach at Ground

1600 mm
Maximum Reach at Full Height

1240 mm
Maximum Reach at Full Height - Bucket Dumped

930 mm
Below Ground Level Dig Depth

130 mm
Rollback at Ground

43°
Dump Angle

41°
Shovel Breakout Force

6264 mm
Loader Arm Breakout Force

5516 mm
Maximum Payload

1800 kg
Standard Shovel Capacity

1.2 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

8450 kg
Overall Length

6350 mm
Wheelbase

2340 mm
Slew Centre to Rear Axle Centre

1190 mm
Minimum Ground Clearance

280 mm
Slew Ground Clearance

330 mm
Height of Cabin

2870 mm
Overall Height

4210 mm
Track width - Rear

1730 mm
Track width - Front

1910 mm
Width Over Bucket

2440 mm

Frequently Asked Question

01. What is the JCB 4DX backhoe loader price in India?

Ans.

The JCB 4DX backhoe loader price in india ranges between ₹ 36-40 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

02. Where can I buy JCB 4DX backhoe loader in India?

Ans.

You can buy the JCB 4DX backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the JCB 4DX backhoe loader come with financing and insurance options?

Ans.

Yes, the JCB 4DX backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the mileage of JCB 4DX backhoe loader?

Ans.

The mileage of the JCB 4DX backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

05. What is the engine power of JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader is powered by a JCB 430, CRDi Stage 5 Engine diesel engine, delivering 74 HP (55 kW) @ 2200 rpm.

06. What is the weight of JCB 4DX backhoe loader?

Ans.

The weight of the JCB 4DX backhoe loader is approximately 8450 kg. The weight may vary slightly depending on specific configurations and attachments.

07. What is the fuel tank capacity of the JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader has a 128 litres diesel fuel tank, providing extended operation time without frequent refueling.

08. What is the lifting capacity of JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader has a lifting capacity of 2547 kg, making it ideal for versatile applications.

09. What is the maximum digging depth of JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader has a maximum digging depth of 5360 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

10. What is the loader bucket capacity of the JCB 4DX?

Ans.

The loader bucket capacity of the JCB 4DX is 1.2 cubic meters (m³).

11. What is the backhoe bucket capacity of the JCB 4DX?

Ans.

The backhoe bucket capacity of the JCB 4DX is 0.40 cubic meters (m³).

12. What is the warranty period of JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

13. How many gears are available in JCB 4DX backhoe loader?

Ans.

The JCB 4DX backhoe loader has a 4-speed, fully synchromesh gearbox with integral torque converter and electrically-operated reversing shuttle.

14. Where can I find spare parts for the JCB 4DX backhoe loader?

Ans.

You can find genuine spare parts for the JCB 4DX backhoe loader at authorized JCB dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.
