Mahindra VX Backhoe Loader

Name: Mahindra VX Backhoe Loader
Brand: Mahindra
Price: 2300000 INR
Rating: 4.5 (70 reviews)

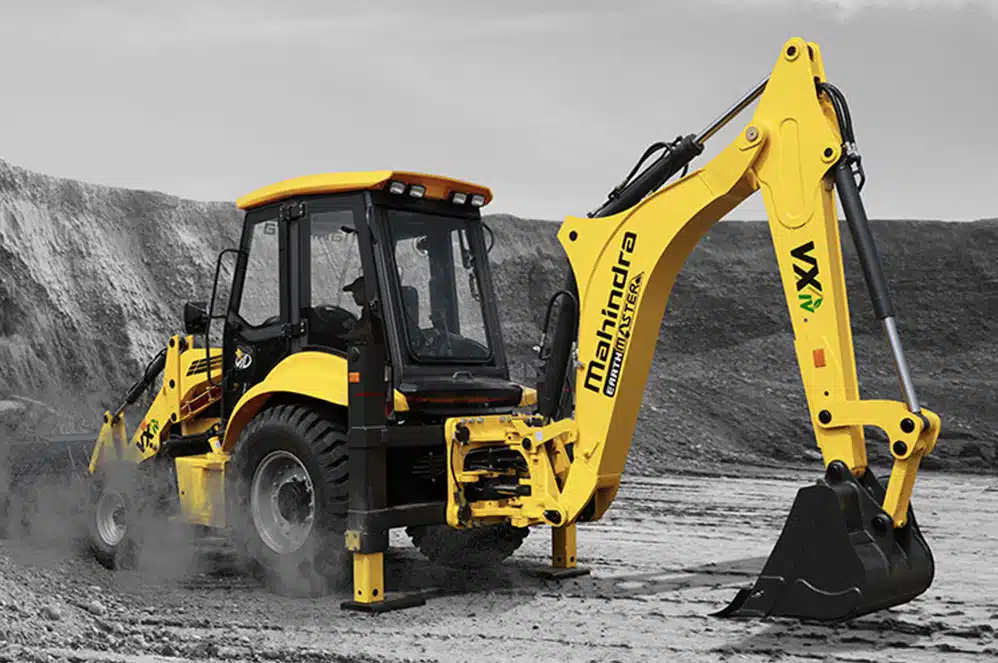

desi-machines-backhoe-loader-mahindra-earthmaster-vx-iv-featured

desi-machines-backhoe-loader-mahindra-earthmaster-vx-iv-1

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Mahindra
Type
2WD
Operating Cost
₹ 23-28 Lakhs
Ex-Showroom Price
₹ 23-28 Lakhs

Engine
Mahindra 74 HP
Bucket
0.27 m³
Shovel
1.1 m³
Digging Depth
4959 mm
Dump Height
2708 mm
Weight
7430 Kg

Quick Overview:

With an ergonomic operator cabin and high-performance hydraulics, the Mahindra Earthmaster VX IV backhoe loader ensures seamless excavation and material handling.

Connect With Us:

Looking for the best price on a Mahindra Earthmaster VX IV backhoe loader? Connect with authorized dealers today for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Mahindra DITEC

Fuel Tank

120 L

Max Torque

306 Nm @ 1300-1700 RPM

Max Speed

38.97 km/hr

Hydraulic System

115 L/min @ 2350 RPM

Max Working Height

6043 mm

Excavator Max Lift Capacity

1449 kg

Loader Load Over Height

3253 mm

Overall Length

Wheel Base

Bucket Digging Force

5199 kgf

Shovel Break Out Force

6243 kgf

Warranty

1 Year

AC Cabin

Optional

GPS

Standard

Features

Bigger Buckets

High Productivity with Bigger Loader (1.1 m3) and backhoe buckets (0.27 m3).
Mahindra Earthmaster backhoe bucket is around 8% bigger than competition.

Structure

Better dig Depth with 2 mm thicker plates than usual for applications where the strength is needed.
More load bearing capacity to front axle with 63 mm thick beam, helps machine to do heavy work in loader application.
Ideal for all-weather condition like sub-zero temperature in the Himalayas, due to high impact resistant structural Grade of steel (350 C) for all critical components

Hydraulics

Better backhoe speed & performance due to higher flow-handling capacity and less pressure losses.
Better Fuel efficiency due to less load on engine with lowest hydraulic refills required.
Lower per-hour maintenance cost due to 3000 hours hydraulic oil change interval. Leading to higher savings.
Improved Performance with Optimised Hoses and Tubes, higher flow capacity backhoe, loader control valve, and optimised hydraulic circuit to minimise pressure losses which is Ideal for rugged Indian site conditions.

Sliding Frame

Less Machine Maintenance with H-frame design which ensures dirt does not accumulate like other machines.
Better Grip and Stability due to its 12-bolt support plate design and balanced weight distribution.

Banana Boom

Better life and impact strength of the boom due to its design like that of Excavators. The construction is with thick plates at the ends of the boom.
More structural strength and rigidity due to its a closed box section design.
Easy to fill Tippers and trolleys it as boom design which never interferes with the body.

Final Drive

Reliable Aggregates which are less prone to failure due to its design which ensures better lubrication in all parts even in incline position, Increasing the life of Final Drive.
Final drive Consists of 3 Sections – 2 hubs and 1 middle section along with Differential separated by Oil Seals.
Oldest - Proven in Indian market power train with Optimised service refill capacity in Power train.

Bigger Buckets

High Productivity with Bigger Loader (1.1 m3) and backhoe buckets (0.27 m3).
Mahindra Earthmaster backhoe bucket is around 8% bigger than competition.

Structure

Better dig Depth with 2 mm thicker plates than usual for applications where the strength is needed.
More load bearing capacity to front axle with 63 mm thick beam, helps machine to do heavy work in loader application.
Ideal for all-weather condition like sub-zero temperature in the Himalayas, due to high impact resistant structural Grade of steel (350 C) for all critical components

Hydraulics

Better backhoe speed & performance due to higher flow-handling capacity and less pressure losses.
Better Fuel efficiency due to less load on engine with lowest hydraulic refills required.
Lower per-hour maintenance cost due to 3000 hours hydraulic oil change interval. Leading to higher savings.
Improved Performance with Optimised Hoses and Tubes, higher flow capacity backhoe, loader control valve, and optimised hydraulic circuit to minimise pressure losses which is Ideal for rugged Indian site conditions.

Sliding Frame

Less Machine Maintenance with H-frame design which ensures dirt does not accumulate like other machines.
Better Grip and Stability due to its 12-bolt support plate design and balanced weight distribution.

Banana Boom

Better life and impact strength of the boom due to its design like that of Excavators. The construction is with thick plates at the ends of the boom.
More structural strength and rigidity due to its a closed box section design.
Easy to fill Tippers and trolleys it as boom design which never interferes with the body.

Final Drive

Reliable Aggregates which are less prone to failure due to its design which ensures better lubrication in all parts even in incline position, Increasing the life of Final Drive.
Final drive Consists of 3 Sections – 2 hubs and 1 middle section along with Differential separated by Oil Seals.
Oldest - Proven in Indian market power train with Optimised service refill capacity in Power train.

Specifications

Product specification of Mahindra VX Backhoe Loader

ENGINE

Model

Mahindra DITEC
Type

Diesel Engine, 4 Cylinders, Turbocharged Intercooled
Gross Power

74 HP (58.8 kW) @ 2300 RPM
Max Torque

306 Nm @ 1300-1700 RPM
Displacement

3.5 L
Battery

12V / 100 Ah
Alternator

90A

TRANSMISSION

Type

Four Speed (4 Forward, 4 Reverse), Two Wheel Drive (2 WD), Synchro Shuttle Transmission with Electrically Operated Reversing Shuttle and Torque Convertor

STEERING

Type

Front wheel hydrostatic power steering, with priority function
Working Pressure

145 bar

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

4494 mm
Inner Wheels Braked - Outside Wheels

3091 mm
Inner Wheels not Braked - Outside Loader Bucket

5697 mm
Inner Wheels not Braked -Outside Wheels

4464 mm

BRAKES

Service

Hydraulically actuated, self-adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation.
Parking

Hand operated, inbuilt in the rear axle, low maintenance.

TYRES

Front

9 x 16 - 16 PR - 2WD
Rear

16.9 x 28 - 12 PR

SPEED

Forward- 1st gear

5.66 km/hr
Reverse- 1st gear

5.66 km/hr
Forward- 2nd Gear

9.11 km/hr
Reverse- 2nd Gear

9.11 km/hr
Forward- 3rd gear

20.00 km/hr
Reverse- 3rd gear

20.00 km/hr
Forward- 4th gear

39.97 km/hr
Reverse- 4th gear

NA

HYDRAULICS

Type

Oepn Center, Fixed displacement, Gear Pump
Maximum Pump Flow

115 L/min @ 2350 RPM
System Pressure

250 bar

AXLES

Rear axle

Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft.
Front axle

Centrally pivoted, non-driven unbalanced type axle, with total oscillation of 16°C, with remote greasing facility for the main pin.

SERVICE CAPACITIES

Fuel Tank

120 L
Engine Coolant

17 L
Engine Oil

13.7 L
Hydraulic Tank

50 L
Hydraulic System

100 L
Transmission

19.2 L
Rear Axle

17.1 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

4959 mm
Reach-Ground Level to Rear Wheel Centre

NA
Reach-Ground Level to Slew Centre

5794 mm
Reach at Full Height to Slew Centre

2676 mm
Side Reach to Centre Line of Machine

6324 mm
Maximum Working Height

6043 mm
Maximum Load Over Height

4302 mm
Bucket Rotation Angle

NA
Bucket Digging force

5199 kgf
Arm Digging force

3182 kgf
Maximum Lift Capacity

1449 kg
Standard Bucket Capacity

0.27 m³
Standard Bucket Width

NA

LOADER PERFORMANCE

Dump Height

2708 mm
Load Over Height

3253 mm
Pin Height

NA
Pin Forward Reach

NA
Reach at Ground

1350 mm
Maximum Reach at Full Height

1115 mm
Maximum Reach at Full Height - Bucket Dumped

NA
Below Ground Level Dig Depth

NA
Rollback at Ground

NA
Dump Angle

NA
Shovel Breakout Force

6243 kgf
Loader Arm Breakout Force

5594 kgf
Maximum Payload

NA
Standard Shovel Capacity

1.1 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

7430 kg
Overall Length

NA
Wheelbase

NA
Slew Centre to Rear Axle Centre

NA
Minimum Ground Clearance

NA
Slew Ground Clearance

NA
Height of Cabin

NA
Overall Height

NA
Track width - Rear

NA
Track width - Front

NA
Width Over Bucket

NA

Frequently Asked Question

01. What is the Mahindra Earthmaster VX IV backhoe loader price in India?

Ans.

The Mahindra Earthmaster VX IV backhoe loader price in india ranges between ₹ 23-28 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

02. Where can I buy Mahindra Earthmaster VX IV backhoe loader in India?

Ans.

You can buy the Mahindra Earthmaster VX IV backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the Mahindra Earthmaster VX IV backhoe loader come with financing and insurance options?

Ans.

Yes, the Mahindra Earthmaster VX IV backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the mileage of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The mileage of the Mahindra Earthmaster VX IV backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

05. What is the engine power of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra Earthmaster VX IV backhoe loader is powered by a Mahindra DITEC diesel engine, delivering 74 HP (58.8 kW) @ 2300 rpm.

06. What is the weight of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The weight of the Mahindra Earthmaster VX IV backhoe loader is approximately 7430 kg. The weight may vary slightly depending on specific configurations and attachments.

07. What is the fuel tank capacity of the Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra Earthmaster VX IV backhoe loader has a 120 litres diesel fuel tank, providing extended operation time without frequent refueling.

08. What is the lifting capacity of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra Earthmaster VX IV backhoe loader has a lifting capacity of 1449 kg, making it ideal for versatile applications.

09. What is the maximum digging depth of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra Earthmaster VX IV backhoe loader has a maximum digging depth of 4959 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

10. What is the loader bucket capacity of the Mahindra Earthmaster VX IV?

Ans.

The loader bucket capacity of the Mahindra Earthmaster VX IV is 1.1 cubic meters (m³).

11. What is the backhoe bucket capacity of the Mahindra Earthmaster VX IV?

Ans.

The backhoe bucket capacity of the Mahindra Earthmaster VX IV is 0.27 cubic meters (m³).

12. What is the warranty period of Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra Earthmaster VX IV backhoe loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

13. How many gears are available in Mahindra Earthmaster VX IV backhoe loader?

Ans.

The Mahindra EarthMaster VX IV backhoe loader has a four-speed transmission, with four forward and four reverse gears.

14. Where can I find spare parts for the Mahindra Earthmaster VX IV backhoe loader?

Ans.

You can find genuine spare parts for the Mahindra Earthmaster VX IV backhoe loader at authorized Manitou dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.
