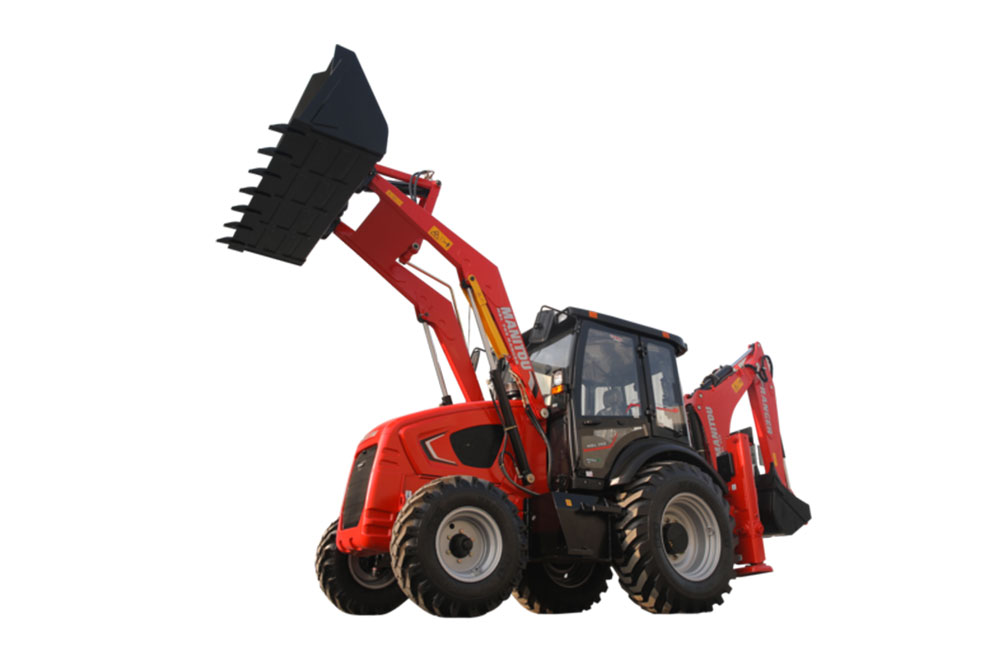

Manitou MBL 745 Ranger Backhoe Loader

The Manitou MBL 745 Ranger is powered by a Koel 4R1190NA1 naturally aspirated water-cooled engine that meets BS-IV emission standards, ensuring a balance between performance and environmental sustainability.

With a displacement of 4.76 liters, the engine provides efficient fuel consumption while delivering high torque and power for heavy-duty applications.

It generates 54.8 kW of power at 2200 RPM, making it ideal for demanding construction and excavation projects that require consistent and reliable performance.

The engine produces a maximum torque of 300 Nm, ensuring superior digging, lifting, and material handling capabilities across different terrains.

The 12V, 142Ah battery provides strong electrical support, enabling smooth operation of all onboard electrical components and ensuring reliability during extended work hours.

Designed for durability and efficiency, the engine reduces maintenance costs while ensuring optimal productivity, making it a practical choice for contractors and construction professionals.

The backhoe loader is equipped with a hydraulic flow capacity of 119 liters per minute, allowing for smooth and precise operation of the loader and backhoe attachments.

The main relief pressure is set at 225 bar, ensuring powerful digging, lifting, and material handling capabilities, even in challenging soil conditions.

With a hydraulic oil capacity of 90 liters, the system allows longer operation times without frequent refilling, increasing efficiency on job sites.

The backhoe bucket tearout force of 5685 kgF provides exceptional power for breaking through compacted soil, rocks, and other tough materials with ease.

The dipper tearout force of 3163 kgF ensures efficient excavation, allowing operators to dig deeper and remove materials quickly without excessive effort.

A hydraulic lift capacity of 1460 kg enhances the machine’s ability to handle heavy loads, making it suitable for various construction and infrastructure projects.

The loader is equipped with a 1 cubic meter bucket capacity, making it highly efficient for scooping and transporting materials such as soil, gravel, and construction debris.

With a maximum dump height of 2780 mm, it allows for easy loading of trucks and containers, reducing material handling time and improving work efficiency.

The shovel breakout force of 5229 kgF provides exceptional power for breaking through hard surfaces and compacted materials with minimal effort.

The loader has a lifting capacity of 3467 kg at full height, allowing operators to move heavy materials efficiently and complete tasks faster.

A rollback angle of 45 degrees at ground level ensures better material retention in the bucket, reducing spillage during transportation.

The maximum hinge pin height of 3570 mm allows operators to lift and load materials onto high platforms and trucks with ease, improving productivity on job sites.

The standard dipper has a maximum digging depth of 4415 mm, making it ideal for deep excavation tasks such as trenching, foundation digging, and pipeline installation.

With a maximum reach of 5710 mm from ground level to slew center, the backhoe offers an extensive work radius, reducing the need for frequent repositioning.

The maximum loading height of 3555 mm allows for easy dumping of excavated material into trucks, minimizing downtime and increasing workflow efficiency.

The backhoe has a maximum operating height of 5650 mm, providing the flexibility needed for a variety of construction and earthmoving applications.

A total side shift of 1181 mm allows operators to adjust the backhoe’s position easily, making it more efficient for working in tight and confined spaces.

The backhoe bucket features a rotation angle of 197 degrees, ensuring better material handling efficiency and improving digging and loading operations.

With a wheelbase of 2185 mm, the backhoe loader offers excellent stability, ensuring smooth and controlled operation even on rough and uneven terrains.

The unladen weight of 7300 kg provides the necessary durability and robustness required for heavy-duty construction and infrastructure projects.

A ground clearance of 280 mm allows the machine to navigate through uneven surfaces, debris, and rough terrain without the risk of damage.

The external turning radius over the bucket is 5 meters when braked, ensuring better maneuverability, especially in confined workspaces and urban construction sites.

The loader is fitted with standard 12.5 x 18 - 12PR front tires and 16.9 x 28-12PR rear tires, providing a strong grip and stability on different surfaces.

The front steer axle has an oscillation of 20 degrees, which enhances smooth navigation and ensures the loader remains balanced on rugged and uneven surfaces.

The operator cabin is ergonomically designed to reduce fatigue and enhance comfort, making long working hours more manageable and productive.

The power steering system ensures effortless control, allowing operators to maneuver the backhoe loader with ease, even in tight spaces.

Wet disc service brakes provide superior stopping power, ensuring enhanced safety and stability during operation on slopes and rough terrain.

A spacious and well-ventilated cabin enhances visibility and operator comfort, creating a more efficient and stress-free working environment.

The adjustable seat and user-friendly controls provide a more personalized and comfortable operating experience, reducing strain on the operator.

A robust Roll-Over Protection Structure (ROPS) is incorporated into the design, ensuring maximum safety in case of accidental rollovers or tipping.
