    L&T 491 VS Ammann ARX 32.2 Compactor

    L&T 491 Mini Tandem Roller Compactor | Desi Machines
    ₹ 15-17 Lakhs*

    L&T 491

    • Drum Width
      1225 mm
    • icon alt1
      Weight
      3450 kg
    • Engine
      M&M 48.5 HP
    • Static Load
      14 kg/cm
    • CF - Hi/Low
      45/31 kN
    • Travel Speed
      0 - 12 km/hr
    Tandem Roller

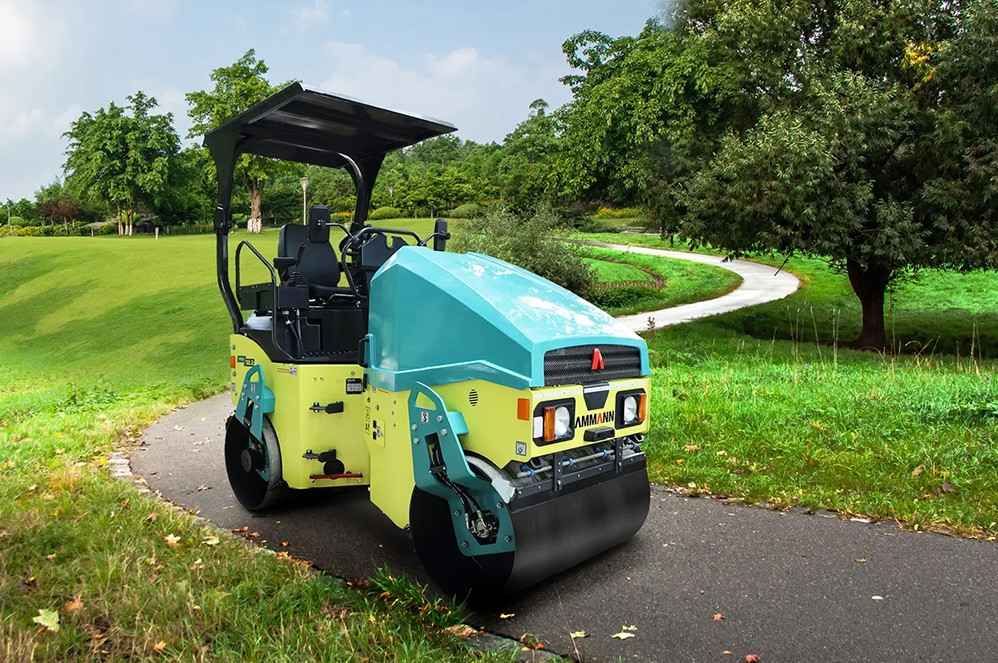

    desi-machines-ammann-arx-32-2-mini-roller-featured
    ₹ 15-20 Lakhs*

    Ammann ARX 32.2

    • Drum Width
      1200 mm
    • icon alt1
      Weight
      3375 kg
    • Engine
      Mahindra 48.5 HP
    • Static Load
      14/14.2 kg/cm
    • CF - Hi/Low
      47/39 kN
    • Travel Speed
      0 - 11 km/hr
    Tandem Roller

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights L&T 491Ammann ARX 32.2
    L&T 491 VS Ammann ARX 32.2 Compactor
    L&T 491 Mini Tandem Roller Compactor | Desi Machines
    L&T 491
    ₹ 15-17 Lakhs
    Ammann ARX 32.2
    ₹ 15-20 Lakhs
    Particulars L&T 491 Ammann ARX 32.2

    L&T 491 Vs Ammann ARX 32.2 Compactor Price, Technical Specifications & Features

    Brand L&T Komatsu Compactor Ammann Compactor
    Type Tandem Tandem
    Ex-Showroom Price ₹ 15-17 Lakhs ₹ 15-20 Lakhs
    Weight 3450 kg 3375 kg
    Drum Width 1225 mm 1200 mm
    Engine M&M 48.5 HP Mahindra 48.5 HP
    Static Linear Load 14 kg/cm 14/14.2 kg/cm
    Centrifugal Force (High/Low) 47/39 kN 47/39 kN
    Travel Speed 0 - 11 km/hr 0 - 11 km/hr
    Quick Overview:

    The L&T 491 Mini Tandem Roller is a compact and versatile mini roller compactor ideal for asphalt and soil compaction in urban, roadside, and infrastructure projects. With an operating weight of about 3450 kg, a 48.5 HP Mahindra engine, and a drum width of 1,225 mm, this vibratory roller delivers consistent compaction force of 45 kN with dual frequencies of 65 / 55 Hz. Known as a reliable baby roller and mini road roller, it features excellent drum-edge visibility, a suspended frame design, and service access at ground level. A trusted double drum roller for performance, durability, and ease of maintenance.

    The Ammann ARX 32.2 Mini Roller is a compact, efficient tandem compactor ideal for tight road and surface jobs. It is powered by a CEV Stage V Mahindra MCDHC29NA047CE5 engine producing about 36.2 kW at 2200 RPM, giving reliable power and good fuel efficiency. With a 1200 mm drum width and an operating weight of around 3375 kg, this baby roller delivers consistent soil and asphalt compaction, easy maneuverability, and solid on-site performance.

    L&T 491 Vs Ammann ARX 32.2 Compactor Price, Technical Specifications & Features

    L&T 491 Ammann ARX 32.2
    Brand
    L&T Komatsu Compactor Ammann Compactor
    Type
    Tandem Tandem
    Ex-Showroom Price
    ₹ 15-17 Lakhs ₹ 15-20 Lakhs
    Weight
    3450 kg 3375 kg
    Drum Width
    1225 mm 1200 mm
    Engine
    M&M 48.5 HP Mahindra 48.5 HP
    Static Linear Load
    14 kg/cm 14/14.2 kg/cm
    Centrifugal Force (High/Low)
    45/31 kN 47/39 kN
    Travel Speed
    0 - 12 km/hr 0 - 11 km/hr
    Quick Overview:

    The L&T 491 Mini Tandem Roller is a compact and versatile mini roller compactor ideal for asphalt and soil compaction in urban, roadside, and infrastructure projects. With an operating weight of about 3450 kg, a 48.5 HP Mahindra engine, and a drum width of 1,225 mm, this vibratory roller delivers consistent compaction force of 45 kN with dual frequencies of 65 / 55 Hz. Known as a reliable baby roller and mini road roller, it features excellent drum-edge visibility, a suspended frame design, and service access at ground level. A trusted double drum roller for performance, durability, and ease of maintenance.

    The Ammann ARX 32.2 Mini Roller is a compact, efficient tandem compactor ideal for tight road and surface jobs. It is powered by a CEV Stage V Mahindra MCDHC29NA047CE5 engine producing about 36.2 kW at 2200 RPM, giving reliable power and good fuel efficiency. With a 1200 mm drum width and an operating weight of around 3375 kg, this baby roller delivers consistent soil and asphalt compaction, easy maneuverability, and solid on-site performance.

    L&T 491 Vs Ammann ARX 32.2 Compactor Key Highlights

    L&T 491 Ammann ARX 32.2
    Engine Make Mahindra MTorque 4485 Mahindra MCDHC29NA047CE5
    Fuel Tank 55 L 50 L
    Hydraulic Tank 45 L 50 L
    Frequency High/Low 65/55 Hz 66/55 Hz
    Nominal Amplitude (High/Low) 0.6 mm 0.5 mm
    Max. Gradeability 27% 35%
    Steering Angle ±40° ±35°
    Turning Radius, Outside NA 2900 mm
    Wheel Base 2190 mm 2065 mm
    Water Tank 170 L 340 L
    Overall Length 2930 mm 3040 mm
    Overall Width 1340 mm 1300 mm
    Overall Height 2800 mm 2730 mm
    Telematics Standard NA
    Warranty 1 Year 1 Year

    L&T 491 Vs Ammann ARX 32.2 Compactor Key Highlights

    L&T 491 Ammann ARX 32.2
    Engine Make
    Mahindra MTorque 4485 Mahindra MCDHC29NA047CE5
    Fuel Tank
    55 L 50 L
    Hydraulic Tank
    45 L 50 L
    Frequency High/Low
    65/55 Hz 66/55 Hz
    Nominal Amplitude (High/Low)
    0.6 mm 0.5 mm
    Max. Gradeability
    27% 35%
    Steering Angle
    ±40° ±35°
    Turning Radius, Outside
    NA 2900 mm
    Wheel Base
    2190 mm 2065 mm
    Water Tank
    170 L 340 L
    Overall Length
    2930 mm 3040 mm
    Overall Width
    1340 mm 1300 mm
    Overall Height
    2800 mm 2730 mm
    Telematics
    Standard NA
    Warranty
    1 Year 1 Year

    L&T 491 Vs Ammann ARX 32.2 Compactor Specifications

    Engine

    L&T 491 Ammann ARX 32.2
    Engine Make Mahindra MTorque 4485 Mahindra MCDHC29NA047CE5
    Engine Type CEV V; 4 Cylinders; 4-Stroke inline; Natural Aspirated; Water cooled; CRDI NA
    Max. Power 48.5 HP (36 kW) @ 2200 rpm 48.5 HP (36.2 kW) @ 2200 rpm
    Displacement 2.9 L NA
    Max Torque 185 Nm @ 1200–1500 rpm 200 Nm @ 1200-1500 rpm
    Battery 12V - 80 Ah / 55A 12 V - 90 Ah

    Service Capacities

    L&T 491 Ammann ARX 32.2
    Fuel Tank 55 L 50 L
    Hydraulic Tank 45 L 50 L
    Engine Oil 8.5 L NA
    Engine Coolant 8.5 L NA

    Traction

    L&T 491 Ammann ARX 32.2
    Max. Travel Speed 0 - 12 km/hr 0 - 11 km/hr
    Max. Working Speed 0 - 6 km/hr NA
    Max. Gradeability 27% 35%

    Vibration System

    L&T 491 Ammann ARX 32.2
    Centrifugal Force (High/Low) 45/31 kN 47/39 kN
    Nominal Amplitude (High/Low) 0.6 mm 0.5 mm
    Frequency High/Low 65/55 Hz 66/55 Hz
    Vibration Stages 2 2
    SLL (Front/Rear) 14 kg/cm 14/14.2 kg/cm

    Hydraulic System

    L&T 491 Ammann ARX 32.2
    Travel System Hydrostatic drive with infinitely variable displacement axial piston pump with low speed high torque motor NA
    Vibration System Fixed displacement gear pump with fixed displacement gear motor Gear Pump & Gear Motor

    Steerring

    L&T 491 Ammann ARX 32.2
    Steering Type Articulated Gear Pump & Orbitrol
    Steering Angle ±40° ±35°
    Oscillation ±13° ±10°

    Brakes

    L&T 491 Ammann ARX 32.2
    Service Brakes Hydrostatic Brake (FNR control) Hydrostatic
    Parking Brakes Spring Applied Hydraulically Released (SAHR) NA

    Water System

    L&T 491 Ammann ARX 32.2
    Water Spray System Type Pressure Spray Drum Wetting System with Diaphragm Water Pumps NA
    Water Tank 170 L 340 L

    Operational Data

    L&T 491 Ammann ARX 32.2
    Operating Weight 3450 kg 3375 kg
    Max. Operating Weight 3535 kg NA
    Front Axle Load 1725 kg 1675 kg
    Rear Axle Load 1725 kg 1700 kg

    Dimensions

    L&T 491 Ammann ARX 32.2
    Wheel Base 2190 mm 2065 mm
    Overall Width 1340 mm 1300 mm
    Overall Height 2800 mm 2730 mm
    Height (Top of Steering) 2080 mm NA
    Overall Length 2930 mm 3040 mm
    Drum Width 1225 mm 1200 mm
    Drum Diameter 725 mm 702 mm
    Drum Thickness 13.5 mm 14 mm
    Ground Clearance 370 mm 300 mm
    Curb Clearance 584 mm 500 mm
    Turning Radius, Outside NA 2900 mm
    Turning Radius, Inside 2300 mm NA

    L&T 491 Vs Ammann ARX 32.2 Compactor Specifications

    Engine

    L&T 491 Ammann ARX 32.2
    Engine Make
    Mahindra MTorque 4485 Mahindra MCDHC29NA047CE5
    Engine Type
    CEV V; 4 Cylinders; 4-Stroke inline; Natural Aspirated; Water cooled; CRDI NA
    Max. Power
    48.5 HP (36 kW) @ 2200 rpm 48.5 HP (36.2 kW) @ 2200 rpm
    Displacement
    2.9 L NA
    Max Torque
    185 Nm @ 1200–1500 rpm 200 Nm @ 1200-1500 rpm
    Battery
    12V - 80 Ah / 55A 12 V - 90 Ah

    Service Capacities

    L&T 491 Ammann ARX 32.2
    Fuel Tank
    55 L 50 L
    Hydraulic Tank
    45 L 50 L
    Engine Oil
    8.5 L NA
    Engine Coolant
    8.5 L NA

    Traction

    L&T 491 Ammann ARX 32.2
    Max. Travel Speed
    0 - 12 km/hr 0 - 11 km/hr
    Max. Working Speed
    0 - 6 km/hr NA
    Max. Gradeability
    27% 35%

    Vibration System

    L&T 491 Ammann ARX 32.2
    Centrifugal Force (High/Low)
    45/31 kN 47/39 kN
    Nominal Amplitude (High/Low)
    0.6 mm 0.5 mm
    Frequency High/Low
    65/55 Hz 66/55 Hz
    Vibration Stages
    2 2
    SLL (Front/Rear)
    14 kg/cm 14/14.2 kg/cm

    Hydraulic System

    L&T 491 Ammann ARX 32.2
    Travel System
    Hydrostatic drive with infinitely variable displacement axial piston pump with low speed high torque motor NA
    Vibration System
    Fixed displacement gear pump with fixed displacement gear motor Gear Pump & Gear Motor

    Steering

    L&T 491 Ammann ARX 32.2
    Steering Type
    Articulated Gear Pump & Orbitrol
    Steering Angle
    ±40° ±35°
    Oscillation
    ±13° ±10°

    Brakes

    L&T 491 Ammann ARX 32.2
    Service Brakes
    Hydrostatic Brake (FNR control) Hydrostatic
    Parking Brakes
    Spring Applied Hydraulically Released (SAHR) NA

    Weight

    L&T 491 Ammann ARX 32.2
    Operating Weight
    3450 kg 3375 kg

    Water System

    L&T 491 Ammann ARX 32.2
    Water Spray System Type
    Pressure Spray Drum Wetting System with Diaphragm Water Pumps NA
    Water Tank
    170 L 340 L

    Operational Data

    L&T 491 Ammann ARX 32.2
    Operating Weight
    3450 kg 3375 kg
    Max. Operating Weight
    3535 kg NA
    Front Axle Load
    1725 kg 1675 kg
    Rear Axle Load
    1725 kg 1700 kg

    Dimensions

    L&T 491 Ammann ARX 32.2
    Wheel Base
    2190 mm 2065 mm
    Overall Width
    1340 mm 1300 mm
    Overall Height
    2800 mm 2730 mm
    Height (Top of Steering)
    2080 mm NA
    Overall Length
    2930 mm 3040 mm
    Drum Width
    1225 mm 1200 mm
    Drum Diameter
    725 mm 702 mm
    Drum Thickness
    13.5 mm 14 mm
    Ground Clearance
    370 mm 300 mm
    Curb Clearance
    584 mm 500 mm
    Turning Radius, Outside
    NA 2900 mm
    Turning Radius, Inside
    2300 mm NA
