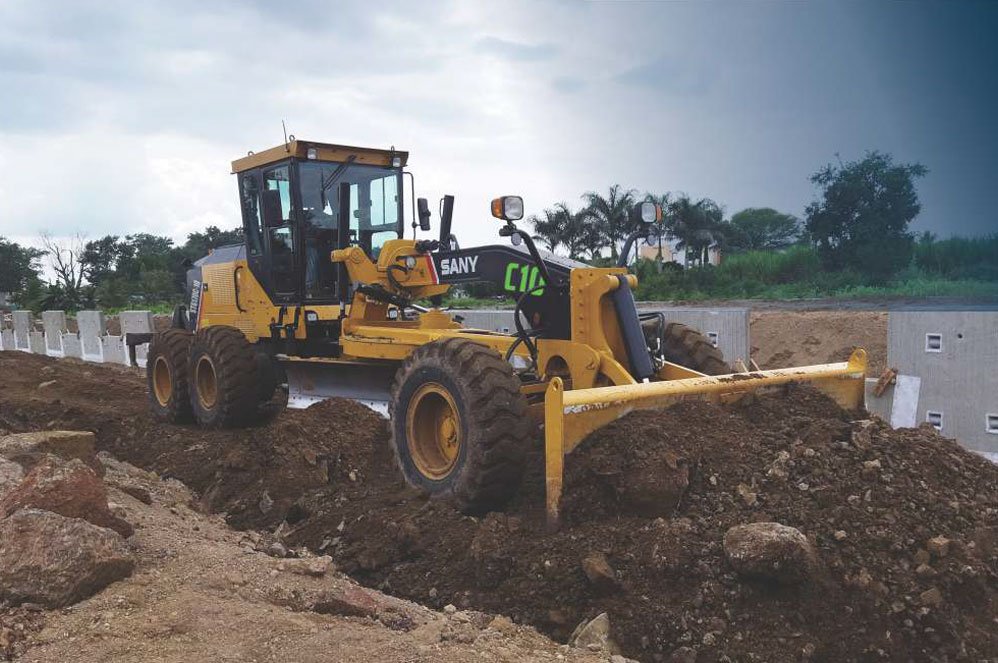

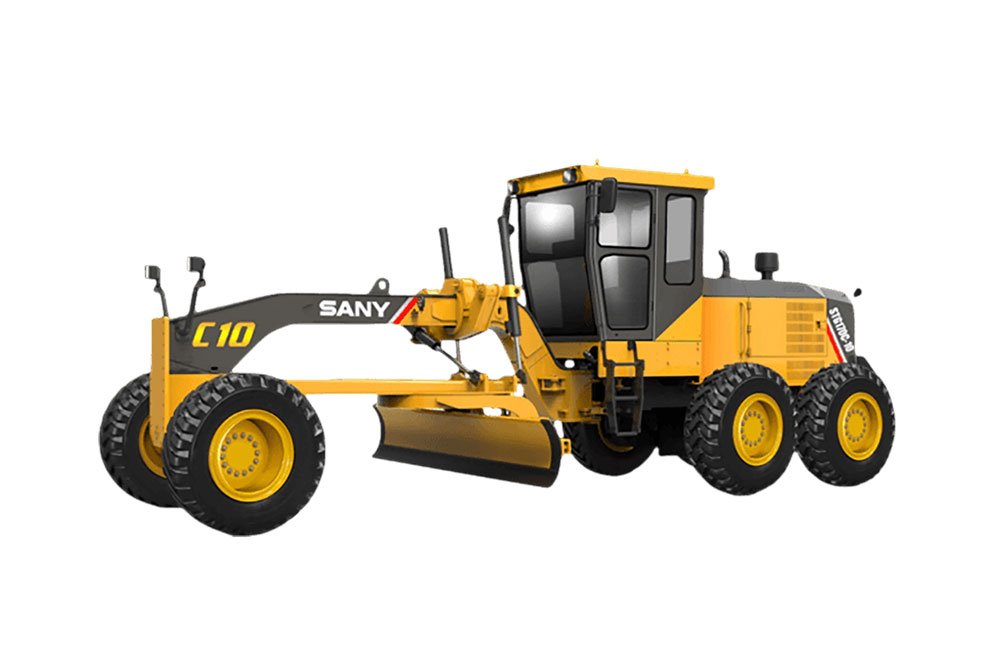

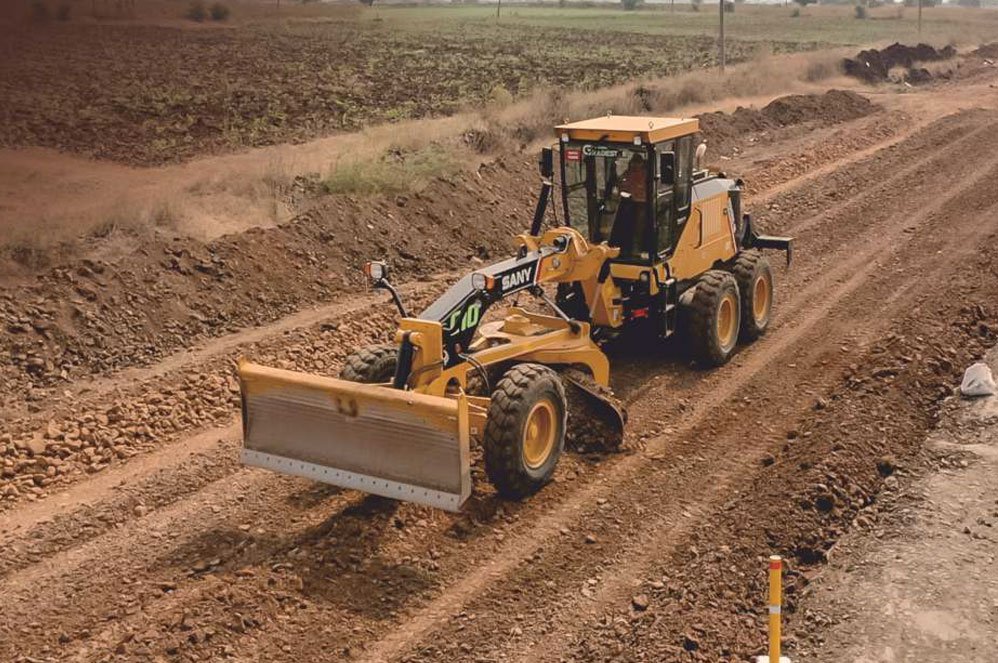

    Sany STG170C-10 Motor Grader

    The Sany STG170C-10 motor grader ensures precision and consistency in heavy-duty construction zones, making it ideal for large-scale grading projects.

    • Brand

      SANY

    • Type

      Medium (12-20 Ton)

    • Operating Cost

      ₹ 44-46 Lakhs

    • Ex-Showroom Price

      ₹ 44-46 Lakhs

    • Engine

      Cummins 173 HP

    • Blade

      3660 mm

    • icon alt1
      Weight

      17250 kg

    • Turning Radius

      7300 mm

    • Forward Speed

      36.0 km/hr

    • Reverse Speed

      26.0 km/hr

    Connect With Us:

    Looking for the best price on a Sany STG170C-10 from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Cummins QSB6.7

    Max Torque

    880 Nm @ 1300 rpm

    Fuel Tank

    350 L

    Hydraulic System

    NA

    Tires

    14 x 24" 16-PR (G3)

    Frame Height

    NA

    Max Lift Above Ground

    480 mm

    Max Cutting Depth

    630 mm

    Blade Pitch Angle

    NA

    Wheel Base

    6127 mm

    Overall Length

    11100 mm

    Overall Height

    3310 mm

    Medal Image
    Warranty

    1 Yr. / 2500 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Engine

    Engine

    • Cummins QSB6.7 Series CEV Stage IV Low Emission engine delivers high productivity and low fuel consumption.

    • Common rail injection system provides precise throttle control, delivering higher work speeds with higher horsepower.

    • Optimum productivity matched with economical operating cost.

    Draw Bar Pull & Blade Downforce

    Draw Bar Pull & Blade Downforce

    • STG170C-10 Grader has excellent traction and powerful blade downforce and is designed with the operator’s needs in mind.

    • Easy to operate and maintain, it’s a machine built for hard work in the toughest conditions.

    • The long wheelbase, long blade base, and optimum weight distribution of the STG170C-10 provide a smooth-grade finish and high cutting capacity at the mouldboard edge.

    Ergonomic Cabin

    Ergonomic Cabin

    • The cabin is designed to keep the operators more comfortable, relaxed and productive in longer hours of operation.

    • Features like low-effort pedals and operating controls with adjustable steering angles help the operator to work easier.

    • A clear view of the moldboard heel and rear tires enhances productivity and safe operation.

    • It also comes with superior features like a crystal display monitor, adjustable operator seat, horizontal sliding window, sun visors, curtains & fan for more operator comfort.

    Engine

    • Cummins QSB6.7 Series CEV Stage IV Low Emission engine delivers high productivity and low fuel consumption.

    • Common rail injection system provides precise throttle control, delivering higher work speeds with higher horsepower.

    • Optimum productivity matched with economical operating cost.

    Draw Bar Pull & Blade Downforce

    • STG170C-10 Grader has excellent traction and powerful blade downforce and is designed with the operator’s needs in mind.

    • Easy to operate and maintain, it’s a machine built for hard work in the toughest conditions.

    • The long wheelbase, long blade base, and optimum weight distribution of the STG170C-10 provide a smooth-grade finish and high cutting capacity at the mouldboard edge.

    Ergonomic Cabin

    • The cabin is designed to keep the operators more comfortable, relaxed and productive in longer hours of operation.

    • Features like low-effort pedals and operating controls with adjustable steering angles help the operator to work easier.

    • A clear view of the moldboard heel and rear tires enhances productivity and safe operation.

    • It also comes with superior features like a crystal display monitor, adjustable operator seat, horizontal sliding window, sun visors, curtains & fan for more operator comfort.

    Specifications

    Product specification of Sany STG170C-10 Motor Grader

    ENGINE

    • Model

      Cummins QSB6.7

    • Fuel

      Diesel

    • Type

      CEV IV

    • Number of Cylinders

      NA

    • Gross Power

      173 HP 129 kW @ 2200 rpm

    • Max Torque

      880 Nm @ 1300 rpm

    • Displacement

      6.7 L

    • Battery

      NA

    • Alternator

      NA

    TRANSMISSION

    • Type

      ZF Tiptronic Transmission

    SPEED

    • Max. Forward Speed

      36.0 km/hr

    • Max. Reverse Speed

      26.0 km/hr

    AXLES

    • Rear Axle

      No spin differential system with reliable & efficient jingda rear axle.

    • Front Axle

      NA

    TIRES

    • Size

      14 x 24" 16-PR (G3)

    STEERING

    • Type

      Hydraulic power, articulated frame steering

    • Minimum Turning Radius

      7300 mm

    • Steering Angle

      45°

    BRAKES

    • Service

      Hydraulic wet multi-disc brake

    • Parking

      Spring-applied, hydraulically released

    FRAME

    • Front Frame Structure - Height

      NA

    • Front Frame Structure - Width

      NA

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      NA

    • Blade Length

      3660 mm

    • Blade Height

      620 mm

    • Blade Thickness

      NA

    • Cutting Edge

      NA

    • Blade Pull

      NA

    • Blade Down Pressure

      8769 kgf

    • Moldboard Side Shift (Right/Left)

      1760 mm / 1760 mm

    • Maximum Shoulder Reach (Right/Left)

      NA

    • Maximum Lift Above Ground

      480 mm

    • Maximum Cutting Depth

      630 mm

    • Blade Pitch Angle

      NA

    HYDRAULICS

    • Type

      NA

    • Maximum Pump Flow

      NA

    • Maximum System Pressure

      NA

    SERVICE CAPACITIES

    • Fuel Tank

      350 L

    • Cooling System

      NA

    • Engine Oil

      NA

    • DEF Tank

      30 L

    • Transmission Oil

      NA

    • Final Drive

      NA

    • Hydraulic System

      110 L

    • Circle Reverse Housing

      NA

    WEIGHT

    • Gross Vehicle Weight

      17250 kg

    STATIC DIMENSIONS

    • Overall Height

      3310 mm

    • Moldboard Base

      2500 mm

    • Wheelbase

      6127 mm

    • Tandem Wheelbase

      1538 mm

    • Width of Standard Moldboard

      3660 mm

    • Overall Length

      11100 mm

    • Tread Gauge

      2280 mm

    • Width of Tires

      2740 mm

    • Articulation, left or right

      NA

    • Minimum Ground Clearence

      410 mm

    Frequently Asked Question

    01. What is the price of the Sany STG170C-10 Motor Grader in India?

    Ans.

    The Sany STG170C-10 motor grader price in India ranges between ₹ 44-46 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy Sany STG170C-10 motor grader in india?

    Ans.

    You can buy the Sany STG170C-10 motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the Sany STG170C-10 motor grader comes with financing & insurance options?

    Ans.

    Yes, the Sany STG170C-10 motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the Sany STG170C-10 Motor Grader?

    Ans.

    The Sany STG170C-10 motor grader is powered by a Cummins QSB6.7 diesel engine, delivering 173 HP 129 kW @ 2200 rpm.

    05. What is the weight of the Sany STG170C-10 Motor Grader?

    Ans.

    The weight of the Sany STG170C-10 motor grader is approximately 17250 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the Sany STG170C-10 Motor Grader?

    Ans.

    The Sany STG170C-10 Motor Grader features a blade width of 3660 mm (12.01 feet), making it ideal for reliable and consistent road grading.

    07. What is the turning radius of the Sany STG170C-10 Motor Grader?

    Ans.

    The Sany STG170C-10 Motor Grader has a turning radius of 7300 mm, engineered for dependable and efficient movement.

    08. What is the fuel tank capacity of the Sany STG170C-10 Motor Grader?

    Ans.

    The Sany STG170C-10 motor grader has a 350-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of Sany STG170C-10 motor grader?

    Ans.

    The Sany STG170C-10 in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the Sany STG170C-10 motor grader?

    Ans.

    You can find genuine spare parts for the Sany STG170C-10 at authorized SANY dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
