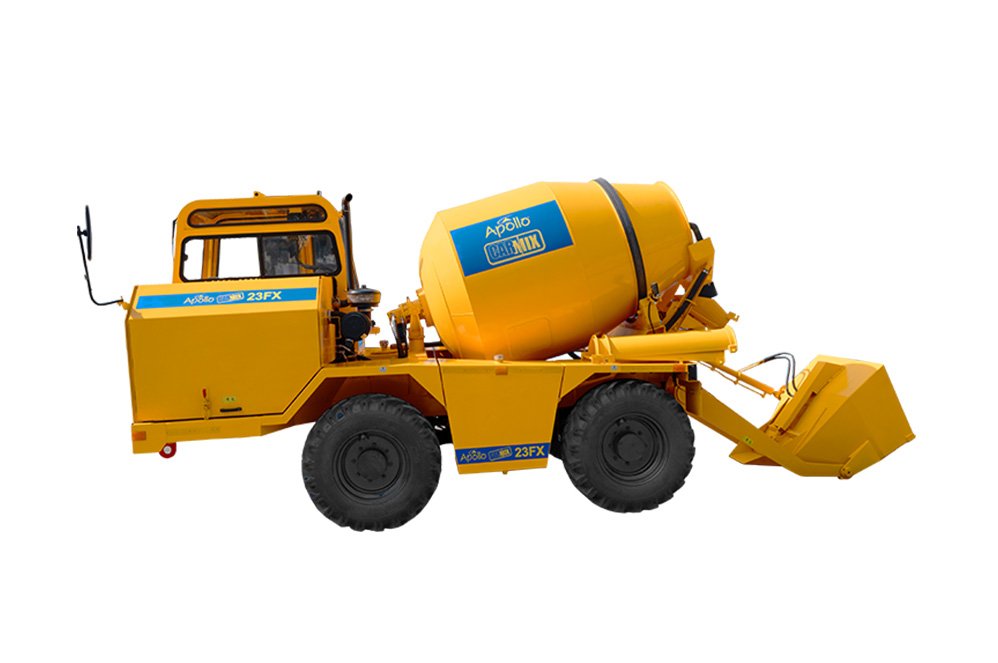

Apollo Carmix 23 FX self-loading concrete mixer ensures precise aggregate loading via hydraulically articulated shovel and ergonomic panel for efficient small-site operation.
Apollo Carmix
Self Loading
₹ 30 – 32 Lakhs
₹ 30 – 32 Lakhs
2.3 m³
KOEL 49 HP
2 × 225 L
27 km/h
16° - 17°
4 Wheel Drive
Get the best price for the Apollo Carmix 23 FX Self Loading Concrete Mixer from authorized dealers. Contact us now for exclusive deals!
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Kirloskar 4R810T
95 L
70 L
400 L
NA
0-18 rpm
6400 mm
2190 mm
3470 mm
12.5-20 PR 12
Powered by Kirloskar 4R810T BSV engine delivering 49 HP @ 2200 rpm, ideal for tough site condition.
Water-cooled and turbocharged design ensure optimal temperature control and longer engine life.
Perfect for project like foundation work, mining, rural road, and irrigation on rough terrain.
Utilize hydrostatic transmission system with electric-servo control for smooth and responsive driving.
Provide full-time 4-wheel drive capability, allowing stable movement on slope and loose surface.
Integrated with joystick-operated hydraulic system, enabling precise maneuvering during loading and unloading.
Offer concrete output of 2.3 m³ per batch, suitable for building site and light infrastructure work.
Feature 400-liter hydraulically operated loading bucket for faster batching and minimal spillage.
Engineered with double helical drum for thorough and uniform mixing every time.
Built on specially engineered steel chassis to withstand rugged off-road condition.
Gross vehicle weight of 5600 kg distributed equally on both axle for maximum stability.
Fitted with 12.5-20 PR 12 off-road tyre, ensuring superior traction and durability.
Maximum road speed of 27 km/h for quick site-to-site mobility.
Handle incline of up to 16°–17° (30% gradient) when fully loaded, perfect for hilly terrain.
Compact dimension L: 6400 mm, W: 1580 mm, H: 2725 mm allow easy maneuvering in tight space.
Feature 3-way hydraulic steering 2-wheel, 4-wheel, and crab steering for unmatched flexibility.
Include 2×225 L water tank, 95 L diesel tank, and 70 L hydraulic oil tank for long uninterrupted run.
Operator comfort enhanced with adjustable Ecomatric panel, ROPS-FOPS cabin, and intuitive joystick control.
Powered by Kirloskar 4R810T BSV engine delivering 49 HP @ 2200 rpm, ideal for tough site condition.
Water-cooled and turbocharged design ensure optimal temperature control and longer engine life.
Perfect for project like foundation work, mining, rural road, and irrigation on rough terrain.
Utilize hydrostatic transmission system with electric-servo control for smooth and responsive driving.
Provide full-time 4-wheel drive capability, allowing stable movement on slope and loose surface.
Integrated with joystick-operated hydraulic system, enabling precise maneuvering during loading and unloading.
Offer concrete output of 2.3 m³ per batch, suitable for building site and light infrastructure work.
Feature 400-liter hydraulically operated loading bucket for faster batching and minimal spillage.
Engineered with double helical drum for thorough and uniform mixing every time.
Built on specially engineered steel chassis to withstand rugged off-road condition.
Gross vehicle weight of 5600 kg distributed equally on both axle for maximum stability.
Fitted with 12.5-20 PR 12 off-road tyre, ensuring superior traction and durability.
Maximum road speed of 27 km/h for quick site-to-site mobility.
Handle incline of up to 16°–17° (30% gradient) when fully loaded, perfect for hilly terrain.
Compact dimension L: 6400 mm, W: 1580 mm, H: 2725 mm allow easy maneuvering in tight space.
Feature 3-way hydraulic steering 2-wheel, 4-wheel, and crab steering for unmatched flexibility.
Include 2×225 L water tank, 95 L diesel tank, and 70 L hydraulic oil tank for long uninterrupted run.
Operator comfort enhanced with adjustable Ecomatric panel, ROPS-FOPS cabin, and intuitive joystick control.
Product specification of Apollo Carmix 23 FX Self Loading Concrete Mixer
Engine Make
Kirloskar 4R810T
Engine Type
BSV - Water cooled, Turbo Charged
Max. Power
49 HP (36.5 kW) @ 2200 rpm
Transmission
Electric‑servo travel, 4WD/4WS reversible
Steering
Hydraulic, 3-Way
Drive
4 Wheel Drive
Brake
Oil‑bath built‑in disc brakes
Max. Speed
27 km/h
Gradeability
16° - 17°
Drum Capacity
2.3 m³
Drum Slewing Degree
NA
Drum Rotation Speed
0-18 rpm
Bucket Capacity
400 L
Fuel Tank
95 L
Hydraulic Tank
70 L
Water Tank Capacity
2 × 225 L
Water Pump Capacity
NA
Weight Unladen**
5600 kg
Weighing Technology
Load-Cell
Overall Length
6400 mm
Overall Width
2190 mm
Overall Height
3470 mm
Tyres
12.5-20 PR 12
Ground Clearance
385 mm
The Apollo Carmix 23 FX self loading concrete mixer price in India ranges between ₹30 – 32 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.
The Apollo Carmix 23 FX comes with a 2.3 cu.m drum capacity, suitable for housing, local construction, and small-to-medium infrastructure.
The Apollo Carmix 23 FX self-loading concrete mixer can produce about 9–11 cu.m of concrete per hour, suitable for housing and small infrastructure projects.
The Apollo Carmix 23 FX is powered by a Kirloskar 4R810T diesel engine, delivering 49 HP (36.5 kW) @ 2200 rpm, BS-V compliant, with a water-cooled, turbocharged system.
The unladen weight of the Apollo Carmix 23 FX self-loading mixer is approximately 5600 kg.
The Apollo Carmix 23 FX self-loading concrete mixer has a fuel consumption of approximately 3.9–6.3 liters per hour.
The Apollo Carmix 23 FX self-loading concrete mixer suits small to medium residential and rural projects. It provides fast, portable on-site batching with consistent concrete quality. Contractors prefer it for multiple short-duration projects.
You can buy the Apollo Carmix 23 FX self-loading mixer in India through Desi Machines, the best online platform to compare and purchase construction equipment. We connect you with the OEM and Apollo Carmix dealers across India and help you get the best price quotes from vendors, so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability.
Apollo Carmix Pvt Ltd is a leading manufacturer of self-loading concrete mixers in India, offering advanced, mobile concrete mixer machines for efficient on-site batching and transportation. As a joint venture between Apollo Inffratech and Italy’s Carmix, the company integrates global expertise with local manufacturing excellence. Known for reliability, innovation, and operator-friendly designs, Apollo Carmix supports infrastructure development across diverse terrains. Its trusted solutions enhance productivity, reduce labor dependency, and ensure consistent concrete quality for modern construction demands.
