Ashok Leyland AVTR 2820 6×4 RMC Concrete Mixer

The AVTR 2820 6×4 RMC BS6 transit mixer by Ashok Leyland provides efficient concrete transport with its balanced 6 to 8 m³ drum size.

RMC Truck | Concrete Mixer truck

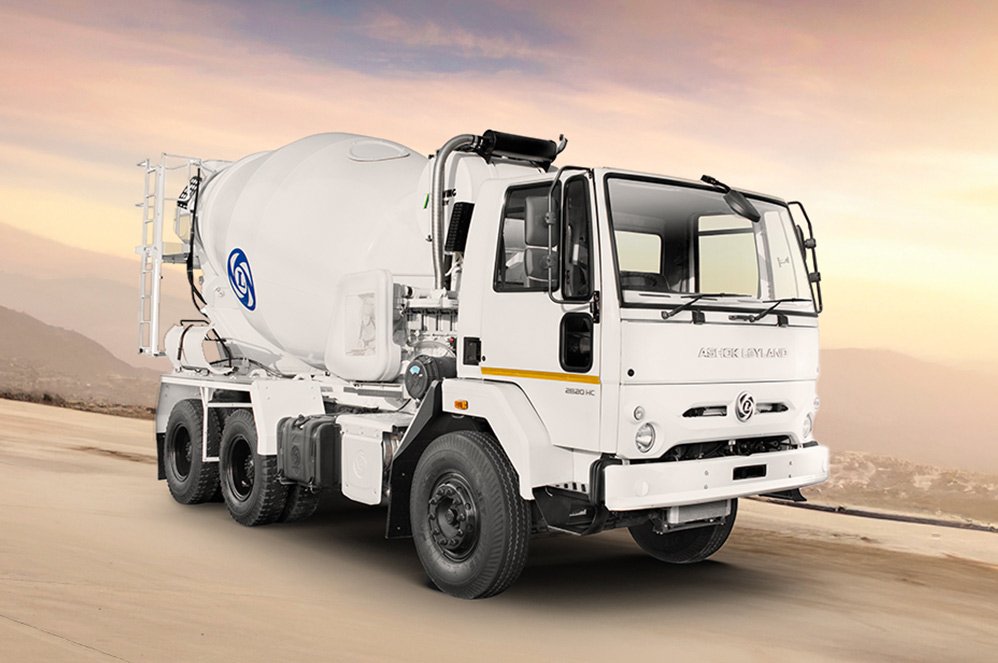

desi-machines-ashok-leyland-avtr-2820-6×4-rmc-transit-mixer-2

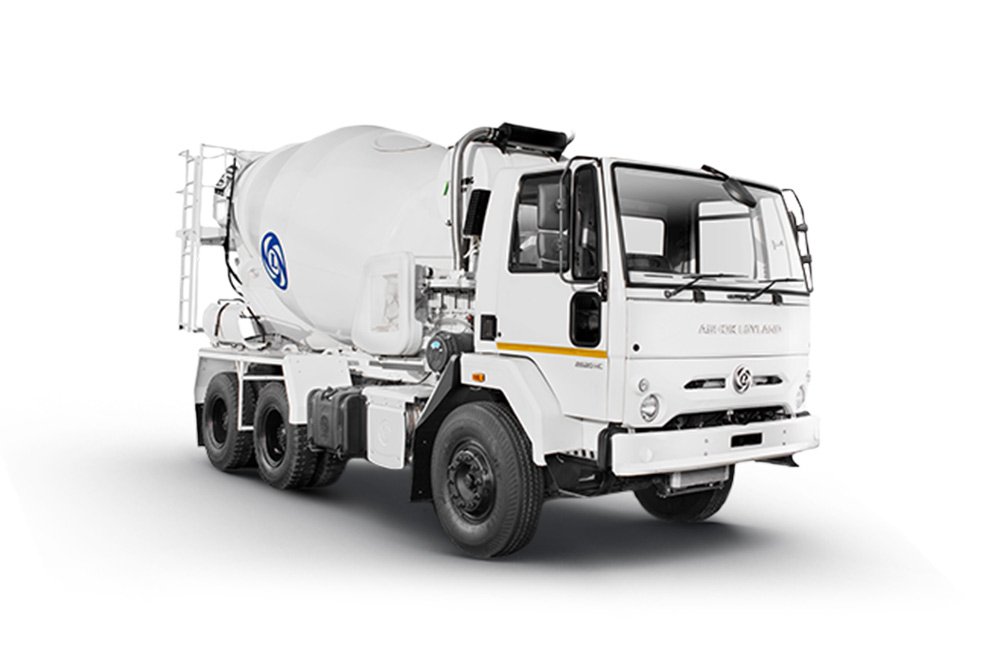

desi-machines-ashok-leyland-avtr-2820-6×4-rmc-transit-mixer-3
  • Brand

    Ashok Leyland

  • Type

    Truck Mounted Transit Mixer

  • Operating Cost

    ₹ 46.50 - 49.50 Lakhs

  • Ex-Showroom Price

    ₹ 46.50 - 49.50 Lakhs

  • Drum Size

    6, 7, 8 m³

  • icon alt1
    GVW

    28000 kg

  • Engine

    H Series 197 HP

  • Max. Speed

    76 km/h

  • Mileage

    6 km/l

  • Max. Torque

    700 Nm

Connect With Us:

Looking for the best price on an Ashok Leyland AVTR 2820 6×4 RMC transit mixer? Connect with authorized dealers today for exclusive deals!

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

H Series i-Gen6 technology

Engine Displacement

5660 cc

Emission

BS-VI

Battery

2x12V / 110 Ah

Fuel Tank

220 L

Gradeability

25.60%

Clutch Dia

380 mm

Drum Drive

EDPTO

Axle Configuration

6 x 4

No. of Tyres

10

Tyres Size

11x20 Optional

295/95D 20

Wheel Base

3900 mm

Overall Length

NA

air-conditioner-alt
AC Cabin

Optional

Telematics

No

Features

Powerful Engine

Powerful Engine

  • 5,660 cc BS VI compliant H series engine tuned for high performance.

  • Delivers up to 197 HP and 700 Nm torque for optimal hauling efficiency.

  • Flat torque curve ensures consistent power delivery across varied terrain.

  • Advanced iEGR and mid-NOx tech reduce emissions while improving mileage.

Robust Transmission & Driveline

Robust Transmission & Driveline

  • 6 speed manual synchromesh gearbox with FGR options (8.91/9.01).

  • 380 mm ceramic clutch with hydraulic booster for smooth gear shifts.

  • Fully floating hypoid rear axle with 6.17:1 ratio for enhanced load handling.

  • Optimised driveline and improved cooling system for durable operations.

Heavy Duty Chassis & Suspension

Heavy Duty Chassis & Suspension

  • Modular AVTR platform built using high-strength steel frames.

  • Semi-elliptic and parabolic leaf spring front, NRS bogie rear for stability.

  • Improved steering geometry, sealed lifetime ball joints, U U-bolt torque retention.

  • Flow formed durable wheels, strong axles, and anti-roll bar enhance safety.

Payload Performance

Payload Performance

  • GVW rated at 28 tonnes with payload capacity around 12.7 tonnes.

  • Cabin options support 6 m³ and 7 m³ RMC drums, even 8 m³ in larger variant.

  • Wheelbase of 3,900 mm ensures safe turning radius (7,100 mm).

  • Ten tyre layout (6×4) gives balanced load distribution and traction.

Fuel & Emissions Management

Fuel & Emissions Management

  • 220 litre fuel tank offers long operational range for concrete transport.

  • Mileage averages 3–6 kmpl, with highway figures reaching 6 kmpl.

  • EATS with mid NOx tech and low DEF use enhances fuel efficiency.

  • On-board driver guidance and instant kmpl display support fuel efficient driving.

Superior Safety & Driver Comfort

Superior Safety & Driver Comfort

  • Full air dual-line braking system with ABS and ASA for reliable stopping.

  • Hydraulic power steering with large pump ensures effortless manoeuvrability.

  • Modular cabins (G/M/U/N) available with optional AC, HVAC and better NVH.

  • Standard safety features:reinforced metal fascia, seat belts, parking brakes.

Powerful Engine

  • 5,660 cc BS VI compliant H series engine tuned for high performance.

  • Delivers up to 197 HP and 700 Nm torque for optimal hauling efficiency.

  • Flat torque curve ensures consistent power delivery across varied terrain.

  • Advanced iEGR and mid-NOx tech reduce emissions while improving mileage.

Robust Transmission & Driveline

  • 6 speed manual synchromesh gearbox with FGR options (8.91/9.01).

  • 380 mm ceramic clutch with hydraulic booster for smooth gear shifts.

  • Fully floating hypoid rear axle with 6.17:1 ratio for enhanced load handling.

  • Optimised driveline and improved cooling system for durable operations.

Heavy Duty Chassis & Suspension

  • Modular AVTR platform built using high-strength steel frames.

  • Semi-elliptic and parabolic leaf spring front, NRS bogie rear for stability.

  • Improved steering geometry, sealed lifetime ball joints, U U-bolt torque retention.

  • Flow formed durable wheels, strong axles, and anti-roll bar enhance safety.

Payload Performance

  • GVW rated at 28 tonnes with payload capacity around 12.7 tonnes.

  • Cabin options support 6 m³ and 7 m³ RMC drums, even 8 m³ in larger variant.

  • Wheelbase of 3,900 mm ensures safe turning radius (7,100 mm).

  • Ten tyre layout (6×4) gives balanced load distribution and traction.

Fuel & Emissions Management

  • 220 litre fuel tank offers long operational range for concrete transport.

  • Mileage averages 3–6 kmpl, with highway figures reaching 6 kmpl.

  • EATS with mid NOx tech and low DEF use enhances fuel efficiency.

  • On-board driver guidance and instant kmpl display support fuel efficient driving.

Superior Safety & Driver Comfort

  • Full air dual-line braking system with ABS and ASA for reliable stopping.

  • Hydraulic power steering with large pump ensures effortless manoeuvrability.

  • Modular cabins (G/M/U/N) available with optional AC, HVAC and better NVH.

  • Standard safety features:reinforced metal fascia, seat belts, parking brakes.

Specifications

Product specification of Ashok Leyland AVTR 2820 6×4 RMC Concrete Mixer

ENGINE

  • Model

    H Series i-Gen6 technology

  • Fuel

    Diesel

  • Type

    Compression Ignition TCIC

  • Max. Power

    197 HP (147 kW) @ 2400 ropm

  • Max. Torque

    700 Nm @ 1200 - 2000 rpm

  • No. of Cylinders

    6 Cylinders

  • Engine Displacement

    5660 cc

  • Emission

    BS-VI

  • Battery

    2x12V / 110 Ah

TRANSMISSION & CLUTCH

  • Gear Box Model & Type

    6 Speed Syncromesh-FGR 9.01

  • Clutch Type

    Single plate dry type

  • Clutch Dia

    380 mm

  • Drum Drive

    EDPTO

AXLE

  • Front Axle

    FA 90 Forged I Section - Reverse Elliot type

  • Rear Axle

    Fully Floating single speed rear axle, Hypoid differential RAR

  • Rear Axle Ratio

    6.17:1

CHASSIS FRAME & SUSPENSION

  • Chassis Frame (DxWxT)

    275 x 75 x 8 mm

  • Front Suspension

    Semi Elliptic Multileaf and Parabolic springs

  • Rear Suspension

    Non Reactive Suspension

BRAKES

  • Service

    Full air Dual line brakes with ABS with ASA

  • Parking

    Parking brakes on rear wheels only

STEERING

  • Steering Type

    Hydraulic assisted power steering

SERVICE CAPACITIES

  • Fuel Tank

    220 L

  • DEF Tank

    24 L

PERFORMANCE

  • Gradeability

    25.6%

  • Max Speed

    76 km/h

  • TCD

    14200 mm

  • Mileage

    6 km/l

VEHICLE DIMENSIONS & WEIGHT

  • Gross Vehicle Weight

    28000 kg

  • Wheel Base

    3900 mm

  • Load Body

    6, 7, 8 m³

  • Overall Length

    NA

  • Overall Width

    NA

  • Overall Height

    NA

  • Ground Clearance

    240 mm

  • Axle Configuration

    6 x 4

  • No. of Tyres

    10

  • Tyres Size

    295/95D 20, 11x20 Optional

COMFORT

  • Cabin

    M Day, U Day & N Day with AC Option

  • A/C

    Optional

  • Telematics

    No

  • Seat Type

    D+1

Frequently Asked Question

01. What is the price of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer in India?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer is priced between ₹46.50 lakh to ₹49.50 lakh (ex-showroom). Prices may vary based on location, dealer, and configuration

02. What is the engine power and torque of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer is equipped with an H-series CRS BS6 diesel engine, delivering 197 HP at 2400 rpm and a peak torque of 700 Nm at 1200–2000 rpm. This ensures smooth and efficient concrete transport even on tough terrain.

03. What is the gross vehicle weight (GVW) of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Gross Vehicle Weight (GVW) of the Ashok Leyland AVTR 2820 Transit Mixer is 28,000 kg. This high load capacity makes it suitable for heavy-duty construction applications involving large volumes of ready-mix concrete.

04. What drum sizes are available with the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer is typically available with 6 m³, 7 m³ & 8 m³ transit mixer drums, designed for large-scale infrastructure and commercial construction projects.

05. What is the mileage of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The fuel efficiency of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer ranges between 3 to 6 km per litre, depending on the load, road conditions, and driving style. The truck’s BS6 technology helps optimize fuel consumption in real-time.

06. What is the fuel tank capacity of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer features a 220-litre diesel fuel tank, along with a 48-litre AdBlue tank for BS6 compliance. This large capacity supports extended operations on construction sites without frequent refueling.

07. What is the maximum speed of the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer features a top speed of 76 km/h, electronically governed for safety and regulatory compliance. This speed is ideal for both on-road transit and controlled site movement, ensuring stability while carrying heavy concrete loads.

08. What warranty does the Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer?

Ans.

The Ashok Leyland AVTR 2820 6×4 RMC Transit Mixer comes with a 4-year or 6,000 engine hours driveline warranty, whichever comes first.
