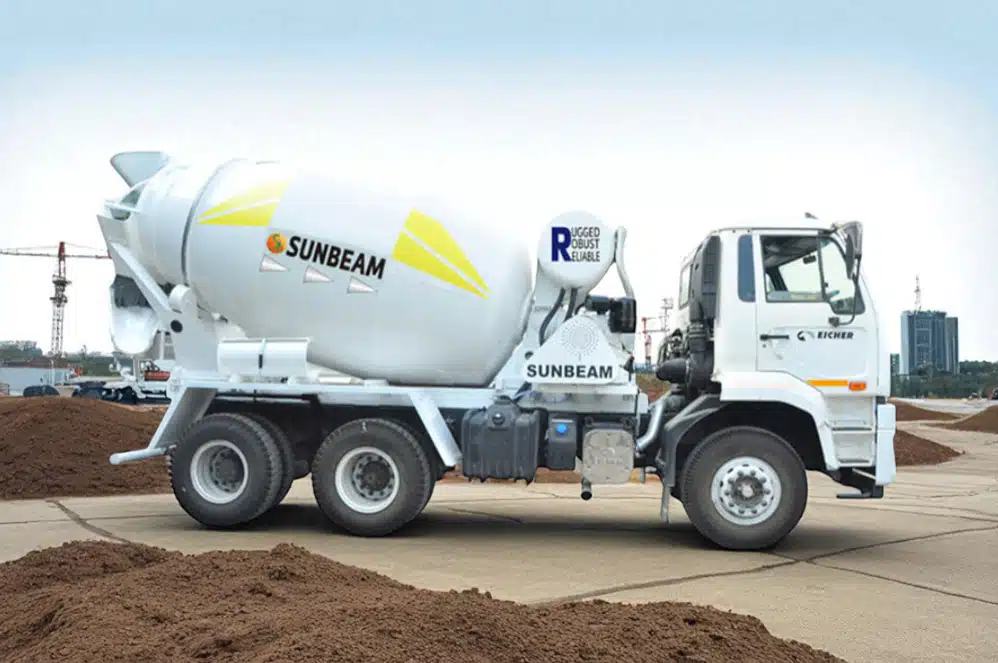

Sunbeam 65 XL Concrete Mixer

The generous 7 m³ nominal volume and 12.1 m³ geometric volume allow for large loads per trip. This reduces downtime and improves productivity.

It is made from wear- and corrosion-resistant ST52 high-tensile steel with a shell thickness of 3-4-5-6 mm. This design ensures a long service life in tough conditions.

The innovative spiral blades and optimized geometry allow for quick and efficient charging and discharge cycles. This makes it ideal for continuous mixing operations.

The mixer comes with a high-pressure pump that delivers 400 L/min at 3.5 bar. This ensures a consistent and controlled water addition during mixing for precise concrete quality.

The accurate water meter scale ranges from 0 to 450 L. This enables precise batching to meet variable job site demands and reduces mixing errors.

With a tank capacity of 450 L, larger than standard mixers, it reduces the need for refills and supports extended continuous operation.

It features a 52 kW engine that delivers strong power to rotate the drum at speeds from 0 to 14 rpm, even under heavy loads and challenging terrain.

The PTO-driven option for tractor setup adds versatility. This saves fuel and maintains efficiency.

The design includes a low center-of-gravity frame and a strong axle-counterframe layout. This ensures stability and maneuverability on job sites.

The drum and spirals are made from high-quality metal. Wear plates on the hopper and chute help extend the component life in abrasive conditions.

The PU-painted, grit-blasted exterior offers UV resistance and a scratch-proof finish, providing optimal protection against harsh climates.

The ISO-certified manufacturing process guarantees high-quality welding, laser cutting, and assembly, which leads to minimal downtime.

Dual bottom-cone manholes allow for easy cleaning and inspection of the drum. The GI ladder and chute cover provide secure access for maintenance.

Balanced load distribution ensures safe handling, even in tight job site conditions, boosting operator confidence.

An optional T-TRACK IoT-based system monitors machine health, sends fault alerts, and provides GPS tracking. This improves safety and uptime.

Compatible with the T-TRACK remote monitoring system, track equipment health, geofencing, service alerts, and fuel efficiency in real time.

Steel sourced from Tata and JSW ensures consistent, quality materials combined with heavy-duty build strength.

The 65 XL model is designed for low running costs and maximum return on investment. It pairs a rugged structure with minimal maintenance needs.
