Komatsu WA380Z-6 Wheel Loader

Name: Komatsu WA380Z-6 Wheel Loader
Brand: L&T Komatsu
Rating: 4.3 (63 reviews)

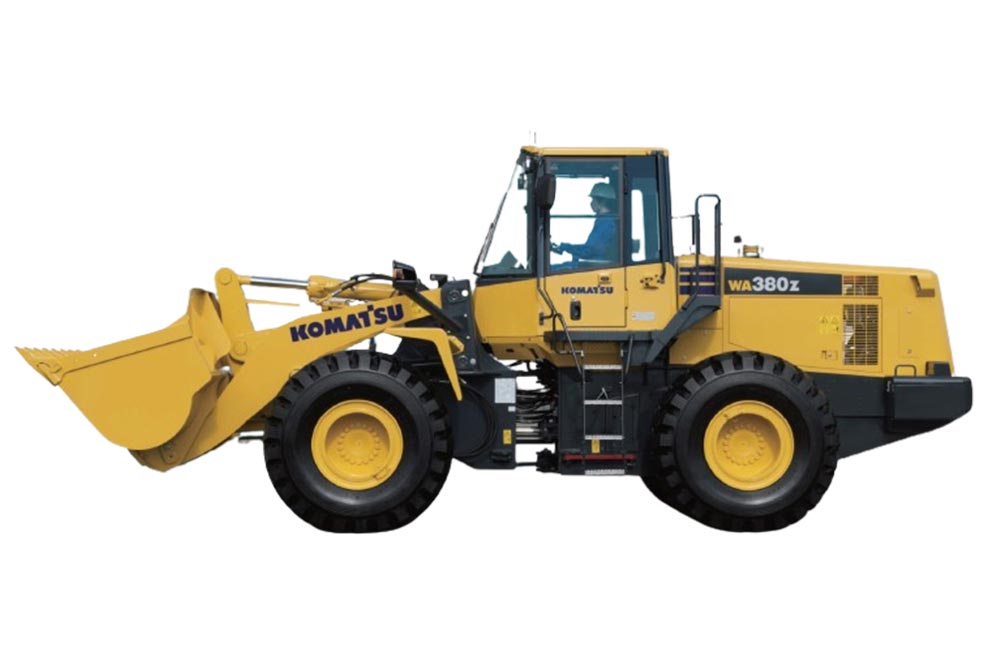

desi machines komatsu wa380z 6 wheel loader 1

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
L&T Komatsu
Type
Medium (15-30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Komatsu 192 HP
Bucket
2.7 - 4.0 m³
Weight
17420 kg
Fwd. Speed
34.0 km/h
Dump Height
2950 mm
Tipping Load
12470 kg

Quick Overview:

The Komatsu WA380Z-6 Wheel Loader combines fuel efficiency with robust performance, suitable for various Indian construction projects.

Connect With Us:

Get the best price for the Komatsu WA380Z-6 wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Komatsu SAA6D107E-1

Max Torque

Fuel Tank

300 L

Hydraulic System

205.5 L/min

Min. Ground Clearance

455 mm

Payload

Steering Angle

±35°

Drive Type

4-wheel drive (4WD)

Wheelbase

3300 mm

Tyres

23.5-25

Max. Breakout Force

158 kN

Overall Length

8140 mm

Warranty

1 Yr. / 3000 hr.

AC Cabin

Standard

GPS

Standard

Features

Engine Performance

Powered by a high-performance Komatsu SAA6D107E-1 diesel engine, the WA380Z-6 provides industry-leading efficiency for the most demanding construction sites.
With its dual-mode engine power select system, you can switch between power modes for fuel economy or operating performance.
The system is best suited to high-load loading and lifting cycles on active construction sites.

Advanced Hydraulic System

Fitted with a variable displacement piston pump and Closed Load Sensing System (CLSS) for accurate and responsive hydraulic capability.
The latest hydraulic configuration provides energy-efficient performance with excellent breakout forces.
Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

Efficient Load Handling Capacity

Built for productivity, the WA380Z-6 has a strong loading capacity that is well-suited for medium to large projects.
Optimized bucket designs and robust lift arms enable effective material handling and quick cycle times.
Consistent breakout power from the machine makes it very productive on aggregates, earthmoving, and industrial applications.

Operator Comfort and Safety

The operator station has a pillar-less ROPS/FOPS-integrated cab design for superior visibility and protection.
A tilt steering column, electronically controlled lever transmission, and fingertip control levers enable intuitive handling.
With rear-hinged wide-opening doors, automatic transmission, and ECMV-based control, the operator has a fatigue-free, ergonomic operating environment.

Engineered for Maximum Durability

Constructed on a strong Komatsu mainframe with high-reliability components engineered internally for long-term operation even under harsh conditions.
Features maintenance-free wet disc brakes and flat face O-ring seals on hydraulic hoses to improve reliability.
The loader's tough build and durable finishes provide corrosion and wear protection.

Low Fuel, High ROI

Low-fuel-consumption engines and auto power management systems provide excellent fuel efficiency for lower operating expenses.
Komatsu's EMMS (Equipment Management Monitoring System) facilitates preventive maintenance and diagnosis, lowering downtime.
Durable and simple to service, the WA380Z-6 provides a strong ROI for contractors and fleet operators.

Engine Performance

Powered by a high-performance Komatsu SAA6D107E-1 diesel engine, the WA380Z-6 provides industry-leading efficiency for the most demanding construction sites.
With its dual-mode engine power select system, you can switch between power modes for fuel economy or operating performance.
The system is best suited to high-load loading and lifting cycles on active construction sites.

Advanced Hydraulic System

Fitted with a variable displacement piston pump and Closed Load Sensing System (CLSS) for accurate and responsive hydraulic capability.
The latest hydraulic configuration provides energy-efficient performance with excellent breakout forces.
Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

Efficient Load Handling Capacity

Built for productivity, the WA380Z-6 has a strong loading capacity that is well-suited for medium to large projects.
Optimized bucket designs and robust lift arms enable effective material handling and quick cycle times.
Consistent breakout power from the machine makes it very productive on aggregates, earthmoving, and industrial applications.

Operator Comfort and Safety

The operator station has a pillar-less ROPS/FOPS-integrated cab design for superior visibility and protection.
A tilt steering column, electronically controlled lever transmission, and fingertip control levers enable intuitive handling.
With rear-hinged wide-opening doors, automatic transmission, and ECMV-based control, the operator has a fatigue-free, ergonomic operating environment.

Engineered for Maximum Durability

Constructed on a strong Komatsu mainframe with high-reliability components engineered internally for long-term operation even under harsh conditions.
Features maintenance-free wet disc brakes and flat face O-ring seals on hydraulic hoses to improve reliability.
The loader's tough build and durable finishes provide corrosion and wear protection.

Low Fuel, High ROI

Low-fuel-consumption engines and auto power management systems provide excellent fuel efficiency for lower operating expenses.
Komatsu's EMMS (Equipment Management Monitoring System) facilitates preventive maintenance and diagnosis, lowering downtime.
Durable and simple to service, the WA380Z-6 provides a strong ROI for contractors and fleet operators.

Specifications

Product specification of Komatsu WA380Z-6 Wheel Loader

ENGINE

Make

Komatsu SAA6D107E-1
Type

Water-cooled, 4-cycle
Aspiration

Turbocharged, aftercooled
Emission

EPA Tier 3 and EU Stage IIIA
Max. Power

192 HP (143 kW) @ 2100 rpm
Max Torque

NA
Piston Displacement

6.69 L
No. of Cylinders

6 Cylinders
Battery

12V x 2 / 136 Ah
Alternator

24V / 60A

POWER TRAIN

Transmission

Automatic full-powershift, countershaft type
Drive Type

4-wheel drive (4WD)
Torque Converter

3-element, 1-stage, 1-phase

BRAKES

Service

Hydraulically actuated, wet disc brakes actuate on four wheels
Parking

Wet disc brake

STEERING SYSTEM

Type

Articulated Type, Full-Hydraulic Power Steering
Steering Angle

±35°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed, semi-floating
Rear Axle Type

Center-pin support, semi-floating
Oscillation Angle

±13°

SPEED

Top Forward Speed

34.0 km/h
Top Reverse Speed

35.5 km/h

HYDRAULIC SYSTEM

System Type

Closed-Center, Load-Sensing System
Pump Type

Piston pump
Max. Pump Flow

205.5 L/min
System Pressure

314 bar

SERVICE REFILL CAPACITIES

Fuel Tank

300 L
Hydraulic System

139 L
Engine Oil

23 L
Cooling System

29.1 L
Rear Axle Oil

40 L
Front Axle Oil

40 L
Hydraulic Tank

NA
Transmission Oil

38 L
DEF Tank

NA

DIMENSIONS

Overall Length With Bucket

8140 mm
Wheel Base

3300 mm
Height Over Cab

3390 mm
Height Over Exhaust

NA
Min. Ground Clearance

455 mm
Width Over Tyres

2780 mm
Wheel Tread

2160 mm
Tyre Size

23.5-25

PERFORMANCE

Bucket Capacity

2.7 - 4.0 m³
Bucket Width

2905 mm
Payload

NA
Tipping Load Straight

14415 kg
Tipping Load Full Turn

12470 kg
Max. Breakout Force

158 kN
Operating Weight

17200 - 17420 kg
Maximum Dump Angle

45°
Bucket Roll Back Angle Full Height

NA
Bucket Roll Back At Carry

NA
Bucket Roll Back At Ground Level

NA
Dumping Height, Fully Raised

2950 mm
Dumping Reach, Fully Raised

1150 mm
Max. Hinge Pin Height

4095 mm
Max. Digging Depth

60 mm
Turning Radius Over Tyres

NA
Turning Radius Over Bucket

NA

Frequently Asked Question

01. What is the Komatsu WA380Z-6 wheel loader price in India?

Ans.

The Komatsu WA380Z-6 wheel loader price in India is available on request. To get the latest on-road price of the Komatsu WA380Z-6 based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Komatsu WA380Z-6 wheel loader in India at the best price?

Ans.

You can buy the Komatsu WA380Z-6 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Komatsu dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Komatsu WA380Z-6 price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Komatsu WA380Z-6 wheel loader?

Ans.

The Komatsu WA380Z-6 wheel loader is powered by a Komatsu SAA6D107E-1 diesel engine, delivering 192 HP (143 kW) @ 2100 rpm.

04. What is the operating weight of the Komatsu WA380Z-6 wheel loader?

Ans.

The operating weight of the Komatsu WA380Z-6 wheel loader ranges from approximately 17200 to 17420 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Komatsu WA380Z-6 wheel loader?

Ans.

The Komatsu WA380Z-6 wheel loader has a 300 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Komatsu WA380Z-6 wheel loader?

Ans.

The bucket capacity of the Komatsu WA380Z-6 is 2.7 – 4.0 cubic meters (m³).

07. What is the dump height of the Komatsu WA380Z-6 wheel loader?

Ans.

The Komatsu WA380Z-6 wheel loader has a dump height of 2950 mm, supporting efficient loading and unloading activities.

08. What is the warranty period of Komatsu WA380Z-6 wheel loader?

Ans.

The Komatsu WA380Z-6 wheel loader in India typically comes with a standard warranty of 1 year or 3000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Komatsu WA380Z-6 wheel loader?

Ans.

The Komatsu WA380Z-6 wheel loader features a 4-wheel drive (4WD) system with an Automatic full-powershift & countershaft type transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 34 km/h.

10. What are the key applications and uses of the Komatsu WA380Z-6 wheel loader?

Ans.

Supporting construction and material handling tasks, the Komatsu WA380Z-6 is a medium-duty loader with reliable power, efficient hydraulics, and operator-friendly controls for smooth operation.

11. Where can I find spare parts for the Komatsu WA380Z-6 wheel loader?

Ans.

You can find genuine spare parts for the Komatsu WA380Z-6 wheeled loader at authorized Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
